Laser displacement sensors have become one of the most reliable ways to achieve non-contact, high‑precision measurement in modern manufacturing, automation, and quality control. From my work with OEM customers at Aiming Laser Technology Co., Ltd., I've seen how the right sensor design and laser module choice can dramatically improve measurement stability, line efficiency, and overall equipment performance. [gtric]
A laser displacement sensor is a non‑contact measurement device that projects a laser spot onto a target, detects the reflected light, and calculates the distance between the sensor and the surface. It essentially works as a digital, optical ruler that measures height, thickness, position, or travel distance without touching the part. [keyence]
Unlike contact probes, laser displacement sensors can handle fast‑moving, fragile, hot, or soft materials because measurement relies purely on optics and internal signal processing. This is critical in sectors like electronics, automotive, lithium battery, and precision machining where any physical contact might damage the product or slow the process. [grandviewresearch]

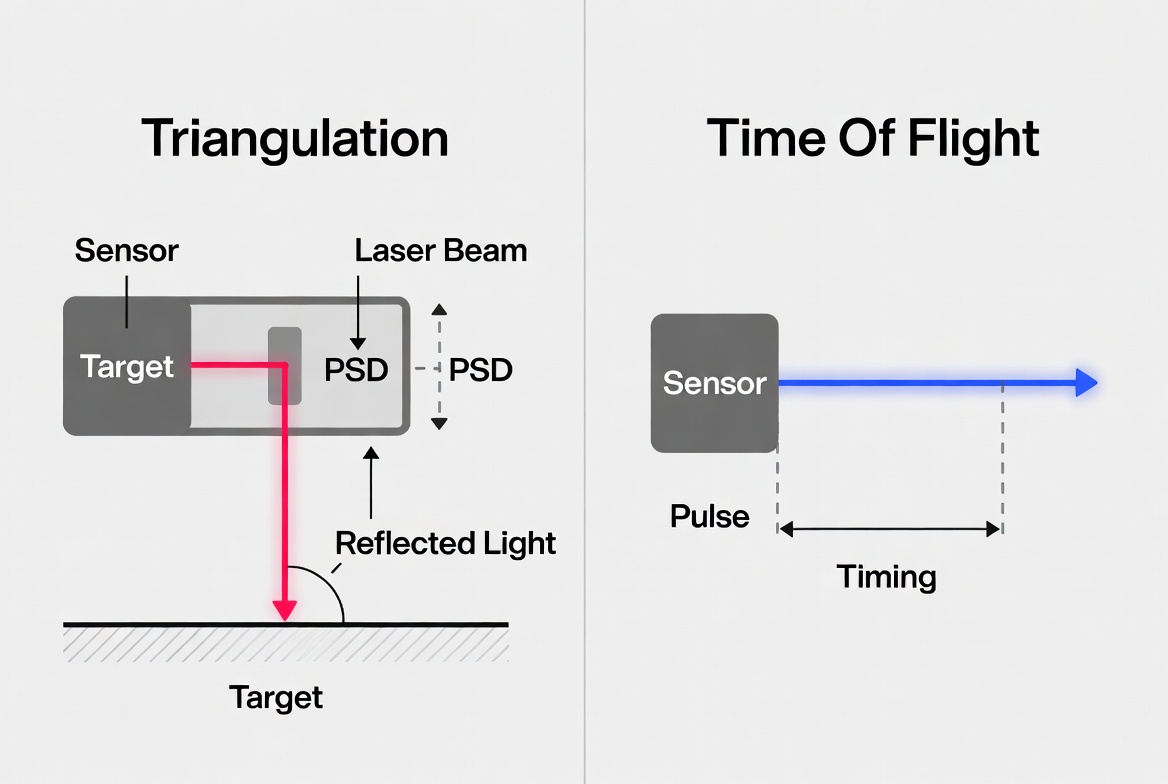

Most industrial laser displacement sensors use triangulation or time‑of‑flight (ToF) techniques. [gtric]
- In triangulation, the sensor emits a laser beam onto the target, an internal lens focuses the reflected light onto a position‑sensitive detector or CMOS array, and the system calculates distance from the angle/position of the light spot. [youtube]
- In ToF systems, the sensor measures the time between emission and return of a pulsed laser beam; the distance is derived from that time difference. [gtric]
Modern triangulation sensors can reach micron‑level or even sub‑micron‑level resolution, especially in short‑range applications and clean environments. They support a wide range of surfaces, including metals, plastics, ceramics, and glass, by optimizing wavelength, optics, and internal algorithms. [keyence]
When I evaluate laser displacement sensors for an OEM project, I focus on several core parameters because they directly impact real‑world performance. [de.aliexpress]
1. Measurement range and resolution
- Range defines the minimum and maximum distance the sensor can measure accurately. [de.aliexpress]
- Resolution is the smallest change in distance the sensor can detect, which is critical for high‑precision positioning, flatness checking, and thickness measurement tasks. [de.aliexpress]
2. Accuracy and repeatability
- High‑end units can reach accuracies in the micron or sub‑micron range in optimized conditions. [gtric]
- Repeatability ensures that multiple readings on the same target produce nearly identical results, which is vital for closed‑loop control. [de.aliexpress]
3. Surface compatibility and reflectivity
Different materials reflect light differently, so it is essential to match sensor type and wavelength to the target: [youtube]
- Dark, rough surfaces may require higher power or optimized optics.
- Highly reflective or mirror‑like surfaces often need special optics, filters, or confocal technology.
4. Environmental robustness
Industrial environments can be hot, dusty, oily, or humid. Look for: [datainsightsmarket]
- IP ratings (such as IP67) for strong dust and water resistance. [de.aliexpress]
- Extended temperature ranges and vibration resistance for harsh conditions. [gtric]
5. Output interfaces and integration
Laser displacement sensors typically provide analog outputs (voltage or current) or digital interfaces (Ethernet, RS‑485, fieldbus). Choosing a compatible output simplifies integration with PLCs, industrial PCs, motion controllers, and data acquisition systems. [gtric]
From a system integrator's perspective, choosing the right type of sensor is often more important than chasing the highest accuracy. [keyence]
Common types include:
- 1D triangulation sensors – Single‑point sensors for distance, height, and position measurements with excellent precision. [keyence]
- Confocal displacement sensors – Optimized for highly reflective, transparent, or multi‑layer materials where standard triangulation struggles. [gtric]
- 2D/3D laser profilers – Use a line laser and camera to capture full surface profiles for gap, contour, and weld inspection. [gtric]
Each type has its own trade‑off between cost, complexity, speed, and achievable accuracy. [de.aliexpress]
Suggested visual: Insert a simple diagram showing triangulation versus ToF and a profile sensor scanning a component.
Laser displacement sensors are now standard in many industries because they offer fast, non‑contact and repeatable measurements. [datainsightsmarket]
Typical application areas include:
- Automotive and EV manufacturing – Brake rotor runout, body gap checking, battery cell thickness, adhesive bead height inspection. [grandviewresearch]
- Electronics and semiconductors – PCB warpage, solder paste height, component coplanarity, wafer thickness and flatness. [gtric]
- Metal processing and machining – Online thickness, flatness, and surface profile measurements; tool wear monitoring. [de.aliexpress]
- Packaging and printing – Roll diameter monitoring, web tension feedback, label positioning, and registration. [de.aliexpress]
- Robotics and automated assembly – Position feedback for pick‑and‑place, assembly alignment, and height referencing. [grandviewresearch]
In many of these scenarios, the sensor itself is not sold as a stand‑alone device to the end user; instead, it is integrated into OEM equipment such as measuring machines, inspection systems, or robotic workcells. [rp-photonics]
The demand for industrial laser sensors is growing rapidly as factories move toward higher automation, traceability, and zero‑defect manufacturing. [datainsightsmarket]
- The global industrial laser sensor market is expanding at a projected compound annual growth rate (CAGR) of around 8–13%, reflecting strong demand from automotive, electronics, and general industrial sectors. [datainsightsmarket]
- One analysis reports that the global laser sensor market reached about USD 828.3 million in 2023, with an expected CAGR of 12.7% from 2024 to 2030. [grandviewresearch]
- Another dataset indicates that industrial laser sensor shipments may exceed 200 million units around 2025, with a trajectory towards 500 million units by 2033. [datainsightsmarket]
For OEMs and equipment builders, this growth means more competition and higher expectations: end users expect smaller sensors, higher accuracy, better connectivity, and competitive pricing. [grandviewresearch]
Aiming Laser Technology Co., Ltd. positions itself in this context as a dedicated OEM laser module manufacturer, supporting sensor makers and system integrators with tailored diode modules and fiber‑coupled lasers. [made-in-china]
Based on typical customer projects, I recommend a structured selection process rather than simply choosing a "high‑spec" sensor. [de.aliexpress]
Step 1: Define the measurement task clearly
- What quantity are you measuring: distance, thickness, height, runout, flatness?
- What are the min/max distances and tolerances? [gtric]
Step 2: Match range, resolution, and accuracy
- Choose a sensor whose measurement range covers your working distance with margin. [de.aliexpress]
- Make sure resolution is significantly finer than your tolerance requirement (often by a factor of 5–10). [gtric]
Step 3: Evaluate surface and environment
- Identify whether surfaces are dark, shiny, transparent, or mixed, then review sensor technology and wavelength options accordingly. [youtube]
- Confirm IP rating, temperature range, and resistance to dust, oil, and vibration. [datainsightsmarket]
Step 4: Check integration details
- Determine whether you need analog output, digital, or Ethernet/fieldbus. [de.aliexpress]
- Verify mechanical mounting options, available accessories, and cable lengths. [gtric]
Step 5: Run proof‑of‑concept tests
- Test representative parts, including worst‑case surfaces, before finalizing the sensor. [de.aliexpress]
- Validate performance in real environmental conditions with your PLC or controller. [gtric]
Suggested visual: Insert a small decision‑flow diagram illustrating this five‑step selection process.
In real projects, I see many measurement problems caused not by the sensor itself but by mounting, alignment, and calibration issues. [youtube]
Here are best practices that consistently improve performance:
- Mounting and stability: Use rigid fixtures and avoid flexible brackets so vibration and thermal drift are minimized. [de.aliexpress]
- Alignment: Wherever possible, mount the sensor perpendicular to the target surface to achieve the best accuracy and signal quality. [gtric]
- Ambient light control: Shield sensors from direct sunlight or strong reflections; this is especially important for long‑range or low‑power models. [youtube]
- Lens cleanliness: Implement routine cleaning with air blowers or protective covers to keep optics clear in dusty environments. [de.aliexpress]
- Calibration routines: Use reference blocks or gauge standards to verify and periodically recalibrate the system. [gtric]
For OEM systems, we often help customers to co‑design mechanical interfaces and alignment fixtures to ensure that the laser module and optics maintain stable geometry across thousands of operating hours. [aiminglaser]
Many sensor brands do not design the internal laser source from scratch; instead, they integrate OEM laser diode modules as the emitter within the sensor. [prophotonix]

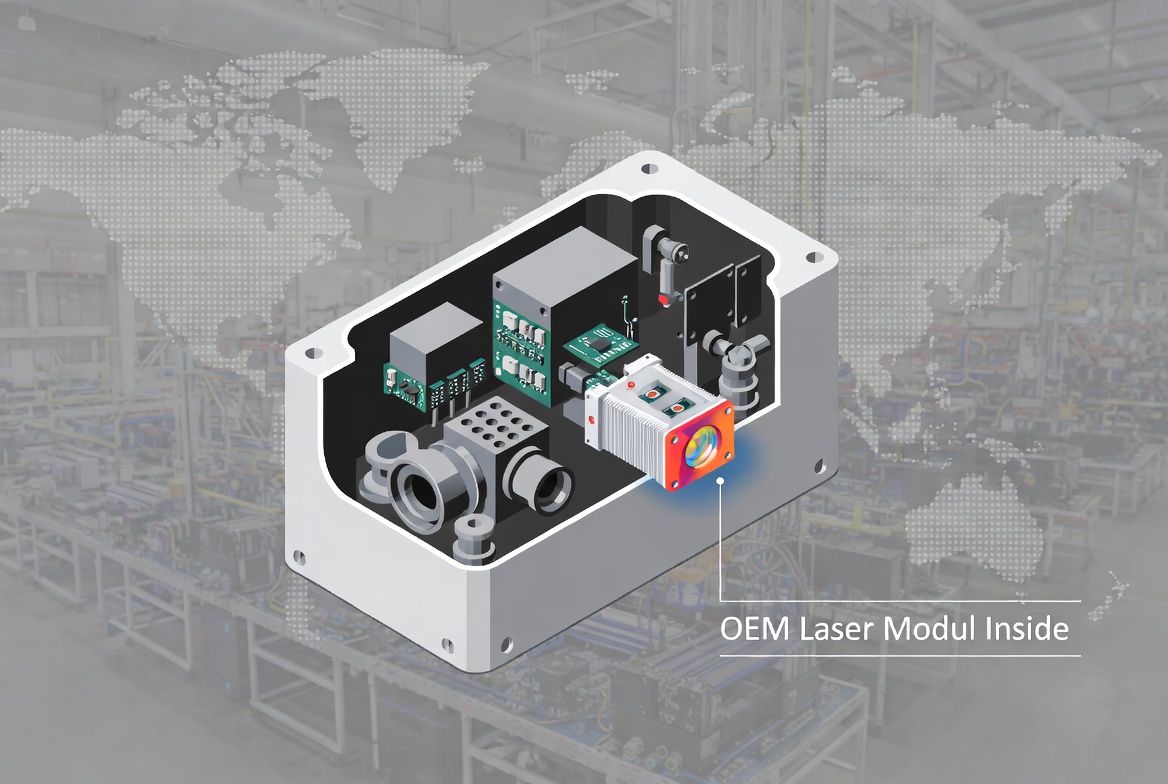

An OEM laser module is a compact, pre‑engineered unit combining a diode laser, driver electronics, optics, and mechanical housing, designed specifically for integration into a larger device. This approach allows sensor manufacturers to focus on signal processing, algorithms, and system‑level features. [cnilaser]
Typical requirements from displacement‑sensor OEMs include: [prophotonix]
- Custom wavelength ranges (for example, 405–1550 nm) to optimize performance on specific surfaces and materials. [linkedin]
- Stable output power with low noise to improve measurement repeatability. [rp-photonics]
- Fiber‑coupled designs for flexible routing inside complex sensor housings or multi‑head systems. [cnilaser]
- Compact, rugged housings that tolerate industrial shock, vibration, and temperature cycles. [prophotonix]
Aiming Laser Technology Co., Ltd. has been supplying diode laser modules and fiber‑coupled lasers for OEM instrument applications since 2012, supporting sensor, machine vision, and instrumentation customers worldwide. [linkedin]
From an OEM standpoint, a reliable laser module partner is as critical as the sensor's internal electronics. Aiming Laser focuses specifically on OEM and project‑based requirements rather than only standard catalog products. [exhibitors.electronica]
Key advantages we offer to displacement‑sensor and automation OEMs include:
- Broad wavelength and power coverage: Free‑space and fiber‑coupled laser modules from approximately 405 nm to 1550 nm and powers from around 0.4 mW up to tens of watts, depending on the application. [linkedin]
- Application‑oriented customization: Spot size, line shaping, focus distance, housing dimensions, and mounting interfaces can be tailored for specific sensor designs. [made-in-china]
- Industrial‑grade quality control: Production and testing at our facility in Xi'an, Shaanxi, China under strict procedures, with exports to multiple global markets. [aiminglaser]
- Integration support: Engineering teams can assist with optical design choices, thermal considerations, and EMC aspects to shorten your time‑to‑market. [aiminglasers]
This combination of customization plus manufacturing scale makes it easier for OEMs to differentiate their displacement sensors with unique form factors or performance targets. [linkedin]
Although individual projects are often under NDA, several common patterns appear across OEM engagements: [rp-photonics]
- A European measurement‑equipment company integrates a fiber‑coupled red laser module into a compact displacement sensor for metal surface profiling, leveraging the fiber to separate heat‑sensitive electronics from the hot production zone. [cnilaser]
- An Asian automation integrator uses short‑wavelength violet/blue modules (around 405–450 nm) to improve performance on shiny, mirror‑finished parts where standard wavelengths struggle with glare and saturation. [linkedin]
- A machine‑vision startup combines a laser line module with a camera to build a 3D profiler; our role is to stabilize the line uniformity and power output over the module's lifetime. [rp-photonics]
These examples highlight a consistent point: sensor performance is not only about the algorithm – it starts with a stable, well‑designed laser source. [rp-photonics]
To help engineering and procurement teams align quickly, here is a concise checklist we often use when launching a new displacement‑sensor or measurement project: [cnilaser]
Item | Key Questions |
|---|---|
Measurement task | Distance, thickness, flatness, runout, profile? gtric |
Accuracy & resolution | Required tolerances and detection thresholds? gtric |
Working distance & range | Nominal distance, min/max clearance? gtric |
Target surface | Color, reflectivity, transparency, roughness? gtric |
Environment | Temperature, dust, oil, water, vibration? gtric |
Output & interface | Analog, digital, Ethernet, fieldbus? gtric |
Mechanical constraints | Sensor size, mounting, cable routing? gtric |
Compliance & lifetime | Safety class, expected operating hours, service strategy? gtric |
For each OEM inquiry, we recommend filling this form jointly between your engineering team and our technical sales so we can propose the most suitable laser module and optical configuration. [made-in-china]
If you are developing laser displacement sensors, 2D/3D profilers, or precision measurement systems, a robust and customizable laser source is a critical success factor. [rp-photonics]
Aiming Laser Technology Co., Ltd. specializes in OEM diode laser modules and fiber‑coupled lasers for instrument and industrial applications, shipped globally from our facility in Xi'an, China. Our engineering team can help you choose or customize modules for your measurement range, wavelength, and environmental needs. [exhibitors.electronica]
Contact us via our official website or sales channels to discuss your application, request technical guidance, or start a prototype project for your next‑generation displacement sensor. [aiminglaser]
Laser displacement sensors offer non‑contact measurement, which eliminates mechanical wear, avoids damaging delicate parts, and allows high‑speed measurements on moving surfaces. [keyence]
High‑end triangulation‑based displacement sensors can achieve micron‑level or even sub‑micron accuracy within their specified range and under controlled conditions. [gtric]
Industries such as automotive, electronics, metal processing, packaging, and robotics benefit significantly due to tighter tolerances, automation, and traceability requirements. [datainsightsmarket]
OEMs should prioritize wavelength options, power stability, mechanical robustness, customization capability, and engineering support for integration into their displacement sensors or profilers. [linkedin]
Aiming Laser can co‑design laser modules for your range, wavelength, and form‑factor needs, supply industrial‑grade diode and fiber‑coupled lasers, and provide technical guidance to reduce your development time and risk. [aiminglaser]
