405nm 10mW Violet Purple Laser Pointer Module Industrial Laser Pointers

Laser Wavelength:
Laser Color:
Output Power:
Housing Material:
Dimensions:
Availability:
Quantity:
  • AM405D20G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • Violet  Visible
  • 405nm
  • CW  Dot

405nm 10mW Violet Purple Laser Pointer Module Industrial Laser Pointers

laser wavelength chart

AimLaser provides customized Purple or Violet Dot Laser Diode Modules with different output power, beam size and dimensions, which uses optical glass lens and input voltage various from 3V to 12V DC.

The purple laser modules possess characteristics of compact size, low power consumption, high stability and low cost, now are widely used in industrial laser surveying instrument, medical laser instrument, precision instruments for laser positioning, laser detecting, laser aiming, laser alignment and laser scanning applications; and also consumer products like nightwear sporting products, gun sight lasers and automotive interior ambient light etc.

※ 405nm 10mW Purple Dot Laser Diode Module Descriptions

The AM405D20G1 is a purple laser module subassembly with collimated beam. The maximum laser output power is 5.0mW at 405nm.

※ 405nm 10mW Purple Dot Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM405D20G1 Purple Dot Laser Diode Module
Wavelength 405nm
Output Power ≤10.0mW
Laser Mode CW
Beam Size ≤0.5mm@200mm
Divergence 0.8mrad
Optics Optical Glass Lens
Operating Current <90mA
Operating Voltage 3~5V DC
CDRH Class Class IIIb
Circuit control Auto Power Control (APC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ12x40mm (APC Inside)
Housing Material Full Brass
Life Span 8,000Hrs

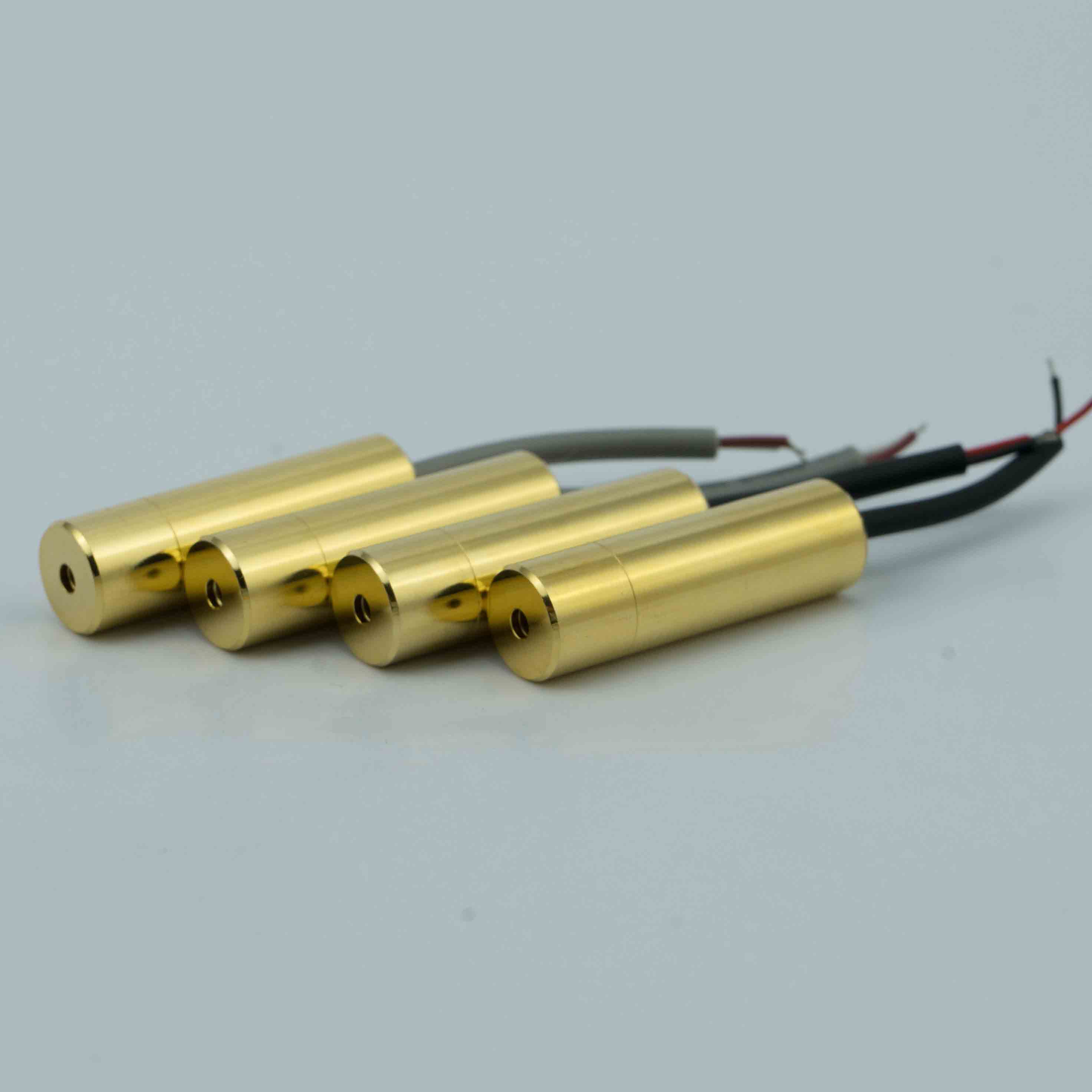

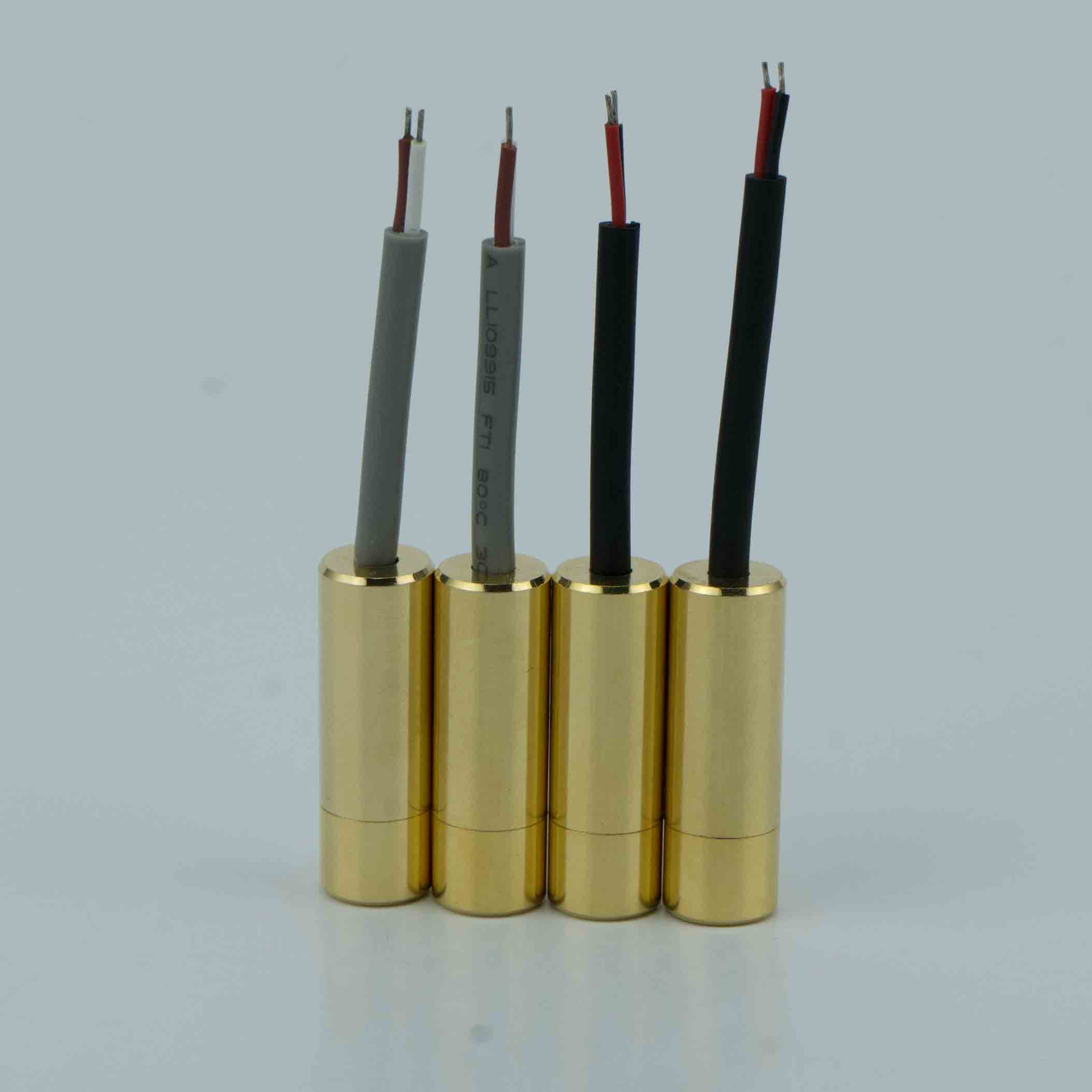

405nm Purple Laser Modules-AIMLASER (1) 405nm Purple Laser Modules-AIMLASER (2)

※ 405nm Purple Laser Module Applications

  1. Scientific Research

  2. Laboratory Instrument
    Gun Laser Grips
    Gun laser sights

  3. Laser aiming devices

  4. Laser alignment instrument

  5. Laser pointing instrument

  6. Laser positioning devices

  7. Laser surveying instrument

  8. Laser detection equipment

  9. Medical Laser Instrument

  10. Consumer Products

  11. Nightwear Sporting Products

  12. Automotive interior Ambient Light

  13. OEM Instrumentation


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※ Laser Modules Production Process

Laser Module Production Process

※ Laser Modules Production EquipmentLaser module production equipment

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
