An industrial laser module is only as effective as the beam it delivers to the target. For OEM equipment builders, understanding laser diode beam properties—including fast-axis divergence, slow-axis divergence, astigmatism, beam quality, and fiber-coupling limits—is essential when specifying a laser module for sensing, alignment, machine vision, medical devices, industrial processing, or analytical instruments.
At Aiming Laser Technology Co., Ltd., we work with international brands, wholesalers, and equipment manufacturers that need more than a wavelength and power rating. They need an OEM laser module whose beam geometry, optics, thermal design, and mechanical package match the final application. This guide explains the fundamentals behind laser diode beam behavior and shows how to make better optical-integration decisions.
Unlike many gas, solid-state, or fiber lasers, an edge-emitting laser diode produces light from an extremely small, rectangular semiconductor active region. The light is generated inside a p-n junction and guided toward the emitting facet through a semiconductor waveguide.
This geometry creates a beam that is naturally:
- Elliptical rather than round
- Highly divergent immediately after emission
- Asymmetric in its two perpendicular axes
- Potentially astigmatic, meaning the apparent source position differs between axes
- Dependent on the diode's emitter design, wavelength, output power, drive current, temperature, and integrated optics
For an OEM customer, this means that a bare diode cannot be evaluated only by optical power. A laser with sufficient milliwatts may still be unsuitable if its divergence, beam size, intensity distribution, or focusability does not match the system requirement.
Key principle: Laser power determines how much optical energy is available. Beam properties determine how effectively that energy can be delivered.

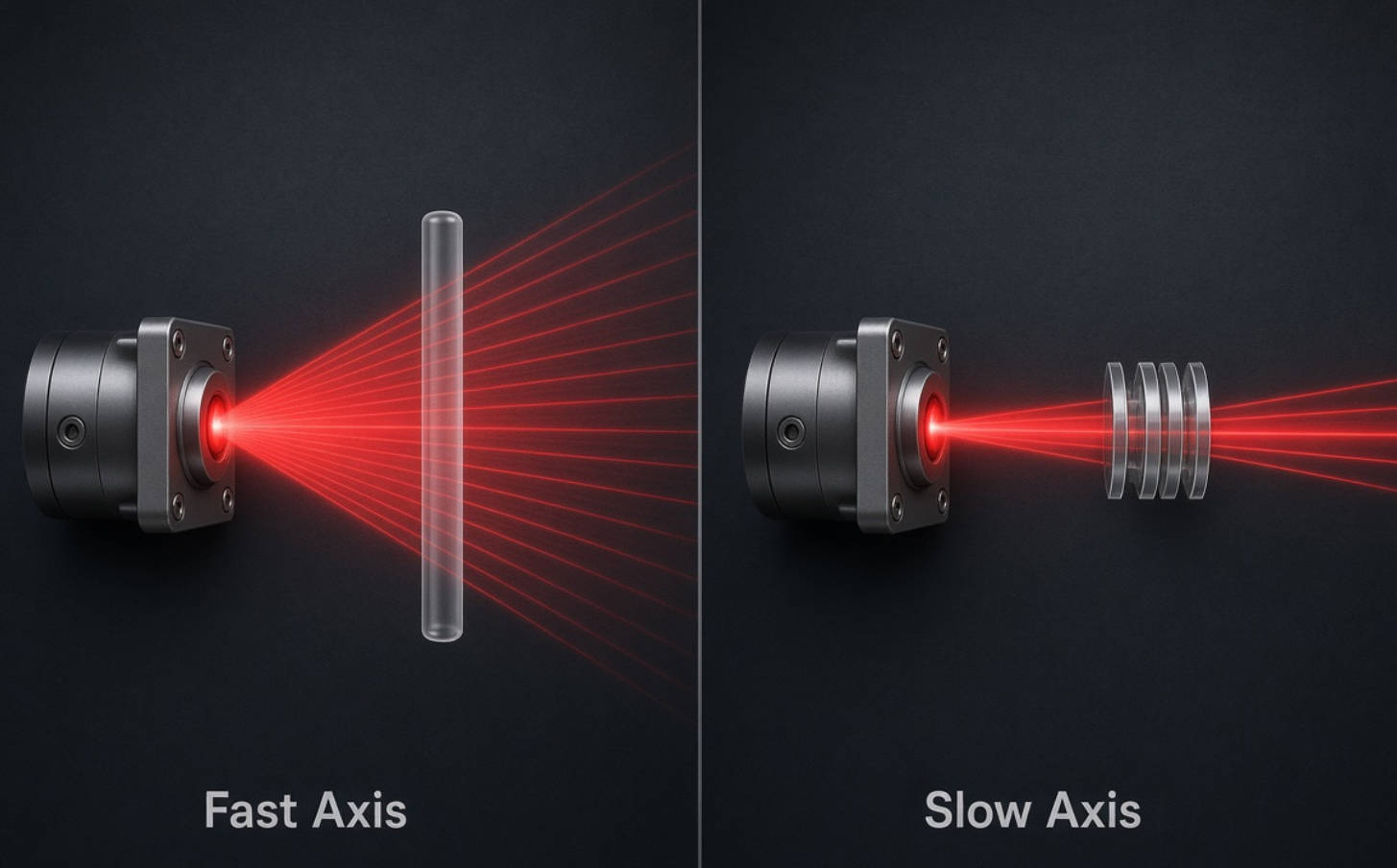

The emitting aperture of a laser diode is highly asymmetric. Its vertical dimension is usually much smaller than its horizontal dimension. Due to diffraction, light spreads more strongly from the narrower dimension.
This produces two beam axes:
| Beam property | Fast axis | Slow axis |
|---|---|---|
| Direction | Perpendicular to the p-n junction | Parallel to the p-n junction |
| Typical emitter dimension | Very small vertical aperture | Wider horizontal aperture |
| Typical divergence | Often below 15° to over 40° | Commonly about 6° to 10° |
| Optical challenge | Strong divergence and tight alignment tolerance | Lower divergence but possible multimode structure |
| Common correction method | Fast-axis collimator (FAC) | Slow-axis collimator (SAC) |
The fast axis is the direction with the larger divergence. It is called "fast" because the beam expands rapidly after leaving the diode facet. The slow axis expands more gradually because the emitter is wider in that direction.
In practical designs, this asymmetry is not a minor optical detail. It affects:
- Lens selection
- Working-distance stability
- Focused spot shape
- Fiber-coupling efficiency
- Alignment tolerance during assembly
- Beam quality at the target plane
- The ability to combine multiple emitters or diode bars
For many single-emitter laser diodes, slow-axis divergence may be around 6° to 10°, while fast-axis divergence can range from below 15° to more than 40°. The exact result depends on the diode architecture and operating conditions.
An uncorrected diode laser beam is typically elliptical. After a simple collimating lens, it may appear visually acceptable, but the beam can still have unequal dimensions, unequal divergence, and different waist locations along the two axes.
This condition is known as astigmatism.
In an astigmatic beam, the narrowest beam waist along the fast axis and the narrowest waist along the slow axis do not occur at the same optical position. A system that requires a small focused spot, a uniform illumination field, or reliable fiber coupling must account for this difference.
A customer may request a "round laser spot," but this can mean several different things:
- A visually round beam at a specified working distance
- Equal beam diameters in the near field
- Equal divergence in both axes
- A circular focused spot
- A uniform illumination profile
- A beam compatible with a round-core optical fiber
These requirements are not interchangeable. A beam can look round at one distance yet still have unequal beam parameter products or poor coupling performance.
- Elliptical spot: Often acceptable for line generation, positioning, targeting, or certain sensing applications
- Hot spots: Localized high-intensity regions, commonly associated with multimode output
- Dark regions: Uneven intensity distribution that can reduce measurement consistency
- Speckle: A granular interference pattern that may affect imaging and projection applications
- Diamond-shaped beam: Can appear after cylindrical beam shaping if residual asymmetry and amplified spontaneous emission are not sufficiently controlled
Beam quality describes how closely a real laser beam behaves like an ideal diffraction-limited Gaussian beam. The commonly used metric is the beam propagation ratio, written as M2.
M2=πw0θ/λ
Where:
- w0 is the beam waist radius
- θ is the far-field divergence half-angle
- λ is the laser wavelength
An ideal Gaussian beam has M2 = 1. In real systems, a lower M2 generally means the beam can be focused more tightly and will diverge less rapidly than a beam with a higher M2.
For industrial laser module buyers, M2 is especially relevant when the laser must:
- Focus to a small spot
- Couple into a small-core fiber
- Maintain intensity at a long working distance
- Deliver high power density
- Support precision imaging, marking, inspection, or medical targeting
- Integrate with scanning optics or galvanometer systems
However, M⊃2; is not the only specification that matters. For example, a uniform top-hat beam may be desirable in illumination or material-processing applications even though it is not intended to resemble a Gaussian TEM00 beam.
Instead of asking only for "good beam quality," define the required output condition:
| Application requirement | Useful laser-module specifications |
|---|---|
| Long-distance alignment | Divergence, spot diameter at distance, output power stability |
| Machine vision illumination | Beam uniformity, line width, fan angle, wavelength, speckle behavior |
| Fiber delivery | Fiber core size, numerical aperture, coupling efficiency, BPP, connector type |
| Laser marking or focusing | M⊃2;, focal spot size, power density, focal length, thermal stability |
| Medical or analytical equipment | Beam position stability, safety class, optical isolation, package reliability |
| OEM sensing products | Wavelength tolerance, modulation capability, output stability, operating temperature |
A single beam photograph is not enough to characterize a laser. It may show the beam shape at one location, but it cannot fully describe divergence, waist position, astigmatism, or propagation behavior.
For repeatable beam characterization, manufacturers and system developers should define:
1. Measurement wavelength and drive current
2. Case temperature and operating environment
3. Beam diameter measurement method
4. Near-field and far-field measurement positions
5. Lens configuration, if integrated optics are included
6. Acceptance limits for divergence, spot size, and beam pointing
ISO 11146-2:2021 specifies test methods for measuring beam widths, divergence angles, and beam propagation ratios for general astigmatic or unknown laser beams.
A typical M2 measurement process includes:
1. Collimate the laser beam.
2. Focus it with a low-aberration lens.
3. Measure beam diameters at multiple positions around the focus.
4. Record data in both beam axes.
5. Fit the beam-propagation data to determine waist size, divergence, Rayleigh range, and M2.
A robust measurement process uses multiple points rather than relying on one near-field image and one far-field image. Industry guidance commonly recommends at least 10 data points around the focal region, with measurements distributed near and beyond the Rayleigh range.
Practical rule: If the final product requires a controlled spot at a specific distance, measure and specify the beam at that actual working distance—not only at the laser aperture.

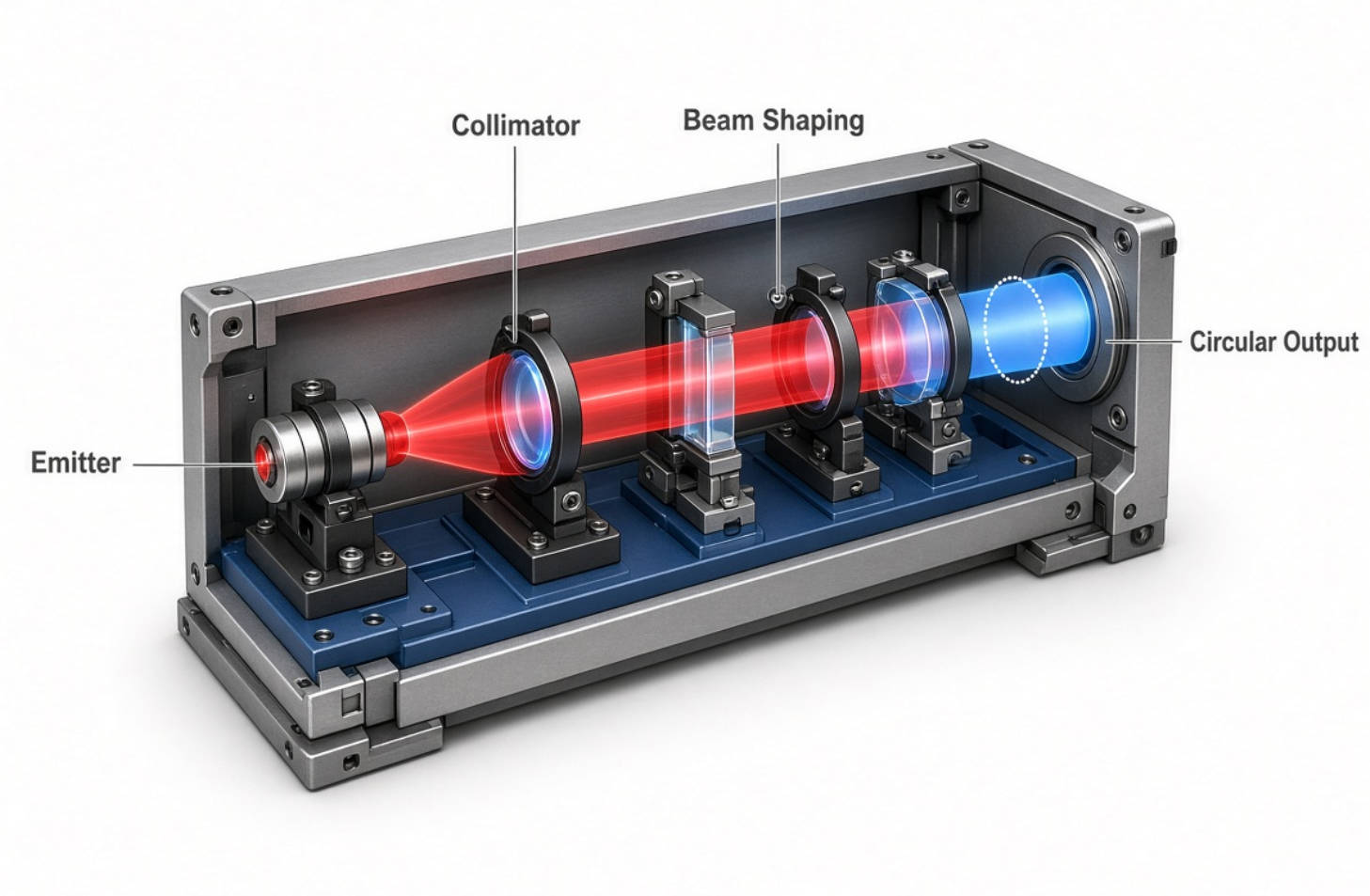

The correct optical solution depends on the application. Not every laser diode needs a circular beam, and excessive optical complexity can increase cost, assembly difficulty, optical losses, and alignment risk.
An aspheric lens is commonly used to collect the highly divergent output from a laser diode and create a more controlled beam.
Best for:
- Compact laser modules
- General alignment lasers
- Laser pointers
- Basic sensing systems
- Applications that can tolerate an elliptical beam
Advantages:
- Compact structure
- Cost-effective
- Suitable for high-volume OEM production
- Can provide a controlled beam at a specified working distance
Limitations:
- May not fully correct fast-axis and slow-axis asymmetry
- Does not always produce a truly circular beam
- Beam quality depends heavily on lens alignment
Cylindrical optics can independently reshape the fast and slow axes. This approach is useful when the customer needs a more circular or balanced beam.
Best for:
- Precision alignment
- Machine vision
- Imaging systems
- Optical instrumentation
- Applications requiring a controlled rectangular-to-round transformation
Advantages:
- Better control over beam ellipticity
- Can reduce divergence imbalance
- Supports customized beam dimensions
Limitations:
- Requires precise alignment
- Adds optical and mechanical complexity
- May increase module size and cost
High-power single emitters and diode bars often need specialized fast-axis collimators and slow-axis collimators. A fast-axis collimator addresses the high-divergence axis, while a slow-axis collimator manages the lower-divergence axis.
For diode bars and fiber-coupled systems, beam-shaping assemblies may also include micro-optic arrays and beam-rotation elements. These components can help create a more symmetric beam and improve coupling into a round fiber core. Fiber-coupling efficiencies of 80% or higher can be achieved in optimized fast-axis collimator, beam-rotation, and slow-axis-collimator configurations.
Fiber coupling can provide several benefits:
- Flexible remote delivery of laser energy
- Simplified system integration
- Improved output-beam symmetry
- Reduced appearance of localized intensity variations
- Easier interfacing with downstream optics
For single-mode lasers, the fiber can act as a spatial filter and support a near-Gaussian output. For multimode laser modules, the fiber can improve intensity uniformity, though the result depends on fiber type, core size, numerical aperture, launch alignment, and modal behavior.
Choosing an industrial laser module becomes easier when the optical requirement is converted into measurable parameters.
Start with the actual output requirement:
- Required spot diameter or line width
- Working distance
- Beam shape: dot, line, cross, circular, elliptical, rectangular, or homogenized
- Required optical power at the target
- Permitted divergence
- Required uniformity
For example, a 650 nm alignment module that only needs a visible spot at 3 meters has a very different optical design requirement from an 808 nm fiber-coupled pump module.
Specify the operating conditions early:
- Continuous-wave or pulsed operation
- Ambient temperature range
- Duty cycle
- Vibration and shock requirements
- Mounting direction
- Required operating lifetime
- Exposure to dust, moisture, or contaminants
Thermal drift can change wavelength, output power, beam pointing, and focus position. A laser module that performs well on a laboratory bench may require different heat sinking and packaging for an industrial enclosure.
Select the diode architecture and optical train together. A high-power multimode diode may meet the power target but may not support a small fiber core or fine focus. Conversely, a single-mode diode may offer superior beam quality but insufficient power for the intended process.
A professional OEM laser-module specification should include more than nominal values. It should define:
- Optical output power and tolerance
- Wavelength and tolerance
- Beam diameter at a stated distance
- Divergence in both axes
- Spot shape and intensity requirement
- Fiber type and connector, when applicable
- Operating current and voltage
- Housing dimensions and mounting references
- Test conditions and acceptance criteria
This reduces misunderstandings between the OEM customer, design engineer, and production team.
Consider a manufacturer developing an automated inspection system. The camera must inspect a wide surface area with repeatable illumination.
A standard collimated laser diode may be insufficient because its elliptical beam can create uneven illumination. A better OEM solution may include:
- A wavelength optimized for the camera sensor and target material
- A line-generation lens or Powell lens
- Controlled fan angle
- Uniform line intensity across the field
- Low beam-pointing drift
- A mechanically stable industrial housing
- Custom cable length and connector
- Defined optical-output testing at the actual working distance
The buyer should not simply request "a 50 mW laser module." A useful requirement would be: "50 mW nominal output, 660 nm wavelength, 60° uniform line, 500 mm working distance, defined line thickness, industrial temperature range, and custom mounting interface."
That is the difference between buying a component and engineering a deployable OEM optical subsystem.
Laser diode beam properties are created by semiconductor physics, but product-level performance is determined by how effectively the diode, optics, driver, thermal path, housing, and quality-control process work together.
Aiming Laser Technology Co., Ltd. supports OEM and customized industrial laser module projects for global brands, distributors, and equipment manufacturers. We can help evaluate the practical relationship between wavelength, output power, beam geometry, optical lens configuration, package design, and application requirements.
Contact our engineering team to discuss your required laser wavelength, output power, spot shape, working distance, fiber-coupling needs, housing dimensions, and target application. We can help develop an OEM laser module solution that is easier to integrate, verify, and scale.
A laser diode emits light from a rectangular active region. Because the vertical and horizontal emitter dimensions differ significantly, diffraction causes different divergence angles in the fast and slow axes, producing an elliptical beam.
The fast axis is perpendicular to the p-n junction and has higher divergence. The slow axis is parallel to the junction and usually has lower divergence because the laser-emitting region is wider in that direction.
Yes. A round or near-round beam can be created using carefully selected collimation optics, cylindrical lenses, beam-shaping optics, fiber coupling, or custom optical assemblies. The best method depends on power, wavelength, spot requirement, working distance, and cost target.
M⊃2; indicates how closely a real beam behaves like an ideal Gaussian beam. Lower M⊃2; values generally support tighter focusing and lower divergence, which are important for fiber coupling, precision imaging, long-distance projection, and high-power-density applications.
Not necessarily. Higher power can be useful, but the beam must also have the required divergence, spot size, uniformity, stability, and focusability. A lower-power laser with the right beam profile can outperform a higher-power laser in a precision application.
Provide the wavelength, output power, working distance, required beam shape, spot diameter or line width, operating mode, environmental requirements, module dimensions, power-input requirements, cable or connector needs, and expected annual order volume.
