The cross line laser

Principle of cross line laser

Cross line laser, and its structure consists of laser source, walk away, expanded beam collimation system and cylindrical lens, a single laser beam into the laser light off the piece, the laser beam by walking away from the piece into two parallel beams off the beam toward the expanded beam collimation system, the expanded beam collimation of walk away from the form of two parallel light beam coarser beams. The two column lenses are placed vertically in inverted T shape, one pillar lens is vertical, the other pillar lens is horizontal, a coarse-beam incident to the column lens placed vertically, the other coarse-beam incident to the column lens placed horizontally, the light emitted by the two column lenses form a cruciform line light spot.In this way the crosshair spot laser output two lines of good quality, high efficiency and low power consumption, at the same time simple structure, compact size and low production cost.

Characteristics of cross line laser

The first characteristic: cross line laser intensity is very high, suitable for using a remote location and poor working environment, the product USES the original laser diode, long service life, good stability, constant power output, small volume, convenient installation, can work long time continuous light, can effectively guarantee the stability of the product and service life.

The second characteristic: cross - line laser with imported laser diode, optical lens.Clear light, low divergence, good collimation, small size, strong industrial applicability.Adjustable or fixed focal length.

The third characteristic: cross line laser with imported laser diode, small volume, clear light, large light Angle, high straightness, adjustable or fixed focal length.

Cross laser applications

Crosshead laser can be used in a variety of industrial production equipment, it can play an auxiliary marking and positioning role, such as: material cutting, woodworking machinery, packaging machinery, stone bridge cutting machine, tire positioning and glass processing positioning cloth processing, welding processing, PCB processing;Mechanical manufacturing in sheet metal processing, plate marking positioning;Clothing industry fabric cutting, grid and strip, cutting bed positioning, computer bag machine marking, embroidery machine positioning in the production process;It is also used for positioning equipment installation and building decoration. The installation machine of uniform cross laser is easy to use. It can be installed on the vertical or horizontal plane of the machine to provide a visible laser line, so that there is a visible, non-contact positioning line to guide the operation process in the whole production process.It has the advantages of convenient production operation and improved production efficiency.The laser line can be adjusted arbitrarily in three dimensional space to achieve the best use effect.

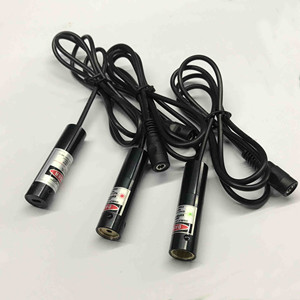

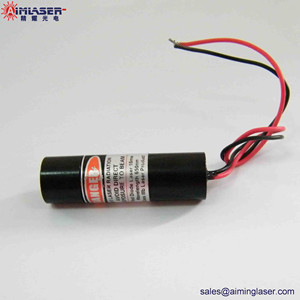

AimLaser provides customized cross line laser and uniform line laser diode modules which use high quality imported materials and powell lens and possess characteristics of compact size, high stability and reliability. The thinnest line can be 10um; fan angle is optional from 10°to 90°and wavelength from 405nm to 850nm. The input voltage is also various from 3V to 12VDC. We can produce fixed focus can also produce adjustable thickness of red linear laser, customers can adjust the focus according to various requirements.
