In every serious industrial laser module, keeping the optical output stable over temperature, aging, and supply variation is a non‑negotiable requirement. [rp-photonics]
An APC (Automatic Power Control) driving circuit in a laser diode is a closed‑loop control system that continuously monitors the laser's emitted light via a built‑in monitor photodiode and adjusts the drive current to keep the optical power at a constant target level. [patents.google]
Instead of simply feeding a fixed current into the laser diode (LD), an APC driver:
- Measures the feedback current from a monitor photodiode.
- Compares this against a reference corresponding to the desired optical power.
- Dynamically tunes the LD drive current so that the output power stays constant. [ti]
For OEM integrators, choosing a laser module with a well‑designed APC driving circuit dramatically improves stability, lifetime, and safety of the final system. [nvginc]
Laser diodes are highly sensitive to:
- Ambient temperature
- Device aging
- Manufacturing tolerances
Even if you keep the drive current constant, the optical output power can change significantly as temperature varies. [ieeexplore.ieee]
Studies and application notes from semiconductor vendors clearly show that the L–I curve (light vs. current) shifts with temperature, causing under‑power or dangerous over‑power if no feedback is used. [semanticscholar]
Some systems only use ACC (Automatic Current Control), which stabilizes the current but not the emitted power. [lasercomponents]
In practice, that means:
- Output power may drift as the environment heats up or cools down.
- Eye‑safety and regulatory limits can be exceeded if the output rises above the specified class limit.
- Measurement and positioning accuracy degrades over time. [compliancegate]
APC solves these problems by actively stabilizing output power, not just current. [mouser]
An APC driving circuit in a laser diode module generally consists of four key building blocks: [lasercomponents]
- Laser diode (LD) – primary emitter, often in TO‑can or integrated module.
- Monitor photodiode (PD) – mounted behind or beside the LD, sampling a fraction of the optical output. [lasercomponents]
- APC controller / driver IC – compares PD current to a reference and adjusts LD current accordingly. [patents.google]
- Reference and compensation network – sets target power, loop dynamics, and stability. [ieeexplore.ieee]

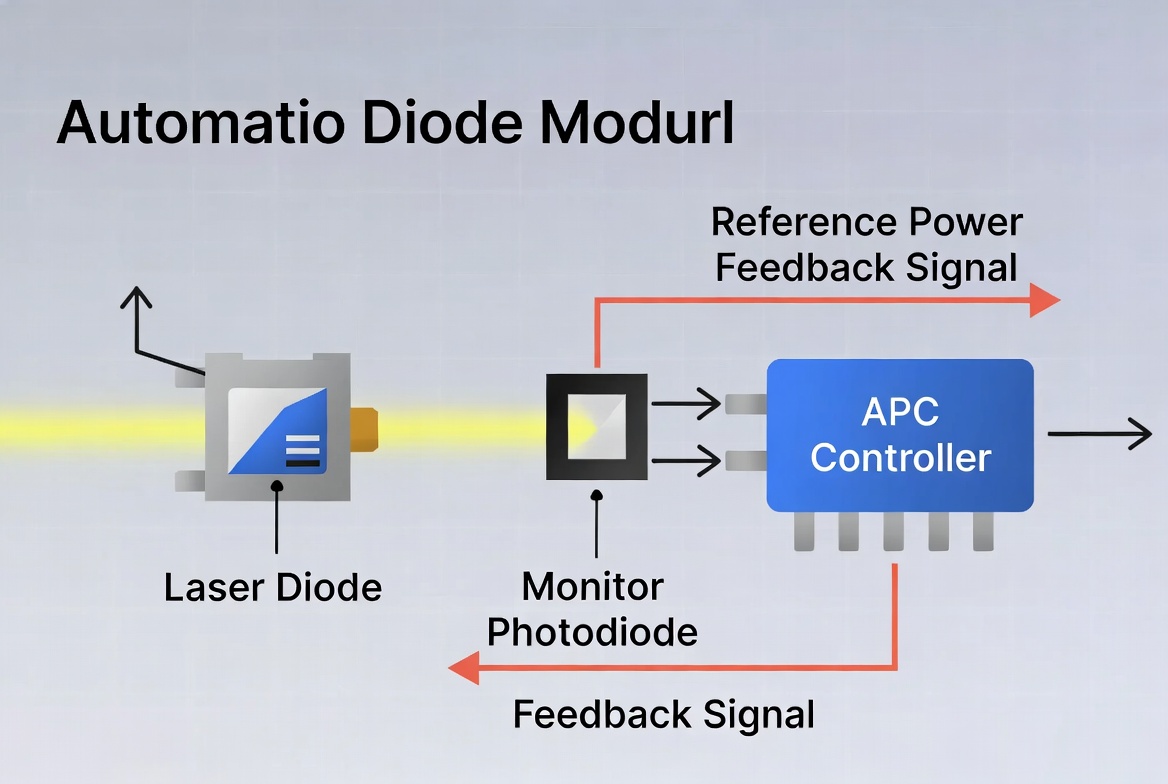

A simplified flow:
1. Laser emits light at a given drive current.
2. Monitor PD produces a current proportional to optical power.
3. APC controller compares this PD signal to a reference set by a resistor or DAC. [ti]
4. Error is used to increase or decrease LD current until the PD current matches the reference, locking the output power. [mouser]
Many modern laser‑driver ICs integrate APC and optional ACC modes, plus current limiting and high‑frequency switching up to hundreds of MHz. [lasercomponents]
Application notes from leading semiconductor manufacturers show a typical APC driving topology: [patents.google]
- The monitor photodiode is wired in reverse bias, generating current proportional to light. [mouser]
- This current flows through a sense resistor or into a transimpedance stage to create a feedback voltage. [ti]
- The feedback voltage is compared with a reference voltage derived from a resistor network or DAC, defining the target optical power. [lasercomponents]
- The driver's output stage adjusts LD current until the feedback matches the reference, closing the loop. [ieeexplore.ieee]
Some compact modular products integrate this APC circuitry directly inside the laser module housing or TO‑can, minimizing footprint and simplifying OEM integration. [aiminglasers]
For OEM designers choosing between simple drivers and APC‑enabled laser modules, the advantages are substantial. [rp-photonics]
Key benefits:
- Stable optical power over temperature
- Compensates for L–I shifts and ambient temperature swings. [semanticscholar]
- Improved long‑term reliability
- Protects the LD from over‑drive during warm‑up or aging, extending lifetime. [patents.google]
- Safer, easier regulatory compliance
- Helps maintain power within IEC 60825‑1 and market‑specific safety limits when combined with proper design and labeling. [compliancegate]
- Reduced field recalibration
- Less drift means fewer manual recalibrations in metrology, alignment, and sensing systems. [aiminglasers]
- Compact, cost‑effective integration
- Integrated APC ICs and modules reduce external component count and PCB area. [lasercomponents]
These benefits explain why many high‑performance OEM laser modules for 3D sensing, measurement, and instrumentation explicitly reference APC circuits as a core feature. [lecc.com]
The table below summarizes three common approaches used in laser diode driving:
Drive method | Power stability (temp/aging) (ti) | Safety & compliance (compliancegate) | Design complexity (ti) | Typical usage (mouser) |
|---|---|---|---|---|
Simple resistor / fixed current | Poor – large drift with temp & aging | Weak – risk of over‑power & eye issues | Low – easiest but risky | Hobby, low‑cost non‑critical |
ACC (current control) | Medium – current stable, power drifts | Medium – partially controlled | Medium – needs driver IC | Cost‑sensitive systems |
APC (power control) | High – closed‑loop power regulation | Strong – easier to stay within limits | Medium–High – feedback loop design | Industrial OEM modules, metrology, sensing |
For most industrial and professional markets, APC (sometimes combined with ACC) offers the best balance between stability, safety, and integration effort. [rp-photonics]
Design and layout tips from high‑speed driver references emphasize: [mbb.eet-china]
- Keep LD and APC driver physically close to minimize inductance and ringing.
- Make current loop paths as short and tight as possible.
- Place decoupling capacitors right at the driver IC supply pins; use low‑ESR capacitors. [weltronics.com]
- Use a solid ground plane to reduce noise coupling into the feedback loop. [ti]
Because APC is a feedback system, you must ensure:
- Proper loop bandwidth – fast enough to reject disturbances, but not so fast that it oscillates. [ieeexplore.ieee]
- Correct compensation components (RC network) according to the driver IC datasheet and the LD/PD characteristics. [lasercomponents]
Semiconductor application notes often provide example component values and step‑by‑step procedures for tuning the APC loop in typical conditions. [mouser]
Many dedicated laser diode driver ICs with APC include: [patents.google]
- Adjustable maximum current limit.
- Soft‑start behavior to avoid current spikes at power‑up.
- Fault detection or shutdown pins for over‑temperature or over‑current conditions.
Using these features significantly reduces the risk of catastrophic optical damage (COD) to the laser diode. [ieeexplore.ieee]

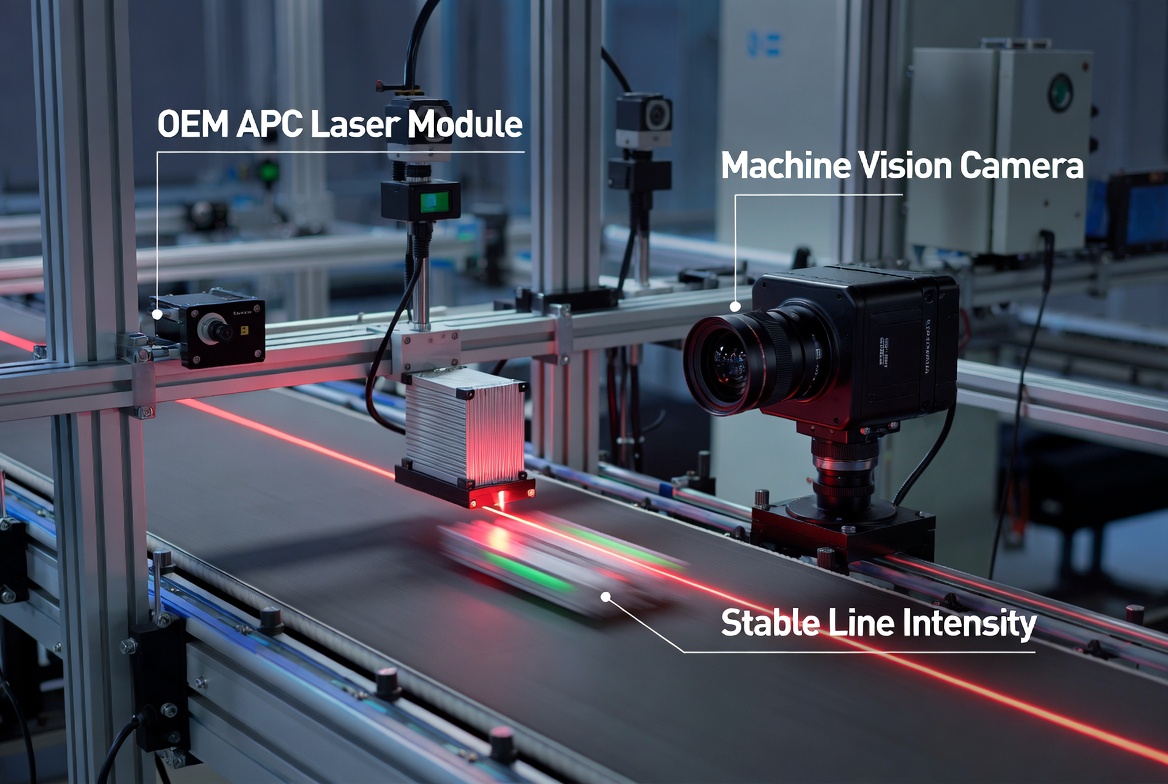

Industrial OEM laser modules with APC driving circuits are widely used in: [lecc.com]
- Machine vision and 3D scanning – stable line or dot intensity improves edge detection and triangulation accuracy. [lecc.com]
- Precision measurement and metrology – distance, thickness, and displacement sensors benefit from power stability. [aiminglasers]
- Positioning and alignment tools – constant brightness yields consistent visual and camera‑based alignment. [nvginc]
- Laser marking and coding – predictable output simplifies process settings and quality control. [rp-photonics]
- Medical and life science instruments – where power stability and safety are critical (used with appropriate regulatory approvals). [compliancegate]
For OEM customers integrating these modules, APC essentially outsources a big part of the optical control problem to the module vendor. [aiminglasers]

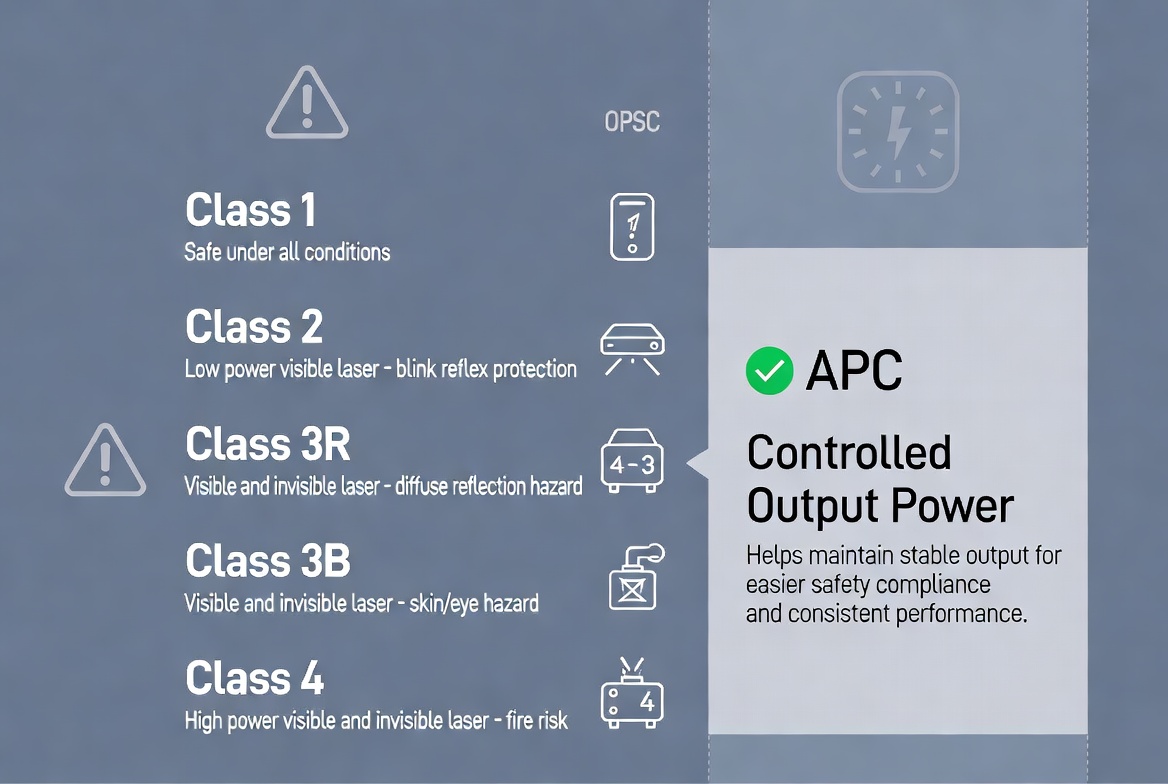

Any device using a laser, especially in volume OEM deployments, must consider laser safety standards and market regulations. [compliancegate]
Key references include:
- IEC 60825‑1 – Safety of Laser Products
- Defines product classes, labeling, and measurement approaches for continuous‑wave and pulsed lasers. [compliancegate]
- IEC 60601‑2‑22 for medical laser equipment
- Applies to diagnostic and therapeutic laser devices in classes 3B and 4. [compliancegate]
- US FDA CDRH requirements (21 CFR 1040.10 & 1040.11)
- Cover technical and labeling requirements for laser products imported or sold in the US. [compliancegate]
- Importers commonly file FDA Form 2877 to declare compliance for radiation‑emitting products. [compliancegate]
APC circuits alone do not guarantee compliance, but they help keep the output power in a predictable range, making it easier to design, test, and certify products under these standards. [rp-photonics]
High‑quality OEM laser module vendors integrate APC drivers, optics, thermal management, and mechanical housing into a single compact package. [nvginc]
From an OEM engineer's point of view, this offers:
- Single interface – you typically supply DC power and a modulation or enable signal, and the module takes care of power regulation. [lecc.com]
- Reduced R&D risk – APC design nuances, loop stability, and LD protection are handled by specialists. [aiminglasers]
- Faster time to market – you integrate a tested sub‑system instead of designing from scratch. [lecc.com]
Industry notes on OEM modules emphasize that this separation of responsibilities is specifically why many instrument manufacturers prefer off‑the‑shelf or customized OEM laser modules rather than discrete LD plus driver designs. [rp-photonics]
Industry guidelines for selecting laser diode and module suppliers highlight several best practices: [photonics]
- Engage the supplier early in the design process to align on performance, lifetime, and environmental conditions. [photonics]
- Choose manufacturers with strong engineering support, detailed datasheets, and experience in your application domain. [made-in-china]
- Verify quality systems and certifications (such as ISO 9001) as indicators of process control and consistency. [made-in-china]
According to public company information, Aiming Laser Technology Co., Ltd. (AimLaser) is a China‑based manufacturer specializing in diode laser modules and fiber‑coupled lasers for OEM instrumentation applications, covering wavelengths from the visible (around 405 nm) to the infrared range and offering power levels from sub‑milliwatt to multi‑watt. [made-in-china]
This type of vendor profile is well suited to deliver custom APC‑driven industrial laser modules tailored to specific OEM requirements. [made-in-china]

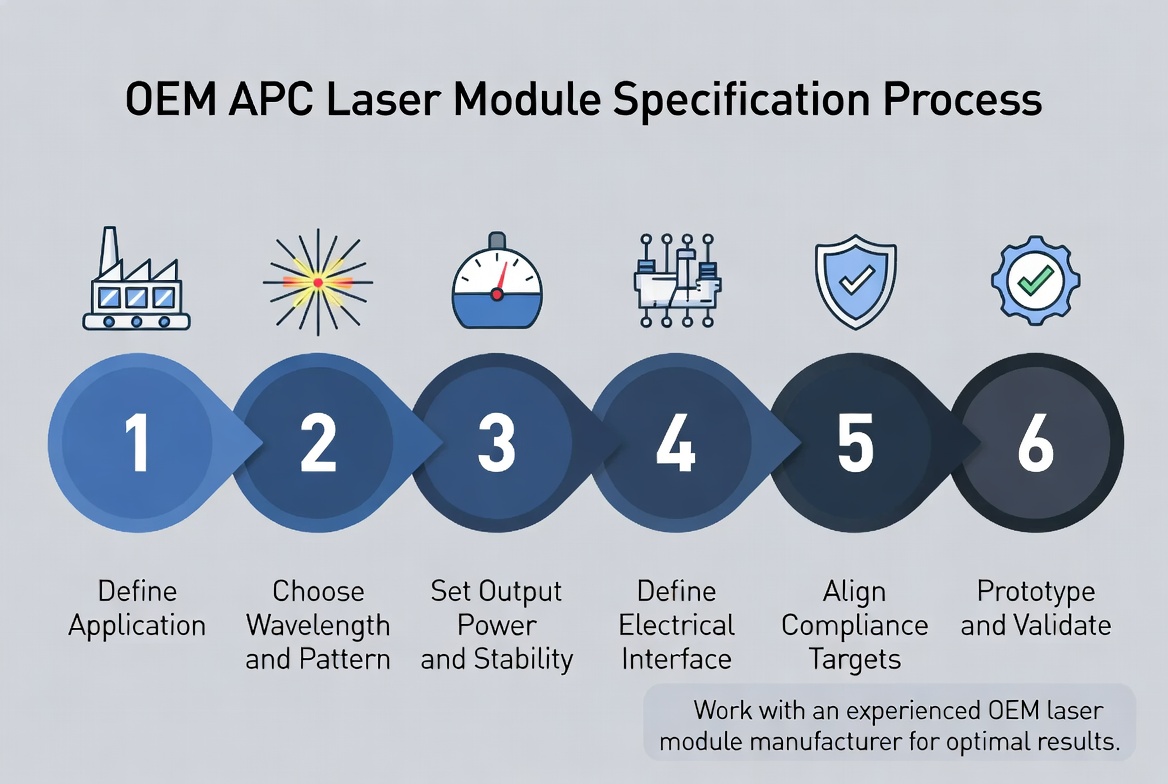

When working with an OEM laser module manufacturer, engineers typically go through a structured requirement definition process: [lasercomponents]
1. Define the application scenario
- Measurement, vision, alignment, or medical research.
- Indoor vs outdoor, operating temperature range, expected lifetime. [photonics]
2. Select wavelength and optical pattern
- Visible red or green for alignment; NIR for sensing; specific wavelengths for fluorescence or spectroscopy. [photonics]
- Dot, line, cross, or custom pattern optics. [aiminglasers]
3. Specify output power and power stability
- Target optical power and allowable tolerance across the operating temperature range. [photonics]
- Requirements for APC power stability and any monitoring needs. [ti]
4. Define electrical and control interfaces
- Supply voltage, modulation type (TTL, analog), and maximum modulation frequency. [lasercomponents]
5. Align on compliance and documentation
- Target safety class, labeling, and any test reports or certification support required. [photonics]
6. Prototype, test, and iterate
- Evaluate prototypes in your real system, verifying power stability, thermal behavior, and lifetime under stress. [photonics]
Experienced vendors often provide co‑design support during this process to help you avoid common pitfalls in laser integration. [lasercomponents]
If your product roadmap includes high‑stability, long‑life, and compliance‑ready laser functionality, choosing the right APC‑driven OEM laser module and a reliable manufacturing partner will save substantial engineering time and risk. [made-in-china]
Next steps you can take:
- Outline your application requirements (wavelength, power, pattern, environment). [rp-photonics]
- Share expected regulatory targets (e.g., IEC 60825‑1 class) and lifetime goals with your module supplier. [photonics]
- Engage an experienced industrial laser module manufacturer to co‑develop or customize an APC‑driven module that fits your system. [made-in-china]
By partnering closely with an expert OEM supplier, you can bring robust, APC‑stabilized laser performance to market faster—and with fewer surprises in production and field deployment. [made-in-china]
1. What is the main purpose of an APC driving circuit in a laser diode?
The main purpose is to keep the optical output power constant despite temperature changes, aging, and supply variations by using feedback from a monitor photodiode. [mouser]
2. How is APC different from ACC in laser drivers?
ACC stabilizes the drive current, while APC stabilizes the emitted optical power using PD feedback; APC offers better real‑world stability in most applications. [nvginc]
3. Does using APC guarantee compliance with IEC and FDA laser safety standards?
No, APC does not guarantee compliance by itself, but it helps maintain predictable power levels, which simplifies testing and certification under IEC 60825‑1 and FDA requirements. [mouser]
4. Can APC circuits be used with high‑speed modulation?
Yes. Many modern laser driver ICs combine APC with high‑speed current switching, supporting modulation in the tens to hundreds of MHz when designed and compensated correctly. [patents.google]
5. Why do OEMs prefer laser modules with built‑in APC instead of designing their own drivers?
Integrated APC‑driven modules reduce design risk, shorten development time, and shift responsibility for loop stability, protection, and reliability to a vendor specialized in laser modules. [lasercomponents]
