As someone who works closely with OEM instrument builders and life‑science labs, I've seen again and again that the laser light source is the single component that quietly determines whether a flow cytometry analyzer delivers reliable data or constant troubleshooting. In this guide, I'll walk you through how modern diode laser modules and Powell‑lens line sources support stable, precise optical performance—and what to look for if you are sourcing OEM laser modules for new cytometers or upgrades. [pmc.ncbi.nlm.nih]
In every flow cytometer, cells flow in single file through one or more tightly focused laser beams, where they scatter light and emit fluorescence that detectors convert into electronic signals. These signals are then processed into the multiparameter dot plots and histograms that cytometrists rely on for immunophenotyping, cell cycle analysis, rare‑event detection and more. [hamamatsu]
From an engineering and operations perspective, the laser light source must provide:
- Stable optical power over long runs and changing ambient conditions. [photonics]
- Precisely defined wavelength matched to your fluorophore panel. [currentprotocols.onlinelibrary.wiley]
- Low noise and narrow linewidth, to keep background and compensation issues under control. [currentprotocols.onlinelibrary.wiley]
- Consistent beam geometry, so each cell experiences the same excitation conditions at the interrogation point. [hubner-photonics]
If any of these are poorly controlled, you see it immediately in drifting MFI (mean fluorescence intensity), poor resolution between positive and negative populations, and frequent re‑calibration. [pmc.ncbi.nlm.nih]
Modern flow cytometers almost universally rely on solid‑state lasers, but there are important distinctions between different architectures. [pmc.ncbi.nlm.nih]
Historically, early instruments used argon‑ion and helium‑neon gas lasers. These sources delivered good beam quality, but they were: [photonics]
- Large and power‑hungry.
- Heat‑intensive, driving up cooling and maintenance costs.
- Limited in available wavelengths without complex optics. [currentprotocols.onlinelibrary.wiley]
Today, diode and diode‑pumped solid‑state (DPSS) lasers have become standard because they are compact, energy‑efficient and available across the key flow cytometry wavelengths from the blue (around 488 nm) through yellow–orange (around 561–594 nm) and red (around 633–640 nm). [hubner-photonics]
For OEM cytometer builders, this shift has opened the door to:
- Smaller, benchtop systems.
- Multi‑laser architectures in a single instrument.
- Lower total cost of ownership for end users. [pmc.ncbi.nlm.nih]
When we talk about laser performance, many engineers focus on wavelength and power, but beam shaping is just as critical for reproducible flow cytometry data. The cell stream must intersect a well‑defined, uniform light profile, or else: [shanghai-optics]
- Cells at different positions see different excitation intensities.
- Fluorescence intensity broadens, inflating CVs.
- Sensitivity drops for dim markers and rare populations. [vortranlaser]
Most raw diode beams are near‑Gaussian, meaning they are brightest in the center and weaker toward the edges. A simple cylindrical lens will extend this into a line, but the intensity remains peaked—creating a "hot spot" at the center of the laser line. [shanghai-optics]
In machine‑vision applications, engineers solved the hot‑spot problem by using Powell lenses, also known as laser line‑generating lenses. A Powell lens uses a specially designed acylindrical surface to redistribute the Gaussian profile into a flat‑top line with near‑uniform intensity along its length. [shanghai-optics]
This design eliminates hot spots and produces:
- A straight, uniform laser line with predictable divergence.
- Even illumination over the field of view or sample region.
- Improved measurement accuracy in high‑precision inspection and metrology. [aiminglaser]
Manufacturers like Aiming Laser Technology Co., Ltd. (AimLaser) leverage this principle in their Powell‑lens uniform line laser sources for machine vision, industrial robotics and 3D smart cameras. The same optical concept is also highly relevant when you need a precise, uniform illumination profile in flow cytometer subsystems, alignment tools or calibration fixtures. [made-in-china]

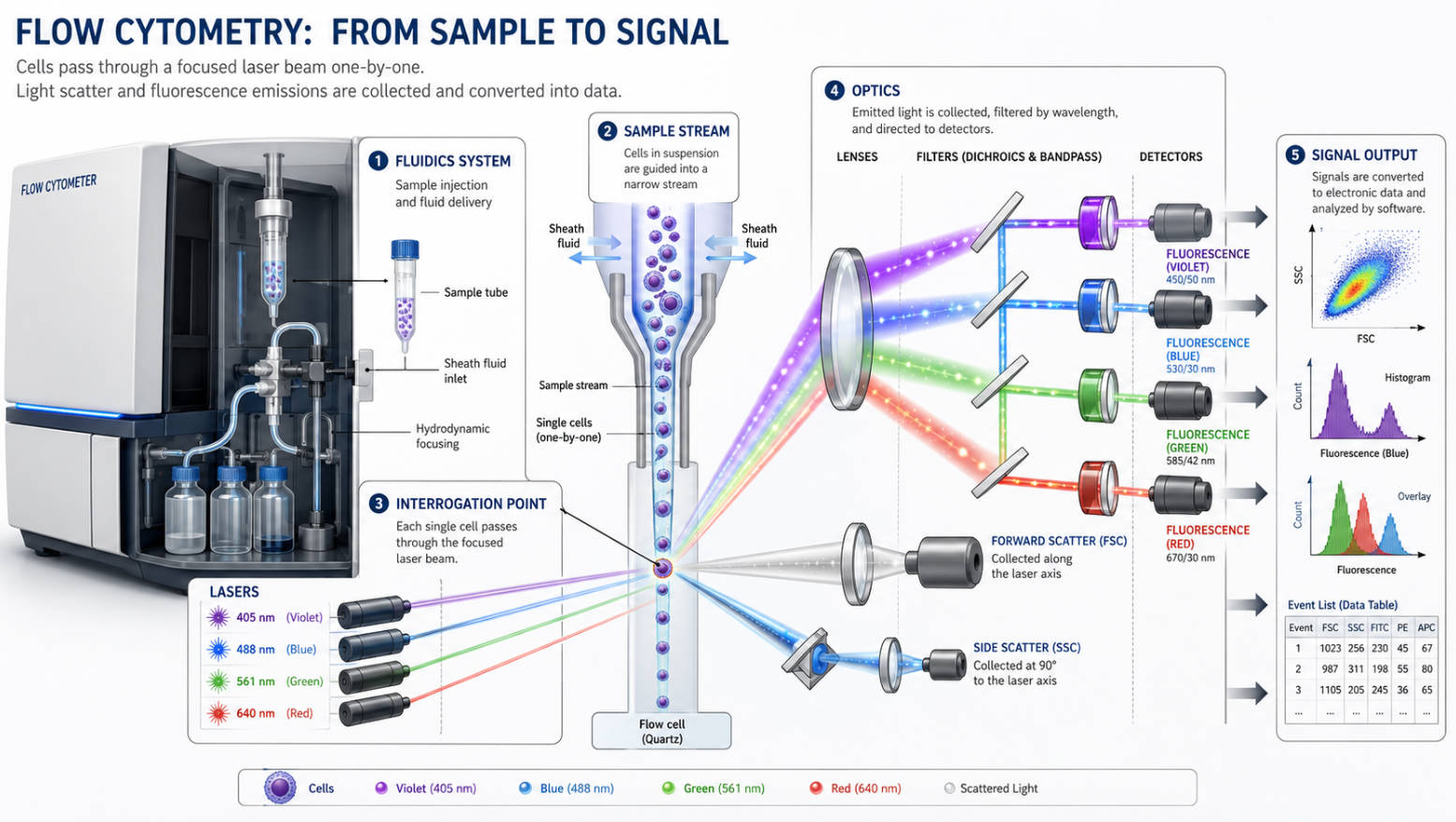

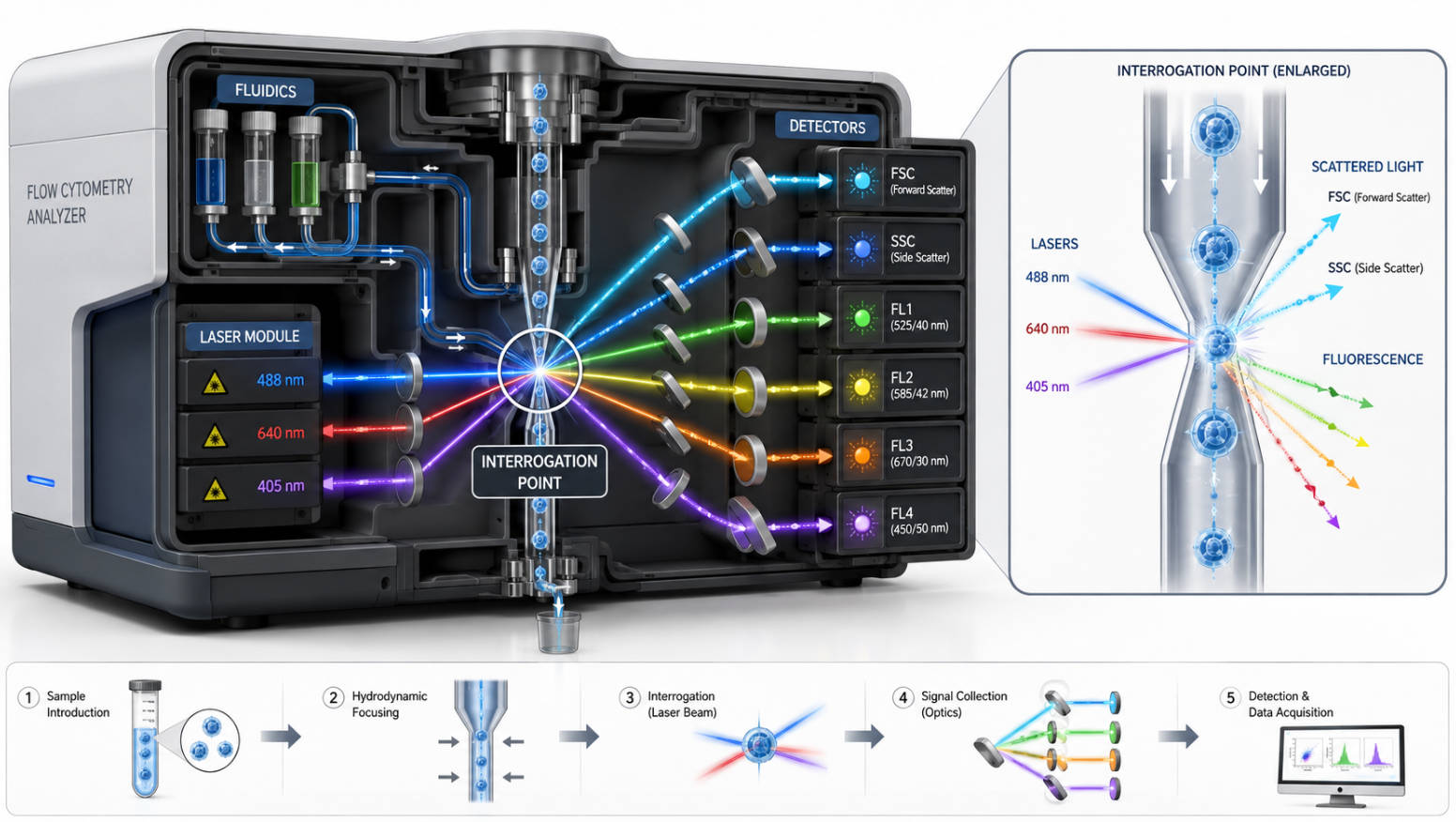

Understanding how the laser integrates into the system helps OEM buyers specify the right module. A typical flow cytometer includes: [hamamatsu]
- Fluidics system – focuses cells into a single file using hydrodynamic focusing.
- Illumination optics – directs one or more laser beams onto the interrogation point.
- Collection optics – gathers scattered and fluorescent light using lenses, mirrors and filters.
- Detectors – photodiodes or photomultiplier tubes (PMTs) convert light into electronic signals.
- Electronics and software – digitize, process and display multiparameter data. [vortranlaser]

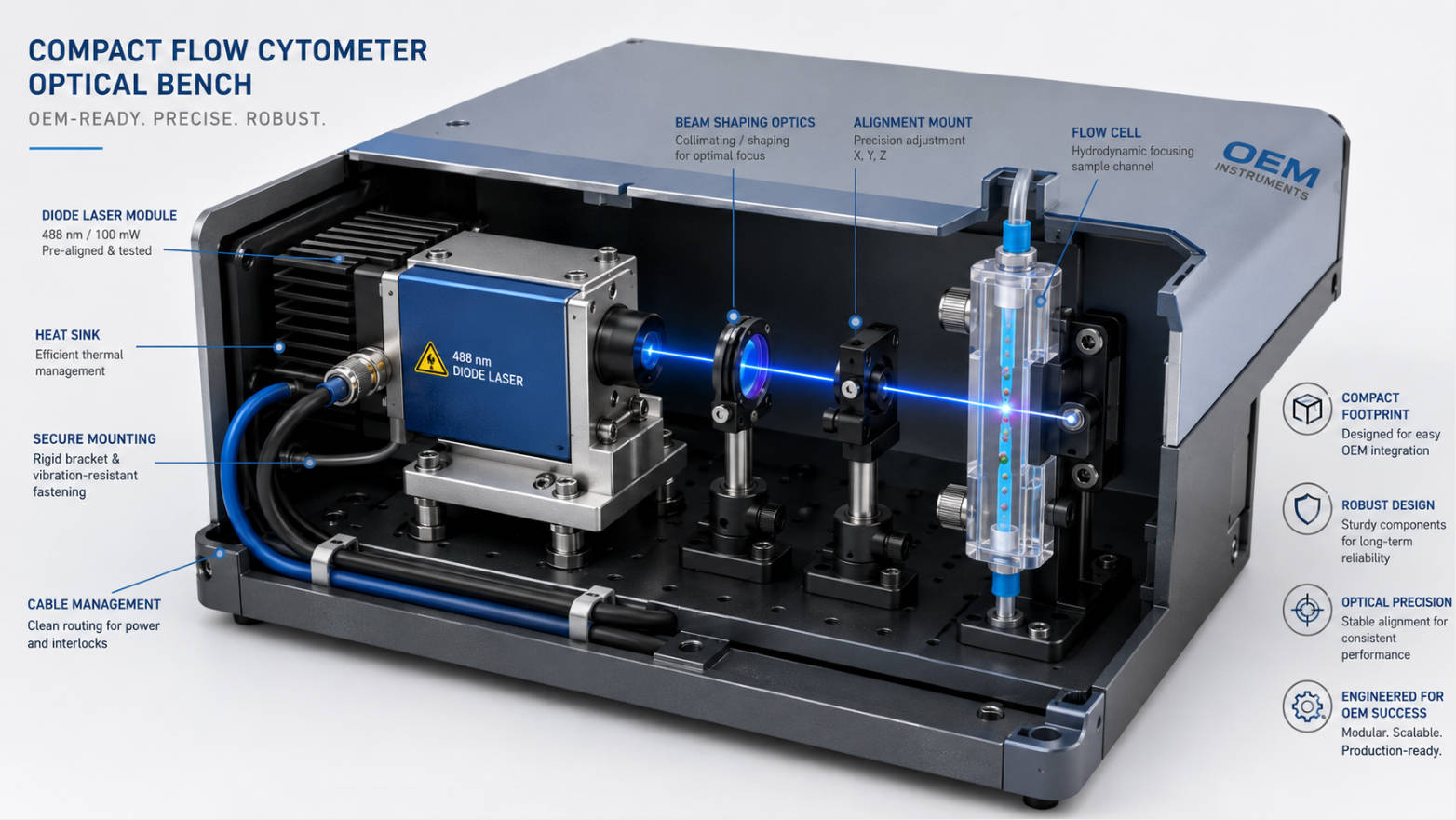

The laser module must therefore be:
- Mechanically robust and easy to integrate on the optical bench.
- Electrically compatible with the instrument's power and control architecture.
- Optically stable, with tight pointing stability and minimal warm‑up drift. [hamamatsu]
From my work with instrument teams, the most successful projects treat the laser supplier as a design partner early in the optical layout phase, rather than as a late‑stage component vendor. This reduces redesign cycles and avoids surprises during regulatory validation. [made-in-china]
In current cytometry practice, instruments often deploy multiple lasers to support complex, multi‑color fluorescence panels. Common excitation wavelengths include: [vortranlaser]
- 405 nm (violet) – for many modern small‑particle and DNA dyes.
- 488 nm (blue) – the historical workhorse for FITC and related fluorochromes.
- 561 nm (yellow–green) – optimal for PE and some red‑shifted dyes.
- 633–640 nm (red) – for APC and other far‑red fluorophores. [hubner-photonics]
When specifying power, there is a trade‑off between sensitivity and photobleaching or heating:
- Too low, and dim markers are indistinguishable from background.
- Too high, and you risk bleaching fluorophores or damaging delicate cells. [pmc.ncbi.nlm.nih]
In practice, OEM designers often target moderate optical powers with high power stability over time, trusting the optics and detectors to achieve the required sensitivity. Low‑noise driver electronics and good thermal management become just as important as the nominal wattage of the source. [photonics]
Clinical and core lab users increasingly expect flow cytometers to run around the clock with minimal unplanned downtime. From a laser‑engineering standpoint, the priorities are: [photonics]
- Long lifetime solid‑state diodes with proven MTBF under typical lab conditions. [currentprotocols.onlinelibrary.wiley]
- Temperature‑controlled modules (e.g., TEC‑stabilized) for wavelength and power stability.
- Integrated monitoring of output power and fault conditions for preventative maintenance. [hamamatsu]
Suppliers like Aiming Laser specialize in diode laser modules for OEM instruments and design for this kind of sustained use, particularly in industrial and life‑science environments where service access is limited and uptime is critical. [cn.linkedin]
For hospital and reference labs, this translates into:
- Fewer calibration runs.
- Predictable service intervals.
- Lower long‑term operating costs. [photonics]
From an OEM buyer's perspective, you rarely just need a catalog laser. You need a reliable OEM partner who can adapt beam geometry, mounting, connectivity and firmware to your instrument roadmap. [aiminglaser]
Aiming Laser Technology Co., Ltd. (brand: AimLaser) manufactures diode laser modules and fiber‑coupled lasers for OEM instrument applications and has been active since 2012. Based in Xi'an, China, the company supplies customized modules for industrial, medical and scientific markets and supports both OEM and ODM projects. [instagram]
In practical project work, this typically includes:
- Tailoring wavelength and output power to your fluorophore panel.
- Customizing beam shape (spot or line) and divergence, including Powell‑lens uniform line options.
- Integrating mechanical mounts, electrical interfaces and safety interlocks per your design.
- Delivering documentation and traceability suitable for regulated medical devices. [cn.linkedin]
By aligning the laser module specification with your flow cell geometry and detector layout early, you can reduce prototype iterations and shorten time‑to‑market for new cytometer models.
Industry‑wide, two trends are reshaping how we specify laser sources in flow cytometry. [vortranlaser]
1. Compact, multi‑laser engines
Modern instruments are consolidating multiple wavelengths into small, integrated laser engines, sometimes using fiber coupling and shared thermal management. This calls for OEM modules that are: [pmc.ncbi.nlm.nih]
- Highly compact.
- Efficient at dissipating heat.
- Designed for low crosstalk and tight beam pointing tolerances.
2. Improved sensors and optics
Advances in photodetectors and optical design have increased sensitivity while reducing noise. As a consequence, laser modules can be optimized more for stability and spectral purity than for raw power, particularly in clinical and single‑cell multi‑omics workflows. [appliedcytometry]
For both trends, working with an OEM laser supplier that is already active in machine vision and industrial inspection—where compactness, robustness and fine beam control are standard requirements—offers a real advantage. [aiminglaser]
When I advise engineering teams or purchasing managers on laser selection for flow cytometry analyzers, we typically walk through a structured checklist like this. [pmc.ncbi.nlm.nih]
Optical requirements
- Target wavelengths aligned to current and future fluorophore panels.
- Output power and power stability across expected duty cycles.
- Beam shape (spot or line), divergence and required uniformity.
Mechanical and electrical integration
- Form factor and mounting options compatible with your optical bench.
- Electrical interfaces, control signals and safety interlocks.
- Thermal management strategy (passive vs. active cooling).
Performance and quality
- Noise, linewidth and pointing stability specifications.
- Lifetime expectations and environmental qualification.
- Availability of engineering support and customization.
Supply and support
- OEM pricing and volume scalability.
- Lead times and logistics performance.
- Long‑term roadmap alignment with your product line. [made-in-china]
Working systematically through these factors with an experienced supplier like AimLaser helps ensure that the chosen laser light source supports not just first‑article performance, but long‑term reliability and customer satisfaction.
If you are planning a new flow cytometer platform, upgrading existing models or developing specialized analyzers for niche clinical or research applications, now is the right time to review your laser light source strategy.
By collaborating early with an OEM manufacturer such as Aiming Laser Technology Co., Ltd., you can:
- Optimize wavelength and beam geometry for your specific panels and flow cells.
- Improve data quality through better beam uniformity and stability.
- Reduce lifecycle costs and minimize unplanned downtime for your end users. [cn.linkedin]
You can reach AimLaser to discuss Powell‑lens uniform line lasers, diode modules or custom OEM solutions via their published contact channels and begin co‑developing a laser platform tailored to your flow cytometry roadmap. [made-in-china]
The laser defines excitation wavelength, power and beam geometry, which directly affect fluorescence intensity, resolution between populations and sensitivity for dim markers. A stable, well‑matched laser reduces compensation issues and recalibration frequency. [hubner-photonics]
Diode and DPSS lasers are compact, energy‑efficient, easier to cool and available in multiple wavelengths, enabling smaller instruments with multi‑laser configurations and lower operating costs. Gas lasers now appear mainly in legacy systems. [pmc.ncbi.nlm.nih]
A Powell lens reshapes a Gaussian laser beam into a straight, uniform "flat‑top" line, eliminating hot spots and providing even illumination along the line. This uniformity improves measurement accuracy in machine vision and any application requiring consistent excitation intensity. [aiminglaser]
Usually not. Complex multi‑color panels require multiple excitation wavelengths (e.g., 405, 488, 561 and 640 nm) to achieve optimal brightness and spectral separation across different fluorophores. Most modern cytometers therefore integrate several laser lines. [currentprotocols.onlinelibrary.wiley]
Beyond wavelength and power, OEM buyers should evaluate reliability data, thermal and mechanical design, customization capabilities and long‑term support for future instrument generations. Close engineering collaboration with the supplier generally leads to faster development and more robust systems. [cn.linkedin]
