As someone who works closely with OEM customers integrating fiber coupled lasers into demanding industrial and scientific systems, I've seen the same question come up again and again: Should we specify a single-mode or a multimode laser for this design? Choosing correctly here directly affects your system's precision, throughput, cost, and long‑term reliability. [sinogalvo]
In this guide, I'll break down single‑mode vs multimode lasers from an industry‑practitioner perspective, explain how they behave once they're fiber‑coupled, and give you a practical decision framework you can apply to your next OEM project.
When we talk about single‑mode and multimode lasers, we are essentially describing how the optical energy is distributed in space and frequency inside the laser cavity and delivery optics. [czechinvest.gov]
- Single‑mode laser
Emits light in essentially one transverse mode (often close to Gaussian TEM00) and, in many cases, one longitudinal mode as well, resulting in a highly focused, diffraction‑limited beam with narrow linewidth and long coherence length. [hanstcs-laser]
- Multimode laser
Supports multiple transverse modes and often multiple longitudinal modes, which leads to a larger, less "perfect" spot, higher total power, and more complex spatial intensity patterns. [umw]
In practice, that means single‑mode gives you beam quality, while multimode gives you brute power. OEM design is about balancing these two.

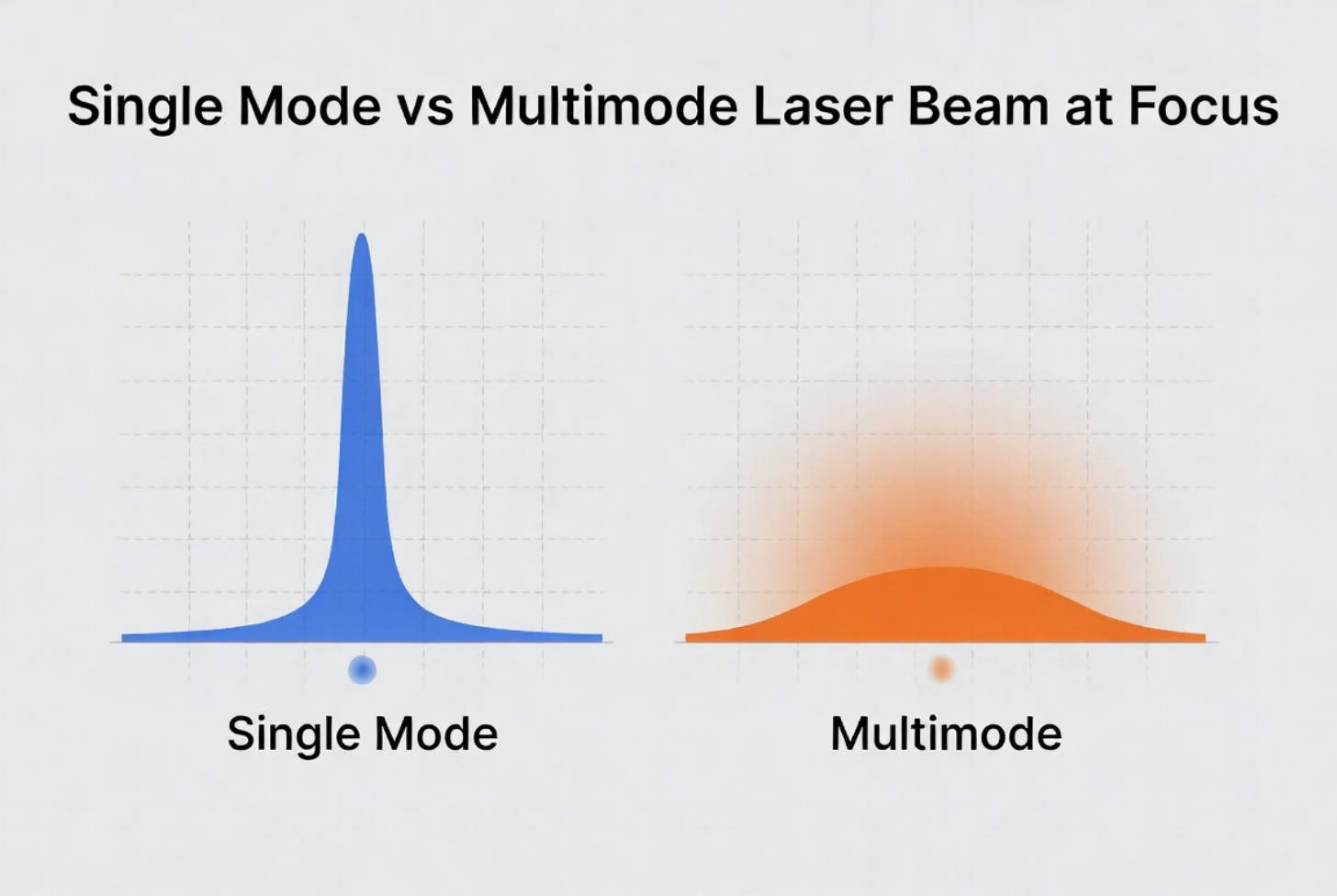

Single‑mode lasers produce a near‑Gaussian beam with low M⊃2;, allowing you to focus to a very small spot with high energy density. Multimode beams have higher M⊃2; and larger divergence, so the focused spot is bigger and less uniform. [sinogalvo]
This has direct consequences:
- Single‑mode: sharper, cleaner edges in micromachining, more stable welding keyholes, higher resolution in scanning and imaging. [laser.ofweek]
- Multimode: better for large‑area energy distribution where tight focus is not necessary, such as surface cleaning, rough cutting of thick plates, or bulk heating. [umw]
Multimode architectures are generally easier to scale to high average power and high single‑pulse energy while maintaining reasonable cost. Single‑mode lasers often trade some maximum power for stability and beam quality, though high‑power single‑mode (or quasi‑single‑mode) fiber lasers now reach kilowatt levels in welding and cutting. [blog.csdn]
Single‑mode (especially single longitudinal mode) lasers exhibit very narrow linewidth and long coherence length, which is crucial for interferometry, LIDAR, coherent communication, and precision metrology. Multimode lasers, with multiple longitudinal modes, have broader linewidth and shorter coherence length, which is acceptable and often preferred in many materials‑processing tasks where coherence can actually cause speckle‑related artifacts. [youtube]
For OEM engineers, the question is rarely "free‑space single‑mode vs free‑space multimode," but rather how the beam behaves after fiber coupling.
A fiber coupled laser module combines a laser diode or diode stack, coupling optics, and a delivery fiber into a compact, integration‑ready package. The fiber type strongly influences whether your delivered beam is effectively single‑mode or multimode: [aiminglasers]
- Single‑mode fiber output
- Core diameter typically 4–10 µm (visible–NIR)
- Delivers a near‑Gaussian beam at the exit, ideal for precise focusing and scanning. [czechinvest.gov]
- Multimode fiber output
- Core diameter from tens to hundreds of microns
- Supports multiple modes, giving a larger, often top‑hat‑like or speckled intensity distribution at the workpiece. [sinogalvo]
For OEM system design, the fiber type often matters more than the internal diode architecture. Aiming Laser and similar OEM suppliers can help match the internal launch conditions to the fiber so you get the effective mode quality your process needs at the point of use. [ceramoptec]
You generally choose single‑mode when you must control every micron of the spot or every picometer of wavelength:
- High‑precision micromachining, thin‑sheet cutting, and fine engraving where you need narrow kerfs and minimal heat‑affected zones. [laser.ofweek]
- Spectroscopy, interferometry, and high‑resolution sensing applications that depend on narrow linewidth and long coherence length. [hanstcs-laser]
- Fiber‑optic communications, coherent LIDAR, and advanced metrology requiring stable phase and low noise. [czechinvest.gov]
In welding, high‑power single‑mode or quasi‑single‑mode fiber lasers can provide deeper penetration, higher depth‑to‑width ratios, and smaller heat‑affected zones compared with multimode at the same nominal power. [youtube]
You typically choose multimode when power and area coverage matter more than the perfection of the spot:
- Thick‑plate cutting where the main goal is throughput on >3 mm metals and the process can tolerate a broader beam. [umw]
- Surface cleaning and rust removal, where uniform energy over a larger area is beneficial and beam quality demands are moderate. [sinogalvo]
- Large‑area processing such as mold cleaning, solar cell manufacturing, and bulk heating where a top‑hat‑like distribution is actually desirable. [blog.csdn]
User and integrator feedback in the market often follows this pattern: single‑mode systems excel in thin‑material, high‑precision tasks, while multimode systems tend to win on thick materials and high‑throughput cleaning or surface treatment lines. [youtube]
From interviews, case descriptions, and video demonstrations by machine builders and laser integrators, several patterns are clear in real‑world production. [laser.ofweek]
- In 1–1.5 mm sheet metal cutting, single‑mode fiber lasers can provide up to around 20% higher cutting speed compared with multimode at the same rated power, because the smaller focused spot achieves higher energy density. [youtube]
- As thickness exceeds about 3 mm, the speed advantage shifts toward high‑power multimode lasers, which can deliver higher overall power and more favorable melt flow for thick plates. [youtube]
- For welding reflective materials like copper and aluminum, advanced single‑mode and quasi‑single‑mode sources with beam wobble or scanning optics can significantly reduce defects, deepen penetration, and improve weld quality compared with conventional multimode solutions at equal power. [laser.ofweek]
These trends align closely with what OEM customers report when transitioning from legacy multimode sources to newer single‑mode or hybrid architectures in automotive, battery, and electronics manufacturing lines. [umw]
Beyond materials processing, single‑mode lasers are central to modern fiber‑optic infrastructure and precision measurement systems. [hanstcs-laser]
Key advantages include:
- Very narrow linewidth and extremely low phase noise, enabling long‑distance coherent transmission and highly sensitive interferometric measurements. [czechinvest.gov]
- Long coherence length, often tens to hundreds of meters, which is critical in LIDAR, holography, Raman spectroscopy, and optical metrology. [czechinvest.gov]
- Diffraction‑limited beams, simplifying coupling into single‑mode fibers, integrated photonic circuits, and small‑aperture optical systems. [hanstcs-laser]
For OEMs in telecom, sensing, and scientific instrumentation, specifying a single‑mode fiber‑coupled source is almost always the baseline requirement rather than an option. [hanstcs-laser]

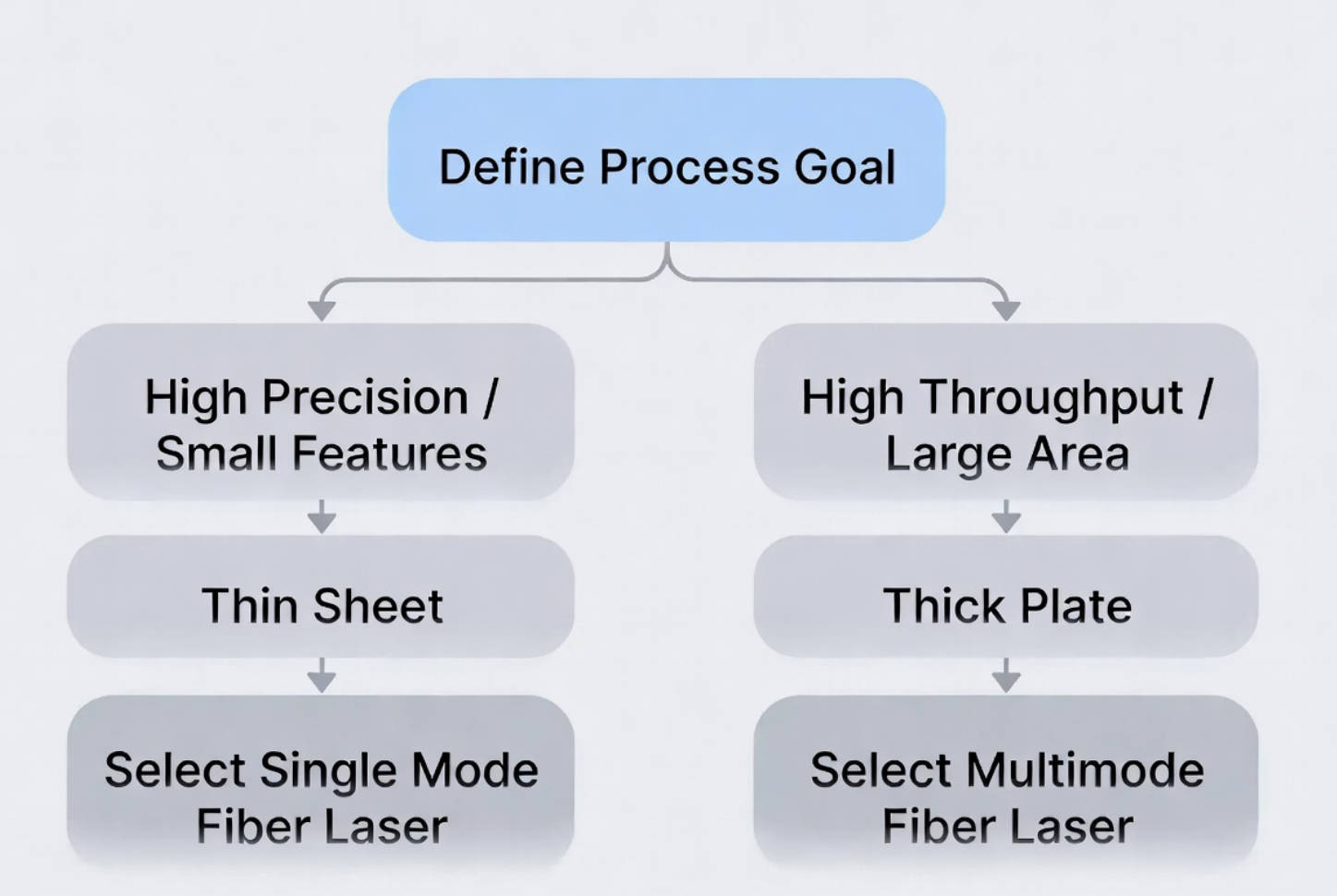

From an OEM engineer or product manager's perspective, the "single‑mode vs multimode" decision should follow a structured process. [aiminglasers]
1. Define the primary process goal
- If your priority is precision, fine features, or metrology‑grade stability, lean toward single‑mode.
- If your priority is throughput on thick or large areas, lean toward multimode or a high‑power multimode fiber‑coupled module. [sinogalvo]
2. Specify power and beam requirements
- Required spot size and energy density at the workpiece.
- Maximum plate thickness, weld depth, or measurement range you must support. [laser.ofweek]
3. Consider mechanical and thermal constraints
- Available space in the machine head, motion system, or enclosure.
- Cooling options (air vs water), allowed ambient temperature range, and duty cycle. [jenoptik]
4. Assess optics and delivery
- Do you need single‑mode fiber delivery for tight focusing and long‑distance beam transport?
- Or will a large‑core multimode fiber simplify integration and improve robustness under misalignment or contamination? [ceramoptec]
5. Evaluate cost and service strategy
- For large installed bases with global field service, modular fiber‑coupled laser heads that can be swapped quickly often win on total cost of ownership. [jenoptik]
- For centralized factories with specialist maintenance teams, more integrated, higher‑power systems can be justified. [aiminglasers]
When in doubt, engaging an OEM supplier early—sharing sample materials, target cycle times, and cost constraints—almost always leads to a more balanced and future‑proof specification. [ceramoptec]
If you're integrating fiber coupled single‑mode or multimode modules into your own equipment, several design details will strongly influence long‑term field performance:
- Connector and fiber handling
- Choose connector standards that match your environment (e.g., industrial vs lab‑grade).
- Design strain reliefs and routing that protect against bending radius violations and vibration. [jenoptik]
- Back‑reflection management
- For reflective targets such as copper, aluminum, and polished metals, consider isolators or angled connectors, especially on higher‑power single‑mode modules. [laser.ofweek]
- Thermal design
- Dimension heatsinks, chillers, and airflow for the maximum duty cycle and ambient temperature, not the "typical lab" condition. [aiminglasers]
- Monitoring and diagnostics
- Integrate power monitoring, temperature sensors, and usage counters into your control system so you can track degradation and predict service intervals over the lifetime of the machine. [ceramoptec]
An OEM‑focused supplier of fiber‑coupled modules can provide mechanical drawings, thermal data, and optical interface guidelines that reduce your internal engineering time and risk. [jenoptik]
Aspect | Single‑Mode Laser | Multimode Laser |
|---|---|---|
Beam profile | Near‑Gaussian, diffraction‑limited, low M⊃2; sinogalvo | Larger spot, higher M⊃2;, often flatter or speckled sinogalvo |
Linewidth & coherence | Very narrow linewidth, long coherence length czechinvest.gov | Broader linewidth, shorter coherence, less sensitive to interference blog.csdn |
Power scaling | More challenging but available in high‑power fiber formats laser.ofweek | Easier to scale to high average power and pulse energy umw |
Best for | Micromachining, thin‑sheet cutting, precision welding, sensing, interferometry, telecom sinogalvo | Thick‑plate cutting, surface cleaning, large‑area processing, heavy industrial work sinogalvo |
Fiber type | Single‑mode fiber output, small core, tight focus czechinvest.gov | Multimode fiber, large core, robust delivery sinogalvo |
Typical users | High‑precision OEMs, metrology, medical, scientific systems czechinvest.gov | High‑throughput industrial lines, heavy manufacturing, cleaning systems sinogalvo |
If your next product depends on fiber coupled lasers, deciding between single‑mode and multimode is not just a specification detail—it defines your machine's performance envelope for the next decade. [aiminglasers]
By working with an OEM‑oriented manufacturer early in your design cycle, you can:
- Validate the right mode type and fiber configuration on your actual materials.
- Optimize thermal and mechanical interfaces before locking your mechanical design.
- Reduce integration time and long‑term service risk.
For OEM product managers and design engineers, the most effective next step is to share:
- Your target applications and key materials.
- Required throughput and precision.
- Any space, cooling, or regulatory constraints.
From there, a tailored single‑mode or multimode fiber‑coupled solution can be configured to match your roadmap and budget. [ceramoptec]
For thin sheets around 1–1.5 mm, single‑mode fiber lasers usually provide higher cutting speeds and cleaner edges at the same nominal power, thanks to their smaller focused spot and higher energy density. Multimode sources become more attractive as thickness increases and you prioritize throughput over edge quality. [umw]
Not always. Single‑mode is ideal when you need very small features, extremely stable beams, or narrow linewidth for sensing and metrology. For many general industrial tasks where tolerances are in the tens or hundreds of microns, a well‑designed multimode system can meet requirements at lower cost. [sinogalvo]
A single‑mode laser is typically paired with single‑mode fiber, preserving beam quality and enabling tight focus at the workpiece. Multimode lasers are delivered through large‑core multimode fibers, which are more tolerant of misalignment and contamination but produce larger, less uniform spots. [czechinvest.gov]
High‑power single‑mode and quasi‑single‑mode fiber lasers with appropriate scanning or wobble techniques can achieve deep penetration and high‑quality welds in copper and aluminum, reducing pores and defects. That said, process optimization and back‑reflection management are critical, and in some regimes multimode sources are still used depending on the specific geometry and thickness. [youtube]
You should involve an OEM laser supplier as early as possible, ideally while you are still defining target materials, process windows, and mechanical constraints. Early collaboration helps you avoid over‑specifying or under‑specifying beam quality, power, and fiber type, and allows the supplier to propose a more cost‑effective and reliable fiber‑coupled architecture. [jenoptik]
