940nm 10W 20mm@4m Powell Lens Uniform Line Laser Power Adjustable with Built-in Cooling Fan

Model: AM940U10WG1M

Brand: AIMLASER

Code: 90132000.99

Color: Invisible

Wavelength: 950nm

Type: CW with Power Adjustament Potentiometer

Availability:



Inquire Add to Basket

Product Description

940nm 10W 20mm@4m Powell Lens Uniform Line Laser Power Adjustable with Built-in Cooling Fan

laser-wavelength-chart

AimLaser provides customized Uniform Line Laser Diode Modules which use high-quality Powell lens and possess characteristics of compact size, narrow line width, high stability and reliability.

The thinnest line can be 10um; fan angle is optional from 10°to 120° and wavelength ranges from 405nm to 1550nm. The input voltage is also various from 3V to 220V.

※ 940nm 50mW Powell Lens Uniform Line Laser Module Descriptions

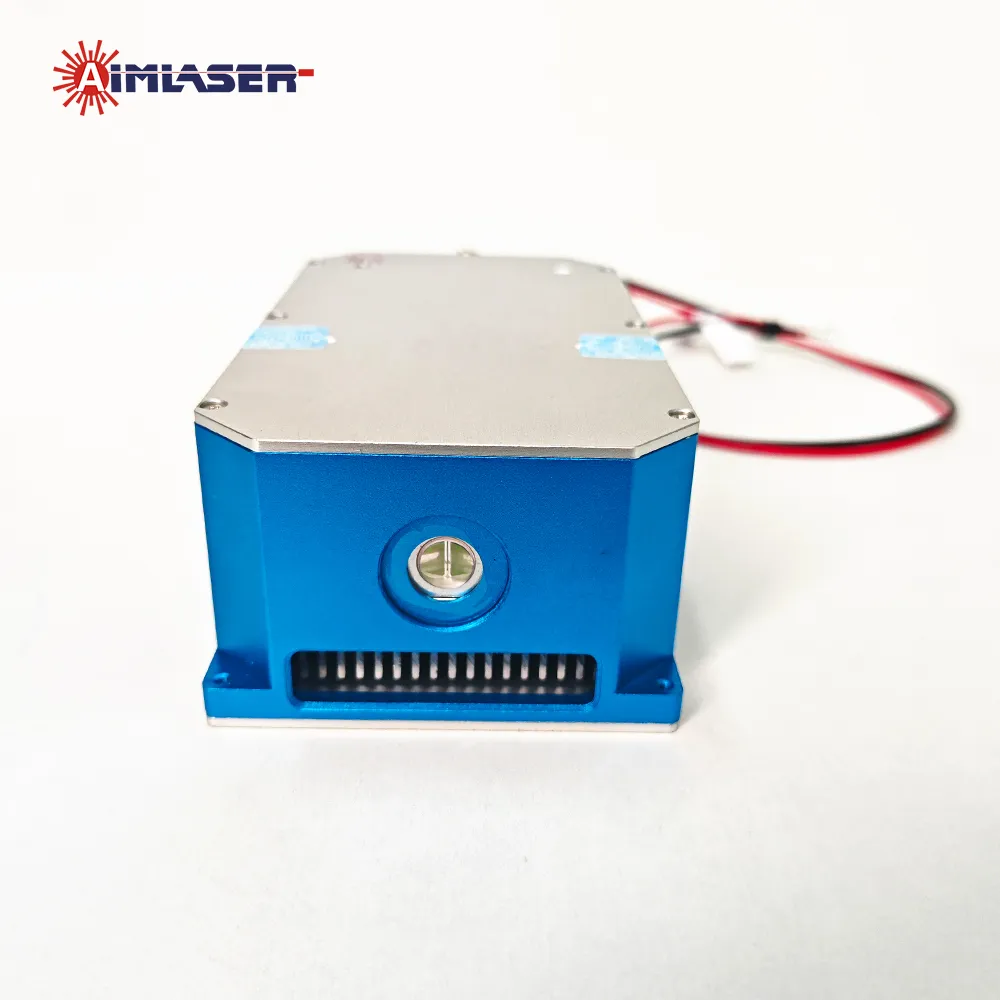

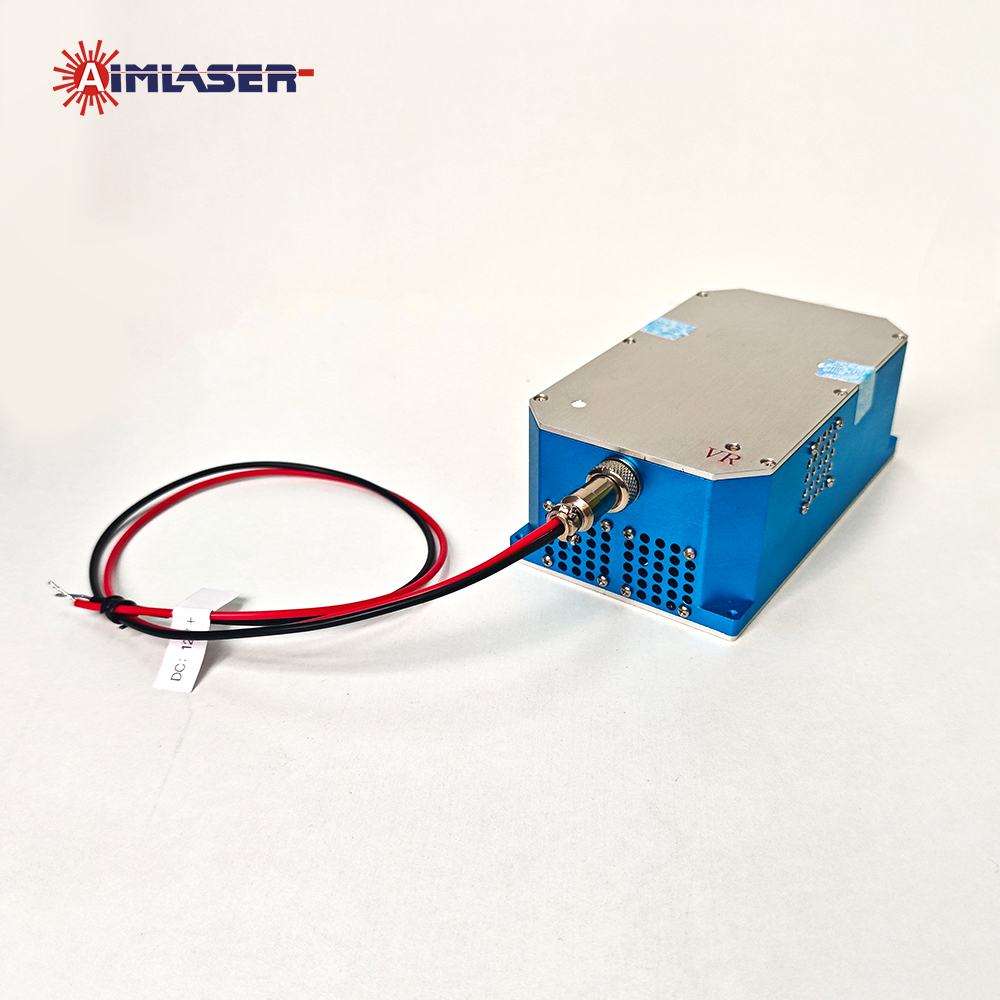

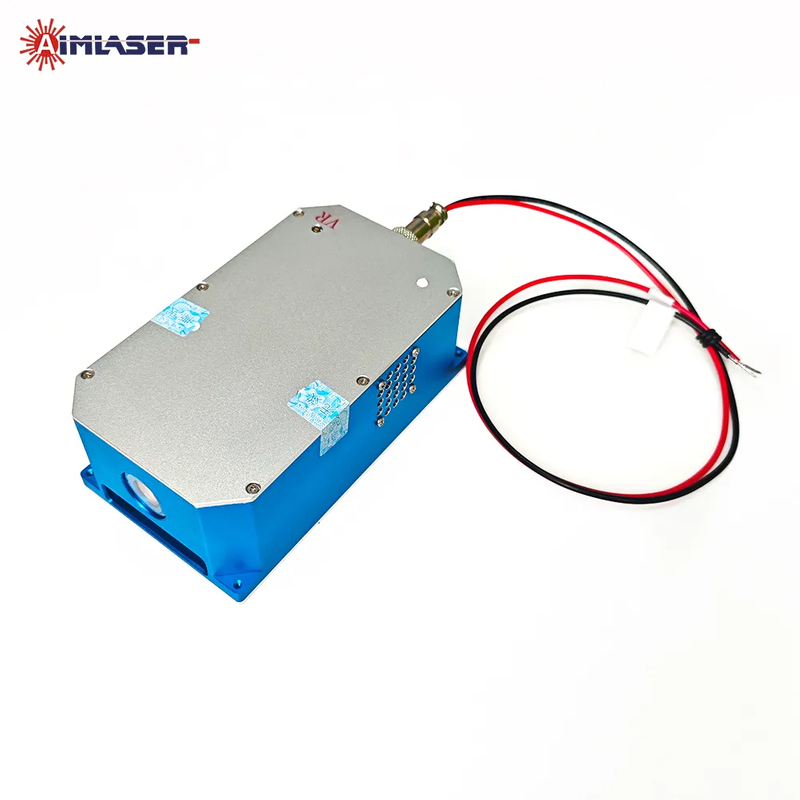

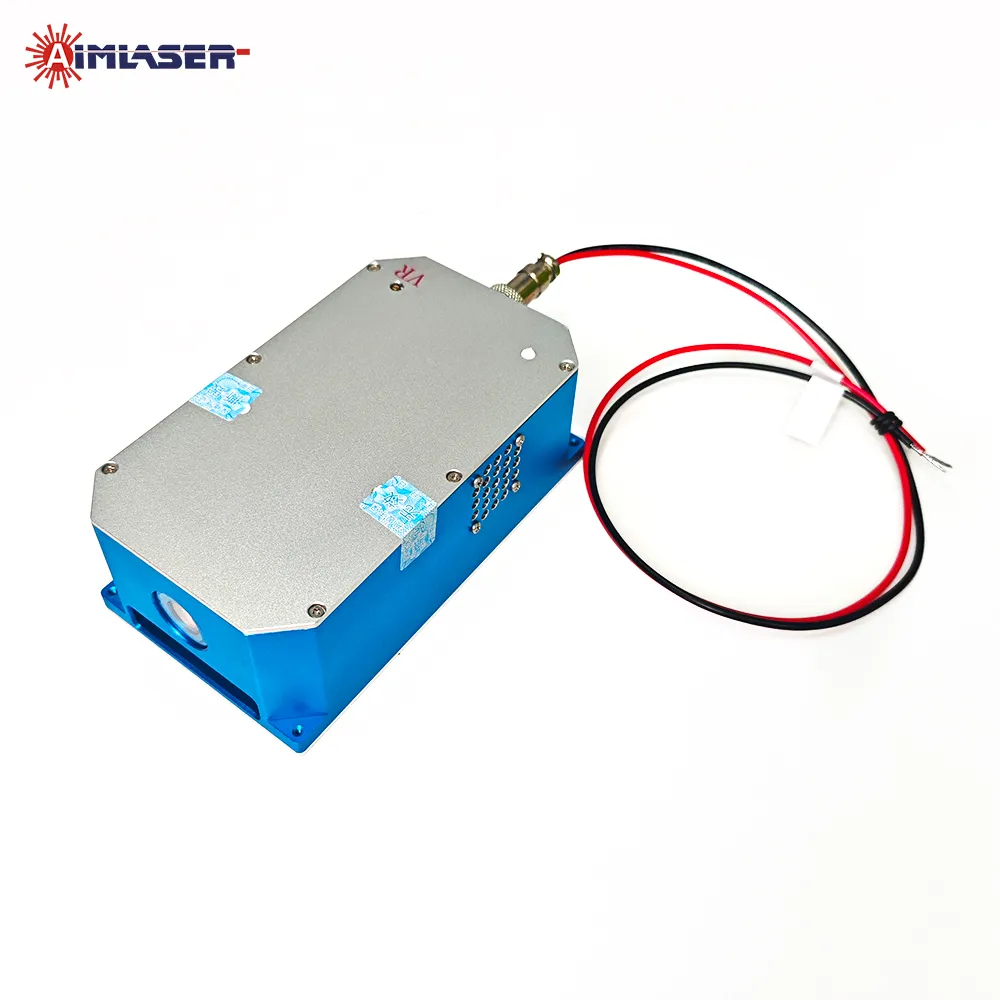

The AM940U10WG1 is an infrared line laser module subassembly with a power adjustment potentiometer. The maximum laser output power is 10W at 940nm. Energy is uniformly distributed. The external VR knob allows power adjustment, while the built-in cooling fan enhances stability during long-term operation.

※ 940nm 10W Powell Lens Uniform Line Laser Module Optical and Electrical Characteristics

ITEM	SPECIFICATIONS
Model Number	AM940U10WG1 Powell Lens Uniform Line Laser Module
Wavelength	940±10nm
Output Power	≤10W
Output Aperture	Φ8.0mm
Line Width	≤20mm@4m
Fan Angle	110°±5°
Divergence	0.8mrad
Optics	Optical Glass Lens
Operating Current	<2.5A
Operating Voltage	12V DC
CDRH Class	Class IIIV
Power Adjustment	Adjustable with External Potentiometer
Cooling	Built-in Fans
Working Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 80℃
Dimensions	14(L)x8(W)x5.2(H)cm
Case Material	Blue & Silver Anodized Aluminum
Life Span	8,000Hrs
