A laser bore sight projects a laser beam from the firearm’s barrel (or chamber) along the bore axis so you can align your optic or iron sights to roughly match the point of impact before live‑fire zeroing. [crateclub]
Instead of guessing or burning through ammo, you use the laser dots a reference line to get “on paper” at close range, then fine‑tune with real shots. This saves time, reduces ammunition cost, and is especially useful when mounting new red dots, LPVOs, or night‑vision‑compatible optics. [pewpewtactical]
For Aiming Laser Technology Co., Ltd., these products sit in the same ecosystem as pistol lasers and weapon‑mounted lights: precision alignment, ruggedization, and repeatable zero are the core value propositions for downstream brands and wholesalers.
At a high level:
- Coaxial laser bore sight: The laser beam is aligned on the same axis as the bore, typically via a cartridge‑style insert or a precisely centered muzzle device. - Non‑coaxial laser bore sight: The laser sits off the bore axis (for example, a universal muzzle “spud” that expands in the barrel, or an external clamp‑on device), so its beam is only approximate to the true bore line.
This geometric difference is what drives accuracy, repeatability, and user experience. [scopesfield]
Coaxial bore sights are usually chamber‑inserted or bore‑centered with tight tolerances:
- Cartridge‑style units sit in the chamber like live ammo, with the laser module aligned with the casing centerline. - When the bolt or slide closes, the laser’s axis coincides very closely with the bore axis. - The result is minimal angular offset between the laser beam and the projectile path, especially at typical zeroing distances (10–50 yards for pistols, 25–100 yards for rifles). [scopesfield]
From an OEM manufacturing standpoint, achieving true coaxiality means:
- Tight concentricity control between battery compartment, diode, and “case” body - Precision machining and QC to keep runout and tilt within a small fraction of MOA - Consistent laser output and collimation for a clean, round dot on the target [linkedin]
Done well, coaxial bore sights can deliver sub‑MOA alignment at 25 yards in premium products and within about 1 inch at 25 yards even in mid‑range units, which is more than enough to get a firearm on paper. [scopesfield]
Non‑coaxial designs typically include:
- Universal muzzle bore sights that use interchangeable arbors or expanding collets to “center” in multiple calibers - External clamp‑on laser tools that attach to the barrel or rail and approximate the bore line
Because the laser source is off the true centerline, these tools rely on mechanical centering and adjustment screws to mimic the bore axis. Manufacturing realities (slight play, arbor flex, user tightening differences) mean the beam is rarely perfectly coaxial with the barrel. [chicagotribune]
However, the trade‑offs are:
- One device can support many calibers, reducing inventory for retailers - Easier for casual users to adapt across platforms without buying multiple cartridge sizes - Lower cost in some designs, appealing to entry‑level shooters and price‑sensitive markets [pewpewtactical]
Across hands‑on reviews and user reports:
- Quality laser bore sights generally get you “on paper” at 25–50 yards with the first shot. [facebook] - Performance benchmarks for good units include: - Within 0.5–1 MOA at 25 yards for top‑tier products - Within 1–2 inches at 50 yards for budget devices [scopesfield] - Many shooters emphasize that you still need live‑fire zeroing to refine elevation and windage. [crateclub]
- Coaxial bore sights: - Better initial alignment accuracy, especially beyond 25 yards - More repeatable when removed and reinstalled in the same firearm - Less sensitive to user‑induced error during setup
- Non‑coaxial bore sights: - Adequate to get on paper at close range but less precise at distance - Performance can degrade if the muzzle arbor is slightly off‑center or if the device is bumped or dropped - More variation between firearms and calibers because fit is “universal,” not custom [chicagotribune]
Industry reviewers and gunsmiths generally agree: laser bore sights are a starting point, not a final zero, but coaxial designs give a tighter starting point with less guesswork. [ocabj]
Speaking as a content strategist working with firearms instructors and product designers, three scenarios separate “good enough” from “must be coaxial”:
1. Duty and defensive firearms - Patrol carbines, home‑defense rifles, and carry pistols demand minimal error before live‑fire. - Coaxial bore sights reduce the risk of a large offset at your chosen zero distance, which translates into faster confirmation at the range. [chicagotribune]
2. Long‑range platforms - For rifles zeroed at 100–300 yards, even small angular errors at the bore add up. - Coaxial alignment reduces the amount of turret dialing and saves expensive match ammunition. [scopesfield]
3. High‑throughput ranges and training facilities - Instructors and armorers boresighting dozens of rifles need repeatable, fast alignment. - Coaxial systems are easier to standardize in SOPs and less prone to user‑specific variations. [linkedin]
For casual plinking at 10–15 yards with a pistol, a non‑coaxial universal bore sight may be fully adequate. For professional or high‑volume use, the extra precision of coaxial systems quickly pays for itself.

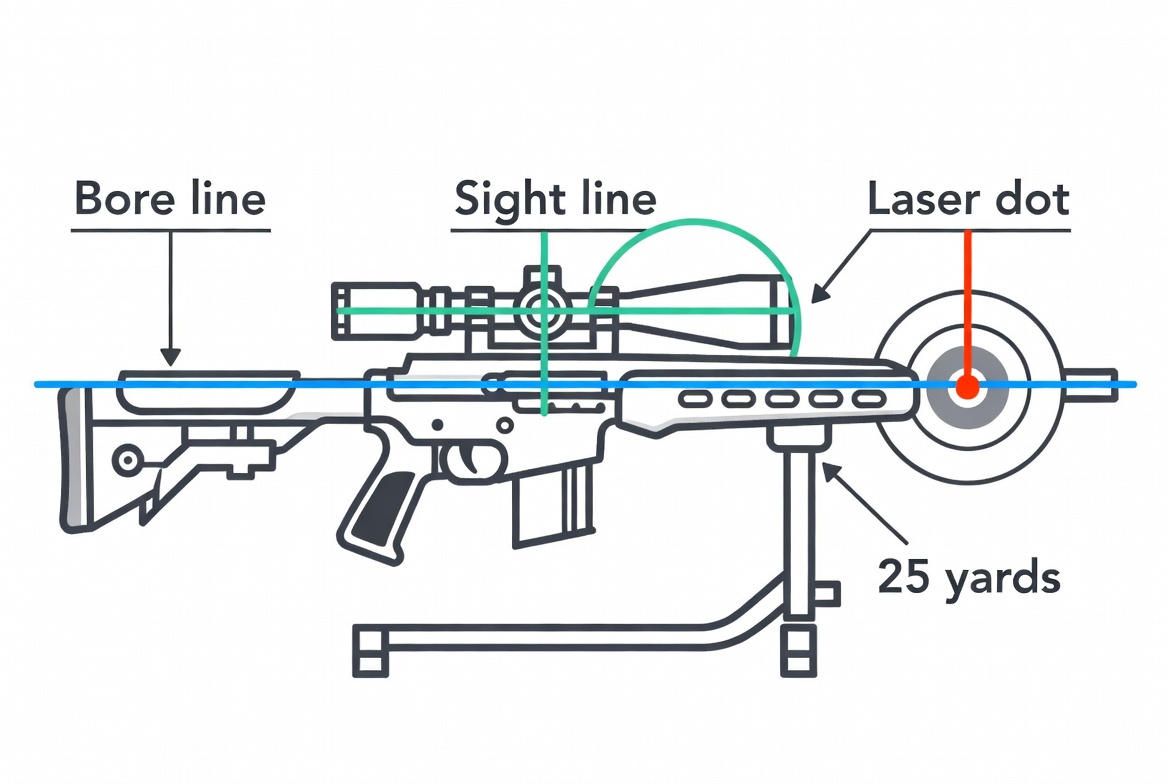

Imagine two lasers:
- Laser A is perfectly coaxial with the bore. - Laser B is offset by just a fraction of a millimeter at the muzzle due to a non‑coaxial design.
At 10 yards, the difference on target might be barely visible. At 50–100 yards, that same angle can create multiple inches of offset, especially if the device is not perfectly re‑seated each time. [scopesfield]
Key geometric factors:
- Angular error: A tiny tilt between the laser and bore axis multiplies with distance. - Translational offset: If the laser aperture is physically off‑center, your “zero” will only be correct at one distance and can diverge quickly beyond that. - Repeatability: Seating depth, arbor flex, and clamp tension can change the effective axis every time you reinstall a non‑coaxial device.
Coaxial designs minimize both angular and translational errors by locating the laser directly on the bore centerline, which is why they test better in controlled range analyses. [chicagotribune]
The boresight system market is growing off the back of increased defense spending and demand for precision targeting. Forecasts project multi‑year growth driven by laser and sensor advancements, with some analyses citing CAGRs in the high single to low double digits through 2033. [linkedin]
For OEMs like Aiming Laser Technology Co., Ltd., that means:
- Greater expectations from brand customers for factory‑verified accuracy - Stronger emphasis on quality control, laser safety, and documentation in manufacturing [lia] - Opportunities to integrate smart features (e.g., better battery management, improved visibility, and compatibility across platforms) into bore sight lines [linkedin]
In short, accuracy is no longer a “nice to have”; it’s a differentiator for wholesalers and brands that want to stand out in crowded marketplaces.
- Coaxial bore sights: - Position as premium / professional‑grade SKUs - Target law‑enforcement suppliers, training academies, and serious hobbyists - Non‑coaxial bore sights: - Position as universal, budget‑friendly tools for entry‑level shooters - Bundle with optics or gun‑cleaning kits as value‑adds
- Integrate coaxial bore sights into factory QC workflows to pre‑zero platforms before shipping. [linkedin] - Offer branded cartridge‑style bore sights as after‑sales accessories, using OEM partners to customize housings and markings.
- Use coaxial units for instructor setups where time and ammo savings justify higher unit cost. [linkedin] - Keep a small pool of universal, non‑coaxial tools as backup for odd calibers or guest firearms.
Even the best hardware fails with poor procedure. Based on field practice and best‑practice QC in laser manufacturing, here is a condensed workflow. [ocabj]

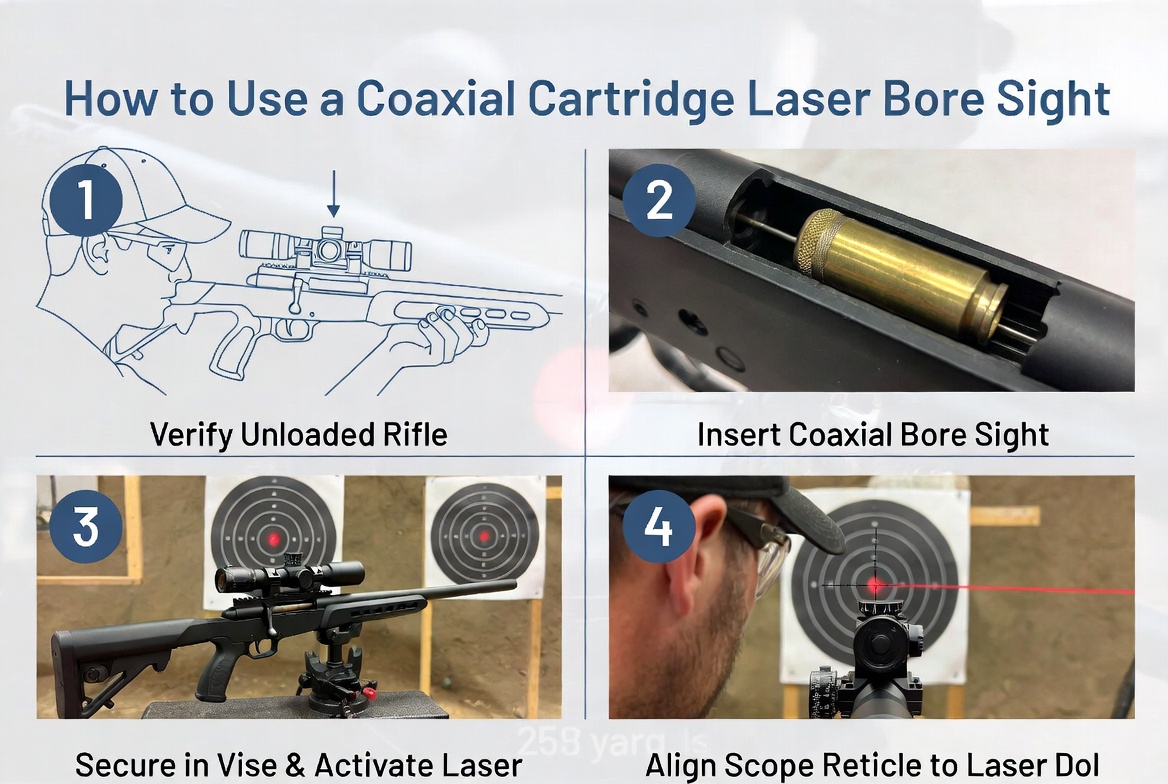

1. Inspect the chamber and barrel - Confirm the firearm is unloaded and clean. 2. Insert the cartridge or bore‑centered device - Ensure it seats fully; avoid forcing. 3. Stabilize the firearm - Use a rest or vise to minimize movement. 4. Project onto a known distance - Common indoor reference: 10–15 yards; outdoor: 25 yards or your chosen zero. 5. Adjust optic or sights - Move reticle or irons to intersect the laser dot at your chosen distance (remember your offset for close‑range AR zeros). 6. Confirm with live fire - Fire a controlled group, then refine elevation and windage as needed.
1. Select the correct arbor or adapter - Match caliber and ensure a snug, centered fit. 2. Align carefully - Rotate the device and watch whether the dot moves in a circle; if so, re‑seat until movement is minimized. 3. Lock in the device - Tighten clamps/expansion lightly but firmly to reduce wobble. 4. Use shorter reference distances - Stay within 10–25 yards where angular error is less visible. [reddit] 5. Expect more fine‑tuning at the range - Use more live‑fire rounds to “walk in” the final zero.

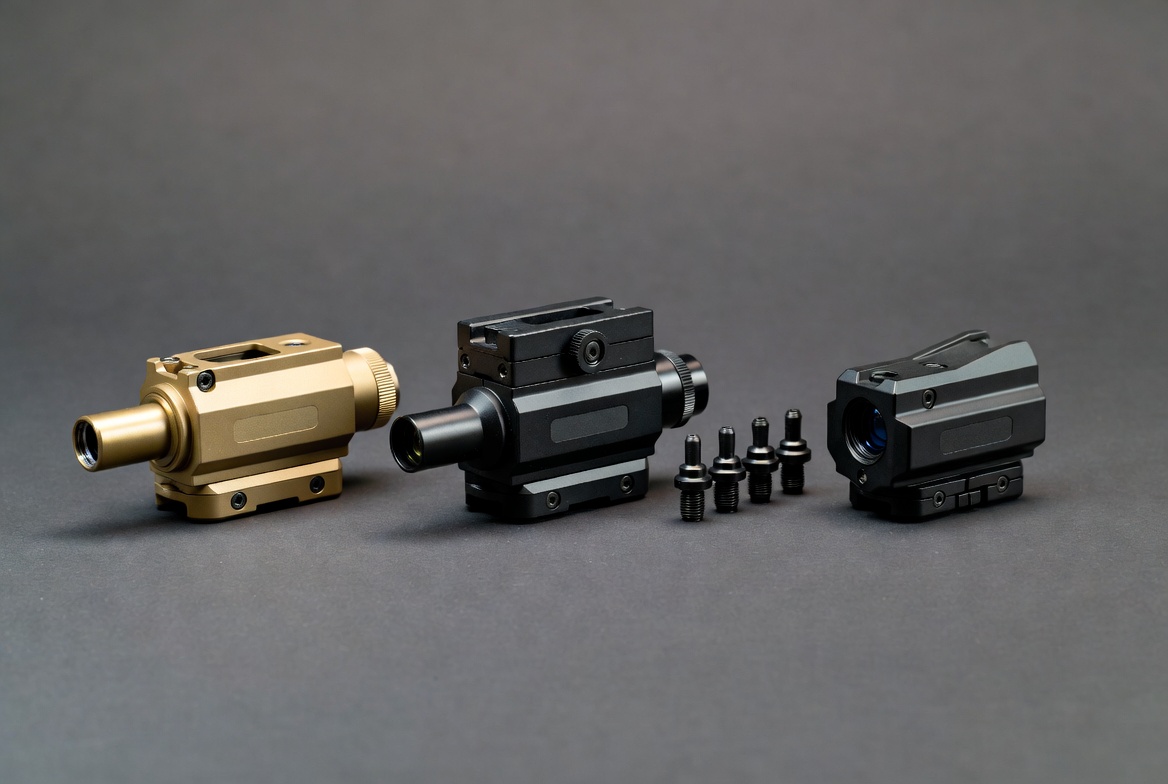

As an OEM supplier, Aiming Laser Technology Co., Ltd. can help international brands position both coaxial and non‑coaxial bore sights within a coherent product line:
- Precision engineering - Tight tolerance machining of cartridge bodies and arbors for near‑true coaxial alignment. [irdglass] - Quality assurance - In‑house tests for alignment accuracy at typical zero distances and stability under vibration and temperature cycles. [linkedin] - Customization - Brand engraving, housing color, packaging design, and instruction manuals tailored to your market segment (defense, law enforcement, sporting, or entry‑level consumer). - Regulatory and safety compliance - Design and documentation aligned with recognized laser safety standards used in manufacturing environments. [lia]
For buyers, this means you can offer both high‑end coaxial solutions and cost‑effective non‑coaxial tools under one brand umbrella, without building in‑house laser manufacturing capability.
Feature / Aspect | Coaxial Laser Bore Sight | Non‑Coaxial Laser Bore Sight |
|---|---|---|
Beam alignment | On or very close to bore axis (scopesfield) | Offset from bore axis; approximated by arbors/clamps (pewpewtactical) |
Typical accuracy (25–50 yards) | Tighter groups; closer to final zero (scopesfield) | Adequate to get on paper; more deviation at distance (pewpewtactical) |
Repeatability | High, when reinserted correctly | Moderate; varies with fit and user setup |
Caliber compatibility | Usually single caliber or small family | Multi‑caliber, universal options (pewpewtactical) |
Cost level | Medium to high | Budget to mid‑range |
Best use cases | Duty guns, long‑range rifles, high‑volume training | Casual plinking, multi‑caliber owners, budget kits |
OEM positioning | Premium / professional SKUs | Entry‑level / universal SKUs |
If you are a shooter or instructor:
- Choose coaxial if: - You rely on your firearm for defense or duty. - You run longer‑range zeros (50–200 yards). - You mount and re‑mount optics often. - Choose non‑coaxial if: - You own many calibers and want one tool. - You mostly shoot at short range. - You are highly price‑sensitive and accept extra live‑fire tuning.
If you are a brand or wholesaler:
- Stock both, but market them differently: - Coaxial line: Focus on “professional‑grade, faster zero, less ammo wasted.” [pewpewtactical] - Non‑coaxial line: Focus on “universal, affordable, multi‑caliber convenience.” [pewpewtactical]
Whether your customers are new pistol owners or professional tactical teams, the right balance of coaxial and non‑coaxial laser bore sights can define your brand’s reputation for accuracy.
Aiming Laser Technology Co., Ltd. offers OEM and ODM support across design, machining, and QA so you can:
- Launch or upgrade a complete bore sight product family - Customize branding and specifications for your target markets - Integrate better accuracy and reliability into your product promise
If you are planning a new bore sight line or want to upgrade an existing catalog, contact Aiming Laser Technology’s OEM team to discuss coaxial and non‑coaxial options tailored to your brand and price point.
1. Are coaxial laser bore sights always more accurate? Coaxial designs generally provide better alignment with the bore axis and more repeatable results, especially beyond 25 yards, but real‑world accuracy still depends on build quality and user technique. [ocabj]
2. Do I still need to fire live rounds after using a laser bore sight? Yes. Laser bore sights are meant to get you on paper and save ammo, not to replace final zeroing with your actual ammunition at your chosen distance. [facebook]
3. Is a universal non‑coaxial bore sight good enough for pistols? For common pistol distances (7–15 yards) and basic training, a well‑made non‑coaxial tool can be sufficient, though you may need more fine‑tuning with live fire compared to a coaxial unit. [reddit]
4. How important is laser color (red vs. green)? Green lasers are typically more visible in daylight at longer distances, while red lasers are often cheaper and perfectly adequate indoors or in low light; color does not change coaxial vs non‑coaxial geometry. [pewpewtactical]
5. What should OEM buyers look for when choosing a bore sight manufacturer? Focus on proven accuracy testing, adherence to laser safety practices, strong QC processes, and the ability to customize designs and packaging for your market segment. [irdglass]
