Views: 222 Author: AimLaser Publish Time: 2026-04-21 Origin: Site
Choosing between a fiber laser and a fiber coupled laser module is one of the most important architectural decisions you'll make when designing an industrial laser system or OEM device. From my experience working with international OEMs and integrators, this single decision often determines not only performance and reliability, but also long‑term serviceability, cost of ownership, and how scalable your product roadmap will be. [aerodiode]
In this in‑depth guide, I'll walk you through how fiber lasers and fiber coupled laser modules really differ in practice, when to choose each, and what to look for in an OEM manufacturing partner.
A fiber laser is a complete laser system in which the gain medium is an optical fiber doped with rare‑earth elements (such as ytterbium or erbium). The laser cavity, pumping scheme, and optical amplification all occur inside the fiber. The output is typically delivered through a flexible fiber to the workpiece. [ud-machine]
Typical characteristics of fiber lasers: [xtool]
- High beam quality and excellent focusability
- High electrical‑to‑optical efficiency
- Robust, solid‑state structure with long lifetime
- Widely used for metal cutting, welding, marking, engraving, and micromachining

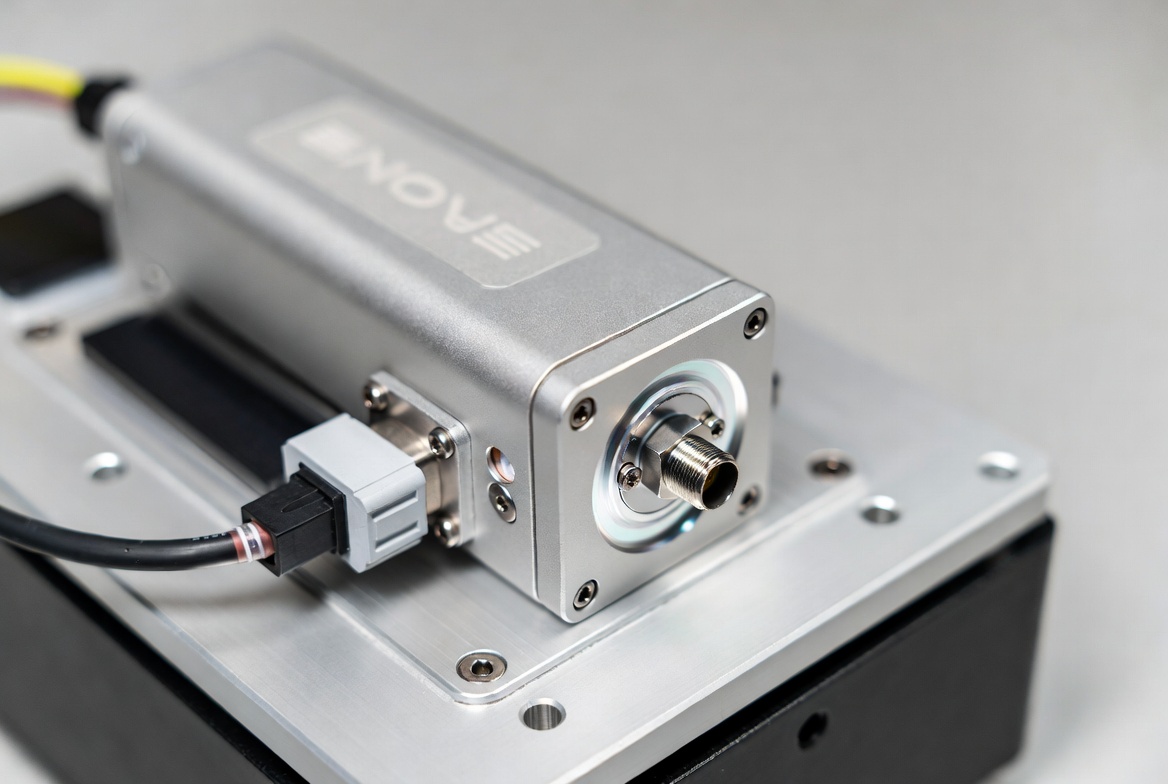

A fiber coupled laser module (also called a fiber‑coupled diode module) combines one or more laser diodes with coupling optics and a delivery fiber in a single, compact module. The laser generation happens in the diodes, and the light is then injected into the fiber. [coherent]
Typical characteristics of fiber coupled laser modules: [aliexpress]
- Highly compact, modular light sources
- Flexible selection of wavelengths (e.g., from visible to near‑infrared)
- Often used as pump sources, illumination modules, or integration components in larger systems
- Available in single‑mode and multimode fiber outputs, with power from a few watts to kilowatts [rpmclasers]
Below is a concise, OEM‑oriented comparison that you can also reuse as a visual table in your product pages.
Dimension | Fiber Laser | Fiber Coupled Laser Module |
|---|---|---|
Laser source | Doped fiber as gain medium (ud-machine) | Laser diodes + coupling optics to fiber (aerodiode) |
Form factor | Larger, complete system (often rack or cabinet) | Compact module, easy to integrate on OEM boards or sub‑assemblies (rp-photonics) |
Power range | From tens of watts to multi‑kW industrial systems (xtool) | From a few watts to kW‑class pump/processing modules (coherent) |
Beam quality | Very high, excellent for fine cutting/marking (ud-machine) | Depends on diode, fiber type, and coupling; can be optimized per project (aerodiode) |
Wavelength options | Typically fixed in 1 µm or 1.5 µm region (ud-machine) | Wide range from visible to IR; multiple wavelengths possible (aerodiode) |
Typical applications | Cutting, welding, metal marking, micromachining (ud-machine) | Pumping solid‑state lasers, medical, sensing, machine vision, illumination (aerodiode) |
Maintenance approach | Full laser system service; may require specialist field support | Module‑level replacement, simple plug‑and‑play integration (rp-photonics) |
OEM customization | Possible but often at system level | Highly customizable: power, fiber type, connector, packaging, electronics (rp-photonics) |
From an integrator's point of view, a fiber laser is the right choice when your application requires maximum power density and processing speed on metals or other demanding materials. [mantechmachinery.co]
You are likely to prefer a fiber laser if:
- You build industrial cutting or welding systems where throughput and cut quality are critical. [xtool]
- You need highly consistent, repeatable marking on metals, hard plastics, and serial‑numbered parts. [ud-machine]
- Your customers expect turn‑key laser machines with minimal configuration and a single integrated source. [mantechmachinery.co]
- You have enough space and budget for a cabinet‑level laser source and auxiliary systems.
In these cases, fiber lasers provide out‑of‑the‑box performance, stable long‑term operation, and proven process recipes across many materials and industries. [ud-machine]
As an OEM manufacturer, I often see fiber coupled laser modules chosen when flexibility, compactness, and modular integration are more important than having a monolithic high‑power laser system. [rp-photonics]
You are likely to prefer fiber coupled laser modules if:
- You develop compact instruments or handheld devices, where a small footprint and low weight are essential.
- You need a pump source for solid‑state or fiber lasers, with specific wavelengths, core sizes, or numerical apertures. [aerodiode]
- Your system architecture benefits from hot‑swappable or replaceable modules, reducing downtime and service costs. [rp-photonics]
- You work on medical, sensing, spectroscopy, or machine vision systems with precise optical requirements and customized fiber delivery. [coherent]
Because fiber coupled modules are designed as OEM components, they can be manufactured in volume with consistent performance and tight tolerances, which is ideal for international brands, wholesalers, and equipment manufacturers. [rp-photonics]

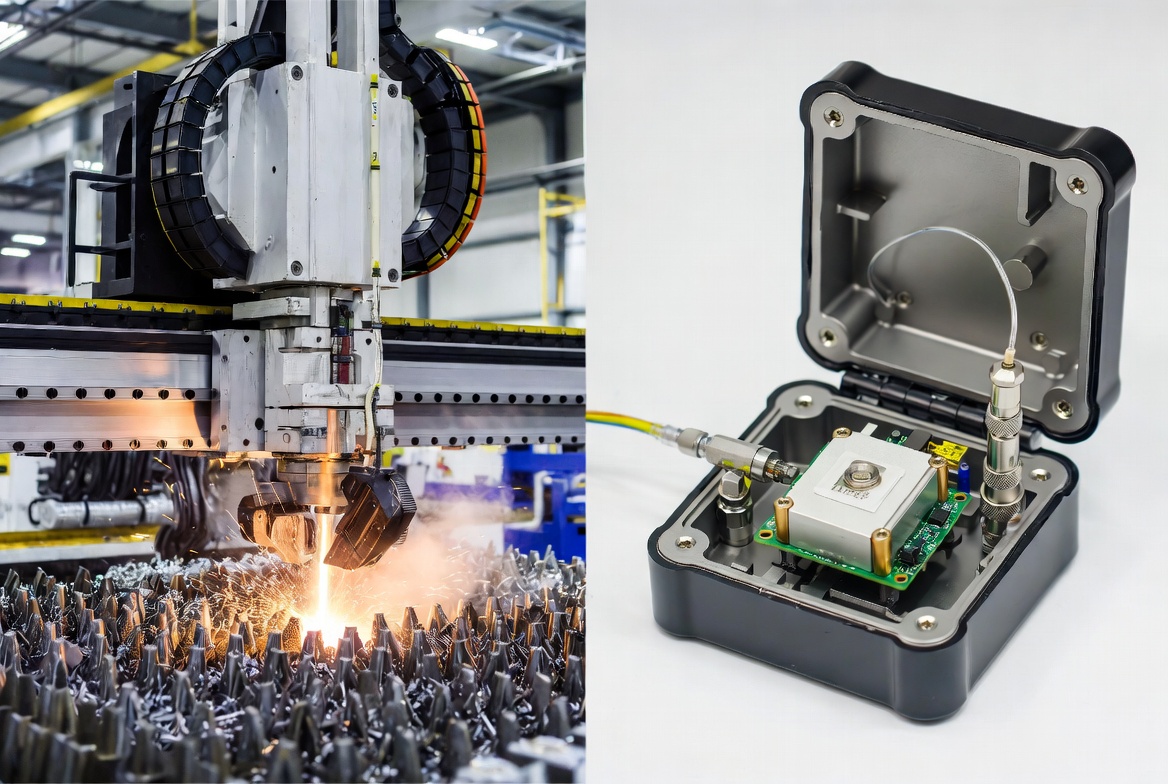

To make this comparison more concrete, here are typical project scenarios and the technology that usually fits best.
- Requirements: Kilowatt‑level power, 24/7 operation, excellent edge quality, automated production. [xtool]
- Typical choice: High‑power fiber laser integrated into a CNC cutting system.
- Why: Fiber lasers offer superior energy density and cutting speed on metals, with proven industrial reliability. [mantechmachinery.co]
- Requirements: Compact, reliable laser source, precise control, sterilizable fiber delivery. [compliancegate]
- Typical choice: Fiber coupled laser module integrated into the medical device housing.
- Why: Modules allow tailored wavelength, power, and fiber type, while compliance with IEC 60825‑1 and medical standards can be managed at system level. [compliancegate]
- Requirements: Repeatable pumping at specific wavelength and power level; scalable to thousands of units.
- Typical choice: Fiber coupled diode laser modules as standardized pump building blocks. [aerodiode]
- Why: Easy to scale, easy to replace, and simple to qualify within a modular product architecture. [rp-photonics]
When I help OEM clients choose between fiber lasers and fiber coupled laser modules, we typically evaluate at least the following technical factors:
- Fiber lasers deliver excellent beam quality, ideal for fine focus and high energy density. [ud-machine]
- Fiber coupled modules can be engineered for either single‑mode or multimode output, balancing cost, power, and spot size. [rpmclasers]
- Fiber lasers usually operate at fixed wavelengths (e.g., around 1 µm), with good spectral stability for cutting and marking. [xtool]
- Fiber coupled modules offer a broader wavelength portfolio, including visible and near‑infrared bands for sensors, imaging, or pumping. [aliexpress]
- Both technologies demand proper thermal design, but fiber lasers often integrate complex cooling within the system cabinet. [mantechmachinery.co]
- Fiber coupled modules tend to be easier to cool at the module level, and can be swapped if aging or drift occurs. [coherent]
- In the US, laser products must comply with FDA CDRH rules (21 CFR 1040.10/1040.11) and relevant IEC standards such as IEC 60825‑1. [compliancegate]
- OEMs often prefer modular sources so that system‑level safety classification and labeling can be handled consistently across product families. [compliancegate]

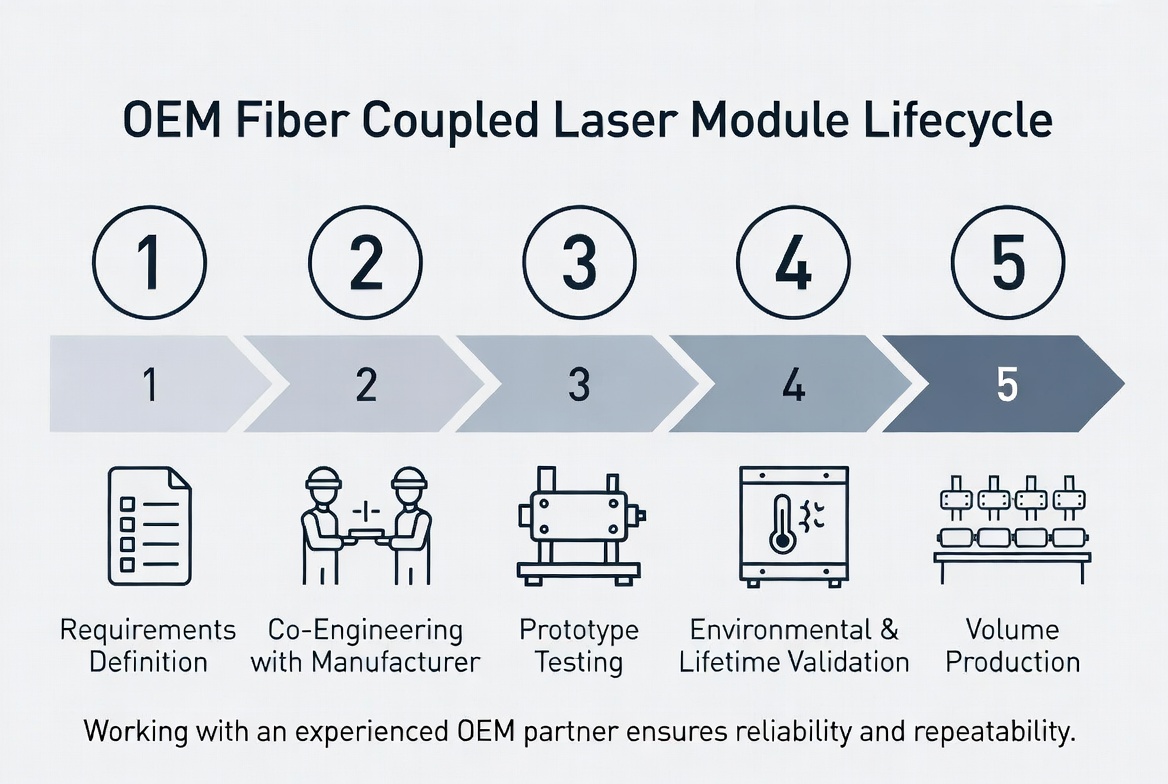

To ensure your project succeeds from prototype to mass production, consider the following practical best practices:
1. Define the use case first
Start from the material, process, and duty cycle requirements, then derive optical and electrical specs instead of choosing a laser type by habit. [developers.google]
2. Plan for serviceability
Design your system so that laser modules or fibers can be replaced without disassembling the entire machine. Fiber coupled modules are especially convenient here. [rp-photonics]
3. Standardize across platforms
For OEM portfolios, standardizing a family of fiber coupled modules (with consistent connectors, drivers, and mounting) simplifies logistics and maintenance worldwide. [rp-photonics]
4. Work with experienced OEM partners
Partners that specialize in OEM laser modules can help with datasheet interpretation, driver design, and thermal/mechanical integration. [lasercomponents]
5. Validate against regulatory and customer requirements early
Include safety class, labeling, and EMC considerations from the first prototypes, not at the end of development. [developers.google]
For international brands, wholesalers, and machine builders, working with a dedicated OEM laser module manufacturer has clear advantages:
- Application‑driven customization
Tailored output power, beam shape, fiber type, connector, and mechanical housing optimized for your application. [aerodiode]
- Co‑engineering support
Guidance on driver electronics, heat sinking, and system architecture reduces your engineering burden and development risk. [lasercomponents]
- Quality and consistency at scale
Robust manufacturing processes ensure batch‑to‑batch stability, critical for global product launches and medical or industrial approvals. [rp-photonics]
- Lifecycle and roadmap planning
Long‑term component availability and compatible next‑generation modules help you plan future product upgrades without redesigning your entire machine. [lasercomponents]
This is exactly where specialized companies in industrial laser modules and fiber‑coupled sources stand out: they bridge the gap between discrete components and full laser systems and give OEMs a reliable building block to grow on. [coherent]
For engineers and product managers who want a quick decision path, here is a simple step‑by‑step checklist:
1. Clarify the primary process
- Metal cutting/welding with high power → likely fiber laser.
- Pumping, sensing, imaging, or compact device → likely fiber coupled module. [ud-machine]
2. Define power and beam requirements
- Need ultra‑fine focus and high energy density at kW levels → fiber laser.
- Need tailored beam or moderate power with flexible fiber specs → module. [rpmclasers]
3. Evaluate mechanical and thermal constraints
- Room for rack/cabinet, industrial chiller → fiber laser is feasible.
- Very limited space or mobile/portable device → module is better. [xtool]
4. Assess service strategy and logistics
- Centralized service teams, fewer machine variants → fiber laser systems.
- Global installed base, need fast field replacement → modular approach. [rp-photonics]
5. Engage with an OEM specialist early
Share process samples, mechanical constraints, and target costs so the laser manufacturer can help you balance performance, reliability, and budget from the start. [developers.google]
If you are planning a new industrial laser module, fiber coupled source, or custom laser sub‑system for international markets, this is the ideal moment to define the right architecture.
By partnering with a specialized OEM laser module manufacturer, you can:
- Reduce time‑to‑market with proven module platforms
- Achieve stable, repeatable performance across global batches
- Tailor wavelength, power, and fiber delivery precisely to your application
Reach out to our engineering team to discuss your concept, request a sample, or co‑develop a customized fiber‑coupled laser solution that fits your next‑generation device.
1. Is a fiber coupled laser module just a smaller fiber laser?
No. A fiber coupled module uses laser diodes plus coupling optics to inject light into a fiber, while a fiber laser uses doped fiber as the gain medium and operates as a full laser system. [aliexpress]
2. Can fiber coupled laser modules reach kilowatt‑level power?
Yes. High‑power multi‑emitter modules and pump modules can reach kW‑class output, especially for pumping and materials processing, provided thermal design is handled correctly. [rpmclasers]
3. Which option is more suitable for medical devices?
Many medical systems prefer fiber coupled modules because they are compact, customizable in wavelength, and can be integrated into certified medical platforms while respecting IEC 60601‑2‑22 and IEC 60825‑1. [aerodiode]
4. Are fiber lasers always more expensive than fiber coupled modules?
Fiber lasers generally represent a higher system‑level cost because they are complete high‑power systems, but when you consider total process productivity and throughput, they can be more cost‑effective for heavy industrial tasks. [omtech]
5. What should I prepare before contacting an OEM laser manufacturer?
Prepare your target application, required wavelength, power, duty cycle, mechanical constraints, and any regulatory standards you must meet. This allows the OEM partner to propose the right module or system quickly. [lasercomponents]
