In modern factories and smart production lines, lasers and robots are no longer separate technologies—they are tightly integrated into complete laser‑robot systems that cut, weld, mark, measure, and guide with micron‑level precision. As the global lasers market grows beyond 13 billion USD and industrial robots in operation surpass 4.6 million units, laser‑equipped robots are becoming a core driver of productivity, quality, and cost reduction across automotive, electronics, medical devices, and more. [einpresswire]
From my experience working with OEM industrial laser modules for overseas system integrators and machine builders, the most successful projects share three traits:

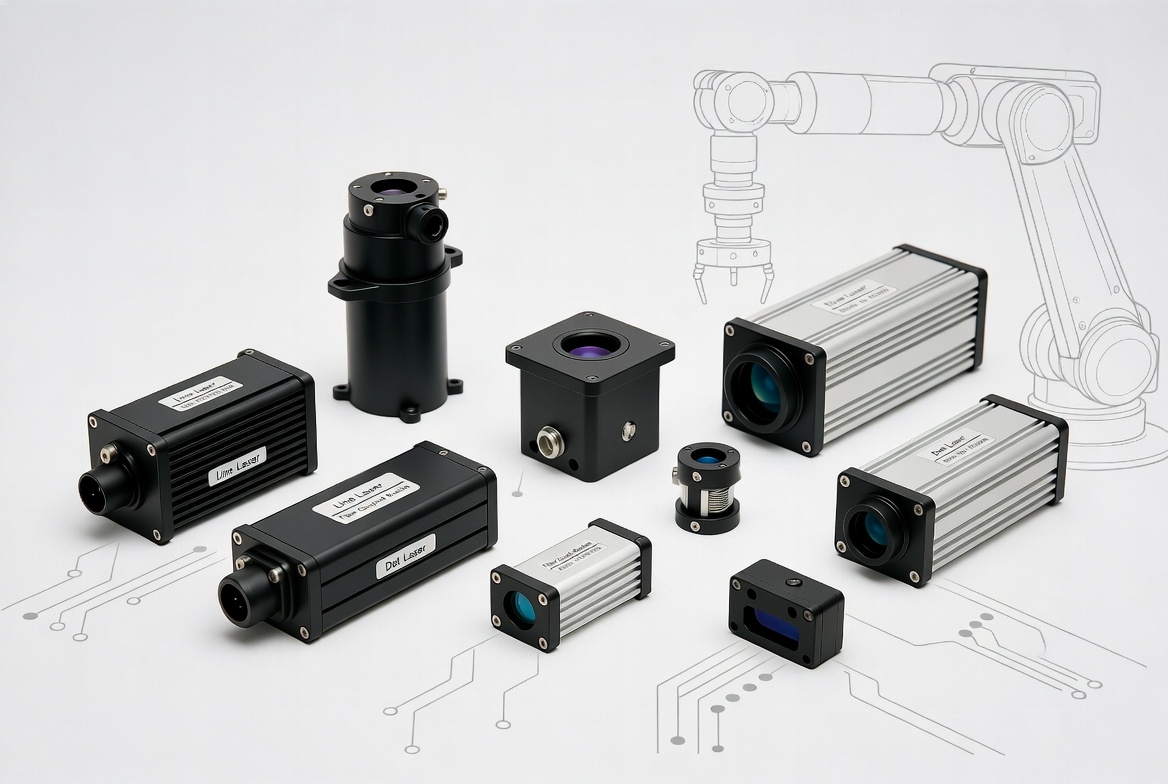

- They choose laser modules that are engineered specifically for robotic integration.
- They design the robot task around laser repeatability and beam quality, not just raw power.
- They work with a laser partner that understands both optics and automation, not just components. [prophotonix]
In this guide, we will explore the key applications of lasers in robots, practical selection tips for OEM projects, and where the technology is heading next.
Robotic laser welding combines a focused laser beam with multi‑axis robotic motion to create high‑speed, high‑precision welds. It is now a flagship application of lasers in robots. [3drobotik]
Key advantages of robotic laser welding:
- Ultra‑high speed: Laser welding lines can shorten production cycles and enable true mass customization. [dplaser]
- Narrow heat‑affected zone: Less distortion, better dimensional accuracy, and cleaner surfaces.
- Deep, narrow welds: Ideal for automotive components, battery packs, precision frames, and thin metals. [3drobotik]
- Excellent repeatability: With robot repeatability around ±0.02 mm and seam tracking sensors, systems can reach extremely consistent weld quality. [dplaser]

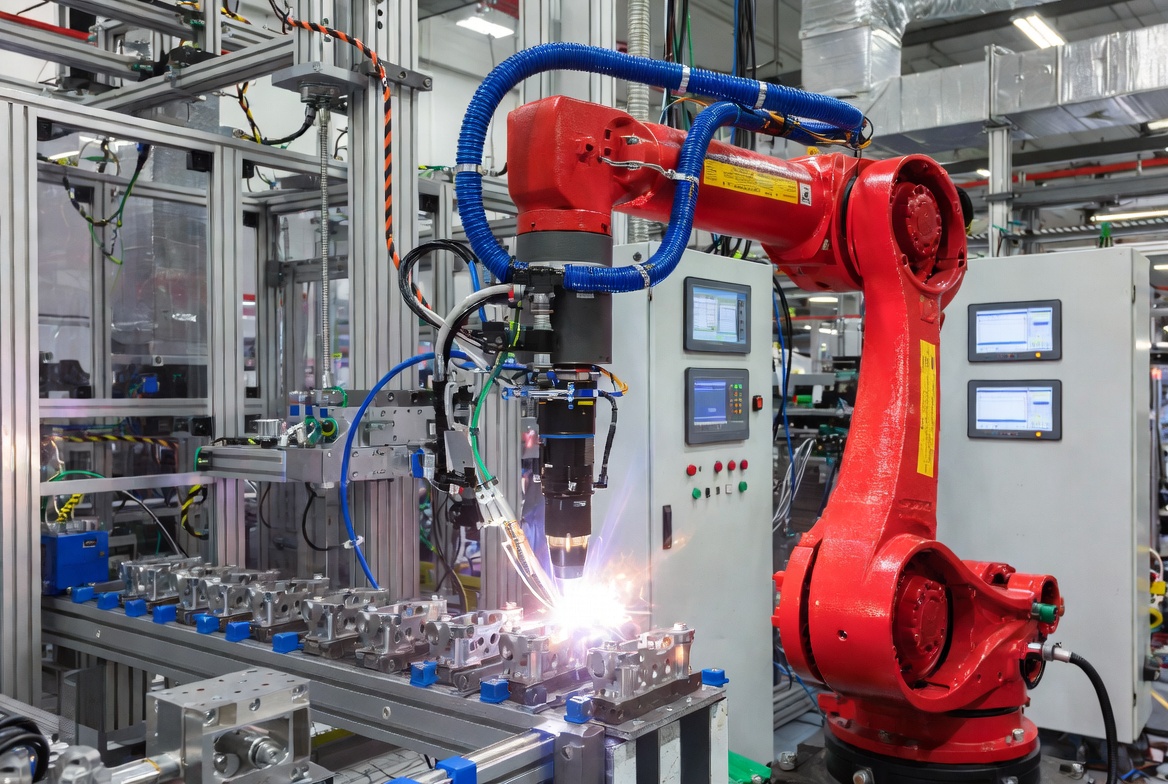

A typical robotic laser welding cell includes:
- An industrial robot arm (6‑axis or more).
- A fiber or diode laser source and fiber‑coupled laser head.
- A focusing optics module with protective window.
- Laser seam tracking sensors (vision or triangulation).
- Safety enclosure, fume extraction, and PLC/fieldbus control.
For OEMs, compact fiber‑coupled industrial laser modules from 405–1064 nm and up to several watts can be integrated into custom welding heads or hybrid systems. [aiminglaser]
Laser cutting robots use a high‑power laser beam to cut metals, plastics, composites, and other materials along complex 3D paths. [einpresswire]
Typical use cases:
- Automotive body‑in‑white trimming and hole cutting.
- Cutting complex contours in formed sheet metal parts.
- Trimming plastic bumpers, instrument panels, and interior parts.
- Micro‑drilling fine holes in electronics or medical components.
Why robotics is a good match for laser cutting:
- The robot can approach parts from any angle, solving complex 3D geometry challenges.
- Multiple parts and variants can be handled within one cell through flexible programming.
- Combined with vision systems, the robot can locate parts and auto‑adjust cutting paths.
From a module perspective, cutting heads usually use higher power fiber or CO₂ lasers. However, diode laser modules and line lasers are widely used as positioning aids and reference beams, helping operators verify cut positions and calibrate fixtures. [aiminglasers]
Laser marking robots automatically etch serial numbers, QR codes, and logos on parts in motion or in flexible fixtures. [aiminglasers]
Advantages:
- Non‑contact and permanent: No labels to peel off, no ink to dry or fade.
- High resolution: Data‑dense 2D codes for full traceability.
- Flexibility: The robot can reach hidden surfaces, multiple sides, or stacked trays.
In production, many customers integrate compact mini laser modules as:
- Aiming beams to show the marking area before firing the main marking laser.
- Positioning lasers to ensure part alignment and confirm the robot pose.
Aiming Laser Technology, for example, supplies mini laser modules and uniform line lasers that are integrated into marking heads and vision systems for this purpose. [aiminglaser]
One of the most underrated applications of lasers in robots is machine vision and 3D sensing.
By projecting laser lines or dots and capturing images with cameras, robots can:
- Measure part position and orientation in real time.
- Perform laser triangulation to reconstruct 3D profiles.
- Track seams, edges, and gaps during welding or adhesive dispensing. [agrrobotics]
This is crucial in:
- Welding of large, inaccurate or warped parts.
- Assembly of flexible components like wiring harnesses.
- Bin‑picking and palletizing where part position varies.
In practice, OEM customers often specify:
- Uniform line lasers for 3D profile scanning and seam tracking.
- Dot laser modules for single‑point measurement and alignment.
- High‑stability fiber‑coupled lasers for long working distances and robust mounting. [aiminglasers]
These modules must have stable output, clean line profiles, and industrial‑grade housings.
Not all laser use in robots is high power. In many projects, low‑power modules play a key role in safety, training, and human interaction.
Common patterns include:
- Training laser bullets and electronic laser targets for military and police simulation systems, allowing realistic robot‑assisted training without live ammunition. [aiminglaser]
- Low‑power class II or IIIa pointer modules mounted on robots to visually show paths or danger zones during setup.
- Laser lines projected on floors or work surfaces to indicate safe zones or robot reach envelopes.
These applications demand rugged, low‑power, eye‑safe modules with high reliability, which is a core product category for specialized OEM suppliers. [aiminglaser]
The global lasers market is projected to grow from about 12.4 billion USD in 2025 to roughly 13.04 billion USD in 2026, driven by industrial, semiconductor, defense, and medical applications. At the same time, the number of industrial robots in operation reached approximately 4.66 million units in 2024, a 9% year‑on‑year increase. [einpresswire]
This parallel growth indicates a strong coupling between laser adoption and robotics:
- More robots → higher demand for process tools like lasers.
- More advanced lasers → more processes can be automated with robots.
Recent industry analyses highlight automation and AI‑assisted control as the overarching trend in laser applications. [linkedin]
Key developments include:
- AI‑assisted parameter optimization: Algorithms tune laser power, speed, and focus in real time to stabilize quality. [agrrobotics]
- Laser seam tracking with intelligent sensors: Vision and laser sensors now offer ±0.2–0.6 mm accuracy, enabling adaptive welding on variable joints. [agrrobotics]
- Fully automated laser processing cells: Robots, conveyors, and lasers are integrated into turnkey systems that run with minimal human intervention. [linkedin]
For OEM laser module suppliers, this means customers increasingly expect:
- Stable, low‑noise output that sensors and algorithms can rely on.
- Precise mechanical interfaces for integration with robot end‑effectors.
- Long life and 24/7 operation capability in harsh environments.
Another clear trend is the miniaturization of laser devices and the rise of compact OEM modules. [lasercomponents]
Industrial customers are looking for:
- Very small laser modules for integration into tight robot wrists and smart sensors.
- Custom wavelengths from 405–1064 nm to match cameras, materials, or specific applications. [aiminglaser]
- Fiber‑coupled modules that separate the heat source from the robot tool, reducing payload.
Suppliers like Aiming Laser Technology and other OEM specialists focus on coaxial fiber‑coupled lasers, mini laser modules, and machine vision lasers for exactly these integration scenarios. [aiminglaser]
From both project experience and reviewing common integration pitfalls, I recommend a structured, engineering‑driven selection approach.
First, define what the robot must do with the laser:
- High‑power processing (welding, cutting, cladding).
- Medium‑power marking, surface treatment, or cleaning.
- Low‑power positioning, alignment, sensing, or training.
This determines:
- Required laser type (fiber, diode, CO₂, UV).
- Power range (mW to kW).
- Beam delivery method (free‑space, fiber‑coupled, line optics, dot optics).
For OEM system integrators, it is common to combine:
- A high‑power processing laser source from a major brand.
- Several low‑ to mid‑power OEM modules for alignment, vision, and process monitoring.
When selecting OEM industrial laser modules for robotics, pay close attention to:
- Wavelength: Must match material absorption and any camera filters (e.g., 405 nm, 450 nm, 520 nm, 650 nm, or 808–1064 nm). [aiminglasers]
- Output power and stability: For vision and sensing, stability and low noise often matter more than absolute power.
- Beam profile:
- Uniform line for 3D sensing and seam tracking.
- Gaussian dot for pointing and measurement.
- Elliptical or custom shapes for special tasks.
- Modulation capability: Analog or digital modulation for synchronization with robot I/O and cameras.
- Mechanical design: Compact housing, robust mounting threads, and IP‑rated protection.
- Thermal management: Ability to dissipate heat in a confined robot wrist or sensor housing.
Suppliers like ProPhotonix, CeramOptec, and Aiming Laser emphasize custom OEM design to match these requirements for each application. [ceramoptec]
Based on typical OEM customer feedback and case studies:
- Start with the robot payload: Choose laser modules that fit within weight and size limits of the robot end‑effector.
- Use fiber‑coupled modules when possible: This moves heat and mass off the robot arm and simplifies cable routing. [aiminglaser]
- Design for alignment and serviceability: Include adjustment features and easy access for module replacement.
- Plan for electrical noise and grounding: Laser drivers should be properly shielded and integrated into the robot control cabinet.
- Validate safety classes: For collaborative robots, ensure laser power and wavelength comply with relevant safety standards.
Working with a dedicated OEM partner allows you to co‑design these aspects instead of trying to adapt generic laser pointers or lab modules.
Aiming Laser Technology Co., Ltd. (often branded as AimLaser) is a China‑based manufacturer focusing on semiconductor laser diode modules and fiber‑coupled lasers for global OEM customers. [m.aiminglaser]
According to company information, AimLaser manufactures: [m.aiminglaser]
- Mini laser modules
- Machine vision laser modules
- Uniform line lasers
- Coaxial fiber‑coupled lasers
- Training laser bullets and electronic laser targets
These product families map directly to the typical needs of robotic welding, cutting, marking, vision, and training systems.
Unlike catalog‑only suppliers, Aiming Laser positions itself as a customized factory for OEM laser modules: [prophotonix]
- Wavelength range from 405 nm to 1064 nm to cover visible and near‑infrared needs. [aiminglasers]
- Output power from around 0.4 mW up to several watts, covering alignment, sensing, and mid‑power processing needs. [aiminglaser]
- Custom optics (dot, line, cross, uniform line) and mechanical housings.
- Engineering support for integration into robotics, machine vision, and automation systems.
This customization is critical for robot suppliers, system integrators, and industrial brands that require differentiation and tight mechanical integration rather than off‑the‑shelf modules.
Company case materials highlight applications in: [aiminglasers]
- Mini laser modules for compact devices and instrumentation.
- Electronic laser targets and laser trainers for simulation and training systems.
- Industrial applications in electronics, precision processing, and automation.
Although many projects are under NDA, feedback from long‑term OEM customers typically emphasizes:
- Consistent batch‑to‑batch quality.
- Responsive engineering support.
- Competitive pricing for large‑volume international orders.
For robotic applications, this combination of technical depth and OEM mindset is often more important than brand recognition alone.
To help you turn this knowledge into a real project, here is a practical, step‑by‑step approach.
1. Clarify the primary task: welding, cutting, marking, sensing, or training.
2. Identify target materials and required throughput.
3. Decide whether you need high‑power processing lasers, low‑power modules, or both.
1. Select wavelength based on material and camera requirements.
2. Define beam type (dot, line, pattern) and working distance.
3. Set power and stability targets based on process tests.
4. Determine mechanical space, environmental conditions, and IP rating.
1. Share your robot model, end‑effector design, and control interface.
2. Request customized OEM laser modules or fiber‑coupled units that fit your design.
3. Co‑review thermal management, cabling, and mounting options.
4. Plan for design validation tests and pilot production.
1. Integrate the lasers into your robotic cell.
2. Use cameras and data logging to evaluate performance.
3. Optimize laser parameters, robot paths, and sensor placement.
4. Lock in the final module specifications for mass production.
Laser type | Typical robot use | Key strengths |
|---|---|---|
Diode laser module | Positioning, vision, training | Compact, efficient, cost‑effective (lasercomponents) |
Fiber laser source | Welding, cutting, marking | High power, excellent beam quality (3drobotik) |
CO₂ laser | Non‑metal cutting, engraving | Good for plastics, organics (einpresswire) |
Fiber‑coupled OEM | Flexible end‑effector integration | Remote source, easy mounting (ceramoptec) |
If you are designing or upgrading laser‑equipped robots, the right OEM laser module partner can significantly reduce your risk and time‑to‑market. By working with Aiming Laser Technology Co., Ltd., you gain access to:
- Proven mini laser modules, machine vision lasers, and fiber‑coupled modules optimized for robotic integration. [m.aiminglaser]
- Custom engineering support for wavelength, optics, housing, and interface.
- Experience with global OEM customers in industrial, training, and automation markets.
You can explore their product and case information and then contact their technical team to discuss your specific robot application and request a tailored proposal. [aiminglaser]
1. What are the main applications of lasers in industrial robots?
The main applications include robotic laser welding, cutting, marking, 3D sensing, positioning, and safety/training functions in automotive, electronics, medical, and general manufacturing. [3drobotik]
2. Why are OEM industrial laser modules better than generic laser pointers for robots?
OEM modules are designed for industrial reliability, precise optics, thermal management, and integration, whereas generic pointers lack stability, protection, and proper interfaces for robotic systems. [lasercomponents]
3. How do I choose the right wavelength for my robotic laser application?
You should match wavelength to material absorption and camera sensitivity; common ranges from 405–1064 nm cover many industrial and vision tasks, but the optimal choice depends on your specific material and sensor setup. [aiminglasers]
4. Can low‑power laser modules be safely used on collaborative robots?
Yes, eye‑safe, low‑power modules with appropriate safety classifications are widely used on collaborative robots for alignment, path visualization, and user guidance, as long as relevant standards and safety distances are respected. [lasercomponents]
5. What advantages does Aiming Laser offer for robotic OEM projects?
Aiming Laser provides custom OEM diode and fiber‑coupled laser modules, supports wavelengths from 405–1064 nm and power from 0.4 mW upward, and has experience in machine vision, mini modules, and training systems for global OEM customers. [m.aiminglaser]
