When precision alignment defines production quality, choosing between dot laser modules and line laser modules becomes a critical decision that impacts efficiency, accuracy, and operational costs across manufacturing environments. As an alignment engineer with over fifteen years of experience optimizing OEM laser solutions for industrial applications, I've witnessed firsthand how geometry selection directly influences measurement precision, visibility conditions, and installation complexity in diverse manufacturing scenarios. [oasisalignment]
Both dot and line laser geometries serve essential roles in industrial alignment, yet each excels in distinct applications where their unique beam characteristics deliver superior performance. Understanding these differences—from beam projection methods and visibility factors to cost considerations and integration requirements—enables manufacturers, OEM suppliers, and alignment professionals to make informed decisions that maximize return on investment while meeting stringent accuracy standards. [redbacklasers.com]
Dot lasers, also known as point lasers, project a concentrated circular beam spot onto target surfaces, creating a single reference point with exceptional precision. These modules utilize focused laser diodes that maintain beam collimation over extended distances, typically achieving spot sizes between 1-5mm at 10 meters depending on divergence specifications and optical design. The concentrated energy distribution of dot lasers produces higher irradiance at the projection point compared to line lasers of equivalent power output, resulting in superior visibility in challenging lighting conditions and outdoor environments where ambient light interference poses significant challenges. [berlinlasers]
Industrial dot laser modules manufactured by companies like Aiming Laser Technology Co., Ltd. typically incorporate precision-ground glass lenses, temperature-compensated diode stabilization, and robust housing designs that withstand vibration, temperature fluctuations, and contamination exposure common in manufacturing facilities. Modern dot laser systems achieve positioning accuracies within ±0.1mm at 10 meters, meeting the stringent requirements for machine tool alignment, shaft positioning, and component assembly verification. [aiminglasers]

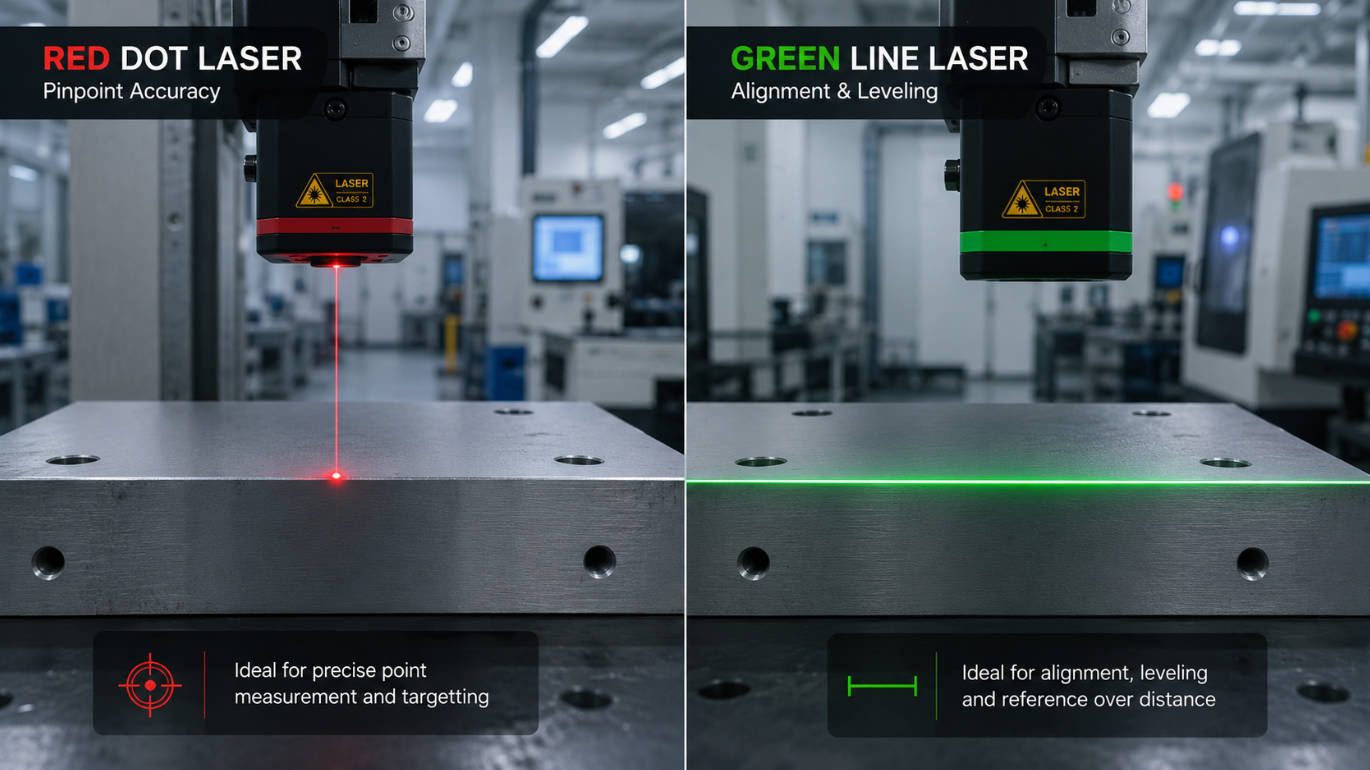

Line laser modules generate extended linear reference beams through cylindrical lens optics or diffractive optical elements (DOEs) that transform the circular laser beam into a planar fan. These systems project continuous lines—horizontal, vertical, or both in cross-line configurations—across surfaces ranging from several centimeters to 30+ meters depending on power output, wavelength selection, and fan angle specifications. The beam expansion inherent in line laser design distributes optical power across the entire projection length, reducing irradiance per unit area compared to concentrated dot projections. [intelmarketresearch]
Cross-line laser modules represent advanced line laser implementations, projecting perpendicular horizontal and vertical reference planes simultaneously to establish two-dimensional coordinate systems for layout, installation, and quality control applications. High-end industrial line lasers now incorporate 360-degree rotation capabilities, self-leveling mechanisms with accuracy to ±0.1mm per 10 meters, and green wavelength options (520-532nm) that provide 3-4 times greater visibility than traditional red lasers (630-670nm) in bright ambient lighting. [cigman]

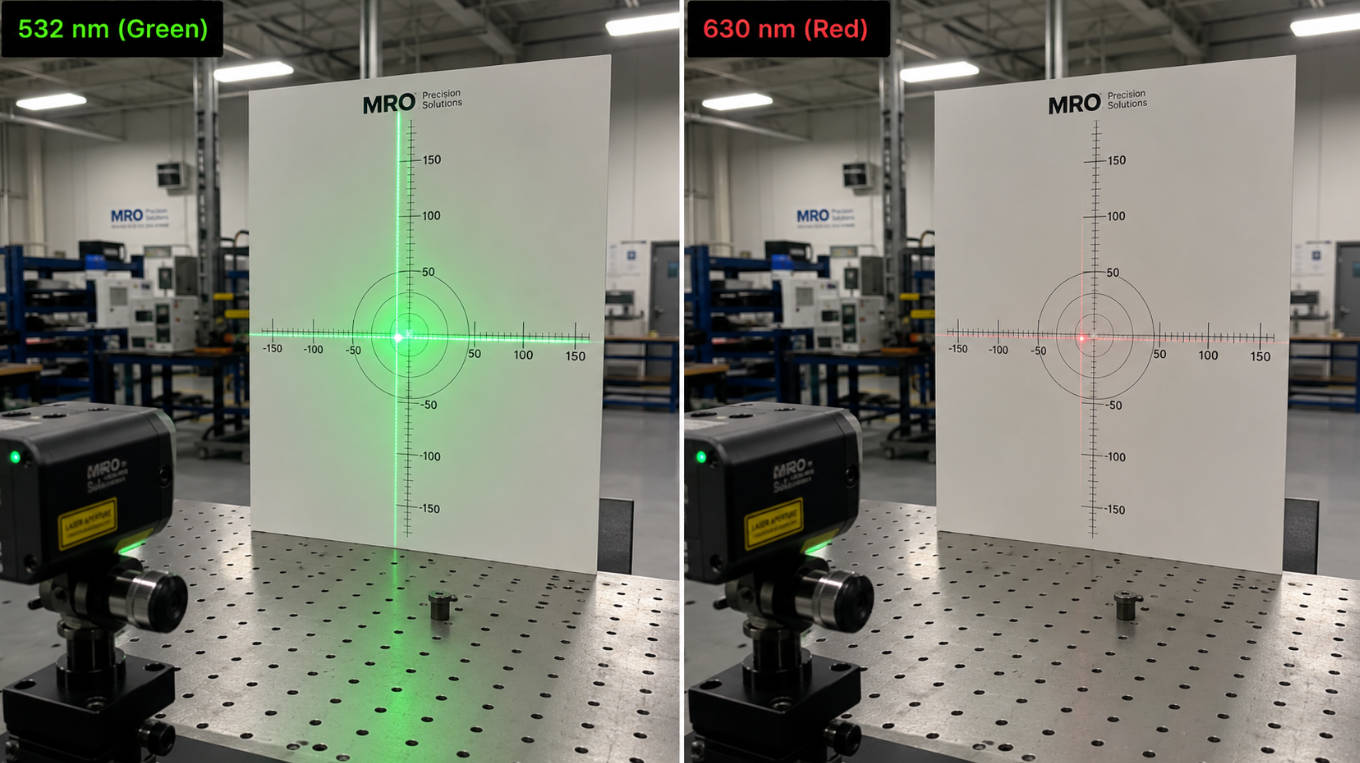

The visibility advantage of green laser wavelengths (505-550nm) over red alternatives (610-670nm) stems from the human eye's photopic response curve, which peaks at approximately 555nm in the green spectrum. This physiological sensitivity means green laser lines appear three to four times brighter than equivalent-power red beams under identical ambient lighting conditions, extending practical working distances and improving user productivity in bright indoor spaces and outdoor applications. For industrial alignment tasks in manufacturing facilities with high-intensity overhead lighting or proximity to windows with natural daylight, green line lasers deliver measurable performance benefits that justify their typically 15-30% higher cost compared to red wavelength alternatives. [vevor]
However, dot laser geometry partially compensates for wavelength limitations through concentrated beam intensity. A red dot laser at 5mW output power can match or exceed the visibility of a red line laser at equivalent power in outdoor or high-ambient-light conditions because the concentrated energy creates higher surface irradiance at the reference point. This explains why many outdoor alignment applications, including construction site layout and large-scale machinery positioning, continue to utilize dot laser receivers with electronic detection systems rather than relying on naked-eye visibility of line projections. [loshield]
Outdoor industrial applications present the most demanding visibility challenges for laser alignment systems. In direct sunlight conditions exceeding 50,000 lux ambient illumination, even high-power green line lasers become difficult to see beyond 3-5 meters without electronic receiver assistance. Dot lasers maintain functional visibility at extended ranges under these conditions because users can more easily locate a small, intense spot than track a diffused line across space. For long-distance outdoor alignment tasks—including crane rail positioning, conveyor system installation, and building facade reference establishment—dot lasers paired with electronic detectors represent the industry-standard solution. [aiminglasers]
Indoor manufacturing environments favor line laser systems for most alignment applications due to their ability to establish instant visual reference planes without requiring the operator to extrapolate between multiple dot positions. Line lasers dramatically reduce setup time for panel alignment, assembly fixture positioning, and quality inspection stations where operators need continuous reference lines rather than discrete points. The Precision Laser Level Market, valued at USD 796 million in 2025, projects growth to USD 1.26 billion by 2032, with line laser systems (particularly rotation and cross-line variants) dominating 58% of market share due to their superior versatility in controlled indoor environments. [huepar]

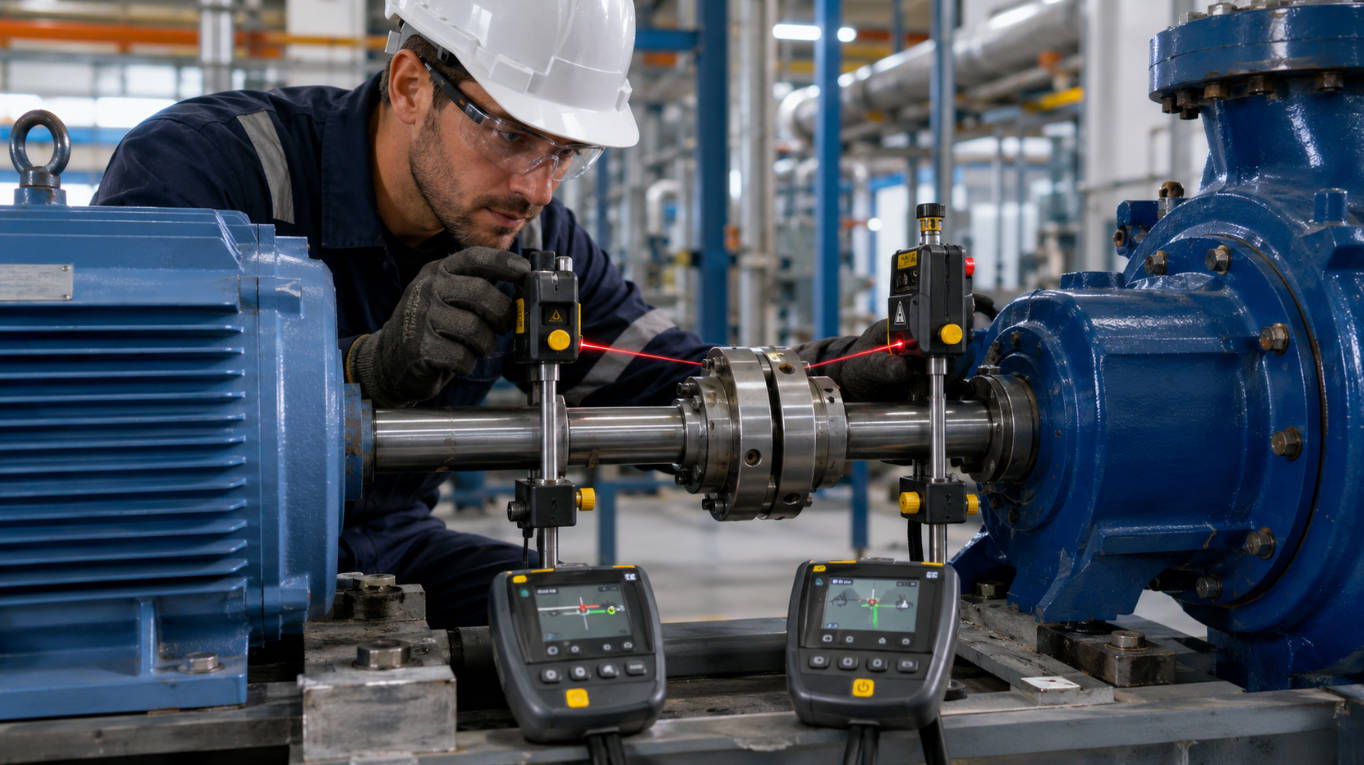

Shaft alignment applications in rotating equipment demand exceptional angular and offset precision to prevent premature bearing failure, vibration issues, and energy losses. Modern laser shaft alignment systems predominantly utilize dual dot laser configurations mounted on shaft-mounted brackets, projecting reference points onto precision detector targets that calculate centerline positions with ±0.001-inch accuracy. The dot geometry proves ideal for this application because alignment calculations require discrete positional data at specific measurement planes rather than continuous line references. [easylaser]
Laser alignment best practices for maintenance teams emphasize proper machine preparation, including stable baseplates, clean mounting surfaces, and calibrated measurement tools before beginning the alignment process. Cardan shaft and offset-mounted configurations present particular challenges that laser dot systems address through specialized measurement programs accounting for angular twist and axial offset tolerances. The precision laser technology market, experiencing 8-10% CAGR growth through 2026, reflects increasing adoption of advanced dot laser systems for critical rotating equipment alignment across chemical processing, power generation, and manufacturing sectors. [linkedin]

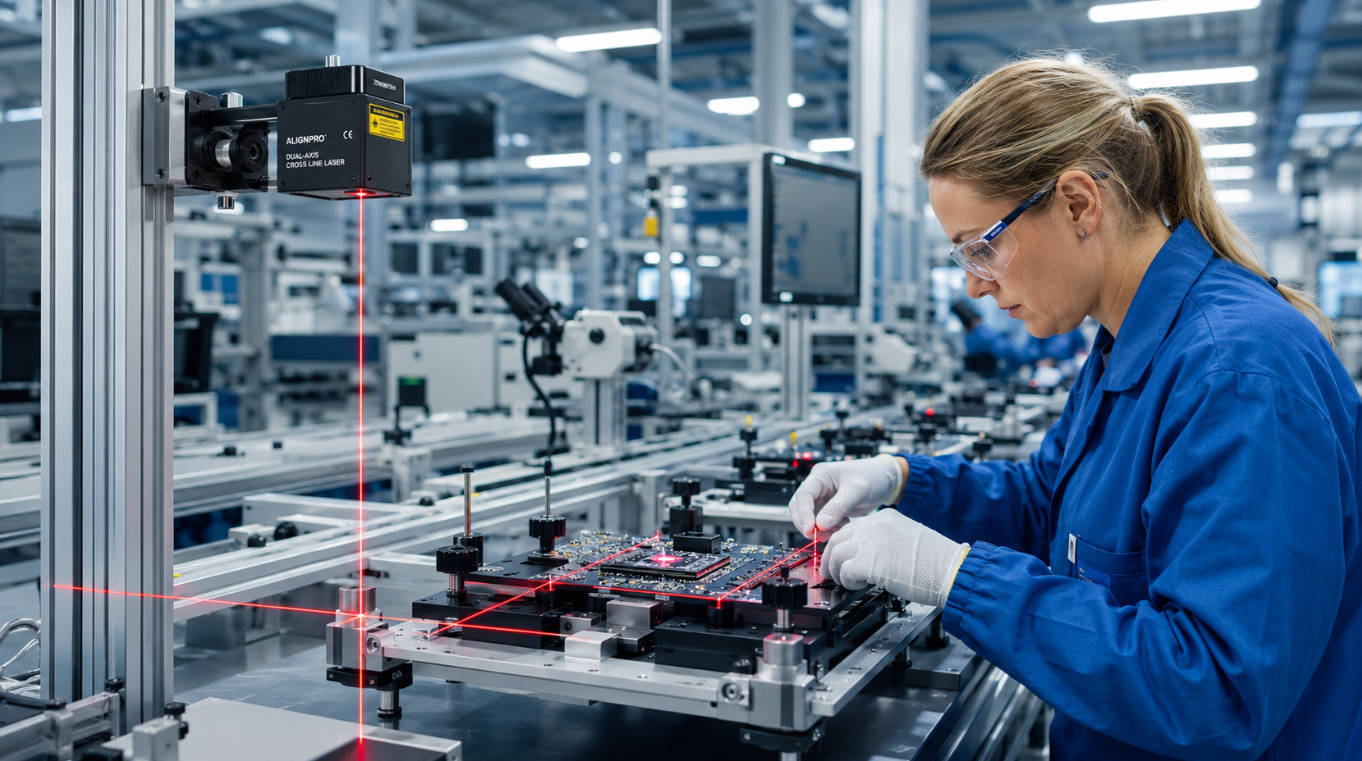

Manufacturing assembly operations benefit significantly from line laser systems that provide continuous visual guides for part placement, welding seam tracking, and quality verification. Cross-line laser modules project perpendicular reference planes that establish coordinate systems for cabinet installation, tile placement, and panel positioning with minimal setup time compared to traditional mechanical measurement methods. The solar panel installation sector alone has driven 19% year-over-year growth in rotation line laser sales as installers require precise angle measurements for mounting array structures. [hugh360.co]
For OEM laser module integration into automated production equipment, line lasers offer distinct advantages in applications requiring continuous seam tracking, edge detection, or surface profile measurement. However, dot lasers excel in pick-and-place robotics, hole drilling guidance, and spot welding positioning where discrete reference points align with process requirements. Aiming Laser Technology Co., Ltd. provides customized OEM solutions for both geometries, incorporating fiber coupling, environmental protection, and control interface specifications tailored to specific manufacturing equipment integration requirements. [linkedin]
Construction site applications demonstrate clear differentiation between dot and line laser use cases. For indoor tasks including drywall installation, electrical conduit placement, and finish carpentry, line lasers (particularly 360-degree rotation models) establish room-wide reference planes from a single setup position, dramatically reducing layout time compared to traditional methods. The interior design and architectural renovation markets have experienced 27% annual growth in line laser adoption as professionals recognize superiority over bubble levels for precision installations. [redbacklasers.com]
Conversely, outdoor construction tasks—foundation layout, grading verification, and structural column positioning—favor dot laser systems with electronic receivers that function effectively in direct sunlight conditions where line visibility fails. The combination of pulsed dot lasers with digital detectors extends practical working ranges beyond 100 meters while maintaining accuracy specifications of ±1mm at 30 meters, essential for large-scale civil engineering projects. [dlz]
Industrial laser alignment modules must meet stringent accuracy specifications that vary by application criticality and industry standards. Precision dot lasers designed for machine tool geometric alignment typically achieve angular accuracy within ±2 arc seconds and positional repeatability of ±0.01mm, essential for CNC machine calibration and precision assembly applications where dimensional tolerances directly impact part quality. The geometric accuracy of CNC machines—including axis parallelism, squareness, and spindle alignment—depends fundamentally on the precision of alignment reference systems used during installation and periodic calibration. [resources.utec]
Line laser leveling systems specify accuracy as deviation per unit distance, with professional-grade models achieving ±0.1mm per 10 meters for single-line projections and ±1mm at 30 meters for rotating line lasers. These specifications represent 40% improvement over previous generation models, driven by advances in self-leveling pendulum designs, diode stabilization electronics, and optical coating technologies. For best-fit alignment strategies in manufacturing applications, laser reference systems must minimize total geometric deviation while accommodating part variations and fixture tolerances inherent in production processes. [mspltd]
Laser safety classifications directly impact permissible power levels, required safety controls, and user training requirements for industrial applications. Most industrial alignment lasers operate as Class 2 (visible continuous wave, <1mW) or Class 3R (visible continuous wave, 1-5mW) devices, balancing sufficient visibility for practical applications against safety risks from direct beam exposure. Class 2 lasers rely on the human blink reflex (typically <0.25 seconds) as adequate protection against eye injury, while Class 3R systems require warning labels and user training but generally do not mandate protective eyewear for normal industrial use. [ehs.iastate]
Green laser modules require more complex diode pumping architectures or direct green diode technology compared to simpler red laser designs, resulting in higher power consumption (typically 2-3 times greater for equivalent optical output) and increased thermal management requirements. OEM module selection must account for available power supplies, battery runtime requirements (for portable units), and thermal dissipation capabilities of the installation environment. Aiming Laser Technology Co., Ltd. specifications for industrial modules detail operating voltage ranges, current draw profiles, and recommended thermal interface materials to ensure reliable long-term performance. [brightlaser.com]
Dot laser modules generally cost 20-40% less than comparable line laser systems offering similar accuracy specifications, power output, and housing protection ratings. This price differential reflects the simpler optical design of dot lasers, which require only collimating lenses rather than the cylindrical lens arrays or DOE components necessary for line generation. For budget-conscious manufacturers implementing multiple alignment stations across production facilities, this cost advantage can represent significant capital savings while still delivering adequate performance for point-based positioning applications. [forum.digikey]
However, total cost of ownership analysis must account for productivity factors and labor efficiency beyond initial equipment purchase prices. Line lasers reduce setup time for layout-intensive applications by establishing instant visual references without requiring operators to mark multiple points and connect them manually. Time studies in construction environments demonstrate that cross-line laser systems reduce layout time by 40-60% compared to traditional level and chalk line methods, delivering rapid ROI through labor savings on projects requiring extensive reference line establishment. [ivctechnologies]
Industrial laser module longevity depends primarily on diode quality, operating temperature management, and environmental protection effectiveness. Quality OEM laser modules from manufacturers like Aiming Laser Technology Co., Ltd. specify operational lifetimes exceeding 50,000 hours (approximately 5.7 years of continuous operation) when operated within rated temperature ranges and protected from contamination. Regular maintenance protocols include optical cleaning, calibration verification, and mounting stability inspection to maintain accuracy specifications throughout service life. [telesis]
Dot laser systems offer slight maintenance advantages due to simpler optical trains with fewer components subject to contamination or misalignment. Line laser modules, particularly those incorporating self-leveling mechanisms or rotation motors, contain additional mechanical components requiring periodic lubrication and wear inspection. Establishing preventive maintenance schedules based on manufacturer recommendations and operating environment severity helps maximize equipment uptime and preserve accuracy over extended service periods. [seiffertindustrial]
Laser module mounting design significantly impacts alignment accuracy, adjustment convenience, and long-term stability in industrial installations. Dot lasers typically require precision angular adjustment capabilities (pitch and yaw) to direct the reference beam accurately toward target positions, while line lasers additionally need roll adjustment to establish proper horizontal or vertical orientation. Magnetic base mounts, adjustable tripod brackets, and custom machine-integrated fixtures each offer distinct advantages depending on application requirements and installation environment. [johnsonlevel]
For OEM integration into manufacturing equipment, designers must specify appropriate mounting interfaces, adjustment ranges, and locking mechanisms that maintain calibration under production vibration and thermal cycling conditions. Aiming Laser Technology Co., Ltd. provides engineering support for custom mounting solutions, including CAD models, mechanical interface drawings, and recommended fastener specifications optimized for specific industrial laser module configurations. Fiber-coupled laser delivery systems offer alternative implementations where the laser source requires remote positioning from the beam projection point due to space constraints or harsh environmental conditions. [lasercomponents]
Modern industrial laser modules support diverse control interface options including simple on/off switching, analog dimming inputs, digital communication protocols (RS-232, RS-485, Ethernet), and wireless control via Bluetooth or Wi-Fi connectivity. System integration requirements dictate appropriate interface selection, with automated production equipment typically demanding digital communication capabilities for synchronized operation with programmable logic controllers (PLCs) and machine vision systems. [linkedin]
Real-time data transfer capabilities in advanced laser leveling systems enable integration with construction management software and building information modeling (BIM) platforms, creating documentation trails and quality verification records. The Positioning Laser Market, valued at USD 1.42 billion in 2026 with projected growth to USD 2.07 billion by 2030, reflects increasing demand for smart laser systems offering connectivity features beyond simple beam projection. For OEM applications, Aiming Laser Technology Co., Ltd. customizes control interfaces, power supply specifications, and environmental protection ratings to match specific equipment integration requirements. [researchandmarkets]
Beam shaping technologies including Gaussian beam optimization, adaptive focus control, and multi-line projection capabilities represent active development areas in industrial laser modules. Understanding how M⊃2; beam quality factor affects focusing characteristics and projection distance enables manufacturers to optimize laser module designs for specific application requirements. Aiming Laser Technology Co., Ltd. research into narrow linewidth laser stabilization and fiber coupling technologies demonstrates ongoing innovation in precision laser module performance. [aiminglasers]
Adaptive optics integration allows laser projection systems to compensate for atmospheric turbulence, thermal lensing effects, and vibration-induced beam drift in real-time, maintaining accuracy in challenging industrial environments. These technologies, previously limited to scientific research applications, are gradually migrating into high-end industrial alignment systems where extreme precision justifies the additional cost and complexity. [zeroinginonalignment]
The integration of artificial intelligence and machine learning algorithms into laser alignment systems represents a transformative trend reshaping industrial measurement practices. Smart laser levels now incorporate automatic surface detection, self-calibration routines, and predictive maintenance algorithms that alert users to calibration drift or component degradation before accuracy specifications fall out of tolerance. These capabilities reduce operator skill requirements, minimize measurement errors, and improve overall system reliability across diverse industrial applications. [intelmarketresearch]
Digital twin integration and augmented reality visualization combine physical laser projections with virtual overlay information displayed through smart glasses or tablet interfaces, enhancing user understanding and reducing installation errors. The precision laser technology market's robust 8-10% CAGR growth through 2026 reflects accelerating adoption of these advanced capabilities across manufacturing, construction, and infrastructure development sectors. [amplify.pepperl-fuchs]

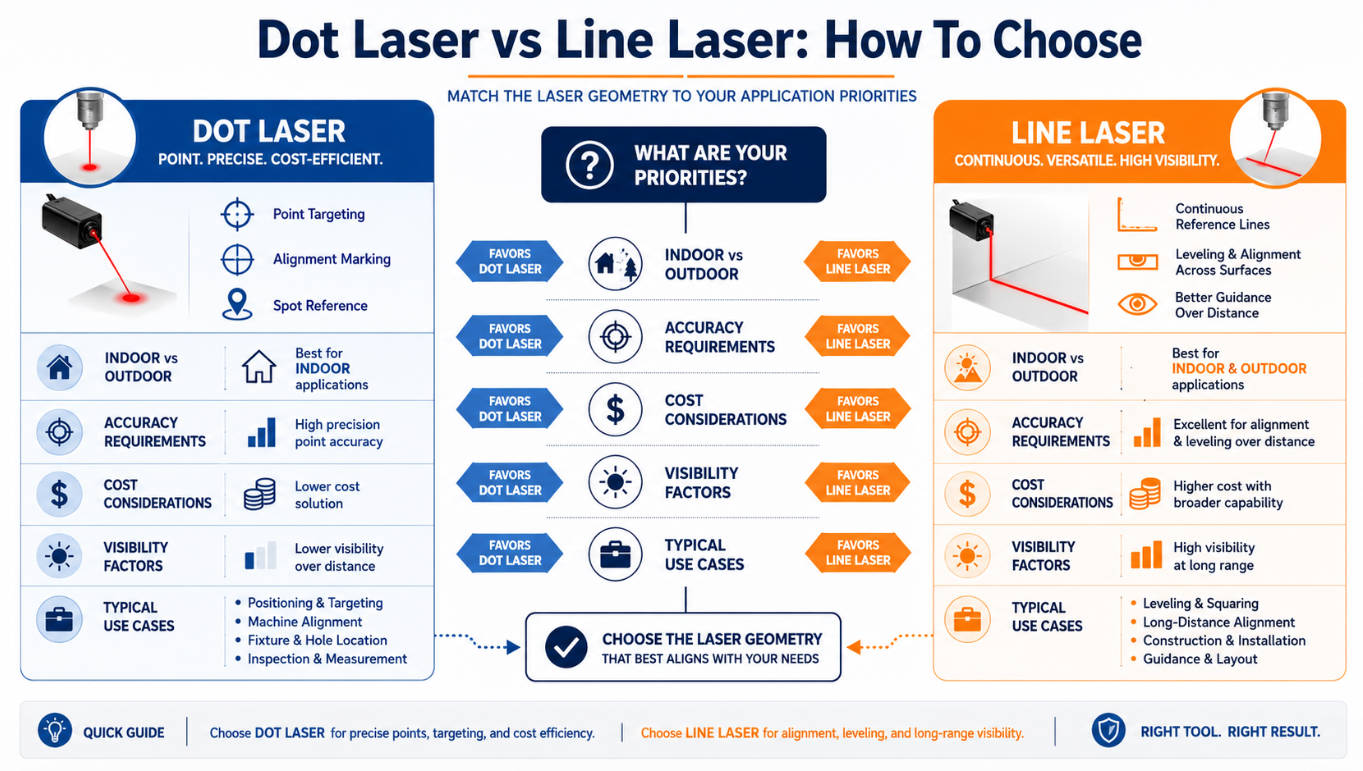

Selecting optimal laser geometry for industrial alignment applications requires systematic evaluation across multiple decision criteria. Dot lasers excel in outdoor environments, long-distance applications requiring receiver detection, discrete point positioning tasks, and budget-sensitive projects where lower equipment cost represents a primary consideration. Their concentrated beam intensity, simpler optical design, and compact form factors make them ideal for shaft alignment, machine tool calibration, and drilling/boring guidance applications. [oasisalignment]
Line lasers deliver superior performance for indoor layout tasks, assembly fixture alignment, continuous seam tracking, and applications where visual reference planes accelerate workflow compared to point-based methods. The productivity gains from reduced setup time and instant visual reference establishment justify higher equipment costs in high-volume manufacturing, commercial construction, and precision installation environments. Cross-line and 360-degree rotation configurations extend line laser versatility further, establishing complete two-dimensional reference systems from single setup positions. [huepar]
For manufacturers sourcing OEM laser modules from suppliers like Aiming Laser Technology Co., Ltd., comprehensive specification discussions should address wavelength selection (red vs. green), power output requirements, accuracy specifications, environmental protection needs, mounting interfaces, and control integration capabilities. Understanding these parameters within the context of specific application requirements ensures optimal geometry selection that maximizes performance while controlling total cost of ownership. [aiminglasers]
Proper installation fundamentals apply equally to dot and line laser systems. Ensure mounting surfaces provide rigid, vibration-isolated platforms that maintain calibration under operating conditions. Verify that anchor points, baseplates, and structural supports meet stability requirements before beginning precision alignment procedures. Clean all optical surfaces using appropriate lens tissue and solvents to prevent contamination-induced beam degradation. [ivctechnologies]
For line laser systems, confirm that self-leveling mechanisms function correctly within specified tilt ranges (typically ±3-5 degrees) and that rotation motors (if equipped) operate smoothly without vibration or speed variations. Dot laser installations require careful angular adjustment to direct beams accurately toward target positions, with locking mechanisms engaged firmly after alignment to prevent drift during operation. Consult manufacturer documentation regarding warm-up periods necessary to achieve specified accuracy as laser diodes and electronics reach thermal equilibrium. [brightlaser.com]
Establish periodic calibration schedules based on manufacturer recommendations, criticality of alignment accuracy to product quality, and operating environment severity. Professional-grade laser alignment systems typically require annual calibration against traceable reference standards to verify accuracy specifications remain within tolerance. In-house verification procedures using precision measurement fixtures provide interim confirmation between professional calibration services. [resources.utec]
Dot laser calibration involves verifying angular accuracy and beam divergence specifications against known reference targets at specified distances. Line laser verification checks straightness deviation across the projection length, perpendicularity between crossed lines, and leveling accuracy against precision spirit levels or electronic inclinometers. Document all calibration results, creating audit trails that demonstrate measurement system reliability for quality management system compliance. [zeroinginonalignment]
Dot lasers project concentrated point references ideal for discrete positioning tasks, outdoor applications, and long-distance alignment with receivers, while line lasers generate continuous reference planes that excel in indoor layout, assembly alignment, and applications requiring visual guides across extended surfaces. Dot lasers offer higher beam intensity and better outdoor visibility, whereas line lasers provide instant visual references that reduce setup time for layout-intensive tasks. [redbacklasers.com]
Green lasers (520-532nm wavelength) appear 3-4 times brighter than equivalent-power red lasers (630-670nm) due to the human eye's greater sensitivity to green wavelengths. This visibility advantage proves most significant in bright indoor facilities and outdoor applications, though green modules typically cost 15-30% more and consume 2-3 times more power than red alternatives. For extremely bright outdoor conditions, electronic receivers with pulsed lasers provide superior detection regardless of wavelength. [meskernel]
Professional dot laser systems achieve positional accuracy of ±0.01mm with angular precision within ±2 arc seconds for machine tool alignment applications. Line laser leveling systems typically specify accuracy of ±0.1mm per 10 meters for precision models, representing 40% improvement over previous generation equipment. Application requirements dictate necessary accuracy specifications, with critical rotating equipment alignment demanding higher precision than general construction layout tasks. [easylaser]
Dot laser modules cost 20-40% less than comparable line laser systems due to simpler optical designs. However, line lasers reduce layout time by 40-60% in construction applications, delivering rapid ROI through labor savings. Total cost of ownership analysis should account for equipment purchase price, maintenance requirements, productivity gains, and application-specific value propositions. OEM modules from manufacturers like Aiming Laser Technology Co., Ltd. offer customized solutions optimized for specific integration requirements. [aiminglasers]
Choose dot lasers for outdoor environments, long-distance positioning (>30m), discrete point alignment tasks (shaft alignment, drilling guidance), budget-sensitive projects, and applications using electronic receivers. Select line lasers for indoor layout, assembly fixture alignment, continuous reference requirements, applications where visual guides improve productivity, and situations where setup time reduction justifies higher equipment cost. Evaluate wavelength (red vs. green), accuracy specifications, environmental protection needs, and control integration requirements based on specific operational conditions. [cigman]
