Calculating the laser beam diameter correctly is critical for anyone designing, integrating, or sourcing industrial laser modules for OEM applications. From my experience working with instrument manufacturers, most beam quality issues trace back to misunderstanding what "beam diameter" really means, and how to measure or calculate it in a consistent, ISO‑aligned way. [ophiropt]
In this guide, I will walk you through the core concepts, the most widely accepted definitions, practical measurement methods, and real-world tips used in industrial environments. The examples draw directly from typical OEM use cases we see at Aiming Laser Technology Co., Ltd. (AimLaser) when supplying customized laser modules to industrial, medical, and defense instrument manufacturers. [aiminglasers]
In simple terms, laser beam diameter describes how wide the laser beam is at a particular position along its propagation axis. For a Gaussian beam, it is not a sharp "edge" but a gradual drop in intensity from the center outward, which is why standards define diameter using specific intensity thresholds or statistical measures. [edmundoptics]
Beam diameter directly impacts: [laser-beam-profile]
- Focusing performance and spot size on the target
- Power density / irradiance at a given working distance
- Alignment tolerances in optical systems and instruments
- Eye safety classification and risk assessment
- Coupling efficiency into fibers, lenses, or apertures
For OEM integrators, using inconsistent definitions of beam diameter can cause serious mismatches between the laser module's data sheet and the real performance in your device. [sintec]
There is no single universal definition of beam diameter, but three are most common in engineering and research practice. [ophiropt]

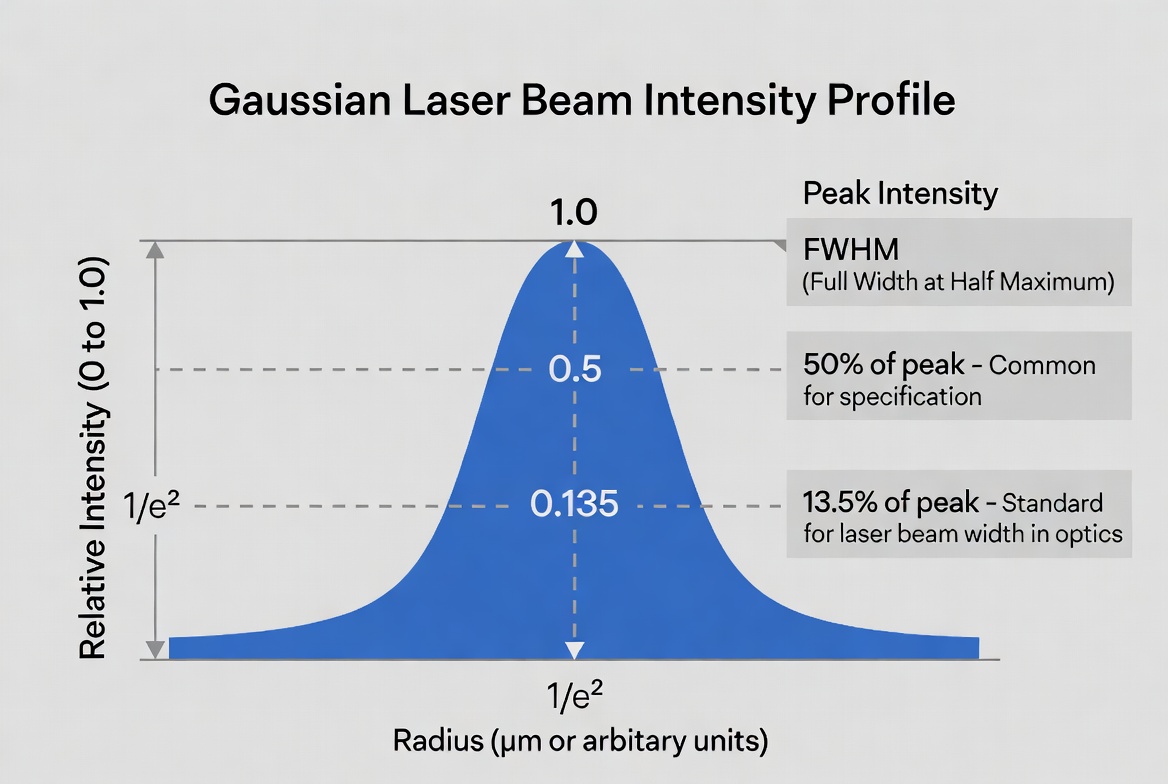

The 1/e⊃2; diameter is one of the most widely used definitions for Gaussian beams. [edmundoptics]
- The radius is defined at the point where intensity has dropped to 1/e2 (≈13.5%) of the peak intensity. [laser-beam-profile]
- The beam diameter is twice this radius. [ophiropt]
- About 86% of the total beam power is contained within this diameter. [ophiropt]
This definition is popular in research and many industrial specifications because it aligns well with Gaussian beam theory and is used for parameters like M2. [laser-beam-profile]
The FWHM diameter is defined as the beam width between the two points where intensity falls to 50% of the peak value. [laser-beam-profile]
- Often used in imaging and some laser diode characterizations. [ophiropt]
- Not interchangeable with 1/e⊃2; diameter; conversion depends on the actual beam profile. [laser-beam-profile]
The D4σ or second‑moment diameter is the ISO‑recommended definition for general beam characterization, especially for irregular or non‑ideal beams. [sintec]
- It is a statistical measure based on the second moment (variance) of the intensity distribution. [laser-beam-profile]
- Particularly useful for non‑Gaussian beams and high‑power industrial sources. [sintec]
For most OEM laser modules used in instrumentation, 1/e⊃2; or D4σ are the most relevant definitions, and you should ensure your supplier clearly states which one is used. [sintec]

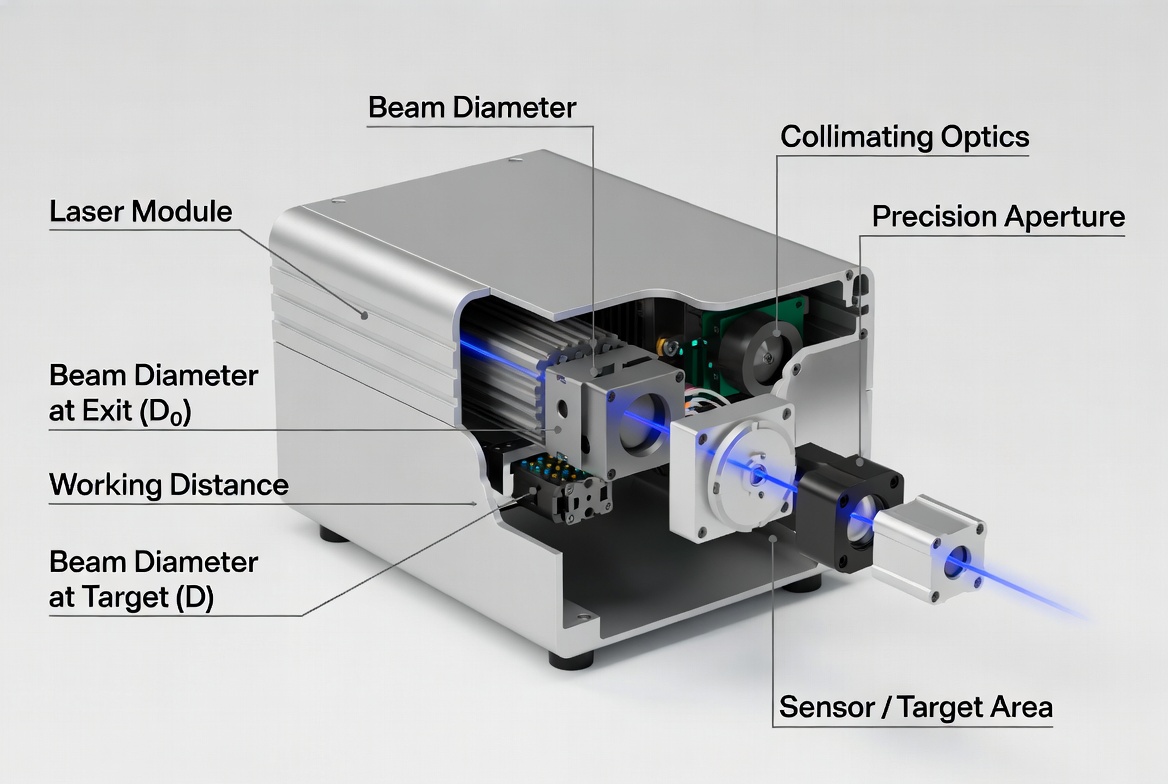

If you know the initial beam diameter at or near the laser aperture and the divergence angle, you can estimate the beam diameter at a given distance. [gentec-eo]
For a circular beam with a constant divergence (half‑angle θ): [gentec-eo]
D=D0+2⋅L⋅tan(θ)
Where:
- D = beam diameter at distance L
- D0 = initial beam diameter (at the reference plane)
- := propagation distance
- θ = divergence half‑angle
This formula is widely used in online calculators from beam measurement and optics manufacturers to estimate far‑field beam sizes. [laserpointersafety]
Practical example for OEM engineers:
- Initial diameter D0 at the laser module aperture: 1.0 mm
- Divergence half‑angle θ: 0.5 mrad
- Working distance L: 500 mm
Then
D≈1.0mm+2×500mm×0.0005=1.5mm
This means at 500 mm, the beam diameter will be roughly 1.5 mm under the assumed conditions. [edmundoptics]
From a practical, factory‑floor perspective, there are several ways to determine beam diameter. Your choice depends on accuracy requirements, budget, and whether you need continuous monitoring or just periodic verification. [sintec]

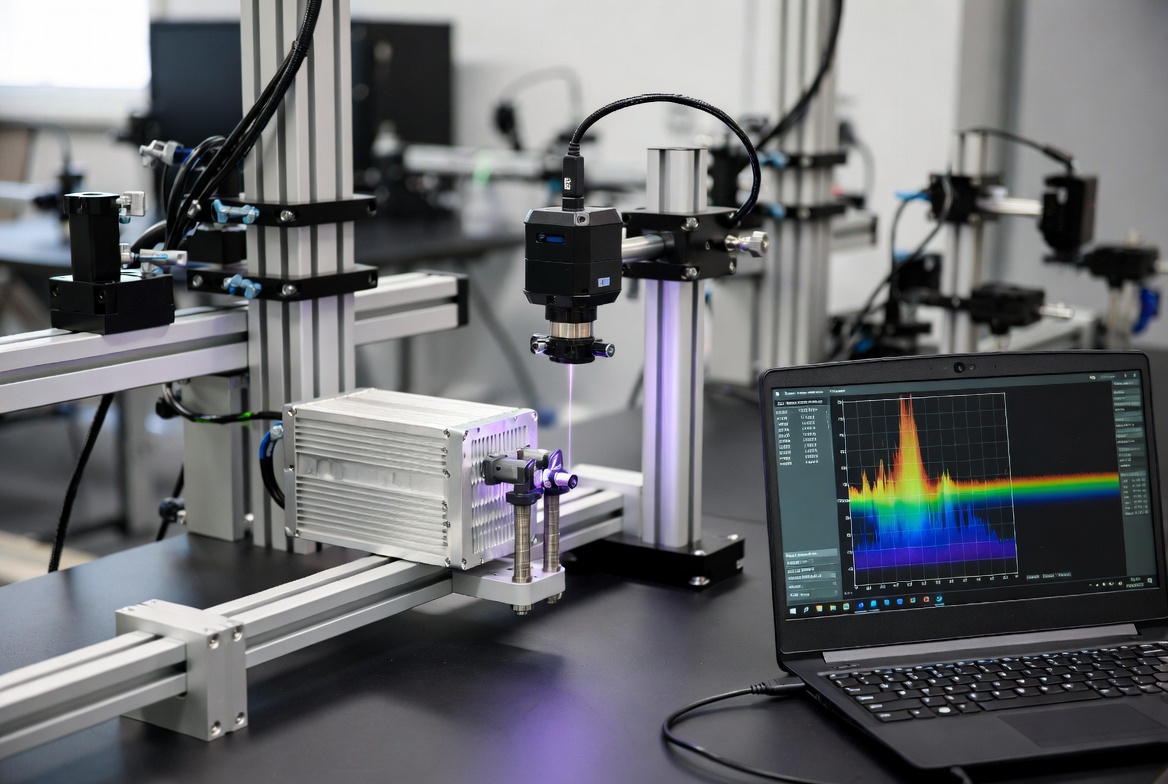

Modern laser beam profilers and scanning slit systems can provide ISO‑compliant measurements of beam diameter, divergence, and M⊃2;. [sintec]
- Scanning slit or scanning knife‑edge instruments measure the beam at different positions and reconstruct the profile. [sintec]
- Some systems support beam diameters from a few micrometers to several millimeters and wavelengths from deep UV to infrared. [sintec]
- Software typically allows selecting 1/e⊃2;, FWHM, or D4σ definitions. [laser-beam-profile]
For OEM manufacturers that ship high volumes of laser modules, integrating a profiler into final inspection helps ensure beam quality and consistency. [laser-beam-profile]
The knife‑edge method uses a sharp edge that moves through the beam while recording the transmitted power, from which the beam width can be derived. [sciencedirect]
- Affordable and widely used in labs and production. [sciencedirect]
- Can be automated with motorized stages and detectors. [sintec]
Similarly, slit and pinhole methods sample the beam through small apertures. [sciencedirect]
These methods are effective but require careful alignment and data processing to reach ISO‑level accuracy. [laser-beam-profile]
For visible and NIR beams, an industrial camera with appropriate optics and ND filters can be used:
- Capture the beam spot image at a known distance.
- Process the image (e.g., in ImageJ or vendor software) to extract beam width based on intensity thresholds. [sintec]
This approach is useful for visual documentation, alignment, and quick checks in development environments. [laser-beam-profile]
Definition |
What it means (short) |
Typical use cases |
|---|---|---|
1/e⊃2; |
Width at 13.5% peak intensity (Gaussian) ophiropt |
Laser modules, Gaussian beams, M⊃2; calc. ophiropt |
FWHM |
Width at 50% peak intensity laser-beam-profile |
Imaging, some diode and LED specs ophiropt |
D4σ (4σ) |
Second‑moment (statistical) diameter laser-beam-profile |
ISO beam quality, irregular beams sintec |
One instrument manufacturer approached us after experiencing inconsistent readings in a laser‑based detection module. Their design assumed a "3 mm beam" at the sensor plane, but this value came from a supplier using FWHM, while their internal calculations assumed 1/e⊃2; diameter.
When we re‑evaluated the beam with a 1/e⊃2; definition using a scanning slit profiler, the effective beam diameter at the working distance was closer to 4.2 mm, leading to lower than expected power density on the sensor area. [ophiropt]
Key lessons from this project:
- Always confirm which beam diameter definition your supplier uses. [ophiropt]
- Match the definition with your system's design assumptions and safety calculations. [ophiropt]
- Re‑measure with a standardized method (e.g., 1/e⊃2; or D4σ) when integrating a new supplier. [sintec]
After adjusting the design and updating documentation to use 1/e⊃2; consistently, the customer achieved stable performance and reduced alignment troubleshooting time.
From an OEM engineer's standpoint, here is a simple workflow to calculate and validate beam diameter in your system. [gentec-eo]
- Decide whether you will use 1/e⊃2;, FWHM, or D4σ. [ophiropt]
- Align this choice with any standards or customer requirements relevant to your product. [laser-beam-profile]
From your laser module's data sheet or your supplier:
- Initial beam diameter at the output (with definition). [edmundoptics]
- Divergence angle (half‑angle) in the same definition. [gentec-eo]
- Wavelength and power (needed for some profilers and safety). [sintec]
Apply:
D=D0+2⋅L⋅tan(θ)
at your key working distances (e.g., 100 mm, 500 mm, 1 m). [edmundoptics]
This gives a first approximation that is sufficient for early optical layout and mechanical envelope design. [gentec-eo]
Once you have hardware:
- Use a beam profiler, scanning slit, or camera‑based method to measure the actual beam diameter at the required distances. [laser-beam-profile]
- Select 1/e⊃2; or D4σ processing in the software to match your chosen definition. [ophiropt]
If measured values differ significantly from data sheet numbers:
- Verify test conditions (distance, optics, ambient conditions). [sintec]
- Review whether the definition (1/e⊃2; vs FWHM vs D4σ) or measurement method differs. [ophiropt]
- Collaborate with your supplier to adjust tolerances or customize the module's beam‑shaping optics. [linkedin]
Working with global OEM customers since 2012, AimLaser has seen recurring patterns in how beam diameter is misunderstood or optimized in real projects. [aiminglaser]
1. Think in terms of "system aperture chain"
Map out every aperture or lens the beam passes through—window, collimator, filters, detection optics. Your beam diameter must be compatible with the tightest aperture, considering manufacturing tolerances and alignment errors. [edmundoptics]
2. Consider beam ellipticity early
Many diode lasers and modules have slightly elliptical beams. You may need to specify separate horizontal and vertical diameters and divergences, or request beam‑shaping optics from your OEM supplier. [edmundoptics]
3. Relate beam diameter to application performance
For example:
- Barcode or positioning systems require a certain spot size at a known distance.
- Medical diagnostic instruments need repeatable power density on a reagent surface.
- Defense and ranging systems often balance beam diameter with eye safety and detection range. [aiminglasers]
4. Use standardized internal documentation
Define once—at the company level—how you document beam diameter, divergence, and measurement methods. This reduces confusion between optical, mechanical, and firmware teams. [laser-beam-profile]
Aiming Laser Technology Co., Ltd. (AimLaser) specializes in solid‑state and diode laser modules for OEM instruments across industrial, medical, and defense markets. Our portfolio covers free‑space and fiber‑coupled lasers from 405 nm up to 1550 nm with typical output powers from sub‑milliwatt levels up to tens of watts, depending on model and application. [linkedin]
For beam diameter and divergence, we help OEM customers by:
- Providing customized collimation and focusing optics to achieve target spot sizes at specified distances. [aiminglaser]
- Supplying detailed beam parameter data (1/e⊃2; diameter, divergence, M⊃2; where needed) measured with professional analyzers. [aiminglaser]
- Assisting in tolerance analysis to ensure stable performance in real‑world conditions. [aiminglasers]
If you are designing a new instrument and need predictable beam size at a defined working distance, involving your laser OEM early in the design cycle can save significant time and integration cost. [linkedin]
If you are planning a new instrument or upgrading an existing platform and need reliable, customized industrial laser modules with well‑defined beam diameter and divergence, our engineering team at Aiming Laser Technology Co., Ltd. can support you from concept to mass production. [aiminglasers]
Contact us with your required wavelength, output power, working distance, and target spot size, and we will help you translate those system‑level requirements into an optimized OEM laser module specification. [linkedin]
Q1. Why do different suppliers quote different beam diameters for similar lasers?
Because they may use different definitions (1/e⊃2; vs FWHM vs D4σ) and measurement techniques. Always ask which definition and method were used and align them with your internal standards. [ophiropt]
Q2. Can I convert between 1/e⊃2; and FWHM beam diameters?
Only approximately, and only if the beam profile is close to Gaussian. For non‑Gaussian or multimode beams, there is no reliable universal conversion, so direct measurement with the target definition is recommended. [ophiropt]
Q3. Do I need an expensive beam profiler for every project?
Not necessarily. For high‑volume or safety‑critical systems, a profiler is highly recommended. For simpler applications, carefully executed knife‑edge or camera methods may be sufficient, especially when supported by good OEM data. [sciencedirect]
Q4. How often should I re‑check the beam diameter of my system?
For production lines, periodic sampling based on your quality plan (e.g., per batch or per time interval) is typical. For critical instruments, re‑validation after optics replacement or alignment adjustments is advisable. [laser-beam-profile]
Q5. Can AimLaser customize beam diameter and divergence for my application?
Yes. We can design collimation, focusing, or beam‑shaping optics to meet specific spot sizes at defined working distances and provide measurement data according to your chosen definition (1/e⊃2;, FWHM, or D4σ). [aiminglaser]
