Views: 222 Author: AimLaser Publish Time: 2026-05-06 Origin: Site
A narrow linewidth laser is a single-frequency laser with an extremely pure, stable optical spectrum, achieved through careful cavity design, feedback control and noise management across the entire system. In OEM fiber‑coupled laser modules for instrumentation, getting linewidth, stability and integration right is often more important than output power alone. [aiminglaser]
Narrow linewidth lasers sit at the heart of modern photonics for applications such as optical sensing, coherent communication, LiDAR, fiber‑optic gyroscopes and high‑precision metrology. As an OEM manufacturer of industrial laser modules and fiber‑coupled lasers, Aiming Laser Technology Co., Ltd. (AimLaser) focuses on translating these demanding performance requirements into robust, scalable products for instrument makers worldwide. [lontenoe]
From an engineer's perspective, designing such sources is a constant trade‑off between linewidth, stability, power, thermal management and packaging. From the end user's perspective, success is measured by long‑term reliability in the field, easy integration, and consistent performance across batches. Narrow linewidth technology is where these two perspectives meet.

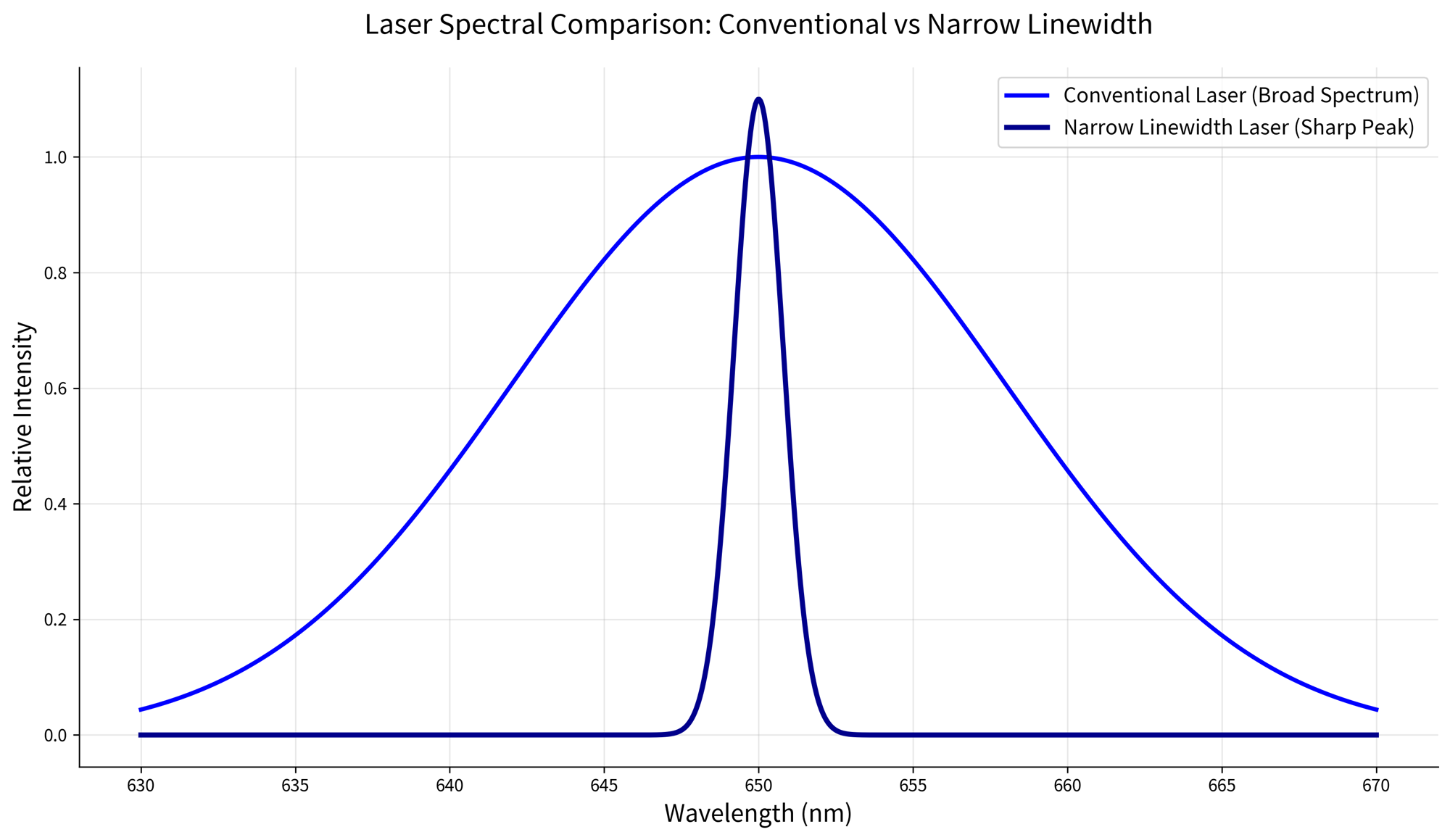

In practical terms, a narrow linewidth laser is a source whose optical spectrum is extremely concentrated around a single frequency, usually with a linewidth in the kilohertz to low megahertz range depending on application. To achieve this, the laser must operate in single‑frequency mode, suppressing competing longitudinal and transverse modes that would broaden the emission. [rp-photonics]

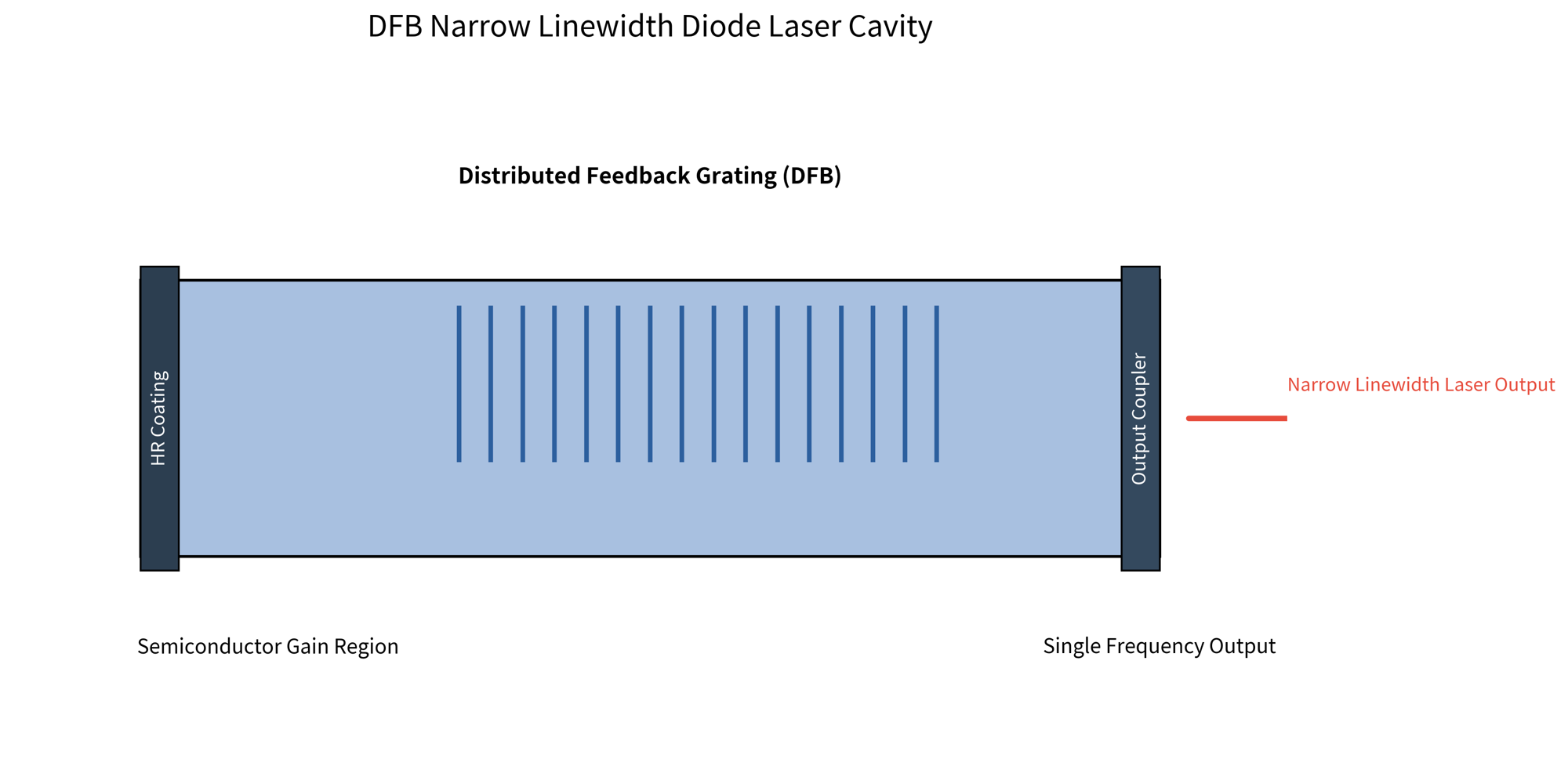

For fiber‑based and diode‑based designs, this narrow emission is typically obtained using distributed feedback (DFB) or distributed Bragg reflector (DBR) structures, external cavity mirrors, or high‑Q resonators that strongly favor one mode over all others. The result is a coherent source with long coherence length, high spectral purity and low phase noise, which are critical for interferometric and coherent detection schemes. [science]
Coherence length is inversely related to linewidth: the narrower the linewidth, the longer the coherence length. This long coherence length directly improves measurement range and accuracy in interferometric systems such as fiber‑optic gyroscopes, interferometric fiber sensors and optical frequency‑domain reflectometry. In these applications, a broader linewidth translates into phase noise, drift and reduced sensitivity. [xhfiber]
In distributed fiber sensing, such as temperature and strain monitoring over tens of kilometers, narrow linewidth sources allow precise control of optical frequency modulation and stable interference patterns. This stability is essential for techniques like phase‑sensitive OTDR and coherent Rayleigh or Brillouin sensing, where signal‑to‑noise ratio directly depends on spectral purity. [xhfiber]
Coherent communication systems and coherent LiDAR use phase and amplitude of the optical carrier to encode or extract information, making linewidth a major determinant of system performance and achievable data rates. In quantum key distribution (QKD) and other quantum photonics schemes, narrow linewidth lasers with low phase noise offer more predictable photon statistics and reduced error rates. [lontenoe]
Engineers begin by choosing a gain medium—often a semiconductor laser diode or a doped fiber—then designing a cavity that strongly favors one longitudinal mode. DFB and DBR cavities incorporate periodic gratings that act as wavelength‑selective mirrors, thereby suppressing all but a narrow band of modes. Alternatively, external cavity diode lasers (ECDLs) or integrated waveguide resonators couple the active device to a separate high‑Q cavity that defines the oscillation frequency and narrows the linewidth. [science]
In fiber‑laser architectures, fiber Bragg gratings (FBGs) written into passive fiber sections provide high‑reflectivity, narrowband feedback for single‑frequency operation. The precise design of grating period, index modulation and cavity length dictates both the center wavelength and the achievable linewidth. [rp-photonics]
Even a well‑designed cavity can be pushed into multi‑mode or noisy behavior if noise sources are not controlled. Fluctuations in drive current, temperature and mechanical stress induce frequency jitter and broaden the linewidth. To counter this, narrow linewidth designs incorporate low‑noise current drivers, active temperature control (often with TECs), and mechanically stable housings that minimize vibration and stress‑induced birefringence. [rp-photonics]
The result is a laser that remains locked to its design wavelength and linewidth over hours or days of operation, even in challenging environments. For OEM users integrating these modules into instruments, this translates into calibration stability and reduced need for frequent re‑alignment or software compensation.
AimLaser manufactures diode laser modules for both free‑space and fiber‑coupled configurations, covering wavelengths from 405 nm to 980 nm with output powers from sub‑milliwatt levels up to several watts for OEM instrument applications. Fiber‑coupled versions use precision optics to couple the laser emission into single‑mode or polarization‑maintaining fibers, providing a flexible, pluggable interface for system integrators. [linkedin]
Many OEMs prefer fiber‑coupled narrow linewidth modules because the fiber delivers a well‑defined beam profile and simplifies routing within complex instruments. Integrated designs can also include monitoring photodiodes, built‑in isolators, and wavelength‑locking mechanisms, allowing system designers to treat the module as a drop‑in optical engine rather than a bare laser diode. [sinteclaser]
Engineers start by simulating and prototyping cavity geometries to maximize single‑frequency gain and side‑mode suppression. This can involve:
- Selecting DFB or DBR structures with optimized grating periods and coupling strengths. [science]
- Minimizing cavity length variations that would permit multiple longitudinal modes. [rp-photonics]
- Using high‑reflectivity coatings or FBGs to establish a sharp spectral passband. [science]
In integrated photonic platforms, low‑loss waveguides and high‑Q resonators further refine the linewidth by extending photon lifetime in the cavity. [lipson.ee.columbia]
Once the optical design is established, the next priority is stabilizing temperature and drive current. Narrow linewidth modules typically integrate:
- Thermoelectric coolers (TECs) and temperature sensors for closed‑loop thermal control.
- Low‑noise current drivers with carefully filtered power supplies.
- Mechanical packaging that isolates the laser from external temperature gradients and airflow.
These measures reduce frequency jitter and mode hopping, maintaining spectral purity across the operating range. [rp-photonics]

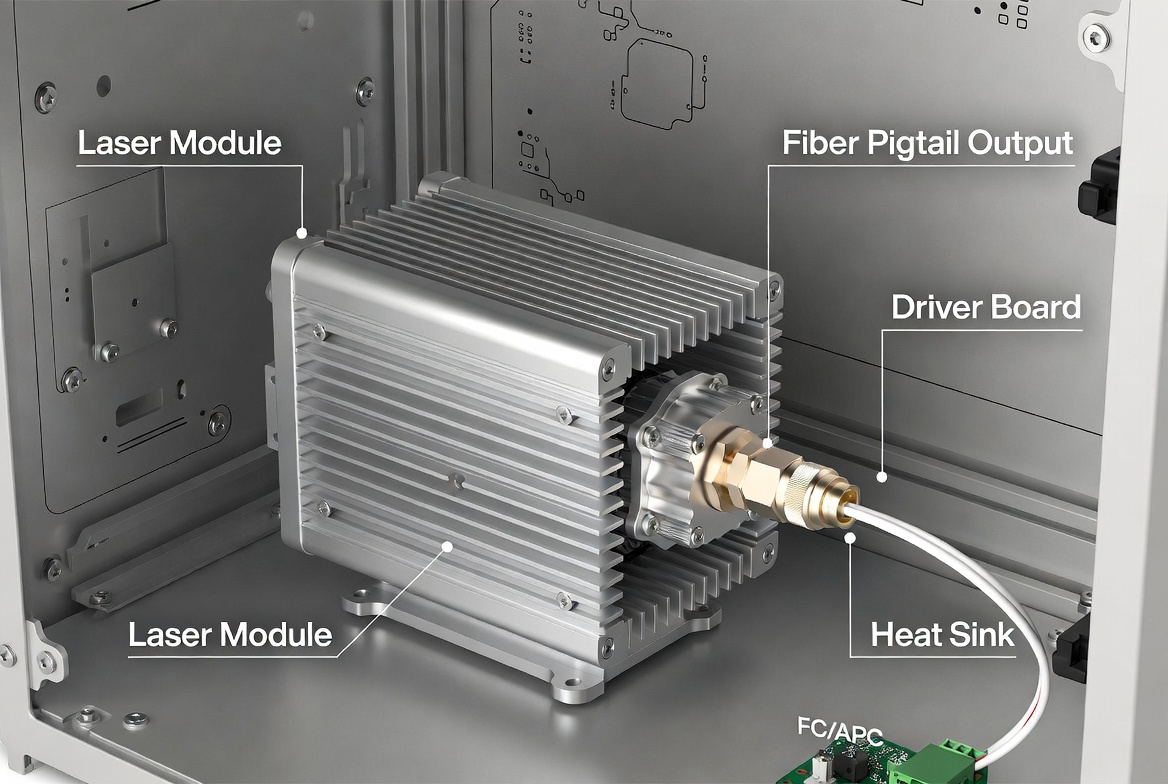

For industrial OEM modules, packaging is as critical as optical design. Aiming Laser's fiber‑coupled modules, for example, are designed for compact size and robust mechanical stability to withstand shipping, installation and long‑term operation in industrial environments. Key aspects include: [aiminglaser]
- Precision alignment of the fiber ferrule to the laser emitting aperture.
- Strain‑relieved fiber pigtails to prevent stress‑induced polarization changes.
- Sealed housings to protect against dust, humidity and vibration.
These factors jointly preserve the narrow linewidth characteristics that were achieved at the chip and cavity level.

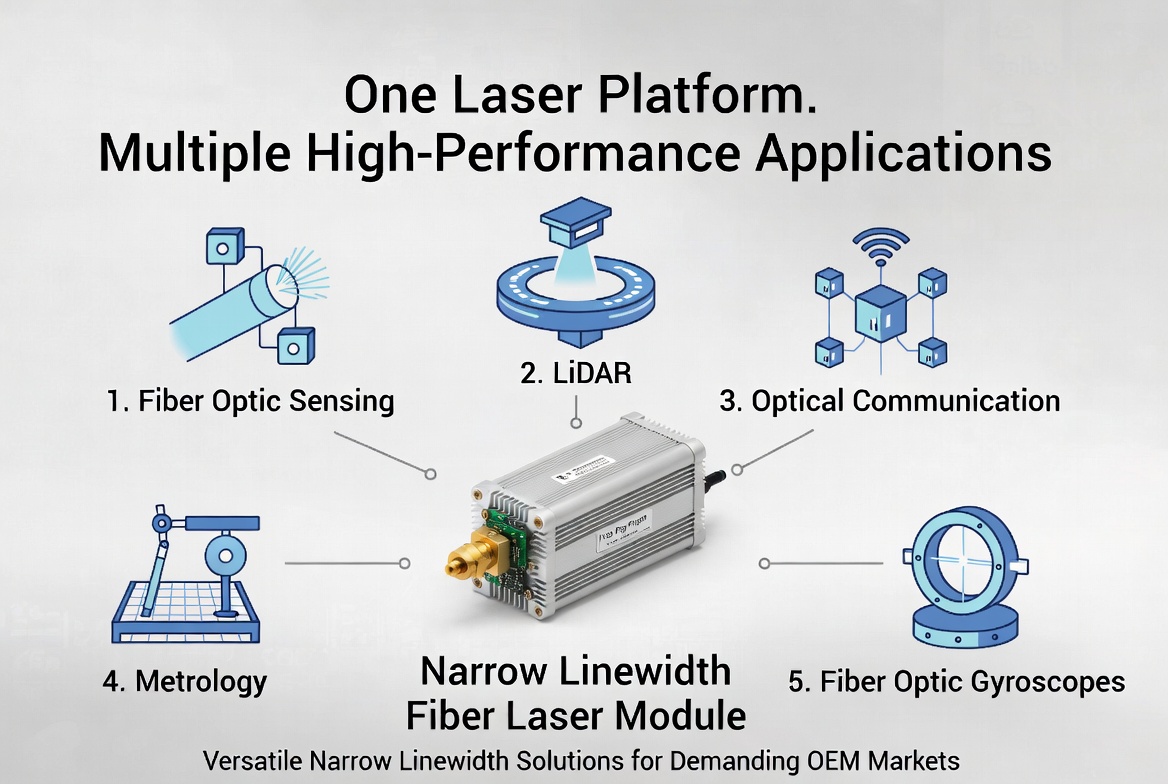

Single‑frequency narrow linewidth fiber lasers are widely used in optical frequency metrology, precision spectroscopy and interferometric measurement systems. Researchers and metrology labs rely on their long coherence and stable output to resolve fine spectral features or track frequency shifts with high precision. [xhfiber]
In industrial sensing, narrow linewidth sources enable distributed temperature and strain monitoring along pipelines, civil structures and power cables, supporting predictive maintenance and safety monitoring. OEMs in these sectors often integrate fiber‑coupled modules directly into rack‑mount instruments or portable analyzers. [xhfiber]
Coherent LiDAR, fiber‑optic gyroscopes and Doppler velocimetry systems all benefit from narrow linewidth for improved range resolution, velocity discrimination and stability. Defense and aerospace users, in particular, demand modules that maintain performance under vibration, thermal cycling and extended operating hours. [lontenoe]
In some high‑end material processing and medical systems, narrow linewidth pumps or seed lasers feed into higher‑power amplification stages or nonlinear frequency‑conversion setups, ensuring that the final output retains good coherence and spectral control. [sciencedirect]
From an OEM engineer's perspective, choosing the "right" linewidth is about balancing performance and cost. For many sensing and interferometric applications, kilohertz‑class linewidth is desirable, but some simpler systems perform adequately with tens of kilohertz or even low megahertz lines. Before specifying a module, consider: [rp-photonics]
- Required coherence length and phase stability.
- Sensitivity of the detection scheme to phase noise.
- Acceptable system complexity and cost.
Working with an experienced module manufacturer helps align these constraints with feasible cavity and packaging designs. [linkedin]
While linewidth is central, it should not be considered in isolation. OEM users typically evaluate:
- Wavelength and wavelength stability (including optional wavelength‑locking for Raman, LiDAR or medical windows). [sinteclaser]
- Output power and power stability over time and temperature.
- Beam quality and fiber type (single‑mode vs. polarization‑maintaining).
- Electrical interface, control options and mechanical footprint.
AimLaser's product range, for example, spans multiple wavelengths and power levels suitable for OEM instrument integration, allowing customers to choose a configuration that fits both optical and mechanical design constraints. [aiminglaser]
Based on typical OEM integration projects, three practical tips consistently improve system performance:
1. Use low‑noise power supplies and carefully manage grounding to avoid injecting electrical noise into the laser driver, which can broaden the linewidth.
2. Mechanically isolate the laser module and connected fiber from vibration sources inside the instrument, such as fans or moving stages.
3. Allow adequate warm‑up time for thermal stabilization before performing high‑precision measurements, and consider monitoring the internal temperature signal in your control software.
Following these guidelines ensures that the narrow linewidth performance you specify on paper translates into real‑world system behavior over the lifetime of the instrument.
Because linewidth, stability and mechanical constraints are tightly coupled, early communication with the module supplier is essential. For custom projects, OEMs may request:
- Specific fiber types or connector options.
- Custom housings or footprints for tight spaces.
- Extended temperature ranges or ruggedized designs for field deployment.
Manufacturers like AimLaser, which specialize in diode laser modules and fiber‑coupled lasers for OEM instruments, can often adapt standard platforms to meet these integration requirements. [linkedin]
Aiming Laser Technology Co., Ltd. (AimLaser) has specialized in diode laser modules for OEM instrument applications since 2012, with products spanning free‑space and fiber‑coupled configurations from 405 nm to 980 nm and output powers from 0.4 mW up to several watts. This experience allows the team to support customers not only with catalog products, but also with tailored configurations that align linewidth, wavelength, packaging and fiber type with each instrument's requirements. [aiminglaser]
For international OEMs, having a long‑term manufacturing partner with robust quality control and repeatable production processes is as important as the laser design itself. AimLaser's focus on industrial laser modules, training laser bullets and electronic laser targets demonstrates a track record of supplying reliable optical sources into demanding applications worldwide. [linkedin]
If your next instrument, sensor platform or photonic system requires narrow linewidth or fiber‑coupled laser modules, consider engaging with Aiming Laser Technology early in your design cycle to define the optimal specifications for linewidth, wavelength, power and packaging. By aligning optical performance with your mechanical and electrical constraints from the outset, you can shorten development time, reduce integration risk and deliver more competitive products to your own customers. [aiminglaser]
To explore standard or customized options, you can visit AimLaser's official website and share your application details and expected annual volume with the technical sales team for a tailored proposal. [aiminglaser]
Q1: What linewidth is considered "narrow" for industrial applications?
For many industrial sensing and interferometric applications, linewidths in the kilohertz to low megahertz range are typically considered narrow, with the exact requirement depending on coherence length and noise tolerance. [xhfiber]
Q2: Is a fiber‑coupled narrow linewidth module more stable than a free‑space module?
Fiber coupling does not inherently change the internal linewidth, but it improves beam delivery, reduces alignment sensitivity, and can improve system‑level stability if mechanical stress on the fiber is well managed. [linkedin]
Q3: How important is temperature control for maintaining narrow linewidth?
Temperature fluctuations cause refractive index and cavity length changes that shift the lasing frequency and broaden the linewidth, so active temperature control is essential in narrow linewidth modules. [rp-photonics]
Q4: Can narrow linewidth diode modules be scaled to higher powers?
Yes, narrow linewidth diodes can be amplified or used as seed lasers for fiber amplifiers or solid‑state stages, but maintaining spectral purity requires careful amplifier design and often additional filtering. [sciencedirect]
Q5: What information should I prepare before contacting an OEM laser module supplier?
You should prepare target wavelength, required linewidth range, output power, fiber type or beam requirements, operating temperature range, mechanical constraints and expected annual quantity to allow the supplier to propose suitable standard or custom modules. [linkedin]
