Views: 222 Author: AimLaser Publish Time: 2026-05-10 Origin: Site
As an engineer working with industrial laser modules and fiber‑coupled lasers for OEM projects, I'm often asked a simple but crucial question: can we efficiently convert laser light back into usable electric power, and where does this make sense in real industry? This article walks through the physics, mainstream technologies, latest research, and practical design considerations behind converting laser energy into electricity from an industry practitioner's perspective. [powermag]
Converting laser energy into electricity means using a dedicated photoelectric conversion device to absorb a laser beam and output DC power. In practice, this usually involves a laser power converter (LPC) or a high‑efficiency photovoltaic cell tuned to the laser's wavelength. [trumpf]

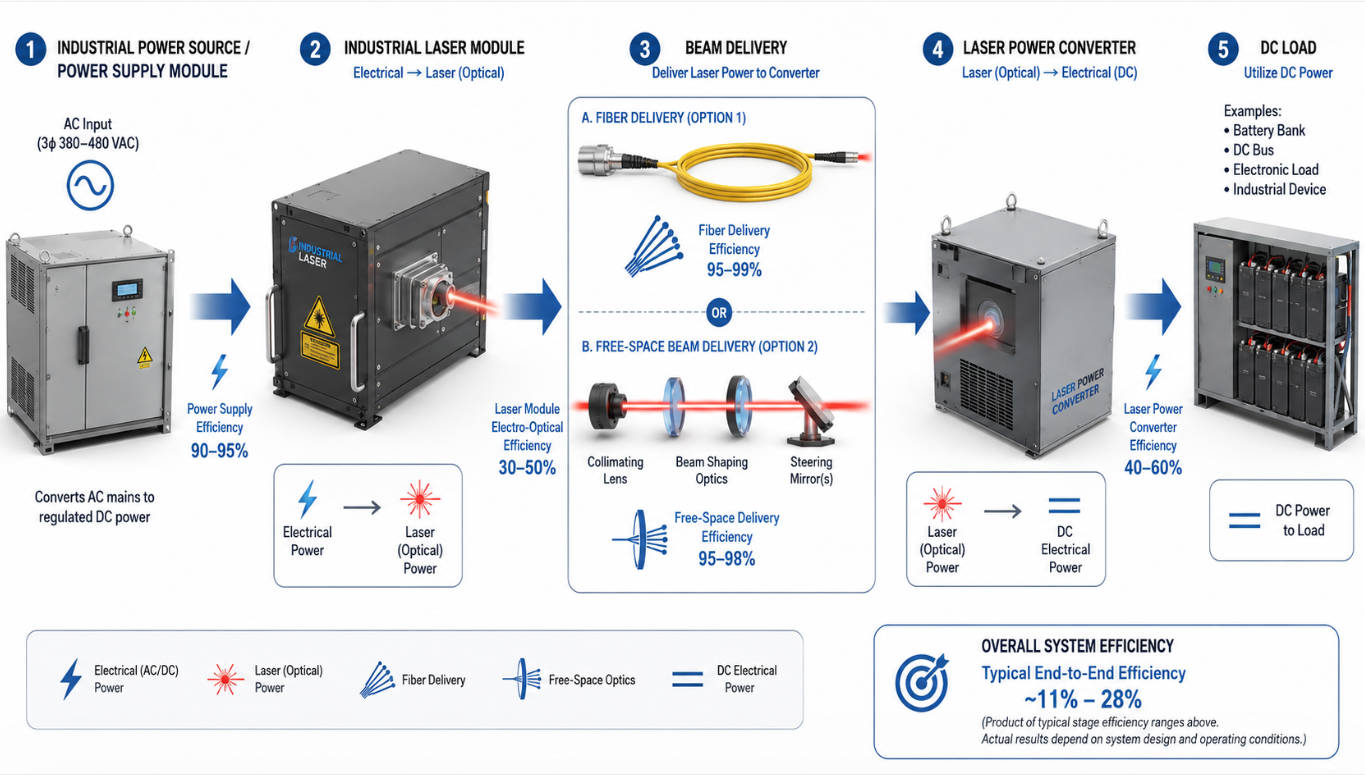

From an OEM engineer's point of view, you are not just "harvesting light"; you are building a controlled power‑delivery chain:
- Electrical power source
- Laser diode or laser module
- Beam shaping and transmission path (free space or fiber)
- Laser power converter or PV receiver
- Power management and load electronics [edmundoptics]
When this chain is designed correctly, you can deliver tens to hundreds of watts of electrical power over distances where copper cables are risky, heavy, or simply impossible to install. [sciencedirect]
Industrial systems generally start with a laser diode or diode module, often coupled into optical fiber for flexible routing. Fiber‑coupled laser modules are compact, easy to integrate, and can provide stable output at specific wavelengths such as 808 nm, 915 nm, 940 nm, or 1550 nm. [ceramoptec]
Key design variables include:
- Wavelength and spectral width
- Output power and beam quality
- Fiber type (core size, NA) and connector standard (e.g., SMA905) [edmundoptics]
These parameters directly influence which laser power converter or photovoltaic receiver you can use and what efficiency you can realistically achieve. [sciencedirect]
Once generated, the beam can be transmitted in two ways:
- Free space: Beam propagation through air with lenses, mirrors, and diffractive optical elements. [powermag]
- Fiber delivery: Power guided through fiber to a remote receiver, often inside an enclosure or tool head. [ceramoptec]
Long‑distance optical wireless power transmission experiments have demonstrated 1 kW of optical laser power over 1 km, with about 152 W of electric power received, showing what is possible at scale. For industrial OEM use, distances are typically shorter and power levels lower, but the same principles apply. [powermag]

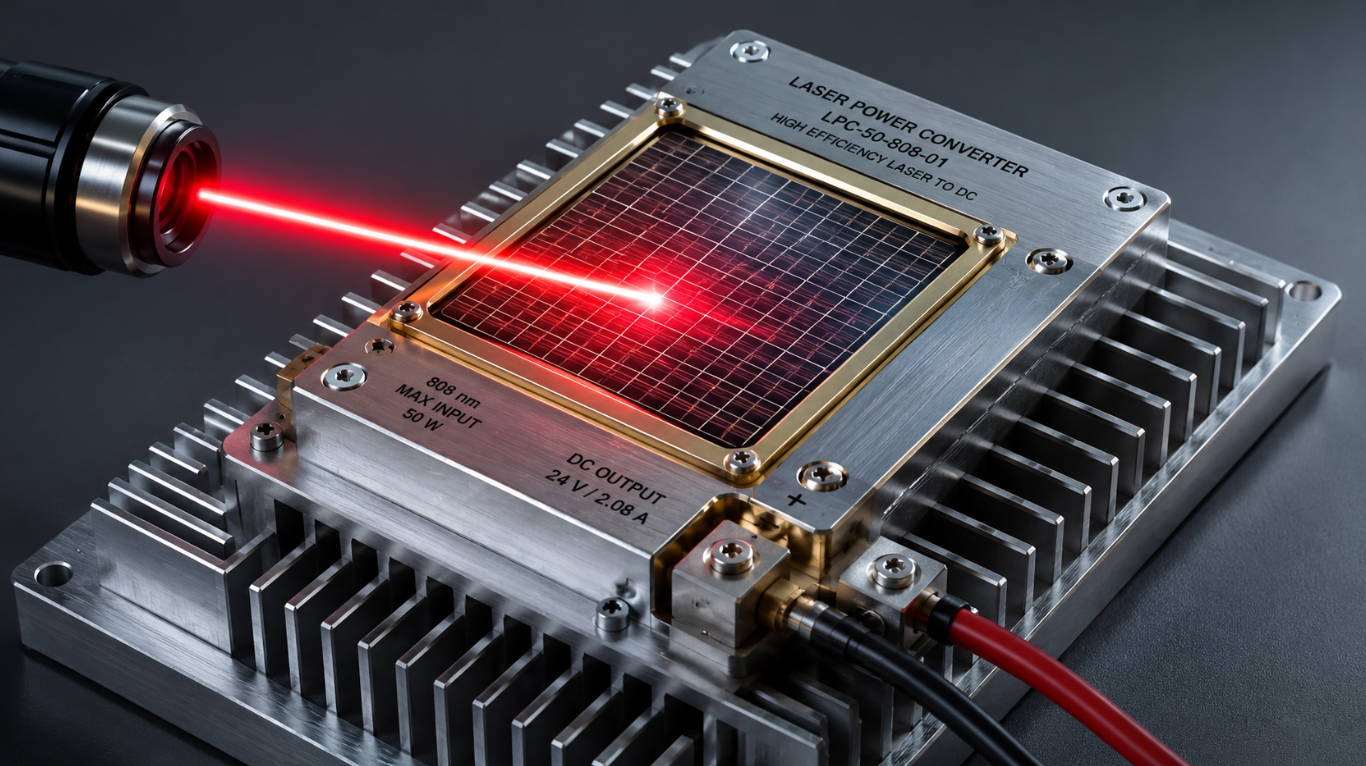

On the receiver side, dedicated laser power converters or monochromatic PV cells convert the incident laser photons into electrical current. Unlike standard solar panels that must handle a broad solar spectrum, LPCs are optimized for a narrow wavelength band, which allows much higher theoretical efficiencies. [sciencedirect]
Performance depends on:
- Spectral match between laser wavelength and converter bandgap
- Optical power density on the converter
- Temperature and thermal management
- Reflection and coupling losses at the receiver surface [trumpf]
Modern research shows that purpose‑designed LPCs can reach impressive conversion efficiencies under the right conditions, significantly higher than conventional solar in a similar footprint. [researching]

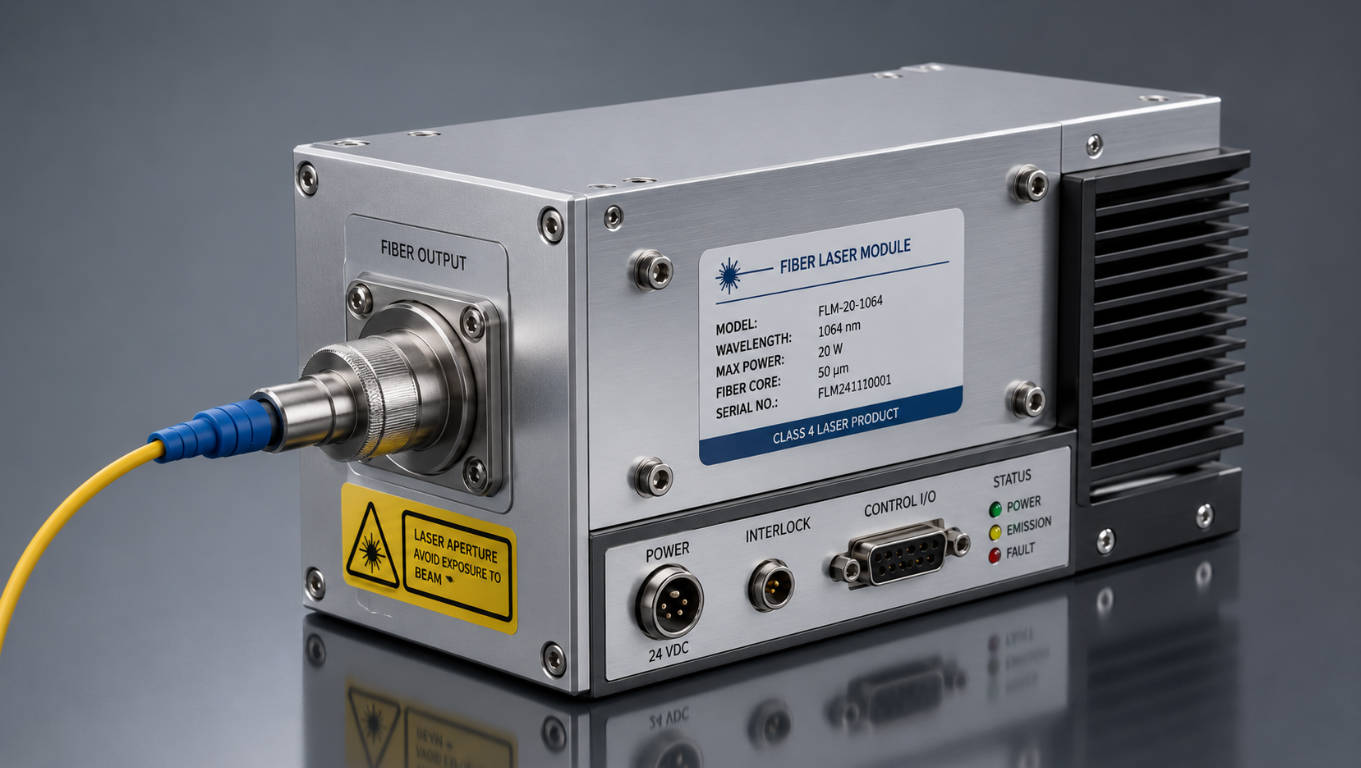

Industrial laser modules and OEM fiber‑coupled sources are the first building block of any laser power system. Typical options include: [edmundoptics]
- Diode laser modules with integrated optics and drivers
- Fiber‑coupled diodes for easy routing and compact integration
- Higher‑power multi‑emitter or combined modules for kilowatt‑class systems [lasercomponents]
These modules are widely used for sensing, measurement, alignment, and imaging, which means they are proven for 24/7 industrial operation. [eeworldonline]
LPCs are specialized PV devices designed to convert monochromatic laser light with maximum efficiency. Compared with standard solar cells: [sciencedirect]
- They target a specific wavelength, often 808–1550 nm.
- They can be stacked or tiled to scale power.
- Their I‑V characteristics are optimized for the expected irradiance and load. [sciencedirect]
Ongoing research focuses on semiconductor structures and optical designs that further increase efficiency and reduce cost for wireless power applications. [researching]
Finally, power electronics manage:
- Maximum power point tracking (MPPT) for the LPC
- Voltage regulation for batteries, sensors, or motor drivers
- Protections for over‑temperature, over‑current, and beam misalignment [powermag]
For OEM customers, the value is in a complete subsystem: laser source, fiber delivery, conversion module, and ready‑to‑use DC output in a compact, maintainable package. [ceramoptec]
Lasers are already used in many industrial and commercial applications, from cutting and welding to measurement and cleaning. Converting laser energy back into electricity brings unique advantages in niche but growing scenarios. [en.wikipedia]
- Remote sensors and IoT devices: Powering sensors located in hazardous zones or rotating machinery where cables are impractical. [powermag]
- Space and high‑altitude platforms: Delivering power to drones or future space‑elevator concepts via laser beams hitting high‑efficiency PV receivers. [trumpf]
- Sealed or sterile environments: Sending power through windows into cleanrooms or vacuum chambers without electrical feedthroughs. [sciencedirect]
- Harsh or explosive areas: Reducing spark risk in ATEX/IECEx environments by avoiding metal power lines. [powermag]
Research projects have highlighted scenarios such as kilometer‑scale wireless transmission and laser‑powered space infrastructure, which are shaping future commercial designs. [trumpf]

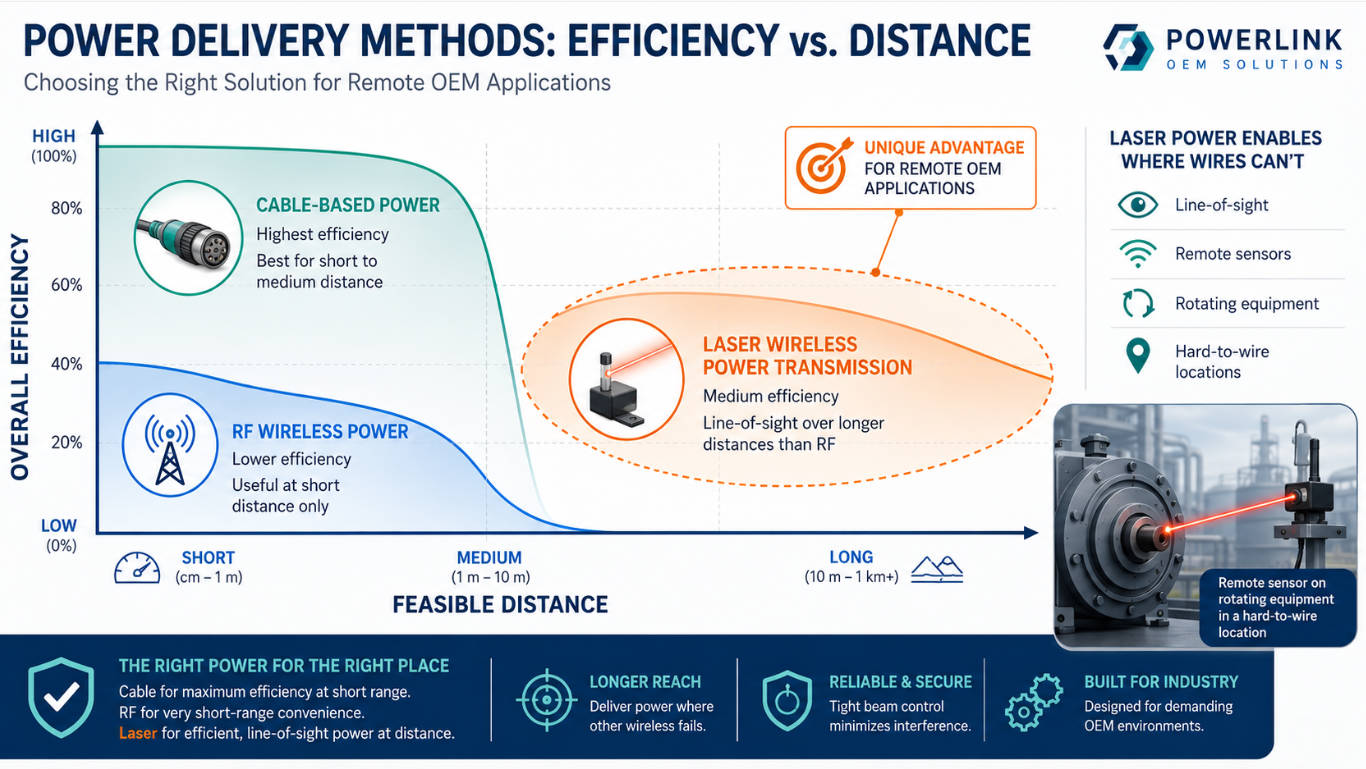

From an industrial engineering standpoint, laser‑based power delivery offers a different trade‑off profile than cables or RF power.
- Precise, directional power with minimal electromagnetic interference (EMI). [trumpf]
- High power density at the receiver due to narrow beam focusing. [powermag]
- Spectral optimization for high conversion efficiency via matched LPCs. [researching]
- Mechanical decoupling of power source and load, helpful for moving parts. [sciencedirect]
- Line‑of‑sight or controlled optical path is mandatory for free‑space systems. [trumpf]
- Conversion and transmission losses are still higher than copper cables for many near‑field applications. [powermag]
- Safety engineering for eye and skin exposure is critical at industrial powers. [trumpf]
- System cost can be higher due to laser, optics, and LPC components. [researching]
As a result, laser‑to‑electricity conversion is most attractive where cables are impossible, maintenance access is limited, or safety and EMI considerations outweigh efficiency losses. [sciencedirect]
Recent research and industry pilots show clear momentum around optical wireless power.
- Long‑distance optical wireless power transmission has reached over 1 km with more than 150 W of received power from around 1 kW of transmitted laser power. [powermag]
- Semiconductor laser and LPC design work continues to focus on high‑brightness, high‑efficiency devices tailored to wireless power. [everbrightphotonics]
- Technical reviews describe a growing ecosystem of wireless laser power transmission solutions leveraging narrowband LPCs and advanced optics. [sciencedirect]
For OEM partners, these trends translate into more efficient, compact, and reliable building blocks that can be embedded into industrial products rather than treated as lab‑only technology. [edmundoptics]
When we help OEM customers design systems that convert laser energy into electricity, we typically walk through a structured process.
Clarify:
- Required continuous and peak power at the load
- Transmission distance and environment (indoor, outdoor, vacuum, cleanroom)
- Allowed footprint at transmitter and receiver [powermag]
This step determines whether a fiber‑coupled or free‑space architecture makes more sense and what power class of industrial laser module you will need. [ceramoptec]
Next, select a suitable wavelength based on:
- Availability of high‑efficiency LPCs for that wavelength
- Atmospheric absorption and scattering if using free space
- Safety classification and regulatory considerations [trumpf]
Fiber‑coupled modules operating near common telecom or industrial diode wavelengths are often a strong starting point because they are rugged and easy to integrate. [edmundoptics]
For free‑space systems, this includes beam shaping optics, alignment tolerances, and receiver aperture sizing. For fiber‑delivery systems, it is more about connector choice, fiber routing, and the mechanical interface between fiber and LPC. [ceramoptec]
Engineers must also consider:
- Thermal management of the LPC
- Anti‑reflection coatings and optical coupling efficiency
- Protection from contamination, dust, or condensation on optical surfaces [researching]
Finally, integrate MPPT, voltage regulation, and safety monitoring:
- Beam‑off interlocks
- Misalignment detection
- Over‑temperature shutdown on both laser and receiver sides [trumpf]
This is where industrial experience with laser safety and compliance standards becomes critical, especially at higher power levels. [trumpf]

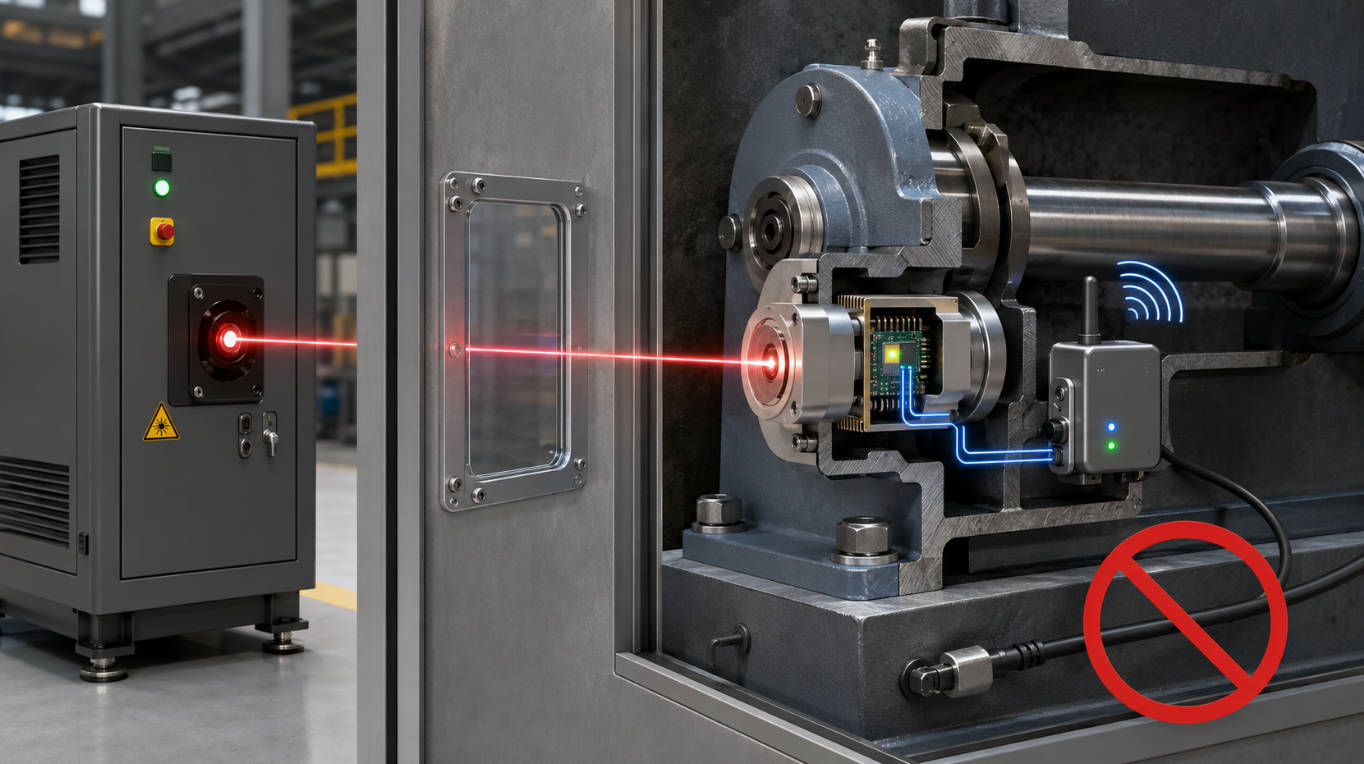

To make this more concrete, imagine an OEM customer wants to power a vibration sensor mounted on a rotating shaft inside an enclosure where slip rings are undesirable.
A practical architecture might involve:
1. A fiber‑coupled laser module mounted in a stationary control box, fed from the plant's DC bus. [edmundoptics]
2. Fiber or free‑space optics delivering the beam into the rotating zone through a small window. [edmundoptics]
3. A compact LPC module integrated near the sensor, feeding a local DC/DC converter that powers the sensor electronics and wireless transmitter. [sciencedirect]
4. Monitoring circuitry that turns the beam off if misalignment or overheating is detected. [powermag]
Such a system avoids brushes or slip rings, reduces maintenance, and provides an elegant, optically isolated power supply specifically where conventional wiring is problematic. [edmundoptics]
From my experience working with industrial laser OEM projects, laser‑to‑electricity conversion becomes a compelling option when:
- You need remote, line‑of‑sight power where cables are not practical or allowed. [sciencedirect]
- You must minimize EMI and potential sparking, for example in explosive or sensitive environments. [powermag]
- You want to simplify mechanical design by removing moving cable assemblies. [edmundoptics]
However, if you can safely and cheaply run cables with acceptable reliability and flexibility, traditional wiring will still be more efficient. Laser‑based solutions are strategic tools for specific, high‑value scenarios rather than a universal replacement for electrical cabling. [trumpf]
If you are evaluating whether industrial laser modules or fiber‑coupled lasers can help you deliver power optically in your next design, the best next step is a feasibility discussion based on your exact power, distance, and environmental requirements. By pairing application‑specific laser modules with carefully selected LPC receivers and system electronics, OEMs can build differentiated products that safely and reliably convert laser energy into electricity where conventional power delivery falls short. [ceramoptec]
Laser power conversion can reach meaningful efficiencies, especially when the laser wavelength is closely matched to a dedicated LPC. While the end‑to‑end efficiency is usually lower than copper cabling, it can still be cost‑effective where cabling is impossible or very expensive. [researching]
Common choices include near‑infrared diode wavelengths such as 808 nm, 915 nm, 940 nm, and eye‑safer bands around 1550 nm. The best wavelength for a project depends on available LPC technology, atmospheric conditions, and safety or regulatory constraints. [ceramoptec]
Yes, but only when designed with appropriate safety measures such as beam enclosures, interlocks, and monitoring systems that shut down the laser in unsafe conditions. Compliance with relevant laser safety standards and proper training is essential, especially at higher powers. [trumpf]
Laboratory and field experiments have demonstrated useful power transfer over distances on the order of kilometers, though with careful beam control and specialized equipment. In industrial OEM designs, distances are often tens to hundreds of meters, which simplifies optical design and alignment. [sciencedirect]
Fiber‑coupled lasers make it easier to route power through complex machinery or cramped enclosures without bulky free‑space optics. Their compact, integration‑ready form factor and stable beam delivery are ideal for OEM systems that need predictable optical input at an LPC receiver. [ceramoptec]
1. NTT & Mitsubishi Heavy Industries, "Laser Wireless Power Transmission Breakthrough Could Transform Remote Energy Delivery," POWER Magazine. [powermag]
2. Emcore Model 1790 High‑Power Laser Module for LiDAR and Optical Sensing. [eeworldonline]
3. Edmund Optics, "Fiber‑Coupled Laser Modules – OEM Integration and Features." [edmundoptics]
4. Everbright Photonics, "Semiconductor Lasers and Laser Cells for Optical Wireless Power Transmission" (Chinese technical overview). [everbrightphotonics]
5. TRUMPF, "Transmitting Electricity via Laser – Future Concepts and Space Applications." [trumpf]
6. Wikipedia, "List of Laser Applications" – Industrial and Commercial Uses. [en.wikipedia]
7. CeramOptec, "OEM Laser Beam Sources & Laser Modules – Fiber‑Coupled and Integration‑Ready." [ceramoptec]
8. Researching.cn, "High‑Efficiency Semiconductor Laser Design for Wireless Energy Transfer" (Chinese research article). [researching]
9. ScienceDirect, "Wireless Laser Power Transmission: Recent Progress and Prospects," review of LPC and system architectures. [sciencedirect]
10. LASER COMPONENTS, "Laser Modules for Industrial Image Processing – FLEXPOINT Series." [lasercomponents]
