Laser diode modules generally handle temperature fluctuations better than DPSS lasers, especially in real‑world industrial environments where ambient conditions are hard to control. DPSS lasers can achieve excellent stability, but only within a narrow, well‑managed temperature window supported by more complex thermal control. [lasercomponents]
If you integrate industrial laser modules into machines, outdoor systems, or 24/7 production lines, temperature is not a theoretical parameter—it is the difference between stable output and chronic downtime.
From my experience working with OEM buyers and engineering teams, two questions always come up first:
- Will the module stay within spec as cabinet or ambient temperature swings?
- How much thermal engineering do we need to add around the laser to keep it happy?
This article compares Laser Diode Modules vs DPSS Lasers through that exact lens: which one handles temperature fluctuations better, and in what conditions each is the smarter choice for your next design.
A laser diode module integrates a semiconductor laser diode with optics, driver electronics, and often temperature control and mechanical housing into one ready‑to‑use package.
Key characteristics (temperature‑relevant):
- Direct emission: Semiconductor junction is the gain medium, so there is no separate crystal to align or thermally stabilize. [erdicn]
- Higher electrical‑to‑optical efficiency, so less waste heat is generated for a given output power. [laserworld]
- Simpler cooling requirements, often just passive conduction plus a modest heat sink; TEC is optional in many use cases. [erdicn]
A Diode‑Pumped Solid‑State (DPSS) laser uses a pump diode to excite a solid crystal (such as Nd:YAG), often followed by frequency doubling crystals (e.g., KTP) to generate visible or UV wavelengths.
Temperature‑critical aspects:
- Multiple temperature‑sensitive stages (pump diode wavelength, gain crystal, nonlinear crystal) must all sit in relatively narrow temperature windows. [en.wikipedia]
- Often requires multiple temperature control loops (for pump diode, main crystal, and doubler crystal). [laserworld]
- Delivers excellent beam quality and narrow linewidth when kept in its optimal temperature band. [en.wikipedia]

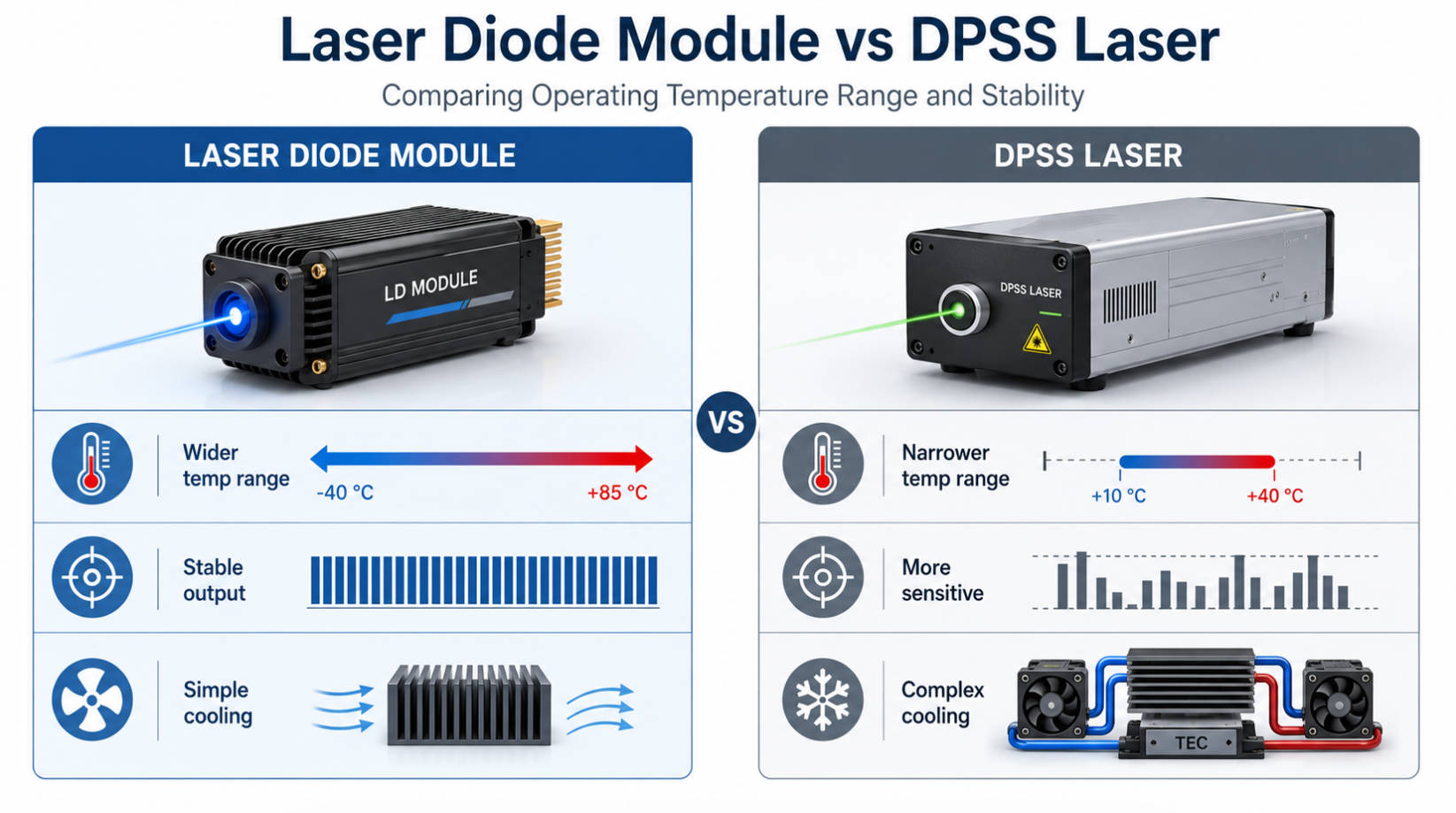

From both published data and field deployments, laser diode modules typically support a wider operating temperature range than miniature DPSS lasers. [sintec]
- A comparison from an industrial photonics supplier shows miniature DPSS green modules commonly operating between around ‑5 °C to +50 °C, even in newer designs. [lasercomponents]
- Comparable green laser diode modules (around 520 nm) reach ‑20 °C to +60 °C while maintaining reliable operation. [lasercomponents]
- Many commercial DPSS module systems list operating ranges centred near room temperature, often 10–35 °C, unless customized thermal management is added. [sintec]
By contrast, diode modules often achieve wider specs in standard housings, and OEMs extend usable range further through:
- Over‑designed heat sinking on the baseplate
- Simple enclosure ventilation
- Optional TEC‑based temperature stabilization only for high‑precision applications
Key takeaway: If you expect large ambient variations (e.g., outdoor kiosks, vehicle‑mounted systems, unconditioned warehouses), laser diode modules are inherently more tolerant of those swings. [laserworld]
DPSS lasers depend heavily on precise phase‑matching and resonance conditions. Temperature changes cause:
- Pump diode wavelength drift, reducing absorption in the gain crystal when not tuned to the optimal pump wavelength. [en.wikipedia]
- Crystal efficiency drop as the gain medium and doubler crystal move away from their designed working temperature. [eprints.utm]
- Beam distortion and power fluctuations due to thermal lensing and misalignment inside the cavity. [laserworld]
In practice, this means:
- Without well‑designed TEC control, DPSS output can show significant power drop and instability as temperature drifts. [eprints.utm]
- Even with TEC, there is a tighter "comfort zone", so extreme environments require more robust (and costly) thermal design.
One university DPSS study demonstrates that small changes away from an optimized TEC setpoint (around 18 °C) noticeably reduce output power and slope efficiency, confirming how strongly DPSS output depends on crystal temperature. [eprints.utm]
Laser diode modules are not immune to temperature—they show:
- Wavelength drift of roughly 0.2–0.3 nm per °C for typical diodes, compared with <0.1 nm/°C for a well‑managed DPSS source. [aiminglasers]
- Output power reduction and efficiency changes as junction temperature increases, especially at higher drive currents. [eprints.utm]
However, their structure has advantages under fluctuation:
- No internal cavity optics or doubling crystals that go out of phase; the semiconductor chip itself is the cavity, so there is less that can thermally misalign. [erdicn]
- They require simpler cooling, and moderate temperature swings cause more predictable, linear changes that can be compensated by current control or simple feedback loops. [erdicn]
For most industrial alignment, sensing, and indication uses, this makes laser diode modules more robust when temperature conditions are not tightly controlled. [lasercomponents]

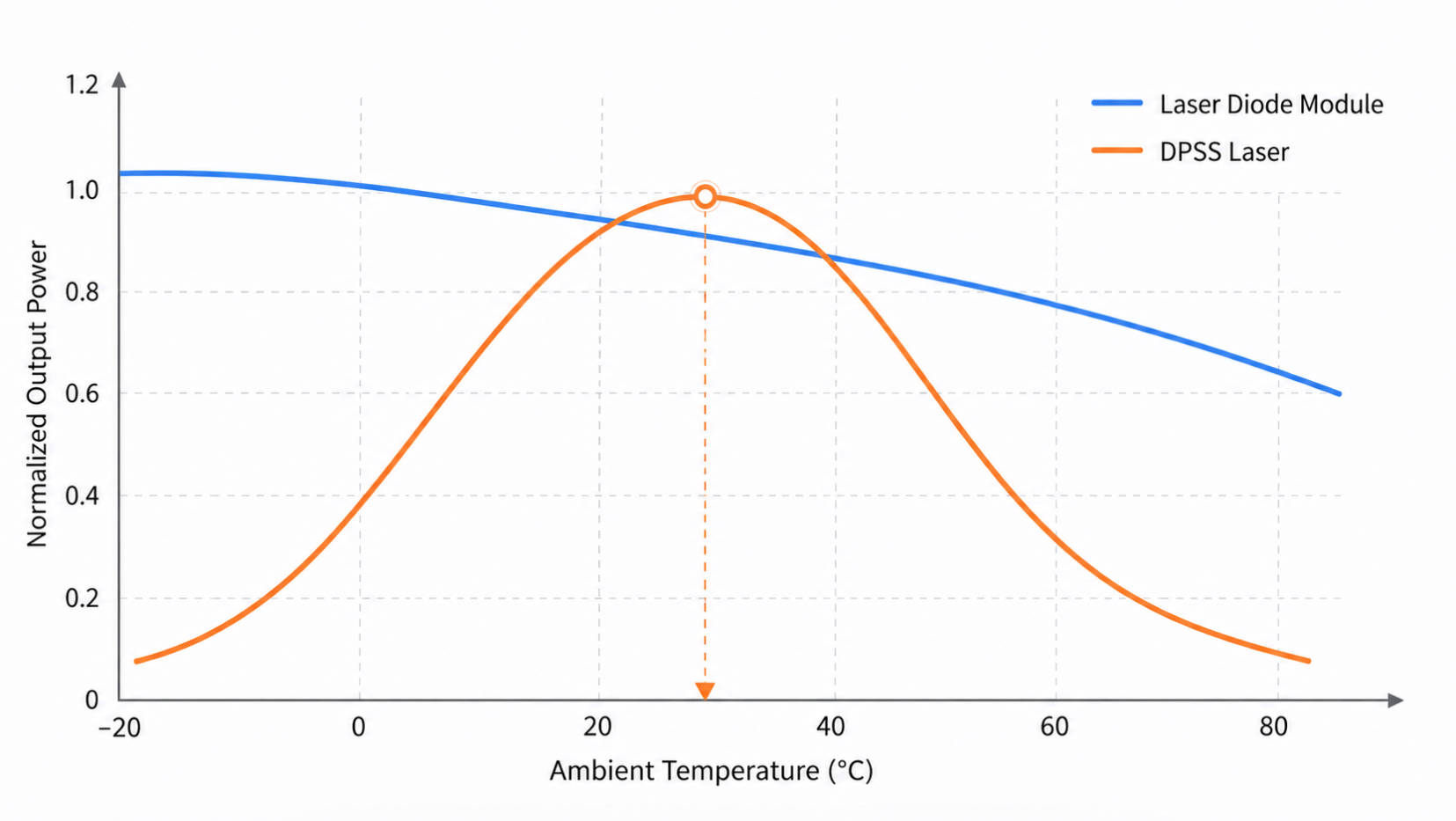

When engineers talk about "stability," they often mean output power and wavelength stability over time as conditions drift.
- One comparison of miniature green sources shows laser diode modules achieving <2% power variation, while comparable DPSS modules are kept under 5% only with extra stabilization electronics and feedback using a photodiode. [lasercomponents]
- Industry metrics indicate DPSS lasers can reach 0.5–1% power stability in carefully controlled setups, while diode modules typically fall in the 1–5% band in real‑world modules. [aiminglasers]
- Wavelength stability figures often favor DPSS (e.g., <0.1 nm/°C vs 0.2–0.3 nm/°C for diodes), but only within a narrow temperature window managed by multi‑loop TEC control. [aiminglasers]
From a systems‑level point of view:
- If your device includes a tight thermal envelope (stable cabinet temp, forced air, TEC), a DPSS module can deliver superior beam and wavelength stability, especially for spectroscopic or high‑precision marking tasks.
- If your product will face unpredictable temperature swings, the relative simplicity and tolerance of laser diode modules usually deliver more stable real‑world performance, even if lab‑bench specs look slightly lower.
In short: On a well‑controlled optical table, DPSS wins on stability. On a crane, forklift, outdoor terminal, or production line cabinet with wide swings, laser diode modules generally stay closer to spec. [aiminglasers]
Temperature does not just affect output—it eats into lifetime.
Industry data and application case studies show typical ranges of:
- Laser diode modules: around 25,000–50,000 hours typical lifetime, with MTBF for some industrial diodes quoted around 375,000 hours at moderate conditions (e.g., 4 W, 25 °C). [aiminglasers]
- DPSS lasers: roughly 10,000–30,000 hours depending on design, crystal quality, and how well the thermal system is implemented. [aiminglasers]
One commonly cited rule of thumb:
- For both DPSS and diode modules, reducing temperature by 10 °C can roughly double lifetime, highlighting how critical thermal management is across technologies. [aiminglasers]
- DPSS lasers: Repeated temperature swings can lead to crystal fatigue, misalignment, and stress on optics, plus degradation in coatings and adhesives used inside the cavity. [laserworld]
- Laser diode modules: Main risks are thermal runaway and COMD (catastrophic optical mirror damage) when operated beyond rated current and temperature, but these modes are well‑characterized and manageable with conservative driver design. [aiminglasers]
Design implication: If your product will sit in 24/7 service with regular on/off or seasonal temperature cycling, a properly derated laser diode module is usually easier to keep within a safe thermal envelope and thus maintain higher effective lifetime. [erdicn]
Aspect | Laser Diode Module | DPSS Laser |
|---|---|---|
Typical operating range | Around ‑20 °C to +60 °C in many industrial modules lasercomponents | Often around ‑5 °C to +50 °C or narrower without custom cooling lasercomponents |
Temperature sensitivity | Lower; performance degrades more gradually with temp drift laserworld | Higher; efficiency and beam quality strongly tied to tight temp band laserworld |
Power stability vs temp | Typical 1–5% variation; easier to compensate with simple control lasercomponents | Can reach 0.5–1% but requires multi‑loop TEC and careful feedback aiminglasers |
Wavelength drift | Roughly 0.2–0.3 nm/°C aiminglasers | Often <0.1 nm/°C in optimized systems aiminglasers |
Cooling complexity | Often passive or single‑stage TEC; simpler and cheaper laserworld | Frequently multiple TEC loops for diode, crystal, doubler; higher complexity laserworld |
Lifetime under heat | 25,000–50,000 h typical; significantly extended by derating aiminglasers | 10,000–30,000 h; more vulnerable to misalignment and crystal stress aiminglasers |

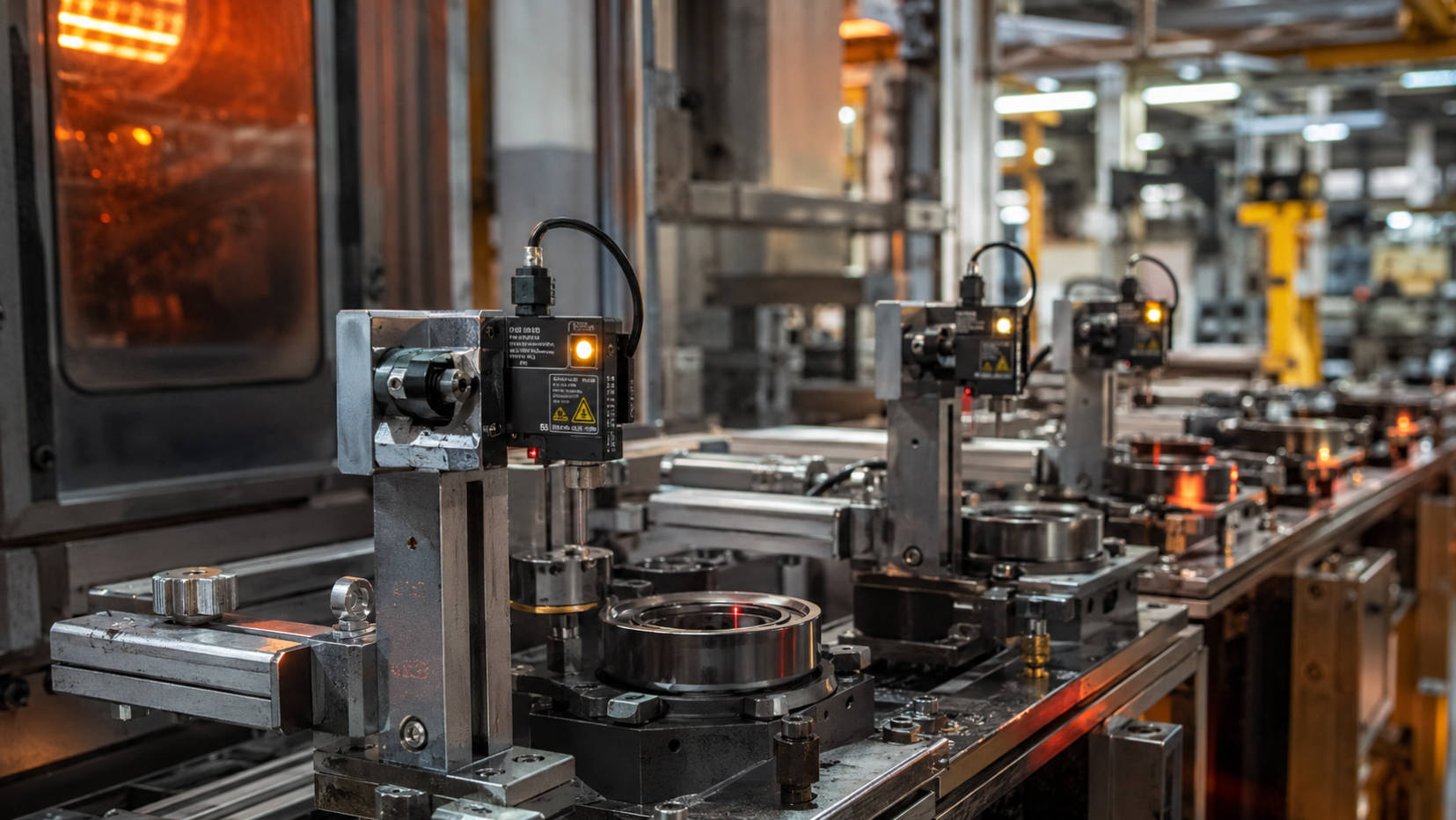

Choose laser diode modules when:
- Your system will operate in uncontrolled or semi‑controlled environments (outdoors, vehicles, large factories).
- You need long lifetime and low maintenance with minimal active cooling.
- Your application tolerates slightly looser wavelength stability, such as:
- Industrial alignment and positioning
- Machine vision illumination
- Barcode and code reading
- OEM modules for safety and guidance
In these conditions, the broader operating range and simpler thermal design lead to more predictable performance across seasons and installations. [lasercomponents]
Choose DPSS lasers when:
- You can guarantee a tight thermal envelope (well‑controlled lab, medical device, or precision machine).
- You care most about beam quality, spectral purity, and very low power ripple, for example in:
- Precision engraving and micro‑machining
- Certain medical and life‑science instruments
- Spectroscopy and metrology applications
In these high‑end applications, the temperature‑sensitive nature of DPSS is not a weakness but a design constraint you manage to unlock superior optical performance. [eprints.utm]
From an OEM and industrial module perspective, here is a simple decision process focused on temperature and reliability.
1. Map your real temperature envelope
- Record minimum and maximum ambient temperatures plus expected heat from nearby components.
- Add margin for worst‑case scenarios (e.g., fan failure, hot climates).
2. Classify your precision requirements
- If you need very narrow linewidth or ultra‑low ripple, shortlist DPSS and plan for TEC and thermal feedback.
- If you primarily need visible beam, position, or illumination, start with laser diode modules.
3. Estimate total cost of thermal control
- Consider not just the module price, but heat sinks, TECs, drivers, power budget, enclosure size.
- In many medium‑precision use cases, diode modules deliver better ROI because of higher efficiency and lower cooling costs. [laserworld]
4. Derate for lifetime
- For both technologies, design so the junction or crystal sees a lower working temperature than the published max; each 10 °C reduction can roughly double lifetime. [aiminglasers]
5. Engage your module supplier early
- Share ambient profile, duty cycle, and integration constraints.
- A specialized industrial supplier can customize mounting, driver, and optional TEC to match your real conditions.
As a manufacturer of Industrial Laser Modules providing OEM services to global brands, wholesalers, and equipment makers, Aiming Laser Technology (AimLaser) has seen this pattern repeatedly in customer projects. [aiminglasers]
- In logistics and packaging machinery, laser diode modules deployed for alignment and detection routinely reach tens of thousands of hours with only basic heat sinking, even in warm factory environments. [aiminglasers]
- In precision medical and analytical equipment, customers often select DPSS lasers for their exceptional beam quality, but they always pair them with carefully engineered TEC systems and tight enclosure temperature control. [erdicn]
This leads to a pragmatic rule that we often discuss with OEM partners:
If your environment controls temperature for the optics, DPSS can reward you with top‑tier performance. If your environment controls you, a laser diode module will handle temperature fluctuations better over the long term.
Putting lab data and field experience together:
- Laser diode modules generally handle temperature fluctuations better, thanks to simpler internal structure, broader operating ranges, and higher efficiency. [sintec]
- DPSS lasers can outperform diodes on stability and beam quality, but only if you are ready to invest in precise thermal management and a narrow operating window. [en.wikipedia]
If you are designing an OEM system and are unsure whether your environment is "DPSS‑friendly," it is safer to start your evaluation with a robust industrial laser diode module and only move to DPSS where the application truly demands it.
Call to action:
If you are planning a new instrument, machine, or OEM subsystem and need to balance temperature tolerance, stability, and lifetime, contact Aiming Laser Technology Co., Ltd. for:
- Application‑specific thermal design advice
- Sample laser diode modules and DPSS solutions tuned to your temperature profile
- Long‑term OEM partnership to standardize your laser platform across product lines
Temperature changes cause output power and wavelength drift in both types, but DPSS lasers suffer more from efficiency loss and beam distortion when they leave their narrow optimal range. Laser diode modules react more gradually and can often be stabilized with simpler heat sinking and driver control. [en.wikipedia]
Yes, but you must add robust thermal management such as insulated housings, TECs, and active control loops to keep the internal crystals within their designed operating band. In many outdoor or semi‑exposed systems, a laser diode module will deliver more predictable performance with less engineering overhead. [sintec]
Laser diode modules are generally more energy‑efficient and produce less waste heat, which further simplifies maintaining acceptable junction temperatures. DPSS systems not only start from lower efficiency but also lose performance faster if heat is not effectively removed from the pump diode and crystals. [eprints.utm]
For both technologies, design to keep the junction or crystal temperature below its maximum rated value and avoid frequent thermal cycling. Use oversized heat sinks, conservative drive currents, and, where needed, TECs, since even a 10 °C temperature reduction can significantly extend lifetime. [eprints.utm]
If your application involves non‑standard temperature profiles, tight space constraints, or demanding reliability targets, involve an OEM supplier early. A partner like AimLaser can co‑design module packaging, drivers, and optional thermal control so your final product meets both performance and lifetime goals under real operating conditions. [aiminglasers]
1. LASER COMPONENTS, "Our experts have done a comparison: 520 nm laser diodes and 532 nm DPSS."
<https://www.lasercomponents.com/us/photonics-portal/knowledge-center/technical-articles/our-experts-have-done-a-comparison-520-nm-laser-diodes-and-532-nm-dpss> [lasercomponents]
2. Aiming Laser Technology Co., Ltd., "DPSS Laser vs. Laser Diode Module: Stability and Lifetime Comparison."
<https://www.aiminglasers.com/dpss-laser-vs-laser-diode-module-stability-and-lifetime-comparison.html> [aiminglasers]
3. Laserworld, "The 2013 Revolution – Green Laser Diodes."
<https://www.laserworld.com/en/technical-explanations-overview/the-2013-revolution-green-laser-diodes.html> [laserworld]
4. ERDI, "Diode Lasers vs. DPSS Lasers: What's the Difference?"
<https://erdicn.com/blogs/news/diode-lasers-vs-dpss-lasers-what-s-the-difference> [erdicn]
5. Sintec Optronics, "Diode Laser Modules and DPSS Lasers – Specifications."
<https://www.sintec.sg/static/upload/file/DiodeLaserUV.pdf> [sintec]
6. Abdul Rahman Johari, "Performance of diode pumped solid state laser at different temperature," Universiti Teknologi Malaysia.
<http://eprints.utm.my/80849/1/AbdulRahmanJohariMFS2018.pdf> [eprints.utm]
7. Wikipedia, "Diode‑pumped solid‑state laser."
