As an engineer working with global OEM customers on industrial laser modules, I'm often asked a deceptively simple question: what's the real difference between a laser diode and a laser module—and which should I specify in my design? Understanding this distinction is critical if you want reliable performance, easier integration, and lower lifecycle cost in industrial environments. [rp-photonics]
A laser diode is the core semiconductor device that generates laser light when driven by electrical current. [s-laser]
- It is a tiny electronic component based on a doped p-n junction that converts electrical energy directly into coherent light. [s-laser]
- The device relies on spontaneous emission and then stimulated emission to produce photons with the same phase, wavelength and direction. [s-laser]
- Common structures include single heterojunction (SH), double heterojunction (DH) and quantum well (QW) laser diodes, each optimized for specific power and efficiency requirements. [s-laser]
In practical engineering terms, the laser diode is the light source itself, but not a complete, field‑ready product. It requires optics, drivers, mechanical mounting and thermal management before it can safely and reliably serve an industrial application. [kvantlasers.co]
A laser module is a complete assembly built around one or more laser diodes, combined with the optics, electronics and mechanical housing needed for real‑world use. [rp-photonics]
A typical industrial laser module integrates: [kvantlasers.co]
- Laser diode(s) – the core light‑generating component.
- Optical elements – lenses, beam expanders or line generators to shape and focus the beam. [kvantlasers.co]
- Driver electronics – current and voltage control, often with TTL or analog modulation capability. [optoengine]
- Thermal management – heat sinks, cooling structures or active temperature control to maintain stable output. [optlasers]
- Mechanical housing – robust enclosure with defined mounting options and an output aperture for the beam. [rp-photonics]
In the field, the module is the device that actually emits the usable beam. OEM integrators can mount it, connect power/control lines and start using it without designing their own semiconductor laser stack from scratch. [optlasers]
From an OEM and system integrator perspective, the most important distinction is this: [kvantlasers.co]
- A laser diode is a raw laser source. It provides coherent light but offers little in terms of beam conditioning, protection or integration convenience. [s-laser]
- A laser module is a complete subsystem, engineered for stable output, defined beam parameters and straightforward mechanical and electrical integration. [rp-photonics]
In other words, only good laser diodes can produce good modules, but a good module is much more than its diode. The module's performance depends on optical design, driver design, thermal strategy and mechanical robustness in addition to diode quality. [rp-photonics]
To make this difference more concrete, the table below contrasts key aspects that matter to OEM decision‑makers. [rp-photonics]
| Aspect | Laser Diode s-laser | Laser Module s-laser |
|---|---|---|
| Core role | Semiconductor light source | Integrated emitting device for applications |
| Typical form | Tiny component; TO‑can, butterfly, multi‑pin packages | Enclosed assembly with optics, electronics, housing |
| Included components | Active semiconductor region only | Diode(s), optics, driver, thermal path, enclosure |
| Beam characteristics | Raw output; requires external optics | Defined beam size, divergence and shape |
| Integration effort | High; requires driver, optics, mechanics | Lower; connect power/control and mount |
| Typical users | Component designers, advanced R&D | OEMs, integrators, industrial system builders |
| Failure risk | Sensitive to ESD, thermal and current spikes | Better protected via system‑level design |
| Application scale | Inside larger laser engines | As ready‑to‑use laser building block |
When you are designing industrial machinery, measurement systems or alignment tools, you almost always interact with laser modules rather than bare diodes, even if your specification starts at the semiconductor level. [optlasers]

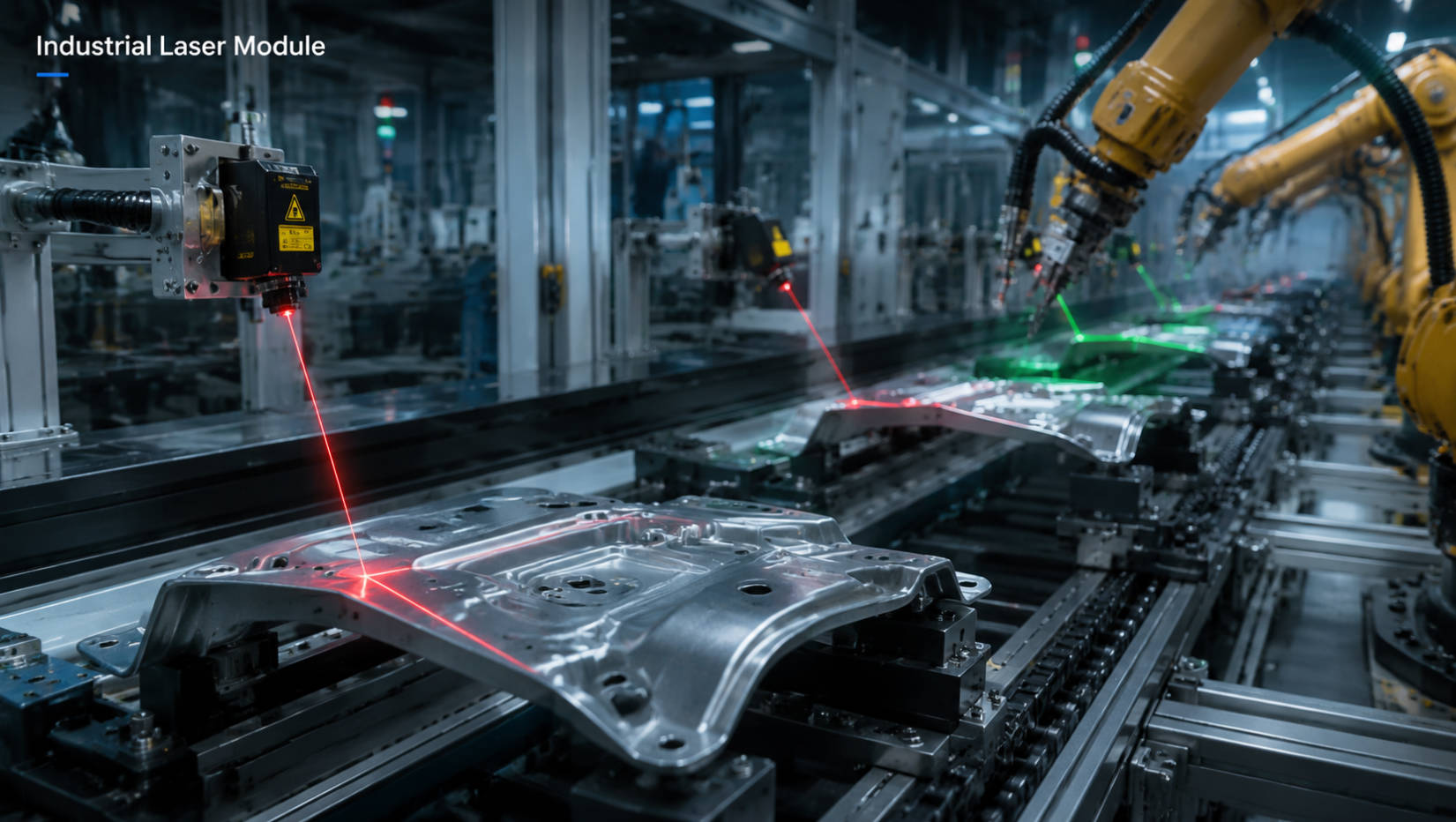

In industry, laser modules are widely used wherever repeatable, robust, easy‑to‑integrate laser beams are needed. [optoengine]
Common industrial uses include:
- Machine vision and alignment – line and cross modules for positioning, welding guidance and dimensional checks. [tmaxlaser]
- Measurement and inspection – spot and line modules integrated into sensors or gauges. [rp-photonics]
- Laser marking and coding – OEM modules embedded in marking stations and production lines. [vision-lasertechnik]
- Scientific and lab instrumentation – compact modules for spectroscopy, optical pumping and research equipment. [jenoptik]
Most OEM customers in these fields specify wavelength, power, beam profile and modulation features at the module level and leave diode selection to the module manufacturer. This separation of responsibilities reduces risk and accelerates product development. [jenoptik]
From direct project experience with overseas brands and manufacturers, there are several reasons industrial customers choose OEM laser modules rather than bare diodes:
1. Reduced engineering overhead
OEM modules encapsulate diode physics, driver design and optical alignment inside a single component. This lets your in‑house team focus on system‑level functionality instead of low‑level laser engineering. [rp-photonics]
2. Higher system reliability
Industrial modules are designed for long‑term stability, with proper heat dissipation, protective circuits and mechanical robustness. This directly improves mean time between failures in production environments. [optlasers]
3. Consistent beam quality
Beam size, shape and divergence are specified and tested per module, not left to chance. For measurement, marking or alignment tasks, this consistency is crucial. [kvantlasers.co]
4. Shorter time‑to‑market
Selecting a proven OEM module instead of designing from diode level can shave weeks or months off development schedules, especially when customization lead times are reasonable. [optoengine]
5. Scalable OEM cooperation
Many industrial laser manufacturers provide batch certification, test protocols and lifecycle support tailored to OEM needs, which helps when you scale production or move into new geographies. [ceramoptec]
If you are at the architecture stage of a new industrial system, use the following decision points to choose the right level of integration:
- Required control depth: If you need to experiment with drive currents, feedback loops or exotic beam shaping, working directly with laser diodes may be appropriate in R&D contexts. [rs-online]
- Production scale and risk tolerance: For serial production, the cost of diode‑level mistakes (premature failures, inconsistent beams) usually outweighs savings from avoiding modules. [optlasers]
- Environmental conditions: High vibration, temperature cycling or contamination all argue strongly for ruggedized modules designed for such environments. [vision-lasertechnik]
- Regulatory and safety requirements: Meeting laser safety standards is substantially easier when you rely on modules certified or designed to conform to those standards. [rheinmetall]
In most industrial OEM scenarios, laser modules are the default choice, while bare diodes remain a niche option for specialists with strong in‑house laser expertise. [rp-photonics]
Industrial laser technology has evolved significantly in recent years, and several trends directly impact how OEM customers should think about laser modules: [rp-photonics]
- Improved stability and lifetime: Modern modules—both DPSS and diode‑based—offer longer lifetimes and better output stability, thanks to improved thermal management and driver electronics. [aiminglasers]
- Higher integration levels: Many suppliers now deliver modules with integrated drivers, temperature controllers and digital interfaces, simplifying system design and diagnostics. [jenoptik]
- Wider wavelength and power coverage: OEM modules now span from visible wavelengths to infrared and even specialty bands, covering applications from alignment to materials processing. [optoengine]
- Fiber‑coupled modules: For compact or harsh environments, fiber‑coupled OEM modules provide flexible beam delivery while keeping the laser engine protected. [ceramoptec]
For an OEM partner like Aiming Laser Technology Co., Ltd., these trends translate into more customized, integration‑ready solutions for diverse industrial sectors, from manufacturing and logistics to scientific instrumentation. [tmaxlaser]

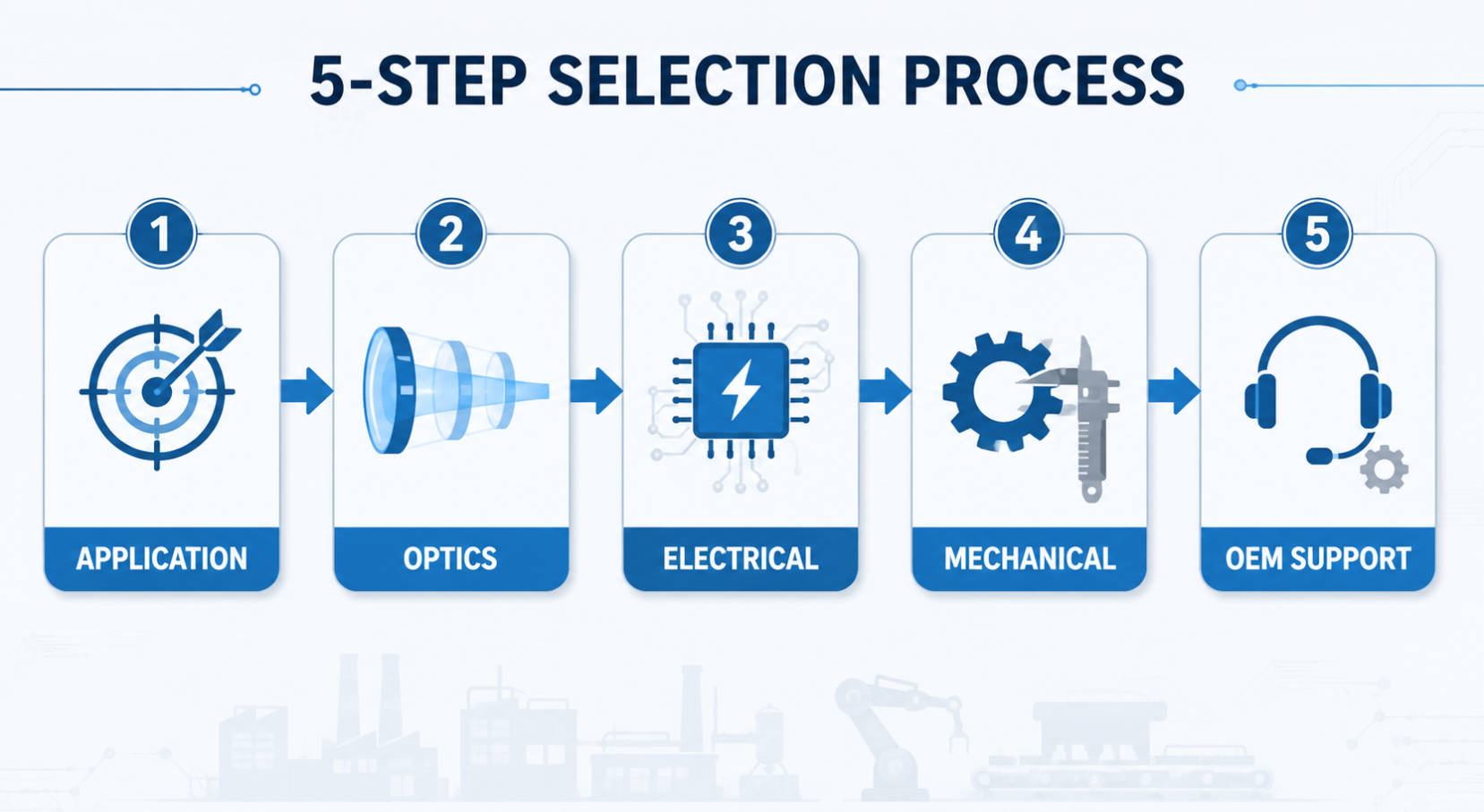

When supporting overseas brand owners, wholesalers and manufacturers, a repeatable selection process is essential. Based on industry practice, a simple, five‑step selection workflow helps narrow down the right laser module:
1. Define the application objective
Clarify whether you need a spot, line or cross beam, and whether the primary task is measurement, alignment, marking or illumination. [bulasers]
2. Specify optical requirements
Decide on wavelength, power, beam size and divergence at the working distance relevant to your machine or instrument. [optoengine]
3. Set electrical and control parameters
Choose between continuous‑wave operation and modulation; define control input type (TTL, analog, digital), and align voltage/current levels with your system. [rs-online]
4. Assess mechanical and environmental constraints
Confirm mounting style, available envelope, operating temperature and expected vibration or shock levels. [vision-lasertechnik]
5. Align with OEM service expectations
Look for suppliers that provide documentation, test reports, customization options and long‑term support, not just catalog parts. [ceramoptec]
Following this structured approach reduces iteration in cross‑border OEM projects and helps build industrial laser solutions that perform reliably in overseas customers' plants.
If you are a brand owner, wholesaler or manufacturer looking to integrate industrial laser modules into your equipment, working directly with an OEM‑focused laser manufacturer will significantly reduce technical risk and development time. [tmaxlaser]
Aiming Laser Technology Co., Ltd. can collaborate with your engineering team to:
- Select optimal laser diode/module architectures for your specific application.
- Customize wavelength, power, beam shaping and control interfaces for seamless integration. [jenoptik]
- Provide batch testing, documentation and lifecycle support aligned with international manufacturing standards. [ceramoptec]
You can now refine your requirements—application type, target markets and expected production volumes—and start a technical discussion to define the right industrial laser module solution for your next OEM project.
A laser diode is the semiconductor device that generates coherent light, while a laser module is a complete assembly that includes diode(s), optics, electronics and housing to produce a usable beam for real‑world applications. [s-laser]
Industrial OEMs prefer modules because they offer defined beam parameters, integrated drivers and thermal management, better protection and easier mechanical and electrical integration, which shortens development cycles and improves reliability. [optlasers]
Yes. Many OEM laser manufacturers support customization across a wide range of wavelengths (from visible to infrared) and power levels, along with tailored beam profiles and modulation options, subject to feasibility and lead time. [jenoptik]
Industrial laser modules are widely used in manufacturing (alignment, cutting, marking), logistics (scanning and positioning), scientific research, medical devices and measurement systems that rely on precise optical beams. [bulasers]
Begin by defining application type, required beam shape and wavelength, target power and working distance, then align electrical interfaces and mechanical constraints with your machine design. An experienced OEM laser supplier can then translate these requirements into a concrete module specification. [rp-photonics]
