Choosing between a mini laser module and a standard laser diode is no longer a simple power-versus-size decision—it is a strategic trade-off that shapes your product's performance, cost, and long‑term scalability. [mordorintelligence]
Mini laser modules typically refer to ultra‑compact diode‑based assemblies designed for space‑constrained applications where footprint, weight, and integration flexibility are critical. Standard laser diodes, by contrast, prioritize higher optical output power, broader thermal margins, and more robust packaging options, often at the cost of larger size and more complex cooling. [fbh-berlin]
From an OEM perspective, mini lasers are attractive when you need tight integration into handheld, wearable, or embedded industrial systems, while standard diodes remain the workhorse in high‑power processing, welding, and material handling applications. [optics]
In industrial design, size and power rarely peak simultaneously; improvements in one tend to introduce constraints in the other. Mini lasers optimize compactness and power efficiency, but they cannot yet match the absolute power levels of full‑size industrial diode bars or systems, which now reach hundreds of watts to kilowatts in CW and QCW modes. [optics]
For OEMs integrating laser modules into equipment for manufacturing, sensing, or alignment, the real question is: How much power do you truly need, and where can you afford to sacrifice it to gain size and integration benefits? [sciencedirect]
The global laser diode market is projected to grow from around USD 9.37 billion in 2026 to about USD 14.48 billion by 2031, with a CAGR of roughly 9.09%. This growth is fueled by miniaturization trends, industrial automation, additive manufacturing, and advanced sensing, which push OEMs to reconsider legacy "bigger is better" assumptions. [mordorintelligence]
At the same time, technology leaders have demonstrated record‑level outputs from compact diode bars—up to 2.0 kW from a 1‑cm bar at room temperature in QCW mode—showing how far standard diode architectures can scale in power. This market and technology backdrop make the mini laser vs standard diode trade‑off central to competitive product design. [optics]

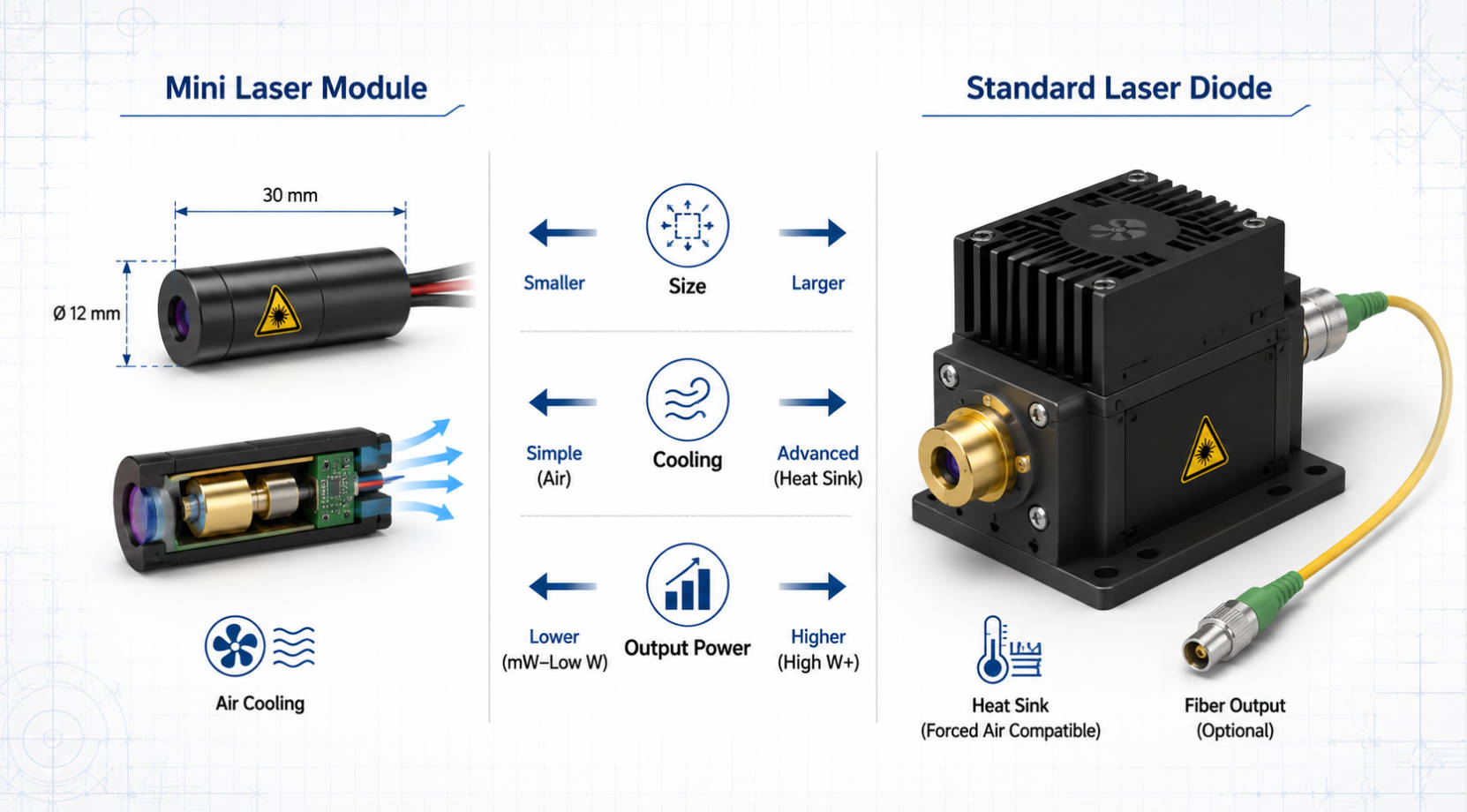

- Mini laser modules are designed as compact, often sealed assemblies with integrated optics and drivers, enabling easy drop‑in integration into small housings and PCBs. [brightlaser.com]
- Standard laser diodes are usually larger discrete devices or bars that require external optics, drivers, and heat sinks, but offer wider flexibility for custom beam shaping and power scaling. [spiedigitallibrary]
From a manufacturing standpoint, mini modules reduce mechanical design complexity, while standard diodes allow deeper optimization of beam delivery and thermal architecture for high‑duty applications. [optics]
- High‑power standard diode bars currently achieve hundreds of watts in CW and over a kilowatt in QCW modes, with conversion efficiencies approaching 70%. [spie]
- Mini lasers tend to operate in low‑to‑mid power regimes, optimized for visibility, precise targeting, sensing, and engraving on small surfaces rather than bulk material processing. [researchandmarkets]
For applications like polymer welding, compact air‑cooled diode systems delivering around 500 W already exist, bridging the gap between miniaturization and industrial‑grade output. However, these are still physically larger than the ultra‑mini modules used in portable or embedded devices. [stocktitan]
Standard laser diodes are usually coupled with micro‑channel coolers, water cooling loops, or robust heat‑sinking, enabling long‑term stability at high duty cycles. Mini lasers rely on air cooling, conductive heat paths, and careful power derating, which simplifies integration but limits the upper bound of continuous output. [fbh-berlin]

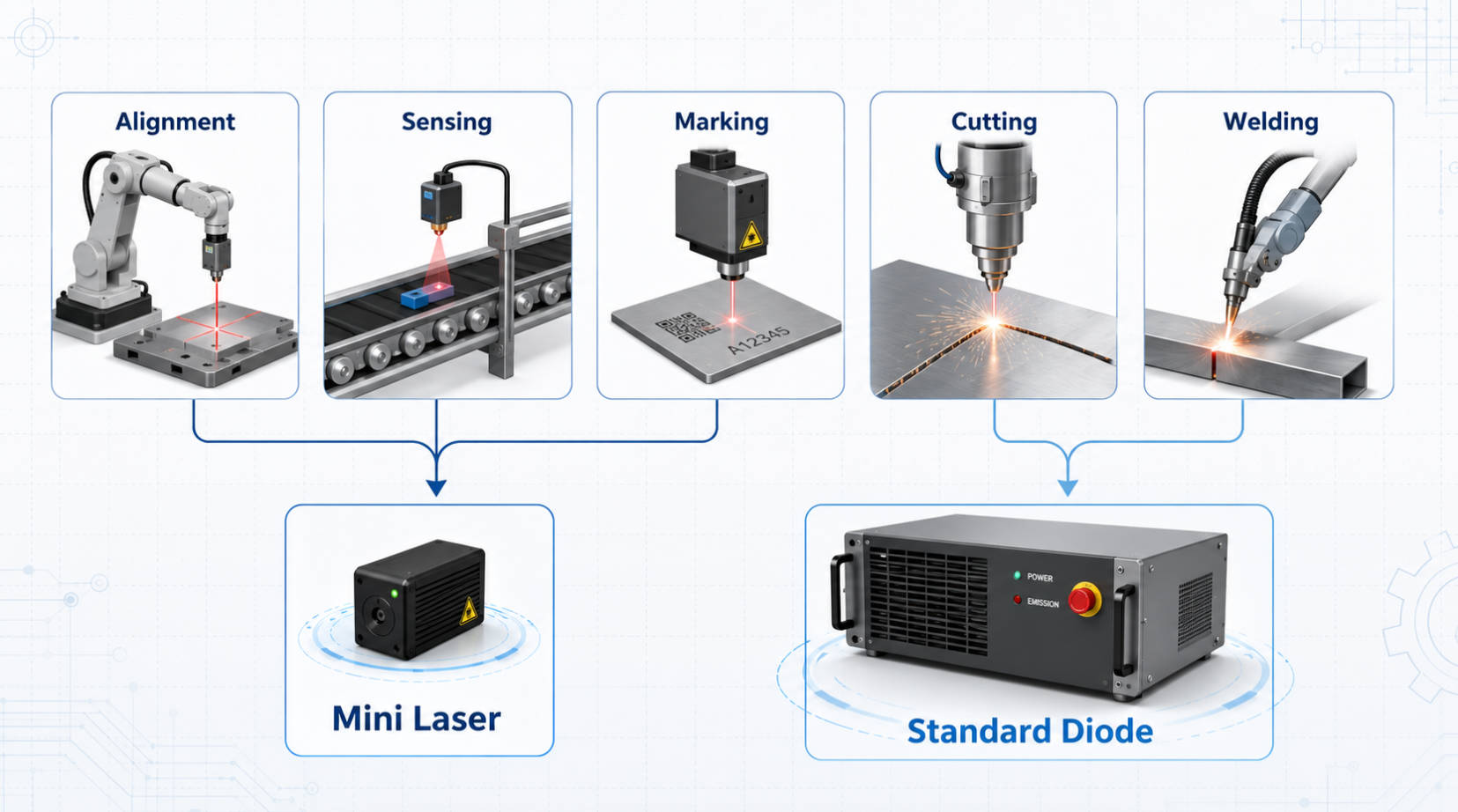

Below is a concise use‑case table to clarify where mini lasers vs standard diodes typically provide the most value:
| Use Case / Requirement | Mini Laser Module | Standard Laser Diode |
|---|---|---|
| Handheld targeting & alignment | Strong fit (compact, low power) fbh-berlin | Overkill, larger form factor spiedigitallibrary |
| Embedded sensing in OEM equipment | Strong fit, easy integration brightlaser.com | Possible but more design effort optics |
| High‑power welding / cutting | Power‑limited fbh-berlin | Ideal, scalable to 100–500+ W stocktitan |
| Precision marking on small parts | Good balance of size & power researchandmarkets | Used for larger throughput lines optics |
| Battery‑powered or wearable devices | Preferred, low energy draw fbh-berlin | Rarely suitable sciencedirect |
As an OEM‑focused laser module manufacturer, Aiming Laser Technology Co., Ltd. operates at the intersection of design flexibility, manufacturability, and long‑term field performance. From our experience with industrial customers across manufacturing, instrumentation, and automation, three principles consistently drive the mini vs standard diode decision: [aiminglasers]
1. Define the real power envelope. Start from the process: cutting thickness, marking speed, sensor signal‑to‑noise ratio, or targeting distance—then back‑calculate the minimum viable optical power and duty cycle. [optics]
2. Map constraints on space, weight, and cooling. Many OEMs underestimate the total volume required for optics, drivers, and heat sinks around standard diodes; mini modules often help unlock clean mechanical designs. [brightlaser.com]
3. Assess lifecycle and field conditions. Temperature swings, vibration, and contamination drive different reliability risks for compact vs open diode designs. [sciencedirect]
In practice, we frequently guide customers toward hybrid architectures—using mini laser modules for alignment, sensing, or pilot beams, and standard diodes for primary processing or high‑energy tasks within the same system. [aiminglasers]
Recent advances in epitaxial design and waveguide architectures have pushed diode power conversion efficiency near 70% in CW operation, with single‑emitter and bar devices delivering 350 W CW and up to 1400 W QCW at industrial wavelengths. This makes standard diode solutions increasingly attractive when your priority is maximum throughput and energy density. [spiedigitallibrary]
Innovations like compact, air‑cooled 500 W diode systems show how much power can now be packed into rack‑mountable form factors without external water cooling. These systems help close the gap between traditional "large" diodes and miniaturized architectures, allowing OEMs to integrate high power in smaller cabinets or machine frames. [stocktitan]
Review studies highlight diode lasers as enabling technologies in spectroscopy, environmental monitoring, agriculture, healthcare, defense, and space, largely due to their affordability, compactness, and reliability. These cross‑industry deployments drive demand both for mini modules and standard high‑power architectures, rather than eliminating one category. [mordorintelligence]

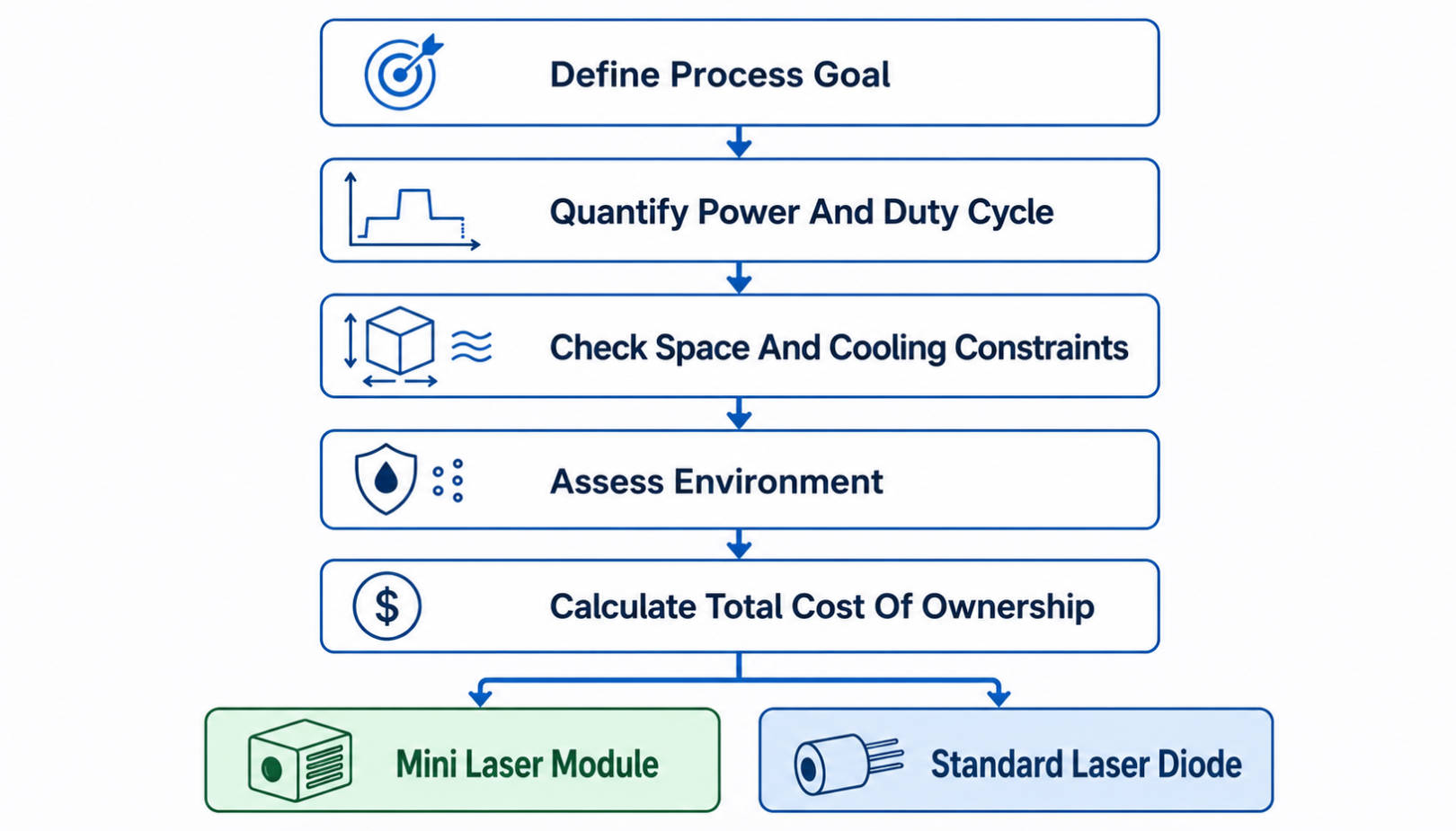

To decide between a mini laser and a standard diode, we recommend a structured 5‑step evaluation:
1. Clarify the process goal.
Define whether the laser's primary role is illumination, sensing, alignment, marking, cutting, welding, or heating. [optics]
2. Quantify power and duty cycle.
Estimate required average and peak power, operating time per cycle, and duty factor; compare these with typical ranges for mini modules and standard diodes. [stocktitan]
3. Evaluate spatial and mechanical constraints.
Document available volume, mounting points, and cable routing; mini modules typically simplify this step but can be limited in optical customization. [fbh-berlin]
4. Specify thermal and environmental conditions.
Consider ambient temperature, humidity, shock, vibration, and contamination; heavy‑duty diodes with advanced cooling are preferred for harsh industrial lines. [spiedigitallibrary]
5. Total cost of ownership (TCO).
Analyze initial component cost, integration complexity, anticipated maintenance, and replacement cycles; mini modules may reduce engineering overhead, while standard diodes may lower $/W at scale. [mordorintelligence]
Following this framework helps ensure that "sacrificing power for size" is a conscious, quantified decision, not a compromise made under time pressure. [sciencedirect]
From a user experience standpoint, the laser choice affects operator safety, device ergonomics, and interface design:
- Mini lasers allow lighter handheld tools, clearer sight lines, and more intuitive alignment feedback, particularly in assembly, inspection, or medical diagnostic devices. [fbh-berlin]
- Standard diodes demand more robust safety interlocks, shielding, and cooling interfaces, but reward you with higher process speed and capability in production cells. [spiedigitallibrary]
For OEMs, aligning UX goals with laser architecture is critical. Aiming Laser's OEM customers often co‑design housing, indicators, and controls around the module characteristics, ensuring that operators can feel and see the difference between low‑power alignment beams and high‑power processing channels. [aiminglasers]
Mini laser modules are typically the right fit when:
- Space is severely constrained (compact devices, retrofits into existing housings). [brightlaser.com]
- Power requirements are modest, e.g., alignment beams, barcode reading, distance sensing, or fine‑detail marking. [researchandmarkets]
- Battery operation or mobile use is essential, requiring low energy draw and lightweight construction. [fbh-berlin]
- Fast integration and short design cycles matter more than ultra‑optimized beam delivery. [brightlaser.com]
In these scenarios, sacrificing raw power to gain size, integration speed, and UX benefits is usually a net positive decision. [mordorintelligence]
Standard diodes, including diode bars and fiber‑coupled architectures, become the preferred option when:
- High material throughput is non‑negotiable, such as in welding, cutting, heat treatment, and additive manufacturing. [stocktitan]
- Continuous or near‑continuous operation at high duty cycles is required on production lines. [optics]
- You need flexibility in beam shaping, fiber coupling, or integration with complex optics and scanning heads. [youtube]
- Your business model is sensitive to $/W metrics, favoring solutions that maximize optical power per dollar invested. [spiedigitallibrary]
Here, accepting larger modules and more complex thermal management leads to significant long‑term gains in productivity and process capability. [spie]
One emerging pattern we see across industrial OEM customers is multi‑channel laser system design, where:
- A mini laser module provides low‑power, always‑on targeting, alignment, or preview functionality for operators. [sciencedirect]
- A standard high‑power diode or fiber‑coupled module engages only when the process requires full energy, often with additional safety interlocks and monitoring. [youtube]
This combination preserves excellent UX and safety while leveraging the full power potential of modern diode technology, especially in applications like polymer welding, precision joining, and multi‑step material processing. [stocktitan]
The main difference lies in form factor and power envelope: mini lasers prioritize compactness and ease of integration, while standard laser diodes focus on higher optical output and scalable thermal management. [fbh-berlin]
In most cases, no. Mini modules are generally power‑limited and optimized for alignment, sensing, or low‑power marking, whereas high‑power welding typically requires hundreds of watts from standard diode systems. [stocktitan]
Quantify your required process speed, material thickness, and duty cycle, then compare against typical output ranges for standard diode bars and compact industrial systems; if you need sustained high energy density, a standard diode is usually the correct choice. [optics]
Mini modules often exhibit good efficiency at low powers, but high‑power standard diodes can reach conversion efficiencies close to 70%, which is extremely competitive in terms of energy per watt delivered. [spie]
OEM partnerships with specialist manufacturers like Aiming Laser Technology provide application‑specific design, thermal modeling, and testing, ensuring that the chosen mini or standard laser architecture matches real‑world process demands and lifecycle expectations. [youtube]
1. Mordor Intelligence. Laser Diode Market Size, Forecast Report, Competitive Landscape.
https://www.mordorintelligence.com/industry-reports/laser-diode-market [mordorintelligence]
2. FBH Berlin. Compact Diode Laser Modules.
https://www.fbh-berlin.de/fileadmin/downloads/Publications/Flyer/Compact_Diode_Laser_Modules.pdf [fbh-berlin]
3. Optics.org. Hamamatsu develops 'record' 2.0 kW laser diode bar.
https://optics.org/news/hamamatsu-develops-record-2.0-kw-laser-diode-bar [optics]
4. SPIE. High-power, high-efficiency semiconductor laser diodes.
https://www.spiedigitallibrary.org/conference-proceedings-of-spie/13876/1387607 [spiedigitallibrary]
5. SPIE. High-Power Diode Laser Technology XXII.
https://spie.org/Publications/Proceedings/Volume/12867 [spie]
6. Coherent Corp. Coherent Launches Compact, Air-Cooled Diode Laser System.
https://www.stocktitan.net/news/COHR/coherent-launches-compact-air-cooled-diode-laser-system-and-sets-new-uiq7ezmai3mq.html [stocktitan]
7. Optics.org. Industrial markets beckon for high-power diode lasers.
https://optics.org/article/31469 [optics]
8. ScienceDirect. Diode lasers: From laboratory to industry (Review).
https://www.sciencedirect.com/science/article/abs/pii/S0030399213003010 [sciencedirect]
9. Brightlaser. How To Efficiently Formulate Laser Modules.
https://brightlaser.com.hk/content-hk/news/list2/215.html [brightlaser.com]
10. AimLaser. Fiber Laser vs Fiber Coupled Laser Module: An Expert OEM Guide.
https://www.aiminglasers.com/fiber-laser-vs-fiber-coupled-laser-module-an-expert-oem-guide.html [aiminglasers]
