Visible Pulsed Optical Fiber Coupled Laser Source 405nm TTL Modulation Coaxial Fiber Coupled Laser Module

Laser Wavelength:
Output Power:
Housing Material:
Fiber Core:
Connector:
Availability:
Quantity:
  • AM405MF70G1
  • AIMLASER, ELITELASER
  • 90132000.99
  • Blue  Violet
  • 405nm  450nm
  • Pulse  CW  Dot  Fiber  TTL

Visible Pulsed Optical Fiber Coupled Laser Source 405nm

TTL Modulation Coaxial Fiber Coupled Laser Module

laser wavelength chart

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.

※ 405nm 70mW 50um Pigtailed Coaxial  Fiber Coupled Laser Module Descriptions

The AM405MF70FC is a purple blue pigtailed fiber coupled laser diode Module subassembly with FC/PC receptable optical output. The maximum laser output power is 70.0mW at 405nm.

※ 405nm 70mW 50um Pigtailed Coaxial  Fiber Coupled Laser Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM405MF70FC Coaxial Pigtailed Fiber Coupled Laser Module
Wavelength 405nm
Output Power ≥70.0mW
Laser Mode CW & Pulse (TTL Modulation)
Spectral Width <2.0nm
Wavelength Shift 0.2nm
Operating Current <250mA
Operating Voltage 5.0V DC
Optical Lens Optical Glass Lens
CDRH Class Class IIIb
Power Modulation Analogu Input
Modulation Frequency TTL <100Hz
Circuit control Auto Constant Current (ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ16x70mm (ACC Inside)
Housing Material Black Anodized Aluminum
Fiber Core Diameter 50um multimode Fiber
Fiber Length 1m
Numerical Aperture 0.22 N.A.
Connector FC/PC
Life Span 8,000Hrs

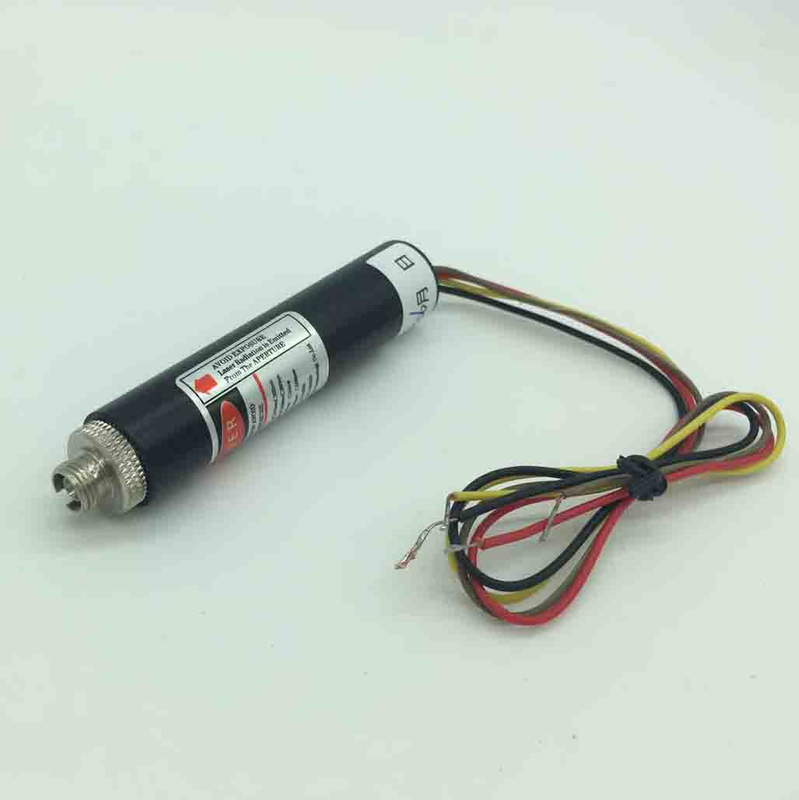

Fiber Coupled Laser Modules 405nm 50mW Single Mode-AIMLASER (1) 650nm 50mW Single Mode Fiber Coupled Laser Diode Modules-AIMLASER (2)

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

  1. Optical Alignment Systems

  2. Medical Laser Instrument

  3. CTP Laser Printing

  4. OEM Instrumentation

  5. Laboratory Instrument

  6. Laser Test and Inspection Equipment


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※  Fiber Coupled Laser Modules Production Process

Fiber Coupled Laser Modules-AIMLASER

※ Laser Modules Production Equipment

Fiber Coupled Laser Module Production Equipment-AIMLASER

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
