635nm 50mW Coaxial Fiber Coupled Laser Diode Module with Analogue Input and TTL Modulatioin

Laser Wavelength:
Output Power:
Housing Material:
Fiber Core:
  • AM635MF50FC
  • 90132000.99
  • Red  Visible
  • 635nm
  • Pulse  CW  Dot  Fiber  TTL

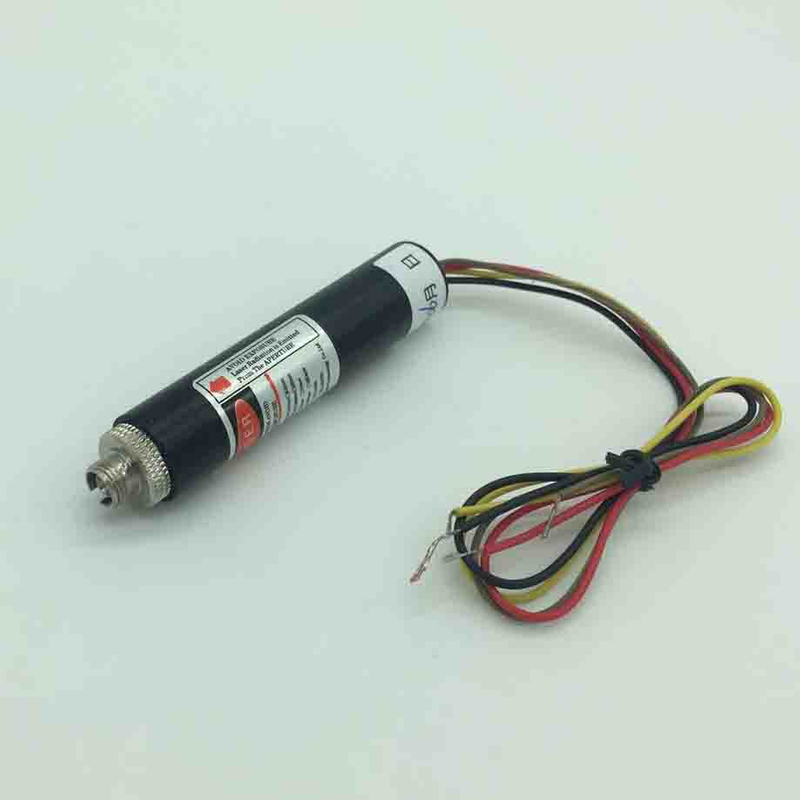

635nm 50mW Coaxial Fiber Coupled Laser Diode Module

with Analogue Input and TTL Modulatioin

laser wavelength chart

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.

※ 635nm 50mW 200um Pigtailed Laser Diode Module Descriptions

The AM635MF50FC is a red pigtailed fiber coupled laser diode Module subassembly with FC/PC receptable optical output. The maximum laser output power is 50.0mW at 635nm.

※ 635nm 50mW 200um Pigtailed Laser Diode Module Optical and Electrical Characteristics

Model Number AM635MF50FC Pigtailed Fiber Coupled Laser Module
Wavelength 635nm
Output Power ≥50.0mW
Laser Mode CW & Pulse (TTL Modulation)
Spectral Width <2.0nm
Wavelength Shift 0.2nm
Operating Current <200mA
Operating Voltage 5.0V DC
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Power Modulation Analogu Input
Modulation Frequency TTL <100Hz
Circuit control Auto Constant Current (ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃
Dimensions Φ16x70mm (ACC Inside)
Housing Material Black Anodized Aluminum
Fiber Core Diameter 200um multimode Fiber
Fiber Length 1m
Numerical Aperture 0.37 N.A.
Connector FC/PC
Life Span 8,000Hrs

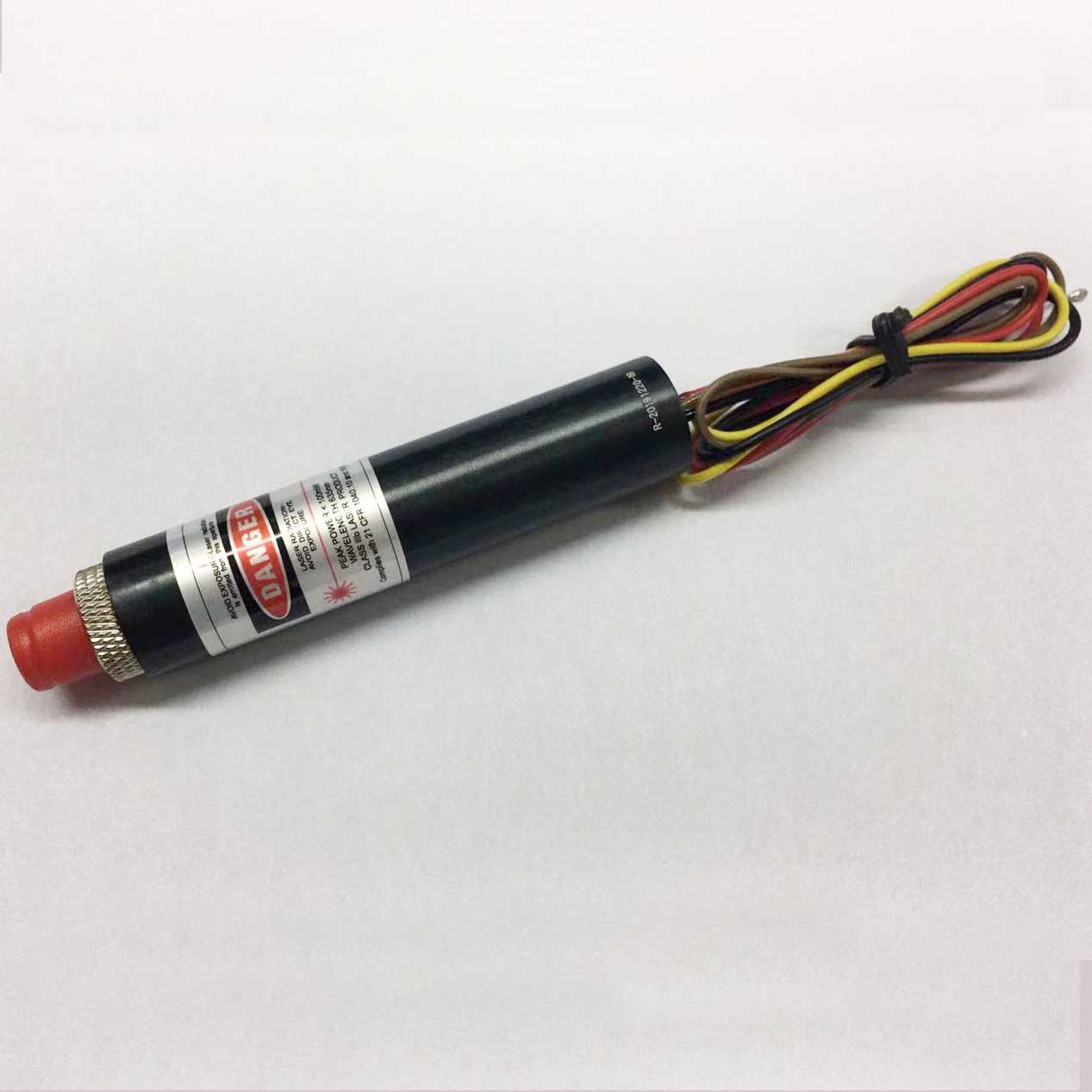

635nm 50mW Single Mode Fiber Coupled Laser Diode Modules-AIMLASER (1) 650nm 50mW Single Mode Fiber Coupled Laser Diode Modules-AIMLASER (2)

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

  1. Optical Alignment Systems

  2. Medical Laser Instrument

  3. CTP Laser Printing

  4. OEM Instrumentation

  5. Laboratory Instrument

  6. Laser Test and Inspection Equipment

※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※  Fiber Coupled Laser Modules Production Process

Fiber Coupled Laser Modules-AIMLASER

※ Laser Modules Production Equipment

Fiber Coupled Laser Module Production Equipment-AIMLASER

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
