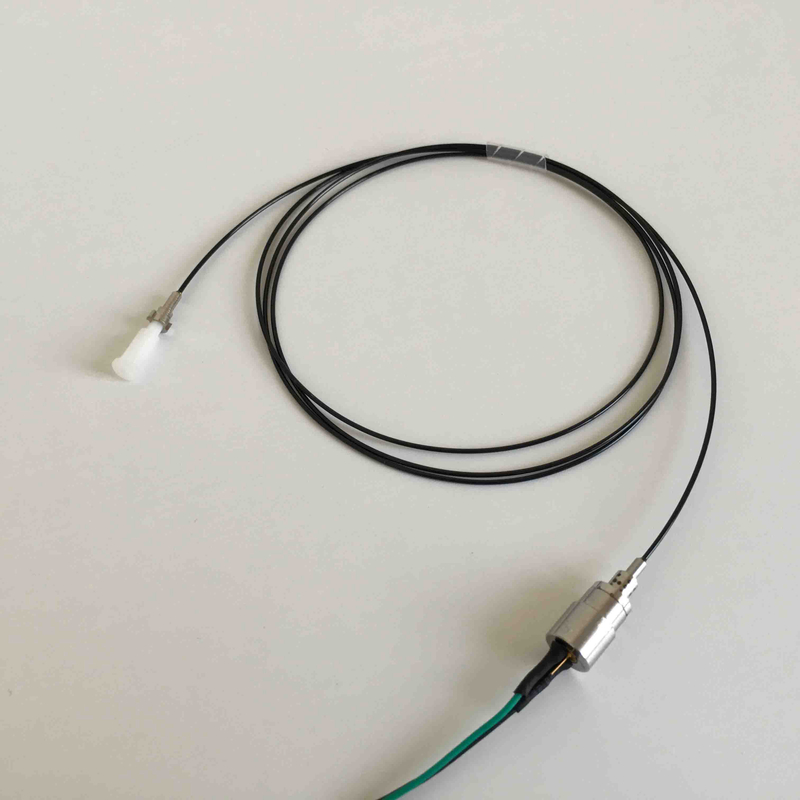

405nm 60mW 3um Singlemode Fiber Coupled Pigtailed Laser Modules

Laser Wavelength:
Output Power:
Housing Material:
Fiber Core:
Connector:
Quantity:
  • AM405SF60FC
  • AIMLASER, ELITELASER
  • 90132000.99
  • Blue  Violet
  • 405nm  450nm
  • CW  Dot  Fiber

405nm 60mW 3um Singlemode Fiber Coupled Pigtailed Laser Modules

laser wavelength chart

AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.

Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.

※ 405nm 60mW 3um Pigtailed Laser Diode Module Descriptions

The AM405SF60FC is a purple blue pigtailed fiber coupled laser diode Module subassembly with collimated beam. The maximum laser output power is 60.0mW at 405nm.

※ 405nm 60mW 3um Pigtailed Laser Diode Module Optical and Electrical Characteristics

ITEM SPECIFICATIONS
Model Number AM405SF60FC Pigtailed Fiber Coupled Laser Module
Wavelength 405nm
Output Power ≥60.0mW (Customer ACC)
Laser Mode CW
Spectral Width <2.0nm
Wavelength Shift 0.3nm
Operating Current <250mA (Customer ACC)
Operating Voltage 3.0V DC (Customer ACC)
Optical Lens Optical Coating Glass Lens
CDRH Class Class IIIb
Circuit control Auto Constant Current (Customer Driver)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Dimensions Φ8x22mm (Customer ACC)
Fiber Core Diameter 3um Singlemode Fiber
Cladding Diameter 125um
Fiber Length 1m
Numerical Aperture 0.13 N.A.
Connector FC/PC
Life Span 8,000Hrs

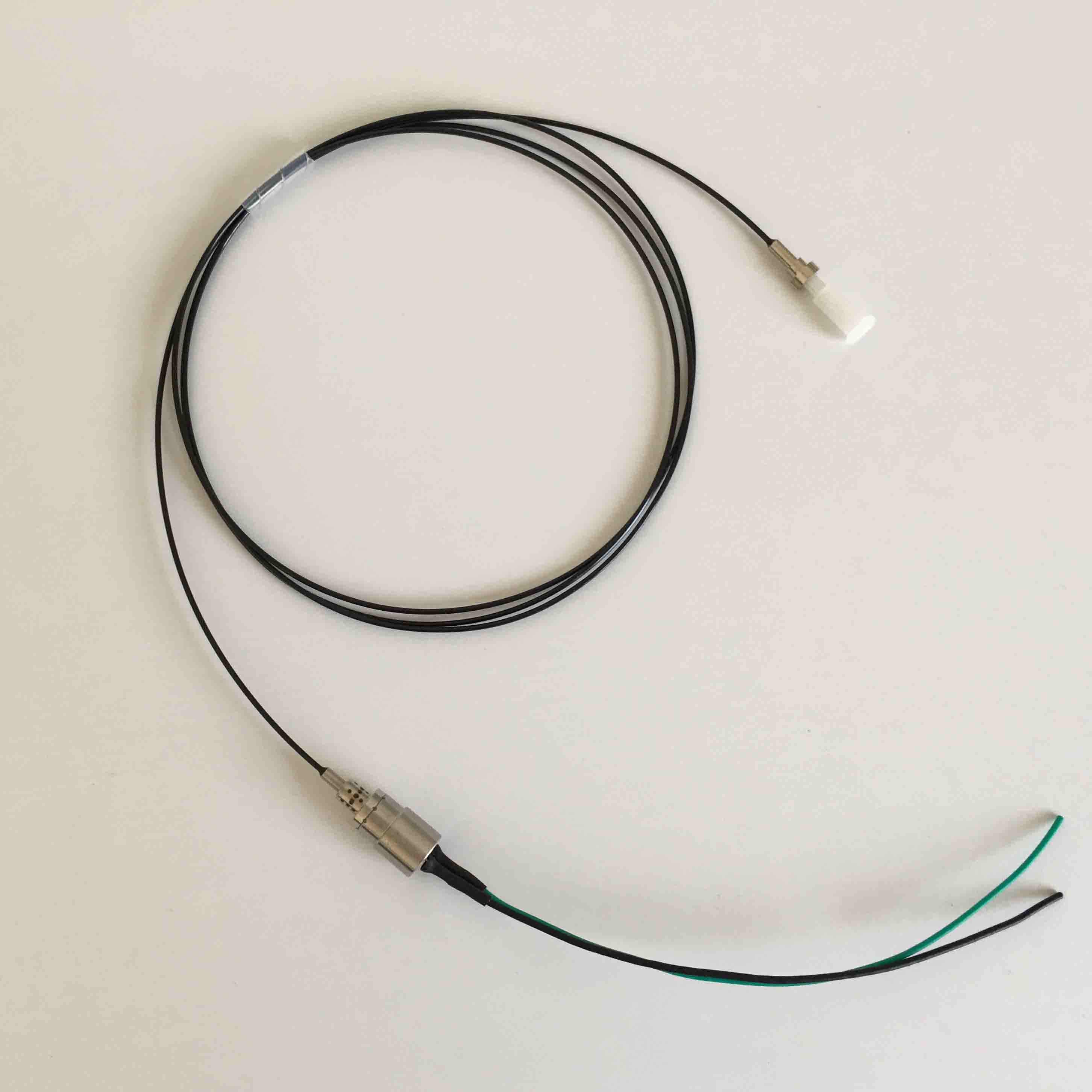

405nm 3um 60mW Pigtailed Laser Diodes-AIMLASER (1) 405nm 3um 60mW Pigtailed Laser Diodes-AIMLASER (5)

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

  1. Optical Alignment Systems

  2. Medical Laser Instrument

  3. CTP Laser Printing

  4. OEM Instrumentation

  5. Laboratory Instrument

  6. Laser Test and Inspection Equipment


※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips


※  Fiber Coupled Laser Modules Production Process

Fiber Coupled Laser Modules-AIMLASER

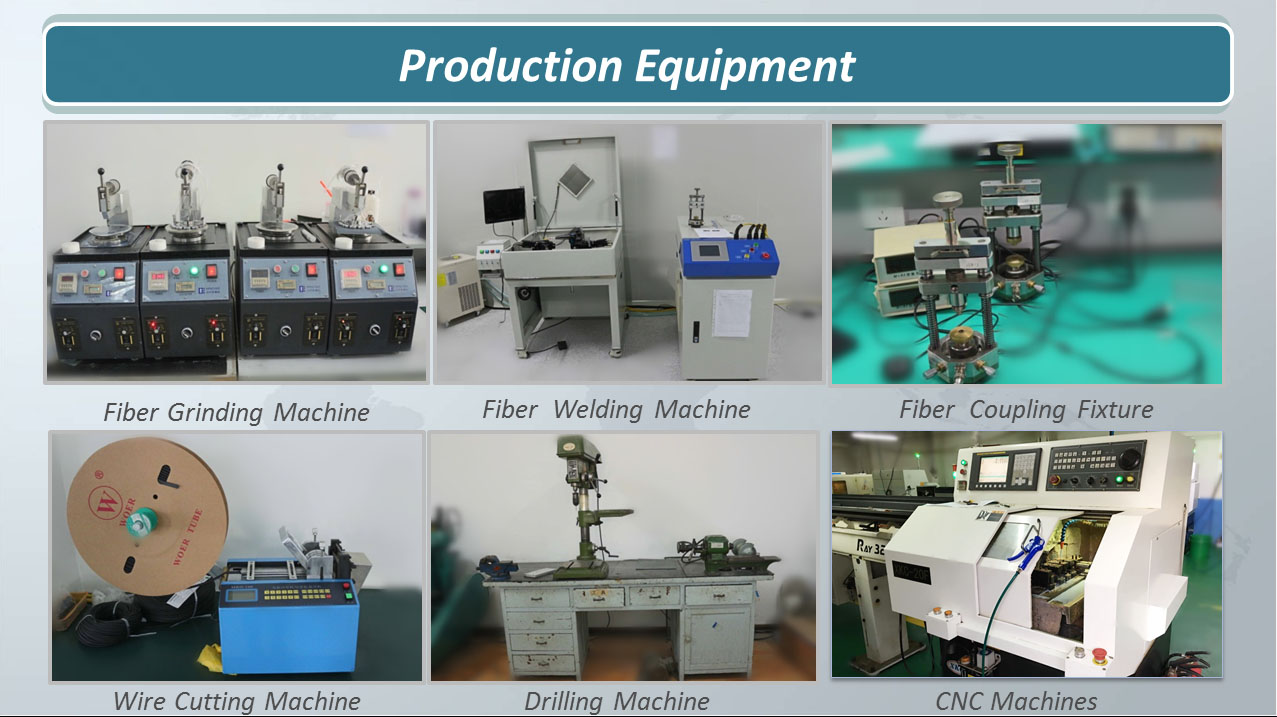

※ Laser Modules Production Equipment

Fiber Coupled Laser Module Production Equipment-AIMLASER

※ Laser Modules Testing Equipment

Laser Module testing equipment

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
