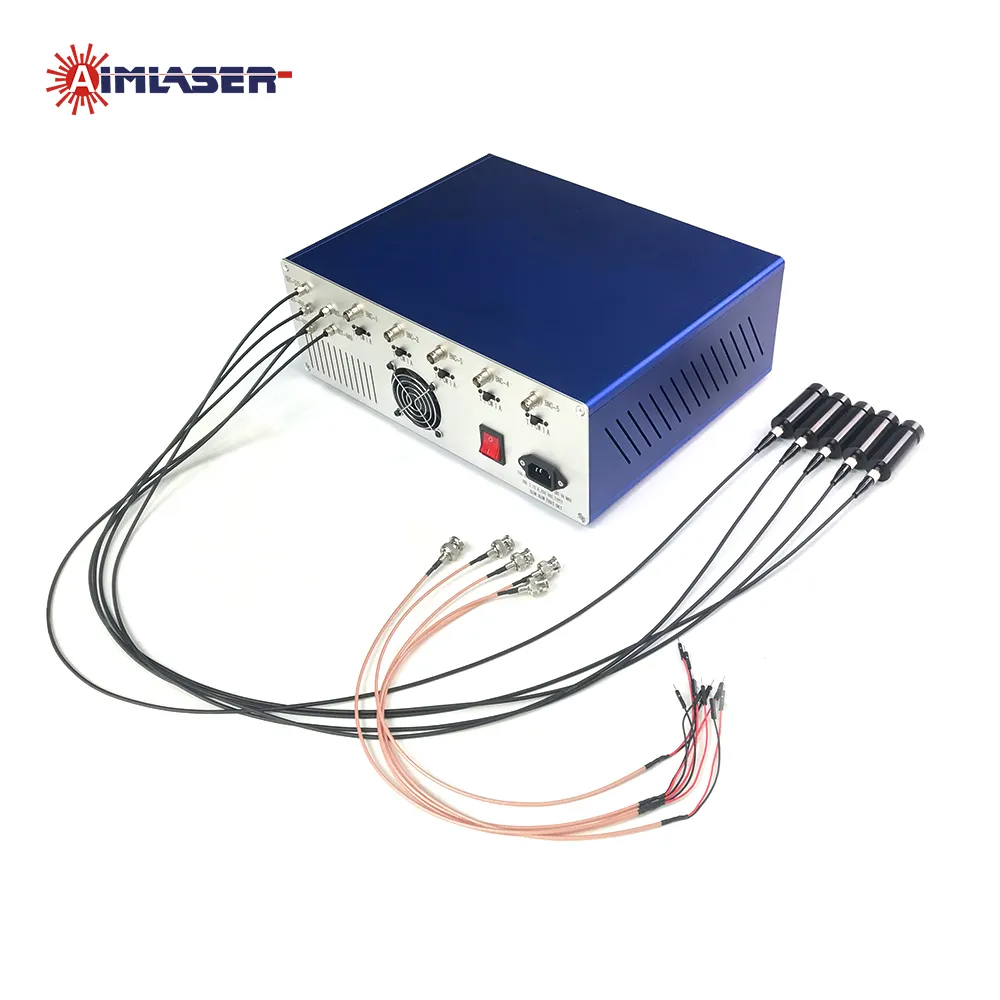

375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator

Prouct Name:
AMFLMWMC
Output Power:
120mW, 4W, 1.3W, 0.9W, 3W
Beam Size with Collimator:
Ø2mm@1m
Availability:
Inquire Add to Basket

375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator
375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator
375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator

  • AMFLMWMC

  • AIMLASER

  • 90132000.99

  • Red, Green, Blue, Violet, Infrared

  • 405nm, 520nm, 375nm, 640nm, 940nm

  • Pulse, CW, Dot, Fiber, TTL


375nm 405nm 520nm 640nm 940nm 5 Wavelengths 105um Multimode Fiber Coupled Laser TTL/CW/Analog Modulation with Collimator

105um Multimode Fiber Coupled Laser (4)

※ Multi-Wavelength Fiber Pigtailed  Laser System Descriptions

The Five-Wavelength Five-Channel Fiber Output Laser System is an integrated platform that combines five laser wavelengths—375 nm (120 mW), 405 nm (4 W), 520 nm (1.3 W), 640 nm (0.9 W), and 940 nm (3 W). It supports TTL modulation, continuous wave (CW) mode, and analog voltage modulation for precise control of each channel.

Each wavelength is independently coupled into a 105 μm multimode optical fiber with FC/PC connectors, allowing easy connection to collimators for beam shaping or focusing.

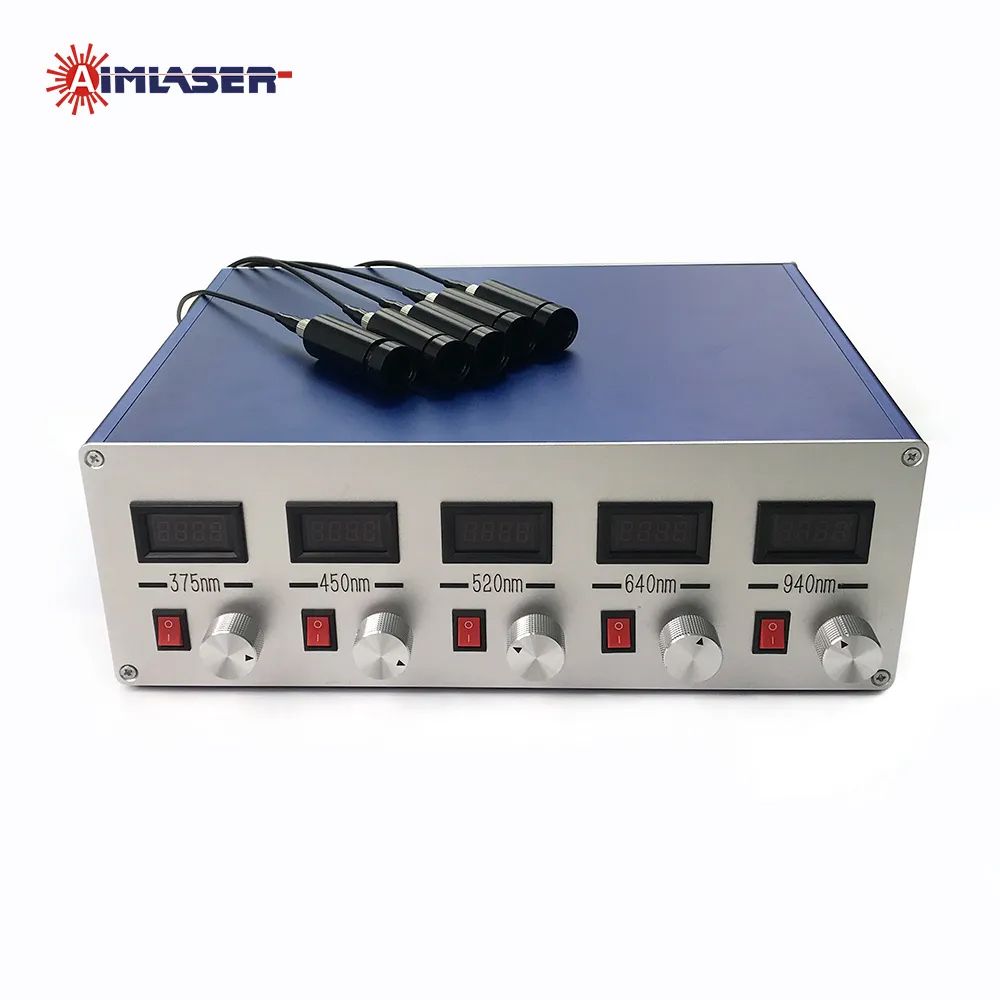

The system features dedicated on/off switches and power adjustment knobs for each wavelength channel, enabling flexible output control. An internal TEC (Thermoelectric Cooler) system ensures stable, low-noise, and long-duration operation.

※ Multi-Wavelength Fiber Pigtailed  Laser System Characteristics

ITEM SPECIFICATIONS
Model Number AMFLMWMC Multi-Wavelength Multi-Channel Fiber Laser System
Wavelength 375nm, 405nm, 520nm, 640nm, 940nm
Output Power 120mW, 4W, 1.3W, 0.9W, 3W
Laser Mode TTL modulation, CW, and Analog Voltage Modulation
Long time power stability 3%
RMS Noise 3%
Peak Value Noise 1%
Fiber Core Diameter 105um
Fiber Length 1m
Fiber Sheath 2mm Armored
Connector FC/PC
Beam Size with Collimator Ø2mm@1m
Lens Optical Glass Lens
Power Supply AC220V
Cooling method TEC
Working Temperature 25℃
Storage Temperature -20℃ to 80℃
Dimensions 360x150x200
Life Span ≥8,000Hrs

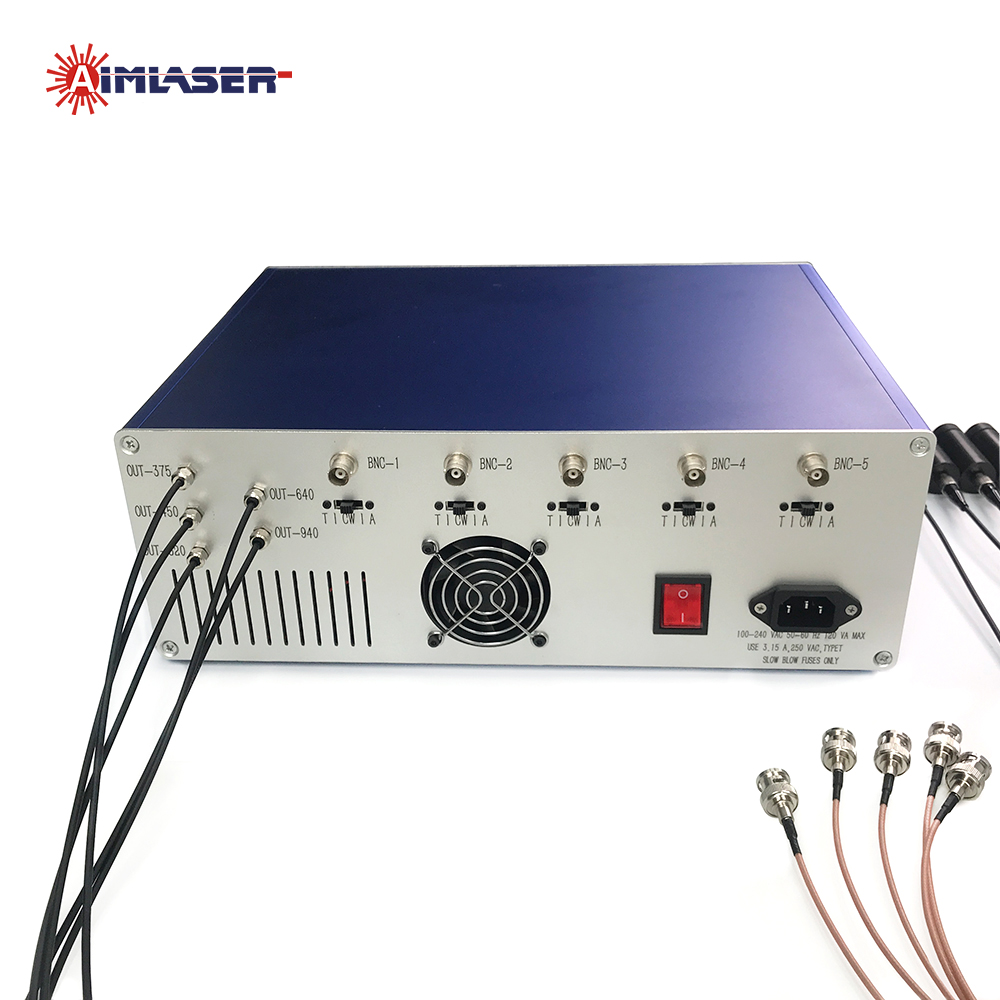

※ Multi-Wavelength Fiber Pigtailed  Laser System Features

105um Multimode Fiber Coupled Laser (5)

105um Multimode Fiber Coupled Laser (6)


  • Multiple wavelength and power level options

  • Each wavlength has an fiber optical output port

  • On/off switching and power adjustment of each channel

  • High stability and excellent signal-to-noise ratio

  • Fully customizable to meet specific requirements

※  Pigtailed Coaxial Fiber Coupled Laser Modules Applications

  1. Optical Alignment Systems

  2. Medical Laser Instrument

  3. CTP Laser Printing

  4. OEM Instrumentation

  5. Laboratory Instrument

  6. Laser Test and Inspection Equipment

※ Why buy Laser Modules from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser module manufacturer

  6. Using original Laser Diodes from Arima, Osram, Nicha and branded chips

※  Fiber Coupled Laser Modules Production Process

105um Multimode Fiber Coupled Laser (7)

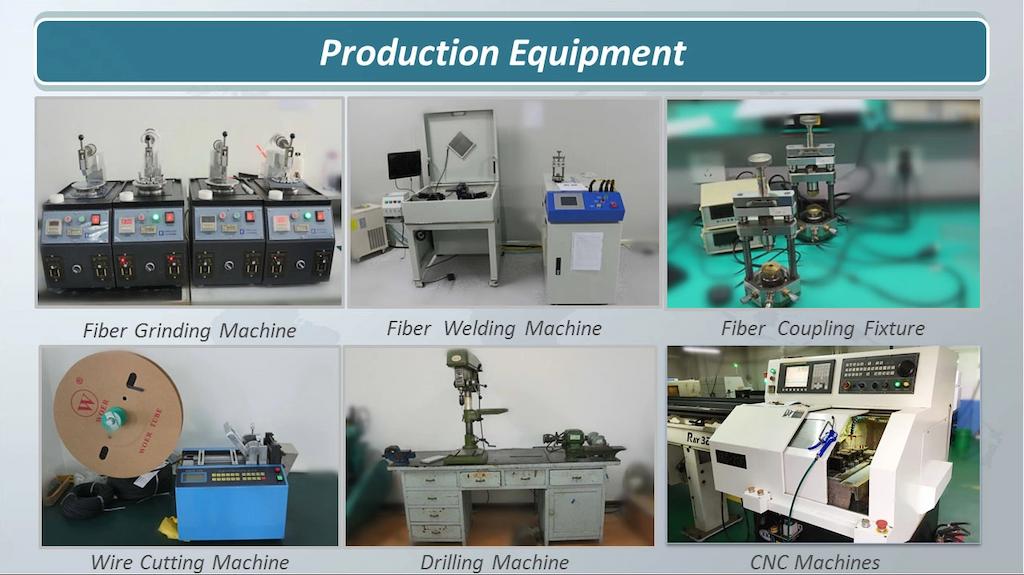

※ Laser Modules Production Equipment

105um Multimode Fiber Coupled Laser (8)

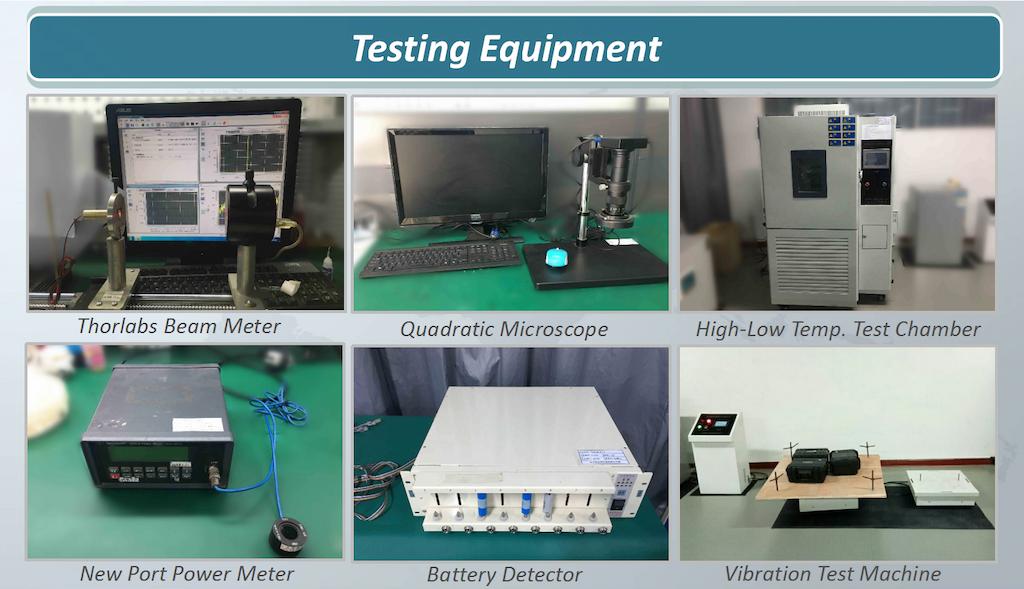

※ Laser Modules Testing Equipment

105um Multimode Fiber Coupled Laser (9)

※ Laser Module Payment and Shipment

  1. MOQ: 1pc

  2. Delivery time: 3-20 days

  3. Shipment Terms: FOB Xi'an China

  4. Payment Terms: T/T, Western Union, PayPal

  5. Shipment Method: DHL, UPS, FedEx or TNT
