A fiber collimator is precisely assembled from a fiber pigtail and a focusing lens (such as an aspheric or collimating lens). It can transform the output from a fiber into a near-parallel Gaussian beam or a controlled focused spot at a designated working distance. Conversely, it can also be used to efficiently couple free-space light into a fiber. By selecting the appropriate lens focal length and AR coatings, and matching the mode field diameter or numerical aperture of the fiber (SM/PM/MM), the desired spot size or divergence can be achieved at the target distance, enabling energy concentration and beam shaping.

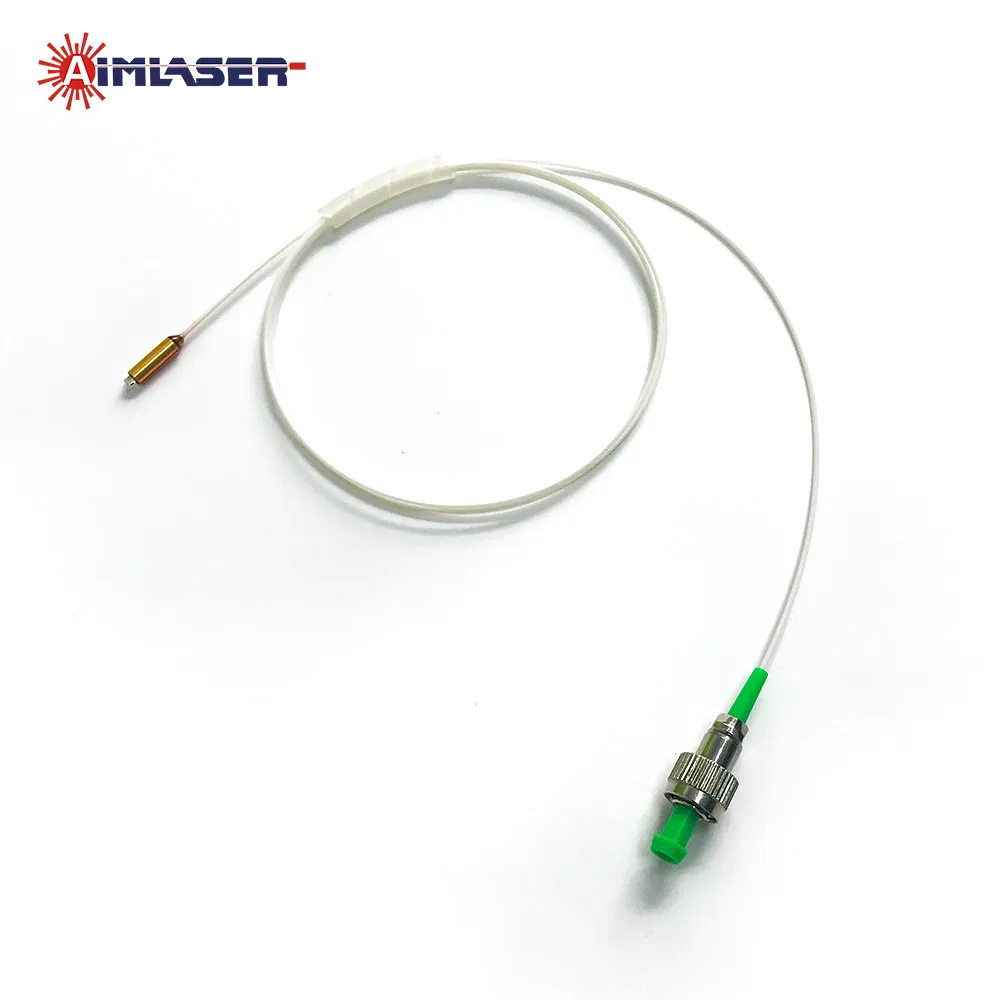

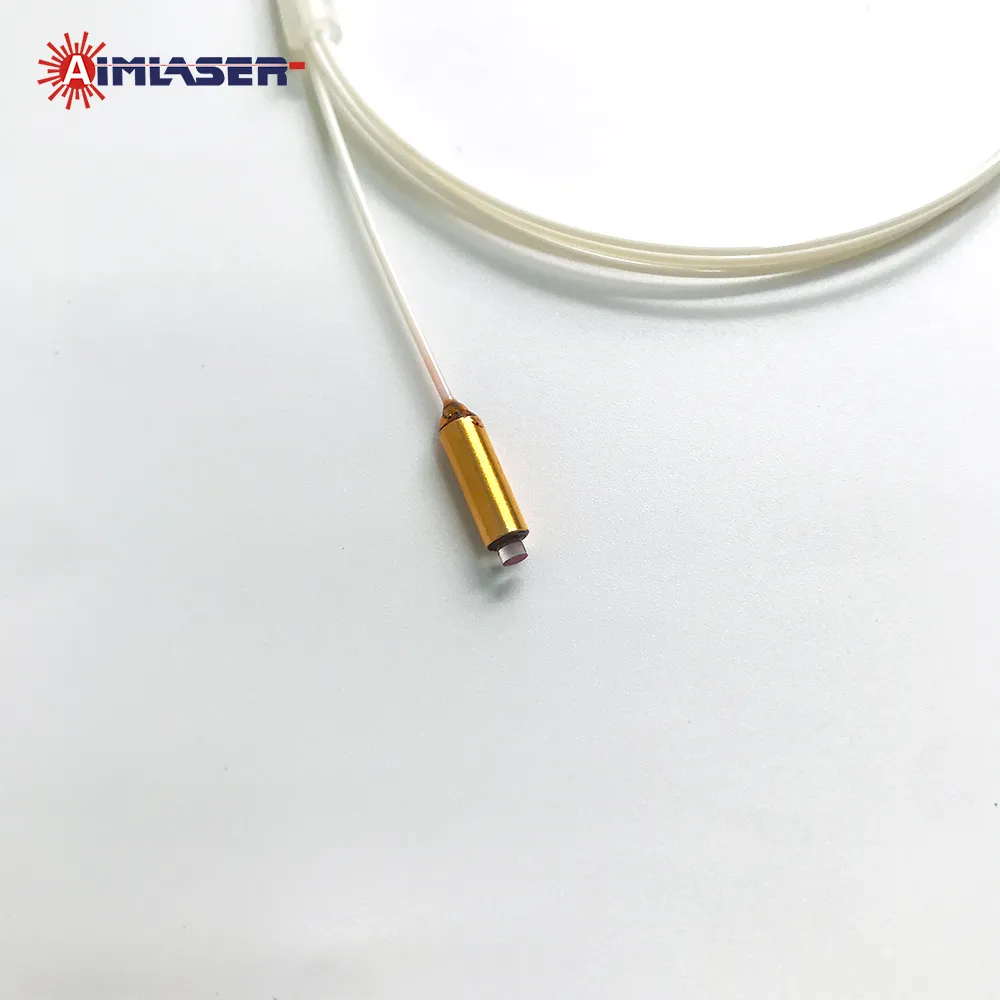

This optical fiber collimator uses PM1550 Panda fiber with FC/APC connector, packaged in a 1.8 mm OD stainless steel tube (3.2 × 10 mm) with an optical glass lens. It operates from 1260 nm to 1620 nm(O/C/L), providing a 1 mm beam size at 10 mm working distance. Typical insertion loss is 0.20 dB (≤0.30 dB), extinction ratio ≥23 dB, and return loss ≥55 dB. Maximum optical power handling is 500 mW.
| ITEM | SPECIFICATIONS |
| Model Number | AFC1260/1620 Optical Collimator with Fiber Pigtail |
| Wavelength | 1260nm~1620nm |
| Beam Size | Ø1mm@10mm |
| Typ Insertion Loss | 0.20dB |
| Insertion Loss | ≤0.30dB |
| Extinction Ratio | ≥23dB |
| Fiber Type | PM1550(Panda Fiber) |
| Optical Power | ≤500 |
| Lens | 1.8mm(OD) Optical Glass Lens |
| Package Dimensions | 3.2x10 SUS304 or SUS304-Au Gold (P1);2.78x9.0 Glass tube(P2); |
| Fiber Length | 1m |
| Connector | FC/APC |
Wide operating wavelength range from 1260 to 1620 nm, suitable for various optical communication bands.
Minimizing back reflection provides stable collimation for precision applications.
Low insertion loss to reduce signal attenuation.
High extinction ratio, delivering excellent polarization performance.
Compact stainless steel tube package with optical glass lens
Fully customizable to meet specific requirements
Optical fiber communication systems.
Polarization-maintaining systems.
Laser coupling and beam shaping applications.
Fiber optic sensing and measurement systems.
Optical testing instruments, metrology, and precision alignment.
Laboratory experiments and R&D setups involving polarization-maintaining fibers.
Provide One year warranty
Offer customized solutions
Normal sample lead time: within 2 weeks
Conform to ROHS, FDA, IEC, SGS standards
ISO9001:2008 certified laser and optics manufacturer
MOQ: 1pc
Delivery time: 3-20 days
Shipment Terms: FOB Xi'an China
Payment Terms: T/T, Western Union, PayPal
Shipment Method: DHL, UPS, FedEx or TNT
