400nm~1600nm Laser Fiber Collimator Double-Sided AR Coated Aspheric Lens High Transmission & Collection

Model: AM850FC

Brand: AIMLASER

Code: 9013809090

Fiber Type: SM, PM, MM

Wavelength: 400nm~1600nm

Connector: FC/APC, FC/PC, SMA905
Availability:
Inquire Add to Basket

400nm~1600nm Laser Fiber Collimator Double-Sided AR Coated Aspheric Lens High Transmission & Collection
400nm~1600nm Laser Fiber Collimator Double-Sided AR Coated Aspheric Lens High Transmission & Collection

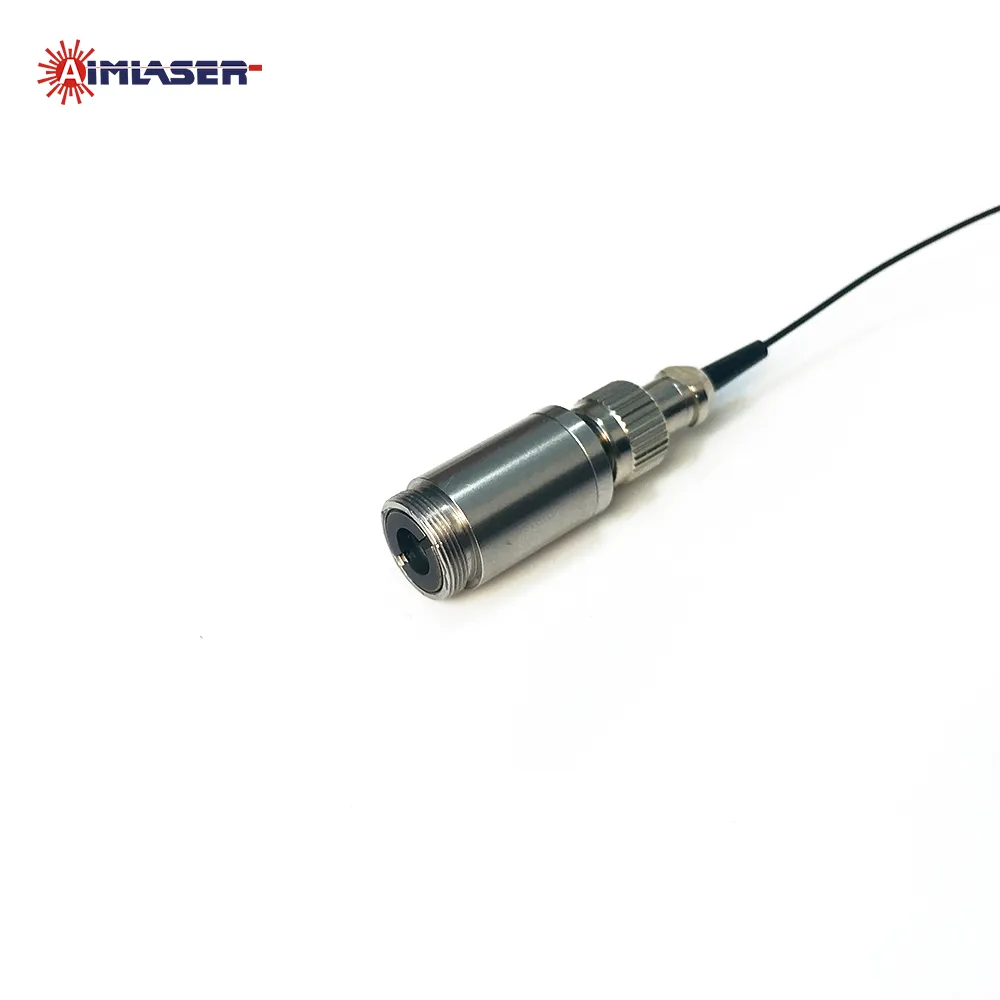

400nm~1600nm Laser Fiber Collimator Double-Sided AR Coated Aspheric Lens High Transmission & Collection


400nm~1600nm Laser Double-Side AR Coated Aspheric Lens High Transmission & Collection Fiber Collimator

laser-wavelength-chart

※ Optical Fiber Collimator Descriptions

AIMLASER provides the aspheric fiber collimator designed to collimate or focus light emitted from FC/APC, FC/PC, or SMA905 fiber connectors. The aspheric lens introduces chromatic dispersion, and its effective focal length (EFL) varies with wavelength. At the design wavelength, it provides diffraction-limited performance with excellent spherical aberration correction, making it suitable for simple fiber coupling applications.

The compact design uses a molded aspheric lens with double-sided anti-reflection (AR) coatings on both surfaces to minimize reflection losses. For the FC/APC version, the angled connector ensures the output beam enters the collimator perpendicular to the focal plane.

The aspheric fiber collimator is available for design wavelengths from 400 nm to 1600 nm. Versions with FC/PC, FC/APC, and SMA905 connectors are offered. Customization is also available, including wavelength, connector type, housing dimensions, and output spot size. For specific customization requirements, please contact our technical support.

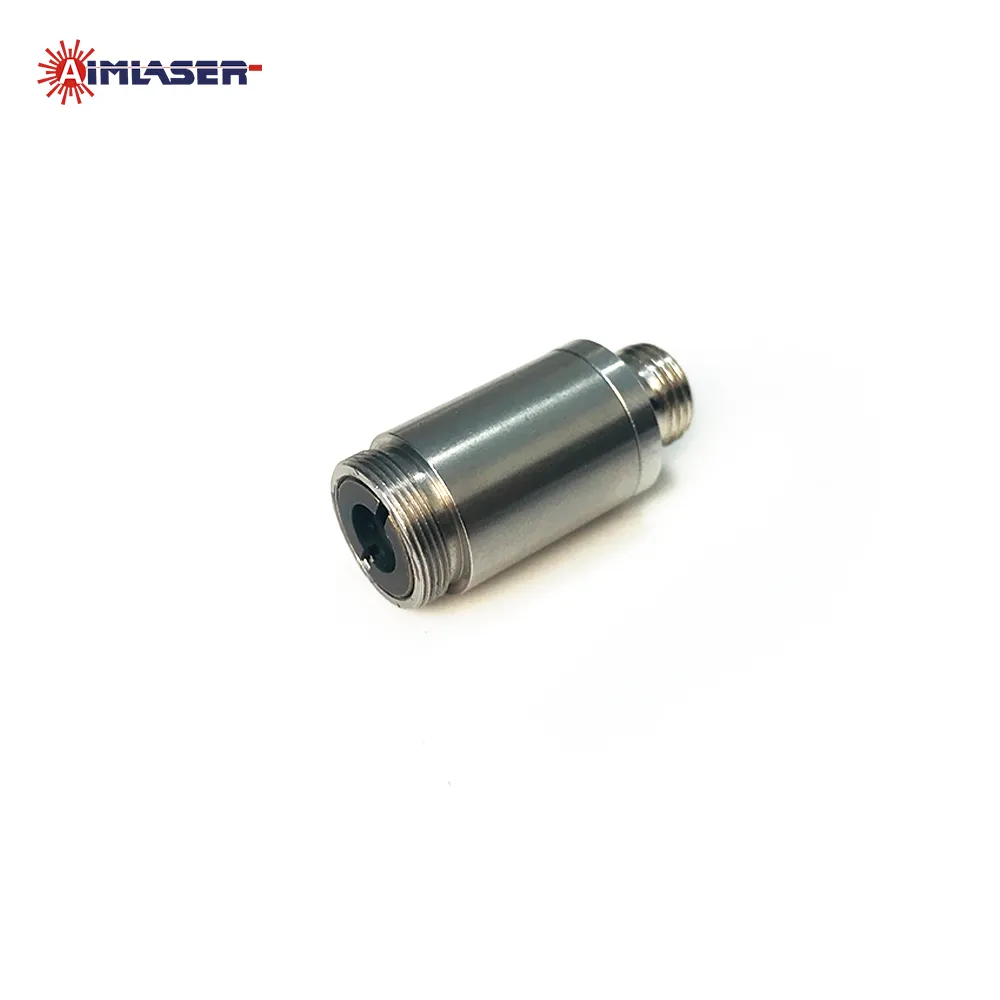

400nm~1600nm Laser Fiber Collimator1

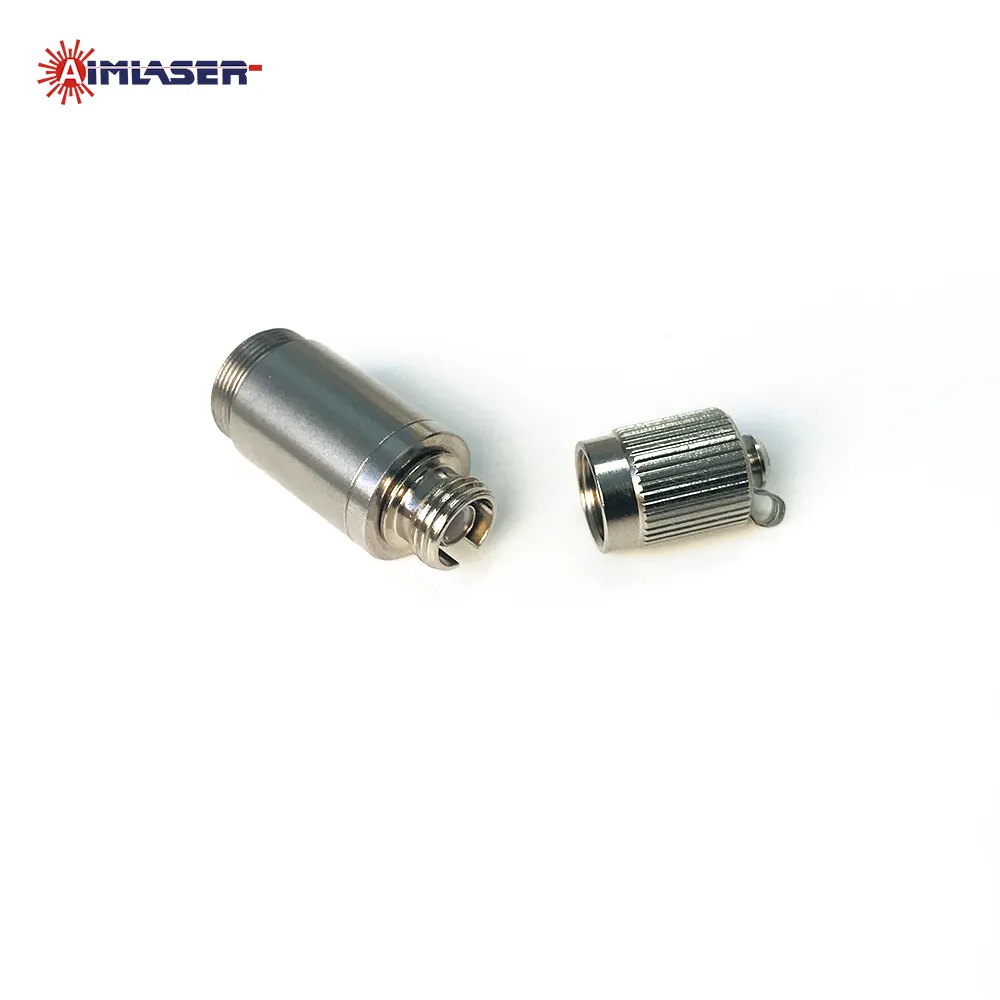

400nm~1600nm Laser Fiber Collimator2

※ Optical Fiber Collimator Characteristics

ITEM SPECIFICATIONS
Model Number

Optical Fiber Lens Collimator
Wavelength 400nm~1600nm
Beam Size Ø1mm@10mm
Focus Adjustable
Transmittance ≥95%
Return Efficiency ≥80%(MMF), ≥30%(SMF),
Fiber Type 3um~800um
Lens AR Coated Aspheric Lens
Dimensions

12x25.6mm
Connector FC/PC, FC/APC, SMA905
Material 304 Stainless Steel


※ Optical Fiber Collimator Features

  • Aspheric lens design for reduced optical aberrations

  • Dual-side anti-reflection coating to minimize surface reflections

  • Excellent wavefront performance with Gaussian energy distribution across the full optical path

  • Achromatic optical design for precise and stable beam collimation

※  Optical Fiber Collimator Applications

  1. Optical fiber communication systems.

  2. Polarization-maintaining systems.

  3. Laser coupling and beam shaping applications.

  4. Fiber optic sensing and measurement systems.

  5. Optical testing instruments, metrology, and precision alignment.

  6. Laboratory experiments and R&D setups involving polarization-maintaining fibers.

※ Why buy Collimators from AimLaser?

  1. Provide One year warranty

  2. Offer customized solutions

  3. Normal sample lead time: within 2 weeks

  4. Conform to ROHS, FDA, IEC, SGS standards

  5. ISO9001:2008 certified laser and optics manufacturer

※  Production Process
