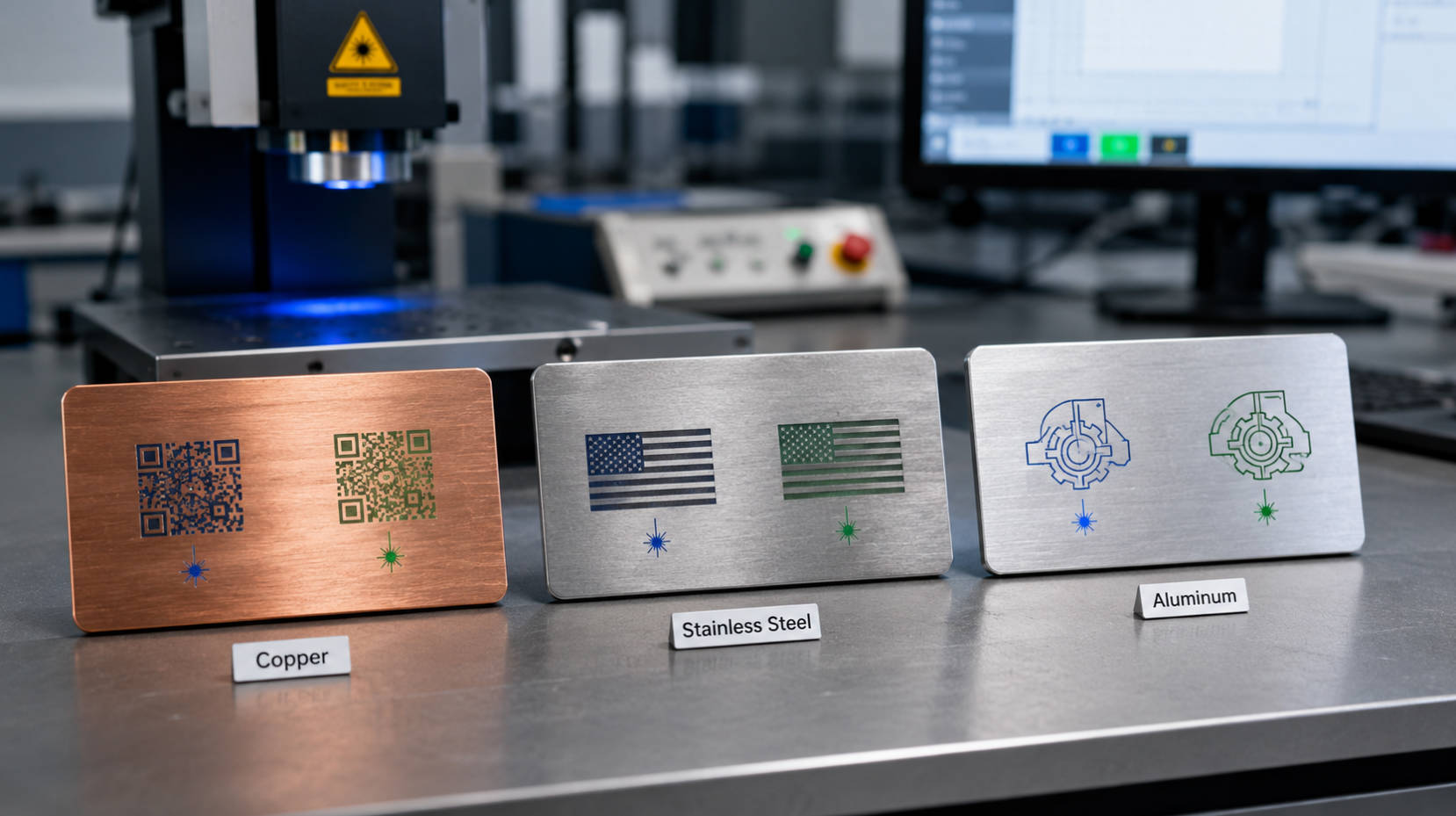

● Metal-Specific Considerations
>> Copper and Highly Reflective Metals
>> Stainless Steel and General Alloys
>> Aluminum and Challenging Substrates
● Practical Selection Framework for Industrial Buyers
● Integration and Process Optimization
● Summary
● FAQ
>> 1. Is 450nm blue laser better than 520nm green laser for metal marking?
>> 2. Which wavelength is better for copper?
>> 3. Which laser gives cleaner marks?
>> 4. Can both lasers mark stainless steel?
>> 5. Which one is better for OEM customers?
When industrial manufacturers compare blue laser at 450nm with green laser at 520nm for metal marking, the real question is not simply which color is better, but which wavelength performs best for a specific material and application scenario. In practice, the answer depends on the substrate, the required mark quality, production speed, and integration conditions in the factory.
For OEM buyers, brand owners, and equipment integrators, wavelength choice directly influences absorption efficiency, heat input to the metal, and long-term process stability. That turns the decision into a technical and commercial evaluation rather than a purely theoretical comparison.
Laser marking works because the surface absorbs enough energy to change its structure, color, or texture. Different metals respond differently to light at 450nm and 520nm, and even small changes in wavelength can significantly affect how much energy enters the material.
Shorter visible wavelengths such as blue at around 450nm tend to couple efficiently with many reflective metals. Green light at around 520nm also offers strong absorption and excellent visual control. Understanding how each wavelength interacts with the target metal is the foundation for making a reliable choice for industrial marking.
A 450nm blue laser is generally designed to offer high absorption on reflective metal surfaces and to deliver fine, precise interaction with the material. Because the energy is concentrated at a shorter wavelength, many difficult metals respond more efficiently, especially in applications where reflection would otherwise waste energy.
In practical metal marking, blue laser sources are commonly used for:
- Highly reflective metals and alloys.
- Copper-based parts and conductive components.
- Thin foils and metallic films.
- Fine structures and micro-marking in electronics.
From an industrial user's perspective, the main strengths of 450nm blue modules include efficient coupling into reflective surfaces, suitability for detailed marks, and flexibility for both surface marking and controlled ablation. Blue modules often become the preferred choice when the substrate is shiny, difficult to absorb at longer wavelengths, or when the goal is to increase process efficiency without simply raising power.
At the same time, blue lasers are not universally superior. They can be more demanding in terms of system design, thermal management, and optical setup when power is scaled up. That means they are best implemented with careful engineering and reliable OEM integration rather than as generic plug-and-play solutions.
A 520nm green laser is widely valued for its balance of absorption, visible alignment, and gentle interaction with sensitive parts. The human eye is very sensitive in the green region, so operators can see the beam path and marking position more clearly, which provides practical benefits during setup, adjustment, and on-site maintenance.
In industrial metal marking, 520nm green sources are commonly chosen for:
- Precision surface marks and fine codes.
- Components that must retain structural integrity.
- Applications where a low heat-affected zone is important.
- Parts requiring clear, readable contrast on a finished surface.
Green lasers are often preferred for delicate parts, small characters, and surface markings that must remain visually consistent after downstream processes. They can deliver smooth edges, well-defined shapes, and stable mark quality when the process is tuned correctly.
However, the green wavelength may not always achieve the same absorption efficiency as blue on the most challenging reflective metals. In scenarios where deep coupling into the material is critical and reflection is a major barrier, blue can still be the stronger option.
Blue at 450nm typically offers very strong absorption on certain reflective metals, especially copper and similar materials. This improved coupling can reduce the required average power and enable more aggressive marking strategies.
Green at 520nm provides strong absorption as well, but its main practical benefit is the combination of absorption with control. Many industrial users find that green allows them to maintain high-quality marks, especially when the goal is not deep engraving but reliable, visually stable surface marking.
Blue laser marking tends to be effective for both fine marks and controlled deeper interactions. It can be a powerful choice for applications where the surface is difficult, but the mark must still remain stable and legible.
Green laser marking emphasizes clean, high-contrast marks with minimal surface damage. It is often favored for small logos, identification codes, serial numbers, and patterns that must remain sharp under inspection or machine vision.
Blue beams are visible, but they are less aligned with peak human visual sensitivity. Operators can see them, but green light is more immediately noticeable during alignment and process verification.
Green beams at 520nm provide excellent visual guidance. This can significantly simplify manual setup, on-site troubleshooting, and mechanical alignment in production environments where fast changeovers and straightforward adjustment are important.
For copper and other highly reflective metals, shorter visible wavelengths often deliver clear advantages. Blue at 450nm is frequently recommended when the main challenge is overcoming reflection and achieving stable energy coupling into the material.
Green at 520nm also performs well on copper and reflective metals, particularly when the requirement is clean, well-controlled surface marking with carefully limited heat impact. End users that focus on readability and part integrity may prefer green, while those prioritizing processing aggressiveness may lean toward blue.
For stainless steel and many general-purpose alloys, both wavelengths can produce good results. The choice is driven more by desired contrast, surface finish, and line speed than by wavelength alone.
Where permanent identification marks are required, green can deliver very readable results with fine edge quality. Where higher energy density or more robust interaction is needed, blue may provide stronger penetration and faster processing.
Aluminum requires careful tuning at either wavelength. Process parameters such as power, pulse control, focal position, and marking strategy can be as important as the wavelength choice itself.
In these cases, practical testing on the actual substrate is essential. Both blue and green can be successful when combined with optimized optics and movement, and the final decision should be guided by test marks, durability assessments, and customer-specific visual standards.
For industrial buyers and OEM clients, selecting between 450nm blue and 520nm green can be made easier with a simple framework:
- Metal type and finish: Reflective, coated, anodized, or raw.
- Marking objective: Deep engraving versus surface contrast.
- Component sensitivity: Robust mechanical parts versus delicate assemblies.
- Thread throughput: Required line speed and cycle time.
- Readability requirements: Human inspection, machine vision, or both.
- Integration style: Compact modules, multi-axis motion, or complex systems.
In many projects, 450nm blue is recommended when reflective metals are the primary challenge and stronger coupling is the main goal. 520nm green is recommended when precision, clarity, and minimal damage are more important than extreme absorption efficiency.
For OEM-oriented manufacturers, offering both wavelengths as part of a stable module portfolio can satisfy different categories of customers and application requirements in a single product strategy.
Short-wavelength laser sources are gaining wider adoption in industrial environments. The growing use of reflective and non-ferrous metals in electronics, new energy, precision hardware, and mobility applications has increased demand for wavelengths that interact more efficiently with these materials.
At the same time, traceability, miniature coding, and surface identification have become more critical. These requirements support the use of visible wavelengths that provide fine control, strong readability, and flexibility across multiple material types. Both blue and green modules naturally fit inside this evolution.
Selecting the wavelength is only the first step. Achieving stable, high-quality metal marking requires coordinated process optimization:
- Power and pulse characteristics must match the substrate.
- Scan speed and pattern strategy must balance depth and contrast.
- Focus position and spot size must be tuned to the application.
- Surface preparation and cleanliness must be consistent.
- Post-mark inspection routines must confirm readability and durability.
An industrial example illustrates the point. A copper part may show poor contrast at one set of parameters with a green source but produce clear marks at a different set of parameters with a blue source. The final recommendation then becomes not purely theoretical, but the result of controlled experiments performed on real components.
450nm blue and 520nm green are both capable, proven wavelengths for metal marking in industrial environments. Blue tends to be the better choice when reflective metals and aggressive coupling are the primary challenges. Green tends to be the better choice when precision, visual clarity, and low-damage marking are the top priorities.
The most robust strategy for manufacturers and OEM integrators is to treat wavelength as one element in a larger system design. When the material, marking goals, and process parameters are defined clearly, it becomes straightforward to match each application with the wavelength that will deliver the most stable performance and the most consistent long-term results.
Not always. Blue is usually better for highly reflective metals like copper, while green is often better for precision, readability, and low-damage marks. [sciencedirect]
Blue often has the edge because shorter wavelengths improve absorption on reflective metals, and industry data shows blue can outperform green on copper in absorption efficiency. [pubs.aip]
Green often produces very clean, high-contrast marks with a lower heat-affected zone, which is useful for delicate parts and micro-marking. [zgglaser]
Yes. Both can mark stainless steel, but the best choice depends on contrast requirements, speed, and surface finish rather than wavelength alone. [xtlaser]
It depends on the product line. Blue is stronger for difficult reflective metals, while green is better for precision-focused applications and customer-friendly setup visibility. [lyocon]
1. Q Yang et al., "Review Application and development of blue and green laser in industrial ..." [ScienceDirect] [sciencedirect]
2. Lyocon, "ZEPHYRUS Fiber Coupled 450nm 30W Diode Laser" [PDF] [lyocon]
3. Lyocon, "Blue laser marking" [Page] [lyocon]
4. Telesis, "Green Laser Marker (EV4GDS)" [Page] [telesis]
5. ZGG Laser, "GGJG-520 Green laser marker 532 nm" [Page] [zgglaser]
6. LaserSpecHub, "Laser Wavelength & Material Absorption Chart" [Page] [laser-spec-hub.vercel]
7. XT Laser, "Metal Laser Making (2)" [Page] [xtlaser]
8. AIP Journal / JLA, "Laser absorptivity on wavy molten metal surfaces" [Page] [pubs.aip]
