In industrial alignment and precision positioning, both fiber coupled lasers and free space lasers can deliver accurate beams, but they differ sharply in stability, integration flexibility, and long‑term consistency under real‑world factory conditions. For OEMs and system integrators, choosing the right architecture directly impacts alignment accuracy, maintenance costs, and how easily your equipment can scale or be customized. [photonicsonline]
Fiber coupled lasers route laser output through an optical fiber, which acts as a flexible light guide between the laser diode and the delivery optics. This architecture separates the laser source (often located in a protected, thermally stable enclosure) from the output head at the point of use. [brandnewdiode]
Key characteristics:
- Laser light is injected into a single‑mode or multimode fiber, then delivered to the workpiece or alignment point. [rp-photonics]
- The fiber naturally filters and reshapes the beam, often improving beam uniformity and stability. [brandnewdiode]
- The output head can be compact, which simplifies integration in constrained mechanical environments. [made-in-china]
From a practical OEM perspective, this means you can treat the fiber as a "plug‑and‑play" beam delivery cable that can be routed around mechanical structures, machine guards, or moving axes without having to re‑design your entire optical path. [brandnewdiode]
Free space lasers (often simple laser diode modules or collimated diode assemblies) deliver the beam directly from the diode or from a small set of collimating optics into open air, without using fiber as the intermediary. In many traditional industrial alignment tools—levels, line lasers, and pointing modules—this has been the default architecture for years. [sciencedirect]
Key characteristics:
- Optical alignment is handled by lenses and mechanics directly coupled to the diode. [photonicsonline]
- The beam propagates in air, so any mechanical shift, vibration, or contamination along the path can impact spot position and shape. [sciencedirect]
- Free space modules are often cost‑effective and compact, but they are more sensitive to mechanical tolerances and housing design. [made-in-china]
In other words, free space lasers can be ideal for simple, short optical paths and lower‑duty systems, but they require tight control of mechanics and environment if you need long‑term precision. [photonicsonline]

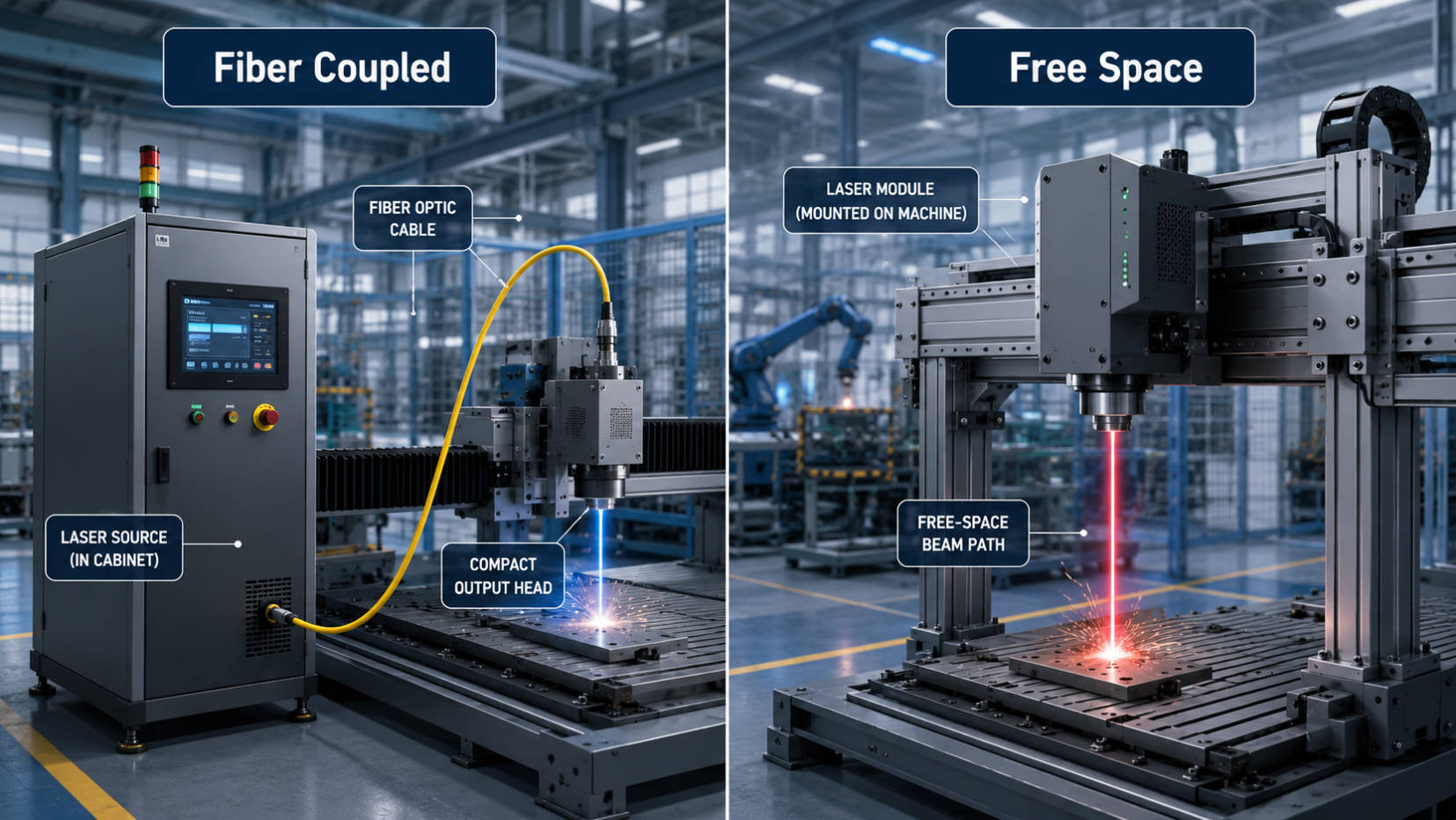

Below is a practical comparison focused on industrial alignment and OEM integration.
Aspect |
Fiber Coupled Laser |
Free Space Laser |
|---|---|---|
Beam stability over time |
High, fiber decouples beam from mechanical drift and air turbulence rp-photonics |
Medium, highly dependent on mechanics and environment photonicsonline |
Alignment precision in dynamic systems |
Excellent for moving axes, robots, and long routing paths brandnewdiode |
Good for short, rigid setups; performance drops with vibration photonicsonline |
Mechanical flexibility |
Very high; fiber can be routed like a cable rp-photonics |
Limited to direct line‑of‑sight photonicsonline |
Maintenance & service |
Centralized source, easy module replacement rp-photonics |
Each module serviced individually, often on‑machine photonicsonline |
Initial BOM cost |
Often higher per channel but better lifecycle cost brandnewdiode |
Lower entry cost but higher integration/maintenance overhead photonicsonline |
For OEMs, these differences translate into distinct design trade‑offs: fiber architectures tend to win where uptime, modularity, and precise alignment under harsh conditions matter most; free space designs still dominate cost‑sensitive or very simple tools. [photonicsonline]

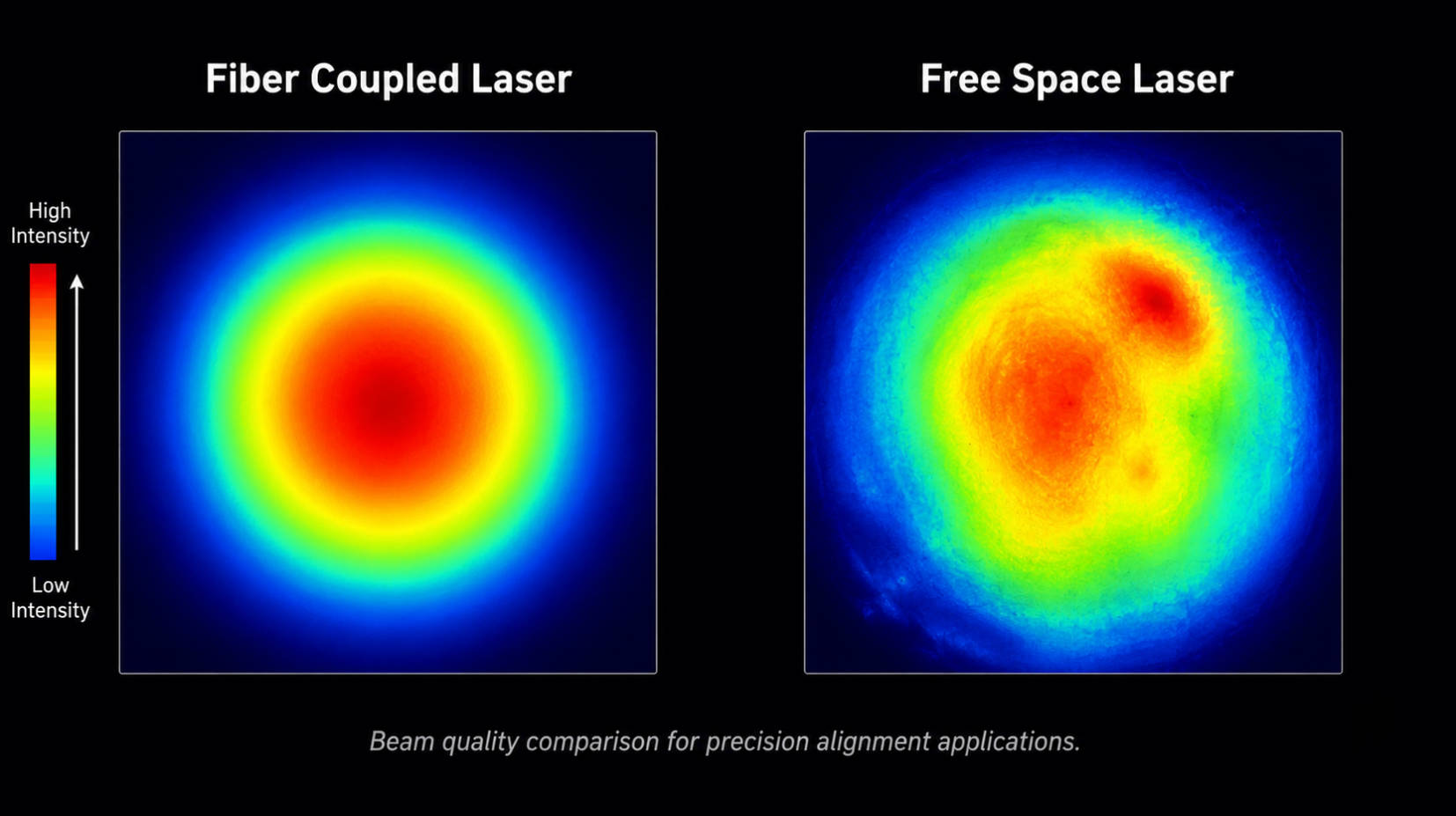

Fiber coupled lasers often provide more uniform and collimated beams, especially when using single‑mode fibers that act as spatial filters. This can be critical in alignment tasks where edge sharpness, line uniformity, or consistent intensity profiles are required—for example, in machine vision alignment or 3D profiling. [rp-photonics]
Free space lasers depend heavily on the mechanical alignment of lenses and the diode mount. Even minor shifts from thermal cycling or vibration can degrade beam shape, causing wider lines, astigmatism, or intensity hot spots over time. [sciencedirect]
Fiber architectures inherently isolate the optical path inside the fiber from dust, air currents, and minor mechanical disturbances. This yields higher repeatability and long‑term stability, especially in: [rp-photonics]
- Multi‑shift production lines
- Environments with regular washdowns or airborne particles
- Systems where the laser head is mounted on a moving axis or robot
Free space beams, by contrast, travel through open air, which makes them more sensitive to misalignment or contamination along the path. [sciencedirect]
Expert insight :
If your alignment accuracy needs to remain within a tight tolerance window over thousands of hours, a fiber coupled architecture significantly reduces the calibration burden on your operations and service teams. [brandnewdiode]
From an OEM perspective, how easily the laser integrates into your mechanical and electrical architecture is just as important as beam specs.
- Fiber Coupled:
- The laser source (diode, driver, TEC, monitoring electronics) can stay in a central control cabinet. [rp-photonics]
- The fiber is routed through drag chains or cable trays to the end effector or alignment point. [brandnewdiode]
- This simplifies thermal management and reduces the mass mounted on moving axes. [brandnewdiode]
- Free Space:
- The entire module has to be physically mounted where the beam is needed, often with limited room for heat sinking, drivers, or protections. [made-in-china]
- Design changes that move the beam position usually require re‑mounting or re‑aligning the entire module. [photonicsonline]
Because fiber coupled systems separate source and delivery, it is easier to:
- Swap to different wavelengths or powers without redesigning mechanics. [rp-photonics]
- Add multi‑channel systems where multiple fibers are fed from a single laser unit. [brandnewdiode]
- Standardize a single beam delivery head while customizing laser specs per customer or model. [made-in-china]
In contrast, free space modules often require new mechanical SKUs for each combination of wavelength, power, and beam shape. [made-in-china]
By confining light inside an optical fiber, fiber coupled lasers naturally reduce stray light and potential exposure risks to operators or maintenance staff. This is particularly important in high‑power or multi‑channel industrial systems, where uncontrolled reflections can be hazardous. [brandnewdiode]
Free space lasers must be carefully enclosed and interlocked to prevent accidental exposure to the beam or reflections, especially when multiple modules are distributed around a machine. [sciencedirect]
Fiber coupled modules often exhibit better thermal stability, longer service lifetimes, and reduced maintenance costs in continuous operation. [rp-photonics]
Centralizing the laser source also makes preventive maintenance more straightforward—you can service or replace one cabinet‑mounted unit rather than physically accessing multiple on‑tool modules. [made-in-china]
Free space lasers can be very reliable as well, especially at moderate power, but their performance is more sensitive to mechanical stress, contamination, and local thermal conditions around each module. [photonicsonline]
Industry data shows fiber coupled lasers increasingly adopted in: [brandnewdiode]
- Industrial processing such as laser soldering, micro‑welding, marking, and curing
- Optical sensing and measurement, including LiDAR, fiber sensing, and spectroscopy
- Medical and scientific applications where beam stability and repeatability are critical
For industrial alignment, this translates into use cases like:
- Robot‑mounted alignment heads where the beam must be stable while the robot moves at high speed. [brandnewdiode]
- Machine vision alignment in 3D scanners or smart cameras, where uniform line illumination is key. [photonicsonline]
- Long‑distance beam routing through complex mechanical layouts, where free space paths would be impractical. [rp-photonics]
Free space lasers remain a strong choice in:
- Compact handheld tools (levels, distance meters) where the optical path is short and fully enclosed. [made-in-china]
- Cost‑sensitive alignment indicators or simple pointing devices where basic accuracy is sufficient. [made-in-china]
- Applications where the laser is integrated directly into a small, rigid housing with tight mechanical control. [photonicsonline]
In these scenarios, the added cost and complexity of fiber coupling may not be justified.
Drawing from OEM integration projects and industry trends, a practical decision framework looks like this: [photonicsonline]
1. Define your precision and uptime targets.
- If you require long‑term sub‑millimeter alignment under vibration or temperature cycling, favor fiber coupled. [brandnewdiode]
- For simpler, static setups, a well‑designed free space module can be sufficient. [photonicsonline]
2. Evaluate mechanical constraints.
- Tight spaces, moving axes, or complex routing strongly favor fiber delivery. [rp-photonics]
- Simple line‑of‑sight paths can work fine with free space beams. [photonicsonline]
3. Consider lifecycle and service model.
- Centralized cabinet‑mounted fiber sources simplify service for global deployments. [made-in-china]
- Distributed free space modules may raise field‑service complexity, especially in multi‑module systems. [photonicsonline]
4. Assess regulatory and safety complexity.
- Fiber delivery helps reduce stray radiation and support safer enclosures. [brandnewdiode]
- Free space designs require careful shielding and risk assessments, especially at higher power. [sciencedirect]
Aiming Laser Technology Co., Ltd. (AimLaser) is a China‑based OEM manufacturer specializing in diode laser modules and fiber coupled lasers for industrial, medical, and defense applications since 2012. The company provides wavelength coverage from approximately 405 nm to 1550 nm and output powers from sub‑milliwatt levels up to tens of watts, enabling a wide range of alignment and positioning solutions. [aiminglasers]
AimLaser operates with ISO 9001 and ISO 14001 management systems, and its products comply with FDA, RoHS, IEC, and GB standards, supporting global OEM deployments that require consistent quality and regulatory compliance. The company also offers strong OEM/ODM capability, helping international brands and system integrators customize fiber coupled and free space laser solutions for specific industrial alignment tasks. [aiminglasers]
Working with an OEM like AimLaser gives you access to both architectures (fiber coupled and free space), so you can build a portfolio strategy rather than being locked into one technology. [aiminglasers]

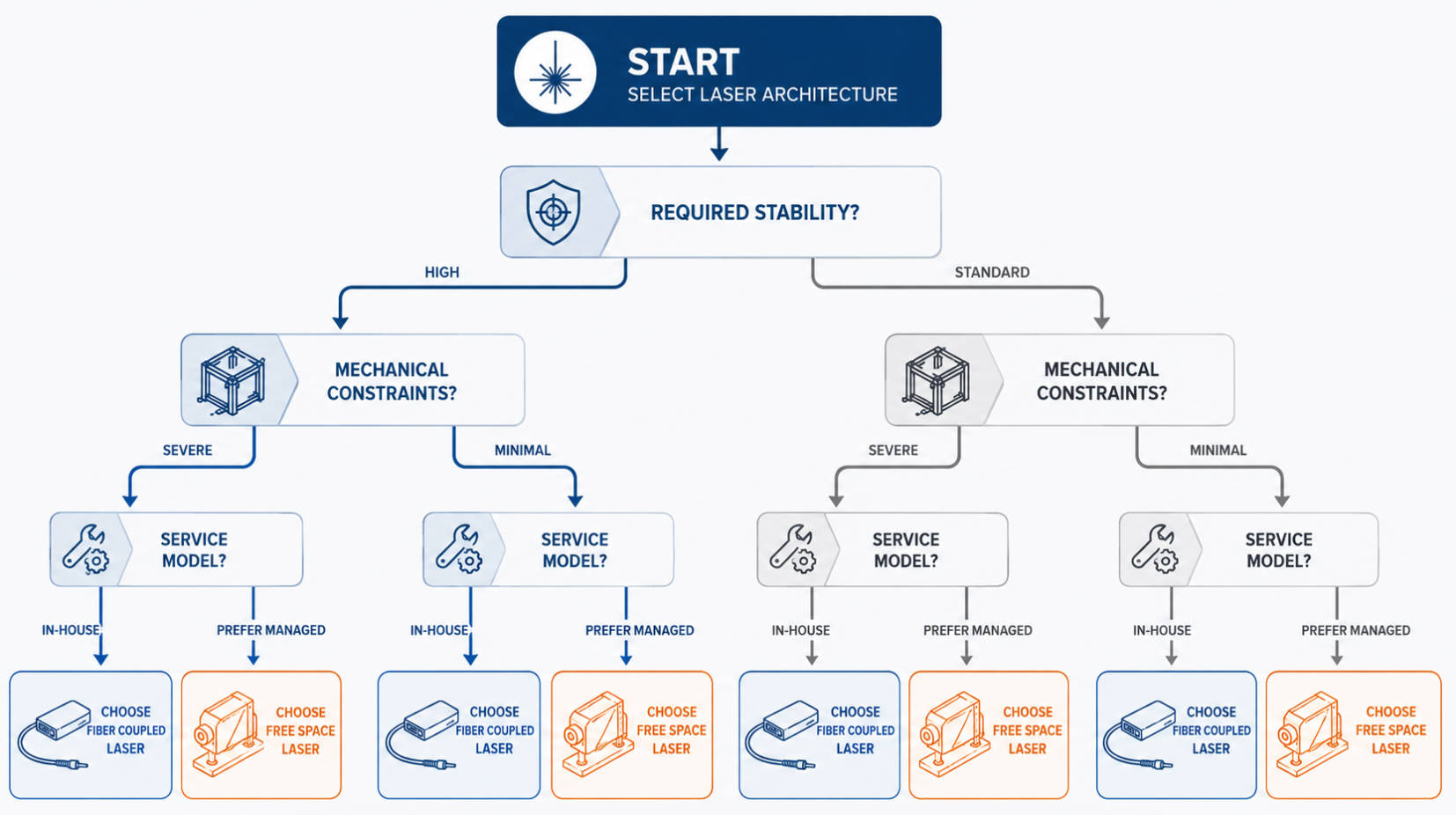

Use this simple, user‑centric process when defining your next alignment system:
1. Map the optical path.
- Identify all mechanical movements, distances, and potential obstructions.
- If the beam must navigate complex paths or moving mechanisms, prioritize fiber coupled delivery. [rp-photonics]
2. Rank critical performance metrics.
- Stability, line uniformity, and repeatability: prioritize fiber coupled. [rp-photonics]
- Cost and simplicity for basic indication: free space may be sufficient. [made-in-china]
3. Evaluate environment and duty cycle.
- 24/7 operation in dusty or thermally unstable environments favors fiber coupled systems. [brandnewdiode]
- Occasional use in controlled environments can leverage free space modules. [photonicsonline]
4. Align with your service strategy.
- If you support global installations and remote diagnostics, centralizing laser sources using fiber delivery can lower field‑service costs. [made-in-china]
5. Engage with your OEM partner early.
- Sharing mechanical drawings, target tolerances, and operating environments allows your laser OEM to recommend optimized fiber or free space designs rather than "one‑size‑fits‑all" modules. [aiminglasers]

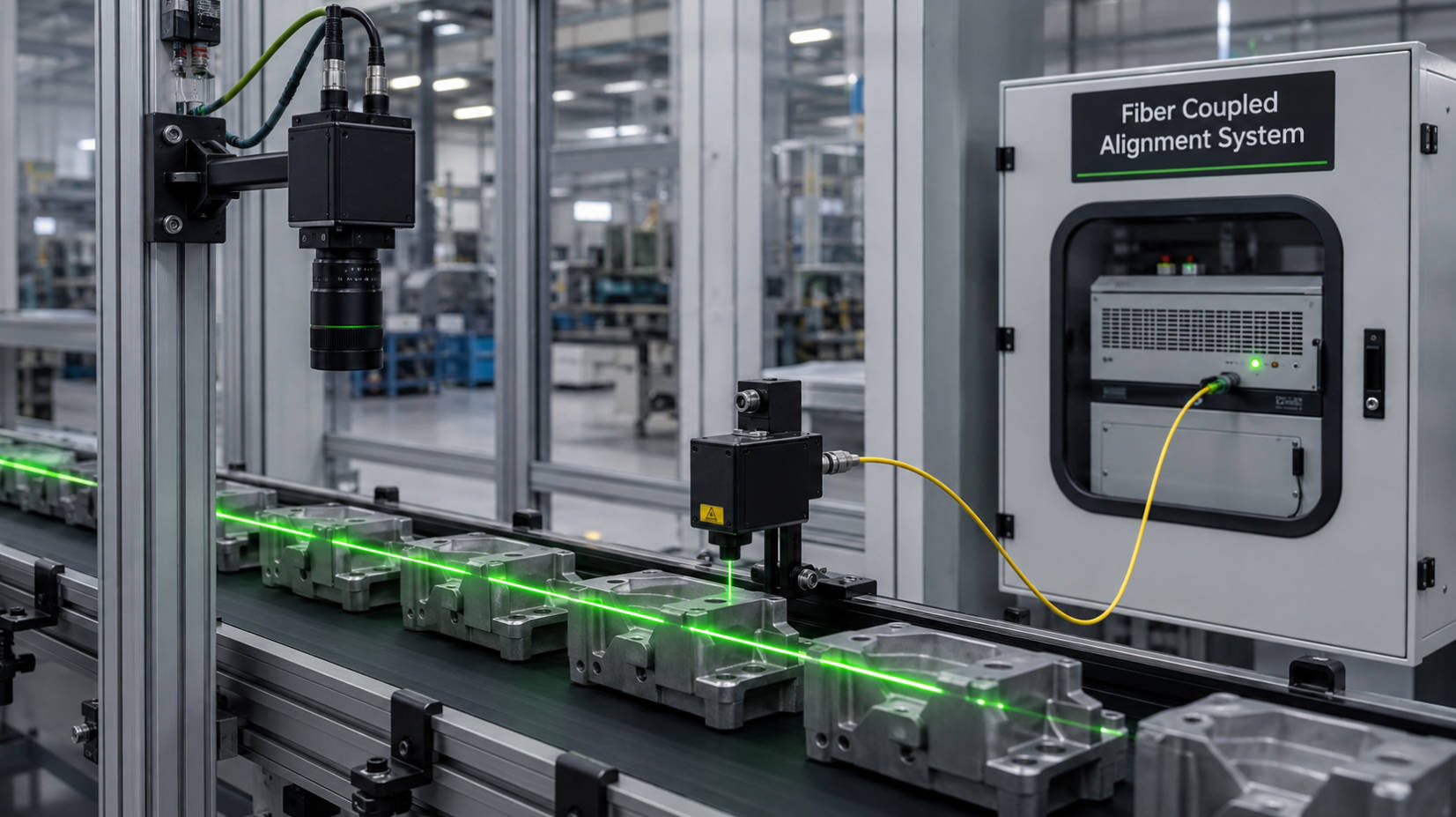

Consider a machine vision system that projects a laser line across a moving conveyor for profile measurement:
- Fiber coupled solution:
- The laser source is installed in a cabinet.
- A fiber runs to a compact projection head mounted above the conveyor.
- As the line width, intensity, and focus need to remain stable over temperature and vibration, the fiber‑based system provides consistent measurement accuracy and minimal re‑calibration. [photonicsonline]
- Free space solution:
- A self‑contained line laser module is mounted directly on the frame above the conveyor.
- Over time, mechanical vibration and thermal expansion may cause minor shifts in beam position and line quality, requiring more frequent alignment checks. [photonicsonline]
In many such machine vision scenarios, fiber coupled lasers deliver superior lifecycle performance and UX for the operators, even if the initial cost is slightly higher. [brandnewdiode]
As an OEM partner, Aiming Laser Technology Co., Ltd. supports both standard modules and customized designs tailored to your alignment use case. [aiminglasers]
Typical support includes:
- Custom fiber coupled laser modules with specific wavelengths, powers, and fiber types for alignment systems. [aiminglasers]
- Free space laser modules such as dot, line, cross, and Powell lens uniform line lasers for cost‑effective tools and instruments. [aiminglasers]
- Engineering collaboration on mounting options, connectors, and driver interfaces, ensuring smooth integration into your mechanical and electronic architecture. [aiminglasers]
For international brands, wholesalers, and manufacturers, AimLaser's OEM and ODM capabilities help reduce time‑to‑market while maintaining consistent quality and regulatory compliance across different regional markets. [aiminglasers]
If you are evaluating fiber coupled vs free space lasers for your next industrial alignment or machine vision project, partnering with a specialized OEM can greatly de‑risk your design.
Aiming Laser Technology Co., Ltd. offers:
- Proven fiber coupled laser modules engineered for high stability and precise alignment. [aiminglasers]
- Flexible free space laser solutions for compact tools and cost‑sensitive applications. [aiminglasers]
- OEM/ODM engineering support to help you select the right architecture, optimize integration, and validate performance.
You can contact AimLaser's team to discuss your application requirements, share your mechanical design, and receive a tailored recommendation for fiber coupled or free space laser solutions that match your precision, cost, and lifecycle goals. [aiminglasers]
The main difference is how the laser beam is delivered: fiber coupled lasers route light through an optical fiber to the output head, while free space lasers emit the beam directly through air from the module's optics. Fiber delivery improves mechanical flexibility and stability, whereas free space designs can be simpler and more cost‑effective for short, rigid optical paths. [rp-photonics]
For high‑precision, long‑term alignment in dynamic or harsh environments, fiber coupled lasers typically provide better stability and repeatability due to isolated beam delivery and centralized thermal management. However, for simple, static setups in controlled environments, well‑designed free space modules can achieve sufficient precision at lower cost. [rp-photonics]
Fiber coupled systems often have a higher initial cost due to fiber components and more complex packaging, but they can reduce lifecycle costs by simplifying maintenance and improving uptime. Free space modules usually offer a lower entry price but may require more frequent alignment checks or field interventions in demanding environments. [rp-photonics]
Yes. Many OEMs deploy fiber coupled lasers in critical alignment or measurement channels while using free space modules for secondary indicators or less demanding tasks. Working with an OEM such as AimLaser helps ensure both architectures share consistent electrical interfaces and safety strategies. [aiminglasers]
Aiming Laser provides OEM/ODM customization including wavelength selection, power levels, fiber types, beam shapes, and mechanical mounting options tailored to your equipment. The company also supports regulatory documentation and quality assurance under ISO‑certified processes to streamline global deployments. [made-in-china]
