In modern industrial and scientific laser systems, most diode and solid‑state lasers naturally emit a Gaussian beam – a beam whose intensity is strongest in the center and gradually falls off toward the edges following a normal (Gaussian) distribution. This profile is favored because it delivers high beam quality, good spatial coherence and predictable propagation, all of which are crucial for precision manufacturing and sensing applications. [edmundoptics]
From my experience working with OEM customers in machine vision, alignment, medical equipment, additive manufacturing and automation, understanding how a Gaussian beam behaves is one of the fastest ways to improve real‑world results: cleaner cuts, tighter focus spots and more stable measurement performance. [sciencedirect]
In industrial environments, the beam profile is just as important as power or wavelength. A well‑controlled Gaussian beam helps you: [nmlaser]
- Achieve small, stable focus spots for micromachining and high‑precision processing. [edmundoptics]
- Maintain consistent energy delivery for welding, cutting and surface treatment. [nmlaser]
- Improve measurement repeatability in displacement sensors, 3D scanners and vision systems. [optics.ansys]
- Integrate the module more easily into complex optical systems because Gaussian propagation is analytically well understood. [optics.ansys]
For OEM customers, this translates directly into shorter integration time, fewer design iterations and more reliable system performance, which is why we design our industrial laser modules to maintain high‑quality Gaussian beams over long working distances.
A Gaussian beam's transverse intensity profile can be approximated by a bell curve: maximum intensity at the center, smoothly decreasing to the edges. Compared with a "top‑hat" beam, this means: [lt]
- Energy is more concentrated near the optical axis. [nmlaser]
- The beam has smooth edges with no sharp intensity steps, which helps reduce thermal stress and edge defects in materials processing. [sciencedirect]

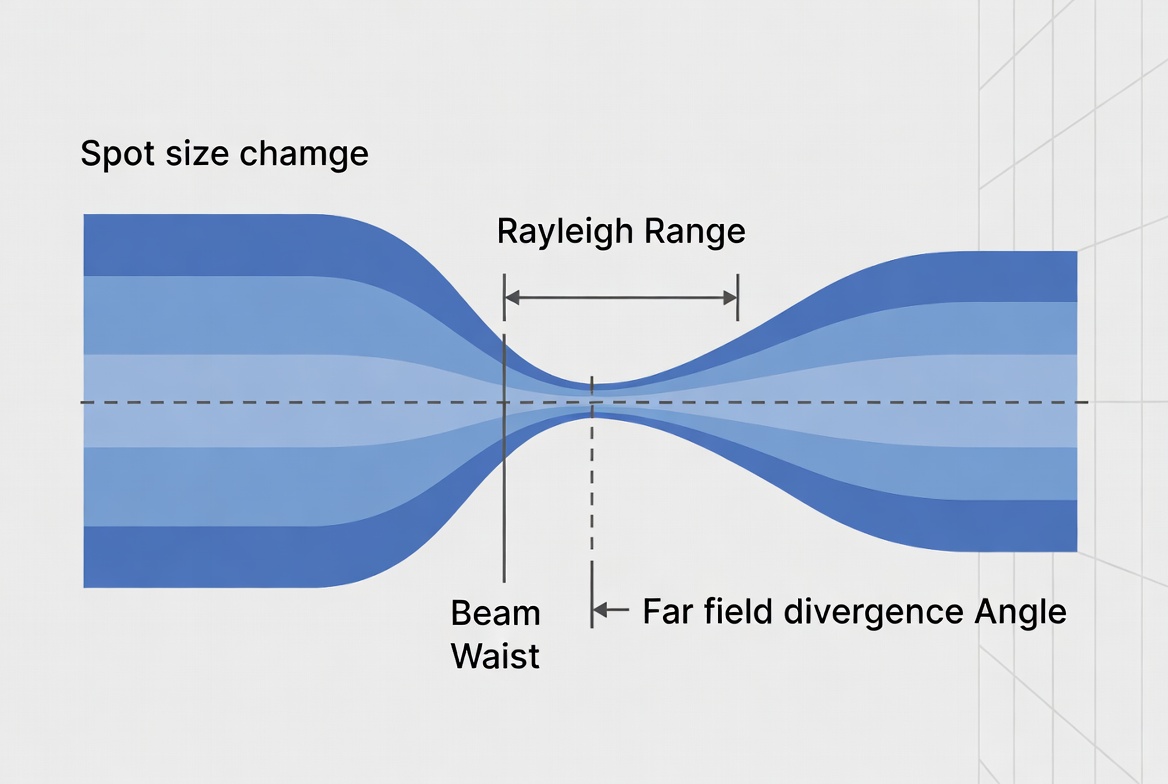

The beam waist is the location where the beam radius is smallest. Around this point, the Gaussian beam provides: [edmundoptics]
- Highest irradiance (power per unit area). [edmundoptics]
- Tightest focus, which is critical in cutting, welding, marking or high‑resolution imaging. [sciencedirect]
When you choose an industrial laser module, beam waist size and working distance jointly determine spot size on the workpiece and your depth of focus.
A Gaussian beam expands as it propagates away from the waist. The beam divergence describes how quickly the radius increases with distance. [optics.ansys]
Key implications for OEM design:
- Lower divergence means smaller spot size at longer distances, ideal for long‑range alignment, positioning and machine vision. [edmundoptics]
- Higher divergence can be acceptable for short‑distance sensing or near‑field processing, especially when a wider spot is desired. [edmundoptics]
Because Gaussian beams have well‑defined propagation formulas, optical engineers can accurately predict spot size and intensity at any position in the optical path, which simplifies system modeling in tools such as OpticStudio. [optics.ansys]
In real industrial systems, the native Gaussian beam is often modified or reshaped to match a process requirement. [s9fdb5f62abe7a148.jimcontent]

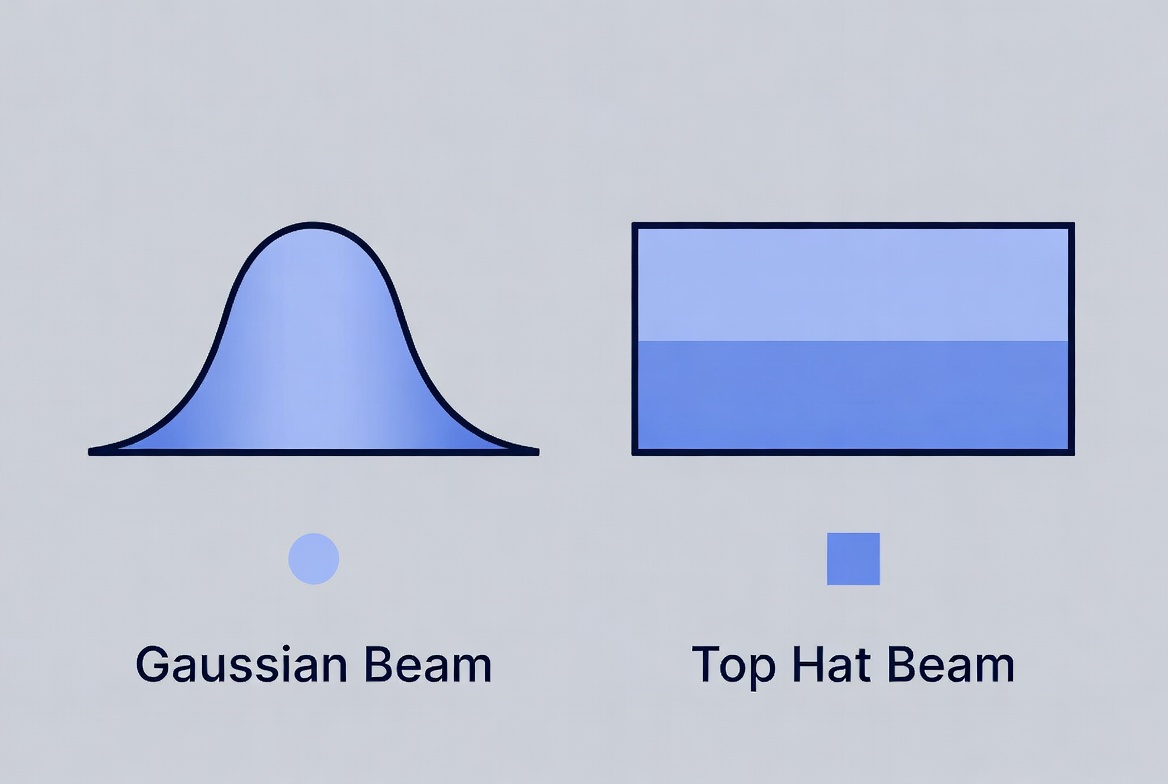

Below is a practical comparison of typical beam profiles you'll encounter in manufacturing and material processing: [eos]
Beam profile | Energy distribution (conceptual) | Typical strengths | Typical applications |
|---|---|---|---|
Gaussian | Peak at center, smooth decay to edges (edmundoptics) | High beam quality, easy to model, excellent focusing (edmundoptics) | General machining, marking, precision cutting, metrology (sciencedirect) |
Top‑hat (flat‑top) | Uniform intensity across beam, sharp edges (nmlaser) | Uniform heating, reduced edge effects, cleaner ablation (nmlaser) | Thin‑film processing, drilling, some medical treatments (nmlaser) |
Ring / donut | Low intensity center, high intensity ring (s9fdb5f62abe7a148.jimcontent) | Control of melt pool, reduced spatter, improved weld quality (s9fdb5f62abe7a148.jimcontent) | Welding, additive manufacturing, selective surface treatment (s9fdb5f62abe7a148.jimcontent) |
In many cutting, welding and AM processes, Gaussian beams remain the preferred starting point because they offer the best compromise between focusability, stability and optical efficiency. [s9fdb5f62abe7a148.jimcontent]
From our practical OEM experience and recent industry publications, Gaussian beam laser modules play a central role in several high‑growth application areas. [lt]
Metal additive manufacturing (AM) systems frequently use Gaussian fiber or diode‑pumped lasers as their primary energy source. [eos]
- The Gaussian beam's high spatial coherence allows tight focusing, enabling fine feature resolution. [sciencedirect]
- In combination with modern beam shaping modules, Gaussian beams can be broadened into flat‑top or ring profiles to increase build rates and improve melt‑pool stability. [s9fdb5f62abe7a148.jimcontent]
- Recent data from industrial AM platforms show up to 2× faster build rates when multiple beam profiles (from Gaussian to ring) are switchable in one system. [eos]
For OEMs, using a high‑quality Gaussian laser module as the seed source gives the flexibility to scale from R&D to production with minimal hardware changes.
In laser welding and cutting, the Gaussian beam is often the default starting point: [s9fdb5f62abe7a148.jimcontent]
- Its central energy concentration produces deep penetration in keyhole welding. [sciencedirect]
- When combined with ring‑shaped beam shaping, manufacturers have reported significant reductions in spatter and porosity, with more uniform weld seams. [nmlaser]
- In cutting operations, optimized Gaussian beams expand the process window across different materials, improving workflow and lowering cost. [s9fdb5f62abe7a148.jimcontent]
Industrial modules that maintain a clean Gaussian profile through delivery optics make downstream optimization easier and more repeatable.
Many machine vision and measurement systems rely on Gaussian line or spot lasers for triangulation, 3D scanning and alignment. [optics.ansys]
- Gaussian beams enable predictable line thickness and intensity after passing through cylindrical or Powell lenses. [edmundoptics]
- In fiber‑based delivery systems, preserving or recovering a Gaussian‑like profile directly improves measurement stability and coherence length. [etasr]
Recent research has demonstrated customized methods for restoring the Gaussian beam profile at fiber outputs, improving consistency while keeping costs low. [etasr]
One of the most important trends in industrial laser technology is beam shaping—transforming the original Gaussian profile into more application‑specific shapes. [eos]
Engineers increasingly use refractive beam shapers (lens systems) and diffractive optical elements (DOEs) to transform Gaussian beams into flat‑top, ring or other custom profiles. [hilarispublisher]
- Refractive beam shapers redistribute the intensity of a Gaussian beam without major diffraction loss, maintaining high optical efficiency. [nmlaser]
- Diffractive elements provide fine control over the phase front, enabling complex intensity patterns for advanced processing. [hilarispublisher]
These techniques allow OEMs to tune their process window—balancing speed, quality and cost—without replacing the core laser source.
Industry data from laser and AM suppliers highlight the impact of beam shaping on top of Gaussian sources: [lt]
- Beam‑shaped lasers have demonstrated up to 24% productivity increases in certain manufacturing workflows. [s9fdb5f62abe7a148.jimcontent]
- In metal AM, systems with switchable Gaussian and ring profiles can double build rates while maintaining part quality. [eos]
- Experimental work on transforming Gaussian profiles shows faster, more efficient and more precise material processing, with potential for new applications. [lt]
For an OEM customer, this means that selecting a Gaussian‑based industrial module now ensures compatibility with next‑generation beam shaping upgrades later.
From an OEM integration perspective, here are practical checkpoints to consider when specifying a Gaussian beam industrial laser module:
1. Clarify the working distance
Define the typical and maximum working distances so that beam waist and divergence can be optimized for your setup. [edmundoptics]
2. Specify required spot size and tolerance
Work backward from your process (e.g., line width, feature size, sensor pixel size) to calculate an acceptable spot size and its allowable variation. [optics.ansys]
3. Check beam quality and M⊃2;
A lower M⊃2; value means a beam closer to ideal Gaussian behavior, enabling tighter focusing and better long‑distance performance. [sciencedirect]
4. Consider fiber vs free‑space delivery
Fiber delivery can introduce distortions; methods exist to recover Gaussian‑like profiles, but they require attention to fiber end‑face quality and coupling. [etasr]
5. Plan for future beam shaping
If you foresee welding, AM or advanced micromachining, ensure your module's Gaussian profile is compatible with refractive or diffractive beam shaping optics. [hilarispublisher]

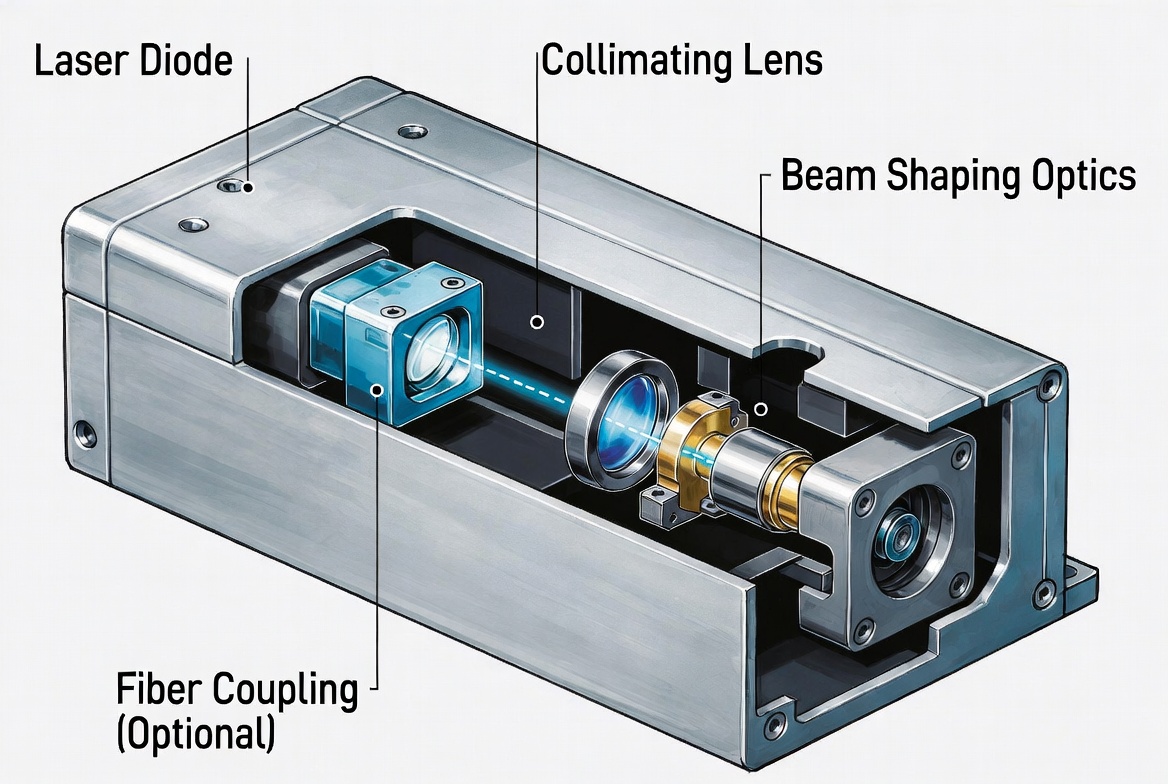

As a manufacturer focused on industrial laser modules and OEM customization, Aiming Laser Technology Co., Ltd. designs products specifically to leverage high‑quality Gaussian beams across diverse applications.
In typical projects, we support OEM and system‑integrator customers by:
- Co‑engineering beam parameters (power, wavelength, beam waist, divergence) to match your optical path, working distance and target materials.
- Providing custom optics to maintain or shape the Gaussian beam, including collimators, focusing lenses and line‑generating optics for vision systems.
- Ensuring long‑term stability and repeatability, so the Gaussian profile remains consistent across batches and over the product's lifetime.
- Offering OEM branding and mechanical customization, so modules integrate cleanly into your mechanical design and system enclosure.
If your current system suffers from inconsistent focus, unstable spot size or poor process repeatability, upgrading to a well‑controlled Gaussian beam industrial module is often the most cost‑effective way to unlock performance gains.
If you are designing or upgrading equipment that depends on stable, predictable laser performance, working with a partner that understands Gaussian beam behavior at both the optical and application level is critical.
At Aiming Laser Technology Co., Ltd., we provide:
- OEM‑ready industrial laser modules with optimized Gaussian beams.
- Custom optical and mechanical designs to fit your system architecture.
- Application‑oriented support from engineers who routinely build modules for alignment, machine vision, medical devices and manufacturing.
Contact our engineering team to discuss your project requirements, share your target working distance and spot size, and receive a tailored Gaussian‑beam module proposal.
1. Why is a Gaussian beam preferred in many laser manufacturing processes?
A Gaussian beam offers high beam quality, good spatial coherence and excellent focusability, allowing tighter spots and more precise energy delivery, which are essential for cutting, welding and additive manufacturing. [nmlaser]
2. Can I convert a Gaussian beam into other profiles like flat‑top or ring?
Yes. Using refractive beam shapers and diffractive optical elements, engineers routinely transform Gaussian beams into flat‑top, ring or custom profiles while maintaining acceptable efficiency. [hilarispublisher]
3. How does beam divergence affect my laser application?
Beam divergence controls how quickly the beam expands with distance. Lower divergence allows smaller spots at long range—ideal for alignment and vision—while higher divergence is acceptable for short‑range processing. [optics.ansys]
4. What happens if the Gaussian profile is distorted in my system?
Distortions from poor fiber cleaving, contamination or misalignment can degrade coherence and spot quality, leading to unstable processing and measurement errors; methods exist to recover the Gaussian profile at fiber outputs using controlled coupling and index‑matching techniques. [etasr]
5. How should OEMs specify Gaussian beam modules for new projects?
Start by defining working distance, target spot size, required power and process type. Then work with your module supplier to select beam waist, divergence, M⊃2; and optical configuration that best supports your application and possible future beam shaping. [nmlaser]
