Aiming Laser's Powell lens uniform line laser sources can be optimized for both Gaussian and flat-top beams by understanding how beam shape affects machine vision accuracy, process stability, and integration cost. This guide reframes the topic from a practical OEM and system integrator perspective so you can choose and specify the right beam profile for your application. [cthslaser]
In real machine vision projects, the choice between a Gaussian beam and a flat-top (top-hat) beam is rarely academic. It directly impacts image contrast, edge detection stability, cleaning or markings quality, and the long-term robustness of your production line. [opticsforhire]
From our experience as an OEM supplier of Powell-lens uniform line laser sources for machine vision and industrial automation, most project failures come not from the wrong wavelength or power, but from choosing the wrong beam profile for the job. In this article, we will systematically compare Gaussian and flat-top beams, show where each profile shines, and give you a step‑by‑step framework to select the right source for your line scan or inspection system. [api.p1.mks]

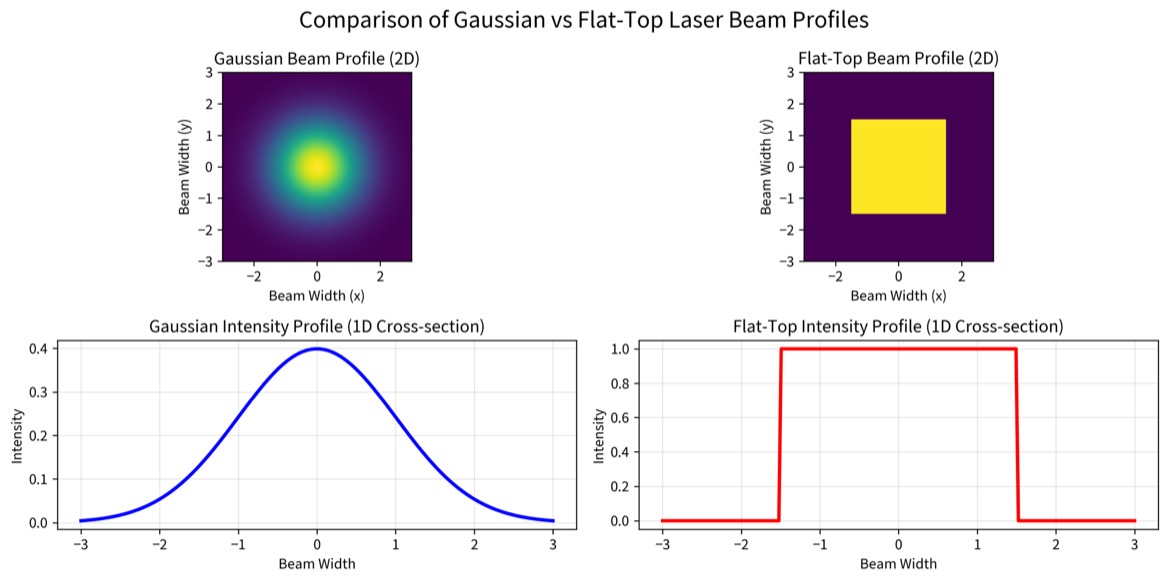

A Gaussian beam has an intensity profile that is highest at the center and smoothly decays toward the edges, typically following a bell‑shaped curve. This is the natural output of many laser diodes and DPSS lasers before any advanced beam shaping. [hantencnc]
Key characteristics of Gaussian beams include:
- High peak intensity in the center of the beam. [cthslaser]
- Gradual roll‑off at the edges, so the energy extends beyond the central spot. [hantencnc]
- Very good propagation over long distances with lower divergence compared with many reshaped beams. [api.p1.mks]
In industrial processing studies, Gaussian beams often offer a larger usable depth of focus than flat‑top beams, which can tolerate more defocus while still producing acceptable quality. For many OEMs, this makes Gaussian beams attractive in systems where working distance fluctuates or mechanical tolerances are tight on budget. [api.p1.mks]
A flat-top or top-hat beam is engineered to have nearly uniform intensity across its cross‑section, with much sharper intensity falloff at the edges. Instead of a bright center and dim edges, the beam looks like a plateau of almost constant brightness. [cthslaser]
Typical attributes of flat-top beams:
- Uniform intensity over the central area of the beam or line. [hantencnc]
- Lower peak intensity than a Gaussian beam of the same total power, because the energy is spread more evenly. [api.p1.mks]
- Higher system precision and more consistent process results in a tightly controlled focus region. [hantencnc]
Flat-top beams are ideal when you need every pixel, every point on the workpiece, or every feature in the field of view to receive nearly the same illumination or energy density. [lasercomponents]
In machine vision, the illumination defines what the camera can "see." When you project a line laser using a Powell lens, the resulting intensity profile along the line is influenced by both the original beam (Gaussian or flat-top) and the optical design of the lens. [opticsforhire]
For typical applications:
- Edge detection and profile measurement: Non‑uniformity can cause systematic measurement errors, especially at the boundaries of the ROI. [lasercomponents]
- Defect inspection: Hot spots can saturate the camera, while dark regions may hide small scratches or pits. [opticsforhire]
- High-speed line scan: Intensity variations convert directly to noise in gray values, forcing more aggressive image processing and potentially reducing throughput. [lasercomponents]
That is why high‑end machine vision systems use Powell lenses instead of simple cylindrical optics—to create a straight line with uniform intensity along its length, and to control how the beam profile is redistributed. [vyoptics]

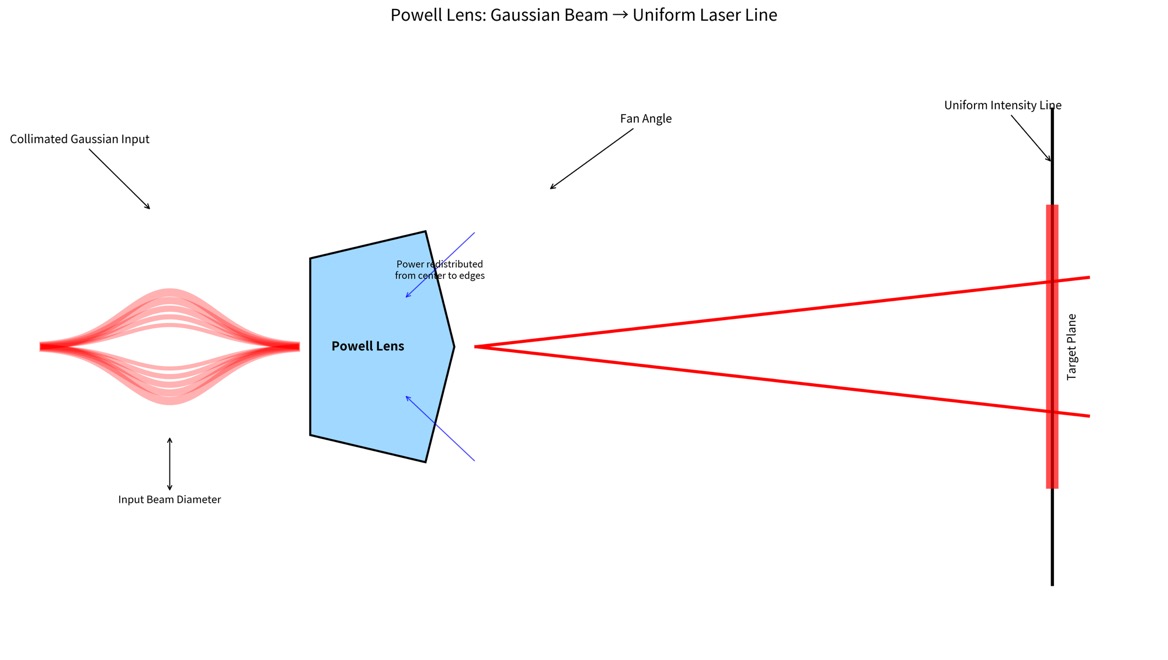

Powell lenses are specialized optics that transform a collimated input beam into a straight laser line with much more uniform intensity than what standard cylindrical lenses can achieve. They are widely used in machine vision alignment, 3D profiling, and inspection where a uniform line is critical. [vyoptics]
A Powell lens uses a carefully designed aspheric surface combined with a prism‑like geometry to redistribute the incoming beam's energy along the line. Compared with simple cylindrical lenses that produce lines with strong Gaussian hot spots, Powell lenses flatten the intensity profile and reduce the peak at the center. [vyoptics]
This means:
- A Gaussian input beam becomes closer to a "quasi flat-top" along the line, reducing center overexposure. [opticsforhire]
- The line uniformity can be optimized for specific fan angles and working distances, making it ideal for fixed‑geometry machine vision setups. [lasercomponents]
The table below summarizes key practical differences between Gaussian and flat-top beams in industrial and machine vision contexts. [cthslaser]
Aspect | Gaussian Beam | Flat-Top Beam (Top-Hat) |
|---|---|---|
Intensity profile | Peak in center, decays toward edges. (cthslaser) | Nearly uniform across beam area. (cthslaser) |
Peak intensity | Higher peak for same power, strong central hot spot. (cthslaser) | Lower peak, energy spread evenly. (api.p1.mks) |
Depth of focus | Typically larger usable depth of focus. (api.p1.mks) | Narrower depth of focus; performance drops faster with defocus. (api.p1.mks) |
Propagation | Better for long‑distance delivery and looser mechanics. (api.p1.mks) | Best at designed focus; less forgiving outside it. (api.p1.mks) |
Efficiency in process | Good where strong local intensity is required, e.g., cutting, drilling. (cthslaser) | Excellent where uniform dose or illumination is critical, e.g., marking, scribing, inspection. (cthslaser) |
Cost and complexity | Often lower cost; less complex optics. (hantencnc) | Higher due to beam‑shaping optics or diffractive elements. (api.p1.mks) |
Typical applications | Laser cutting, engraving, deep cleaning, long‑range alignment. (cthslaser) | Laser marking, solar scribing, precise surface treatment, machine vision line illumination. (cthslaser) |
For many OEM systems, the optimal solution is not "pure Gaussian vs pure flat-top," but rather a Gaussian source plus Powell optimization that delivers uniform line intensity in the field of view while retaining acceptable depth of focus and cost. [opticsforhire]

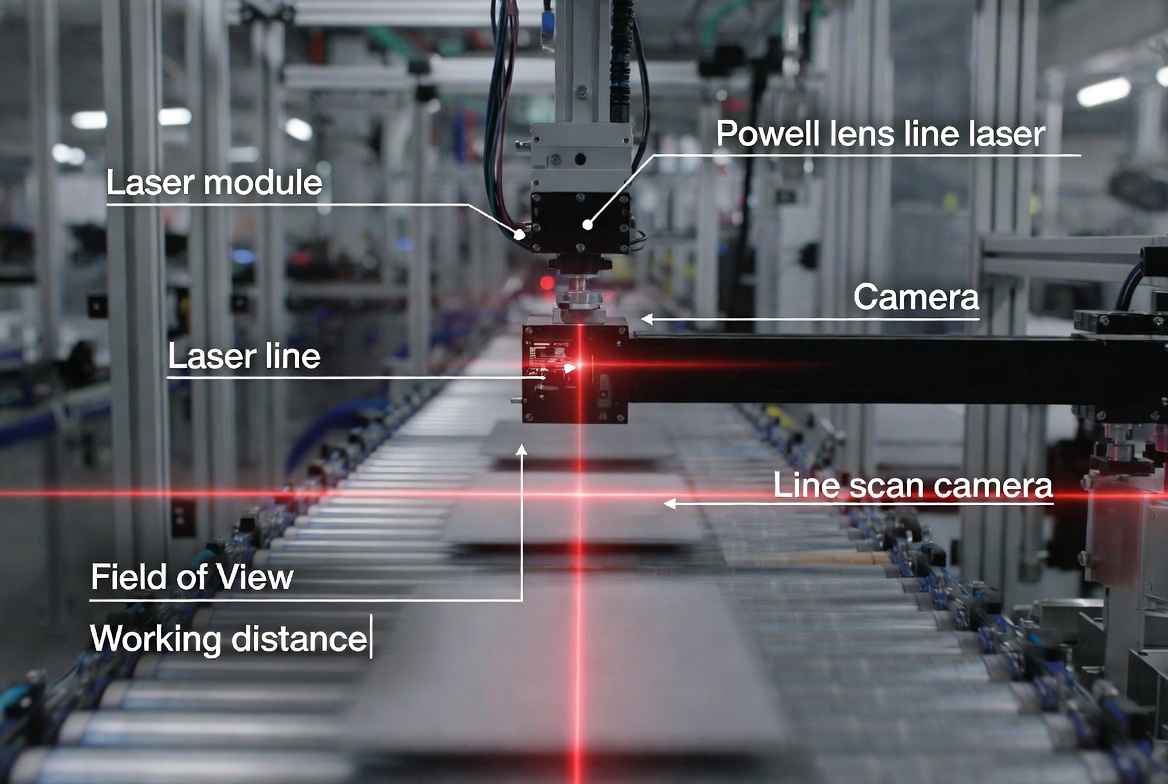

If your system relies on line scan cameras to inspect surface defects, dimensions, or profiles, you typically want the line intensity to be as uniform as possible across the field of view. [lasercomponents]
Choose a flat-top or Powell‑optimized line when:
1. You need consistent gray levels across the entire width of the conveyor or web. [opticsforhire]
2. Small variations in height or reflectivity must not translate to brightness gradients. [lasercomponents]
3. You are pushing high speeds and cannot afford aggressive image normalization.
In these cases, our Powell-lens line lasers with engineered uniformity across the fan angle can dramatically simplify image processing and boost measurement stability. [vyoptics]

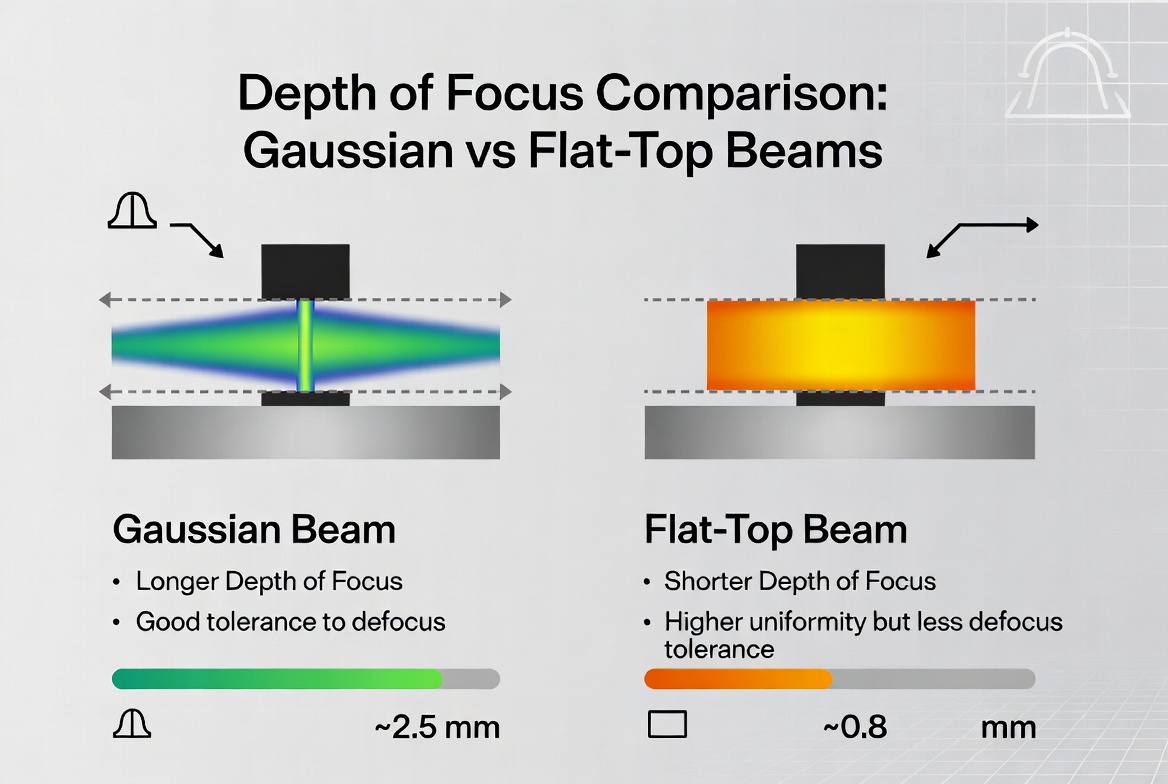

Process studies show that flat-top beams can deliver tighter control of process results, but often within a narrower depth of focus than Gaussian beams. For example, in laser scribing experiments, Gaussian beams maintained high-quality scribes over a defocus range of about ±17 mm, while flat-top beams offered high quality only within about ±1 mm. [api.p1.mks]
This implies:
- Use a Gaussian beam when your mechanics cannot guarantee tight focus or the workpiece height varies significantly. [api.p1.mks]
- Use a flat-top beam when you can maintain precise focus and require extremely uniform material removal or marking depth. [api.p1.mks]
For long‑throw alignment, projection, or situations where the operator or camera is far from the source, a Gaussian beam's propagation advantages are often more valuable than perfect uniformity. A Powell lens can still be used to linearize the projected line while leveraging the Gaussian beam's long‑range performance. [hantencnc]
From an OEM perspective, beam profile decisions must balance optical performance with mechanical tolerances, budget, and long‑term serviceability. [hantencnc]
Key design trade‑offs:
- Uniformity vs depth of focus: Flat-top profiles and aggressive beam shaping improve uniformity but reduce depth of focus; Gaussian profiles do the opposite. [hantencnc]
- Cost vs performance: More uniform beams generally require more complex optics or diffractive elements, increasing component and integration cost. [api.p1.mks]
- Integration vs robustness: Highly engineered flat-top solutions can be sensitive to misalignment; simpler Gaussian‑based designs may be more tolerant of field conditions. [hantencnc]
Choosing the right supplier for Powell lenses and line laser modules is critical, because the detailed design of the aspheric surface, coating, and alignment process determine how close you get to the ideal flat-top line in your actual working distance window. [vyoptics]
Based on industry data and field experience, you can use the following step‑by‑step approach:
1. Clarify your primary objective.
- Highest uniformity in camera pixels → prefer flat-top / Powell-optimized line.
- Maximum tolerance to focus shifts or height variation → prefer Gaussian with controlled shaping. [api.p1.mks]
2. Define mechanical tolerances and working distance.
- If you can hold focus within ±1 mm or better, you can fully benefit from a true flat-top process. [api.p1.mks]
- If your system allows only loose tolerance (±10–20 mm), Gaussian beams will usually outperform in process consistency. [api.p1.mks]
3. Quantify acceptable line non‑uniformity.
- For demanding metrology and inspection, specify a maximum intensity variation along the line (for example ±10–15%).
- For less critical alignment tasks, higher variation may be acceptable.
4. Match optics to camera and field of view.
- Select Powell lens fan angle to cover your FOV at the designed working distance. [vyoptics]
- Avoid overspecifying fan angle, which wastes power and can deteriorate uniformity. [opticsforhire]
5. Engage with your laser OEM early.
- Share drawings, camera specs, and mechanical constraints so the supplier can recommend Gaussian or flat-top style modules and the right Powell lens configuration. [lasercomponents]
As an OEM‑oriented supplier of Powell-lens uniform line laser sources, Aiming Laser focuses on tailoring beam profiles to the actual use conditions of your system, not just lab‑ideal specifications. By carefully matching diode selection, beam conditioning optics, and Powell lens geometry, we can deliver laser modules that meet your desired trade‑off between uniformity, depth of focus, and cost. [vyoptics]
Typical OEM services include:
- Custom fan angles and working distances for line scan and 3D profiling.
- Wavelength options tuned to your camera sensitivity and material response.
- Mechanical and electrical interface design for easy integration into your housings.
- Batch consistency for brands, wholesalers, and machine builders who need reproducible performance over large volumes.
If you are unsure whether Gaussian or flat-top is better for your next platform, our engineering team can review your drawings and propose a Powell-lens line laser configuration that fits your budget, performance, and lead‑time requirements. [opticsforhire]
For system integrators, machine builders, and brand owners, the safest approach is to quickly prototype with the right beam profile instead of guessing.
If you are developing or upgrading a machine vision or laser processing system and need to decide between Gaussian and flat-top style beams, contact Aiming Laser's technical team with your:
- Field of view and working distance
- Required line length and uniformity
- Camera model and pixel size
- Mechanical tolerances and environmental conditions
We will help you select or customize a Powell-lens uniform line laser source that balances performance, robustness, and cost for your specific OEM application. [lasercomponents]
No. While a flat-top beam provides more uniform intensity, it usually has a narrower depth of focus and higher system cost than a Gaussian beam. In many OEM systems with limited mechanical precision, a well‑controlled Gaussian beam combined with a Powell lens can deliver more reliable results. [hantencnc]
Software normalization can compensate for some intensity variation, but it cannot recover details lost to saturation or deep under‑exposure caused by strong hot spots. A Powell lens improves the optical uniformity at the source, which simplifies image processing, reduces false rejects, and increases inspection stability. [opticsforhire]
In pulsed cleaning and surface treatment, Gaussian beams concentrate energy in the center, which is useful for strong local cleaning but can increase the risk of over‑processing. Flat-top beams distribute the energy more evenly, which makes it easier to remove contaminants uniformly without damaging the substrate, especially when focus is tightly controlled. [cthslaser]
You should share your desired line length at the workpiece, working distance range, acceptable intensity non‑uniformity, wavelength preferences, power requirements, and mounting constraints. With these parameters, an OEM supplier can recommend whether a Gaussian or flat-top oriented solution with a Powell lens is the best fit. [vyoptics]
A single module can often be optimized for one primary use case. However, by carefully choosing the diode, optics, and Powell lens geometry, some designs can serve as a compromise—offering improved line uniformity over simple Gaussian optics while still maintaining reasonable depth of focus and propagation characteristics. The final choice depends on how strict your requirements are on each axis. [lasercomponents]
