Views: 222 Author: AimLaser Publish Time: 2026-04-27 Origin: Site
Infrared lasers are usually the smarter choice for night vision, but visible lasers still matter when human-eye visibility, training, or hybrid day–night use is critical. The right wavelength depends on your sensor type, range, stealth needs, and how your industrial or defense system is integrated. [nightvision.co]
Night vision systems work by amplifying low light or detecting infrared (IR) illumination reflected from a scene. Infrared lasers operate outside the visible spectrum, so you do not see the beam with the naked eye, while visible lasers sit in the 400–700 nm range and appear as red, green, or blue light. [axtontech]
In modern digital night vision, 850 nm IR is the most commonly used wavelength because camera sensors are highly sensitive there and deliver strong image quality and range. By contrast, 940 nm lasers are favored in fully covert scenarios where even a faint red glow from an illuminator must be minimized. [us.nightfoxstore]
Digital night vision and many security cameras rely on CMOS/CCD sensors with peak sensitivity in the near‑infrared band, typically around 800–900 nm. This is why 850 nm has become the de‑facto standard for IR illuminators and laser modules in surveillance, industrial vision, and consumer night vision products. [superlightingled]
Sensors can still respond to 940 nm, but sensitivity drops, so you often need more power to achieve the same range and image brightness. This trade‑off is central to wavelength selection: better sensitivity and range at 850 nm vs. better concealment at 940 nm. [us.nightfoxstore]
The table below summarizes how infrared and visible lasers behave in night‑vision‑related applications. [opticsplanet]
Aspect | Infrared Laser (850–940 nm) | Visible Laser (400–700 nm) |
|---|---|---|
Human-eye visibility | Invisible or barely visible to humans, slight red glow at 850 nm, reduced at 940 nm (us.nightfoxstore) | Clearly visible beam/dot, colour depends on wavelength (red, green, blue) (nightvision.co) |
Night vision visibility | Strongly visible through NV devices and IR-sensitive cameras (nightvision.co) | Visible both to NV and naked eye; may cause blooming or glare in some systems (opticsplanet) |
Typical use cases | Covert illumination, surveillance, industrial machine vision, alignment in dark environments (prophotonix) | Aiming aids, alignment visible to operators, training, safety marking (opticsplanet) |
Range vs power | Excellent range per watt at 850 nm; shorter range at 940 nm for the same power (us.nightfoxstore) | Range limited by eye safety and ambient light; beam clearly seen by observers (opticsplanet) |
Stealth | High, especially at 940 nm; 850 nm shows faint red source glow (us.nightfoxstore) | Low; beam and dot are obvious to anyone looking (opticsplanet) |
Eye‑safety constraints | Governed by IR laser safety standards, retinal hazard less obvious because beam is invisible (opticsplanet) | Eye safety more intuitive to users, but still tightly regulated (opticsplanet) |
Infrared lasers enhance covert imaging and illumination, while visible lasers prioritize operator feedback and human‑visible alignment. In many industrial OEM systems, the optimal solution is a carefully specified IR laser module that aligns with camera sensitivity curves and safety requirements. [prophotonix]
Most digital night vision binoculars, goggles, and security cameras use 850 nm IR as their primary illumination wavelength because it delivers the best balance between sensor sensitivity, image quality, and range. Users typically see a bright, detailed image through their NV device, while observers can only notice a subtle red glow at the source. [nightvision.co]
The higher sensitivity at 850 nm means less electrical power is required for the same effective illumination distance, which is critical in battery‑powered or thermally constrained systems. For industrial OEMs integrating laser modules into smart cameras or automated inspection lines, this efficiency can translate directly into longer life, smaller housings, or reduced cooling demands. [quarton]
In sensitive security, military, and wildlife observation scenarios, even the faint red glow of an 850 nm emitter can be unacceptable. That is where 940 nm IR lasers become attractive: their emission is deeper into the infrared, further outside human visual sensitivity, which significantly reduces visible signature. [axtontech]
The trade‑off is reduced camera sensitivity and shorter effective range for the same power level, meaning integrators must compensate with optics design, sensor gain, or higher output (within safety limits). Applications such as border surveillance, law enforcement, and correctional facilities often accept this range penalty in exchange for better concealment. [superlightingled]
Visible lasers remain important in aiming, alignment, and operator‑facing tasks where users must see the dot or line with their own eyes. In firearms applications, a visible laser helps shooters acquire targets quickly in low light without relying solely on optics, especially at short distances. [lasermate]
In industrial settings, visible laser modules are used for process alignment, material positioning, and safety marking when technicians must visually verify the beam location. In these cases, a night‑vision system may be present, but the laser's primary job is to communicate with humans, not just with sensors. [prophotonix]
Many OEMs design dual‑use systems that operate in both daylight and complete darkness. A visible laser may be preferred for daytime alignment and operator training, while an infrared laser module (often 850 nm) supports nighttime machine vision or surveillance. [opticsplanet]
For brands that serve defense or law‑enforcement markets, combining a visible aiming laser with a slaved IR laser for night vision allows consistent zeroing and user experience across lighting conditions. Thoughtful mechanical and optical integration of both wavelengths within a single module or device is now a common design request to industrial module manufacturers. [quarton]

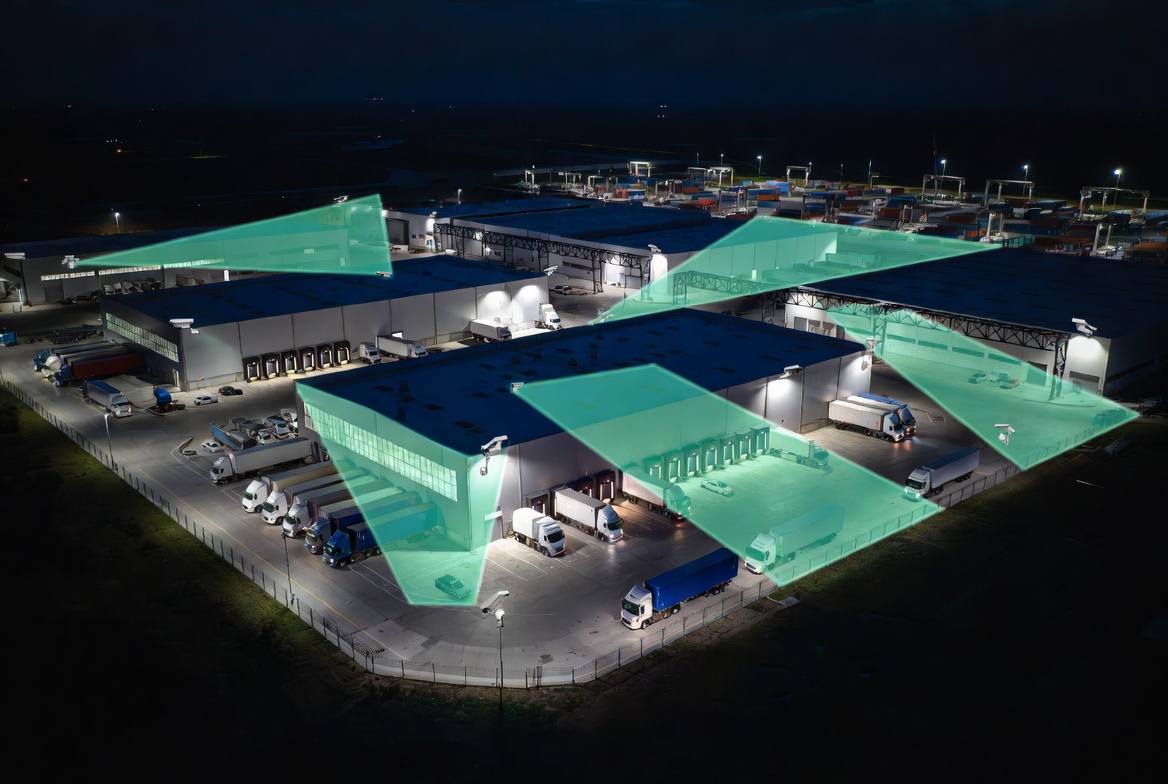

A global security integrator wants to standardize night‑vision camera modules for large logistics parks that operate 24/7. Their requirements include long‑range detection, deterrence of intruders, and compatibility with existing IP cameras. [prophotonix]
After lab testing, 850 nm IR lasers combined with high‑sensitivity sensors delivered a significantly brighter image and longer detection distance than 940 nm at equal power. The faint red glow at 850 nm actually supported a deterrent effect, subtly signaling that the area is monitored, which security stakeholders appreciated. [us.nightfoxstore]
In contrast, a law‑enforcement client operating in high‑risk facilities demanded zero visible signature from their night‑vision illuminators. During field trials, 850 nm sources were occasionally detected by attentive subjects due to the small red glow at the emitter, despite not seeing the beam itself. [axtontech]
The integrator switched to 940 nm IR laser modules and paired them with optimized camera settings and higher gain to recover range. The result was slightly reduced maximum detection distance but a much lower risk of exposing surveillance positions, which aligned with the client's operational priorities. [superlightingled]
Use this simple checklist when choosing between infrared and visible lasers for night vision‑related applications. [nightvision.co]
1. Define your primary "viewer." Is it a human eye, a night‑vision goggle, a CMOS camera, or all three. [opticsplanet]
2. Rank stealth vs. range. If you need maximum covert performance, prioritize 940 nm; if you need maximum range and image clarity, prioritize 850 nm. [us.nightfoxstore]
3. Clarify day vs. night usage. For daytime alignment or training, visible lasers remain extremely useful; pair them with IR only if night performance is also required. [lasermate]
4. Check sensor sensitivity curves. Match the laser wavelength to your sensor's peak responsivity wherever possible. [nightvision.co]
5. Confirm safety regulations and power limits. Both visible and infrared lasers must comply with laser safety standards; invisible IR beams can be riskier because users cannot "see" danger. [opticsplanet]
6. Consider environmental factors. Fog, dust, and rain can scatter light; near‑infrared wavelengths often balance penetration and scattering better than shorter visible wavelengths for imaging. [axtontech]
Application Type | Recommended Wavelength | Rationale |
|---|---|---|
General digital night vision (consumer) | 850 nm IR | Strong camera sensitivity and range, acceptable minor glow (us.nightfoxstore) |
Covert law‑enforcement / military surveillance | 940 nm IR | Reduced visible signature, acceptable range trade‑off (us.nightfoxstore) |
Industrial machine vision in dark environments | 808–850 nm IR | Good sensor response and illumination uniformity (prophotonix) |
Wildlife observation | 850 nm or 940 nm IR | 850 nm for image quality; 940 nm if animals react to glow (us.nightfoxstore) |
Human visual alignment and safety marking | Red/green visible | Immediate human perception, simple training and procedures (opticsplanet) |
Dual‑use day/night weapons or tools | Visible + 850 nm IR | Daytime visibility, nighttime NV compatibility (opticsplanet) |

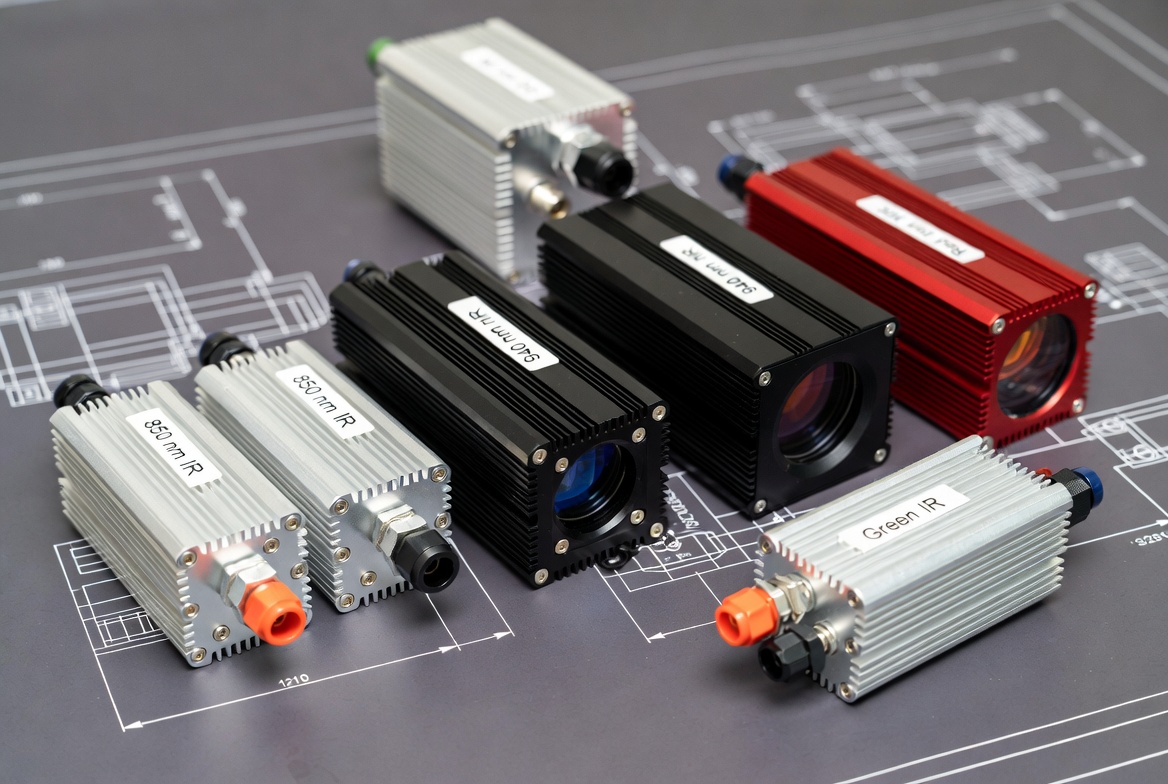

Industrial and defense OEM customers sourcing laser modules for night‑vision‑enabled systems usually focus on a few non‑negotiable points. [quarton]
- Wavelength accuracy and stability to match camera sensitivity and avoid image artefacts. [quarton]
- Ruggedized housings rated for shock, vibration, and temperature extremes in industrial and field environments. [prophotonix]
- Optical options such as fixed focus, line generation, or adjustable focus for different working distances. [lasermate]
- Electrical integration including wide input voltage, low noise, and simple control interfaces for system‑level integration. [prophotonix]
- Compliance with RoHS and international laser safety standards for export and deployment. [lasermate]
Manufacturers who specialize in industrial laser modules can customize wavelength, optics, housing, and electronics around your exact application rather than forcing compromises. For night‑vision OEMs, this may include tailored 850 nm or 940 nm modules with specific beam profiles, power outputs, and mechanical footprints optimized for your camera platform. [quarton]
By combining engineering support with high‑reliability components, a specialist supplier helps you accelerate development, reduce prototyping cycles, and ensure long‑term stability in the field. This is especially critical in security, defense, and industrial automation, where system downtime or performance drift is unacceptable. [axtontech]
If you are designing a new night‑vision camera, smart sensor, or industrial inspection system, choosing the right wavelength at the beginning will save you costly redesigns later. Clarify your priorities around stealth, range, sensor type, and regulatory requirements, then specify the infrared or visible laser module that best aligns with your product roadmap. [superlightingled]
When you are ready, collaborate closely with an industrial laser‑module manufacturer that understands both infrared and visible wavelengths for night vision. They can help you prototype, test, and refine 850 nm, 940 nm, or hybrid solutions so your system performs reliably in real‑world darkness. [lasermate]
1. Why do most digital night‑vision devices use 850 nm instead of 940 nm?
Most digital night‑vision sensors have higher sensitivity around 850 nm, so you get better image brightness and range for the same power compared with 940 nm. [us.nightfoxstore]
2. Is 940 nm infrared completely invisible to humans?
940 nm IR is largely outside human visual sensitivity, but many illuminators still show a faint red glow at the source if viewed directly, so it is not perfectly invisible. [us.nightfoxstore]
3. Can I use a visible laser with night vision?
Yes, night‑vision devices can see visible lasers, but the beam may be bright enough to cause blooming or glare in some systems, and it removes the stealth advantage of infrared. [opticsplanet]
4. Which wavelength is better for wildlife observation at night?
850 nm usually delivers better image quality and range, but 940 nm can be preferable if animals are sensitive to the visible glow of 850 nm emitters. [nightvision.co]
5. How do I choose between infrared and visible lasers for an industrial project?
Use visible lasers when humans must clearly see the beam for alignment or safety; choose infrared when your primary "viewer" is a sensor or night‑vision device and you need minimal visual distraction or improved stealth. [prophotonix]
1. Nightfox. "850nm vs 940nm. Which infrared wavelength is better?" https://us.nightfoxstore.com/blogs/news/850nm-vs-940nm-which-infrared-wavelength-is-better [us.nightfoxstore]
2. ProPhotonix. "Industrial Laser Modules." https://www.prophotonix.com/led-and-laser-products/laser-modules/all-laser-modules [prophotonix]
3. Night Vision NZ. "Night Vision 101." https://nightvision.co.nz/night-vision-101 [nightvision.co]
4. OpticsPlanet. "How to Select an IR Laser for Night Vision Use." https://www.opticsplanet.com/howto/how-to-select-an-ir-laser-for-night-vision-use.html [opticsplanet]
5. AXTON. "Tech Brief – Understanding IR Wavelengths for Security Lighting." https://axtontech.com/tech-brief-understanding-ir-wavelengths-for-security-lighting [axtontech]
6. SuperLightingLED. "Key Differences Between NIR LED Near Infrared Light Wavelengths." https://www.superlightingled.com/blog/differences-between-nir-led-near-infrared-light-wavelengths [superlightingled]
7. Quarton. "IR Laser Modules for Industrial Alignment." https://www.quarton.com/ir-laser-modules.htm [quarton]
8. Lasermate Group Inc. "Laser Modules." https://lasermate.com/products/lasers/laser-modules [lasermate]
