Views: 222 Author: AimLaser Publish Time: 2026-04-26 Origin: Site
Blue lasers excel in high‑precision, high‑power industrial work, while green lasers dominate where human eye visibility and contrast are critical. Choosing the right module for your project means balancing power efficiency, beam quality, material interaction, and real‑world application demands, not just wavelength on paper. [dwcnclaser]
In this guide, we will compare blue laser and green laser technologies from a practical, engineering and end‑user perspective, with a focus on industrial laser modules and OEM integration. Drawing on Aiming Laser Technology's manufacturing experience, we will look beyond theory to discuss real application scenarios, lifetime costs, and design trade‑offs that matter to system integrators and brand owners. [lasercomponents]

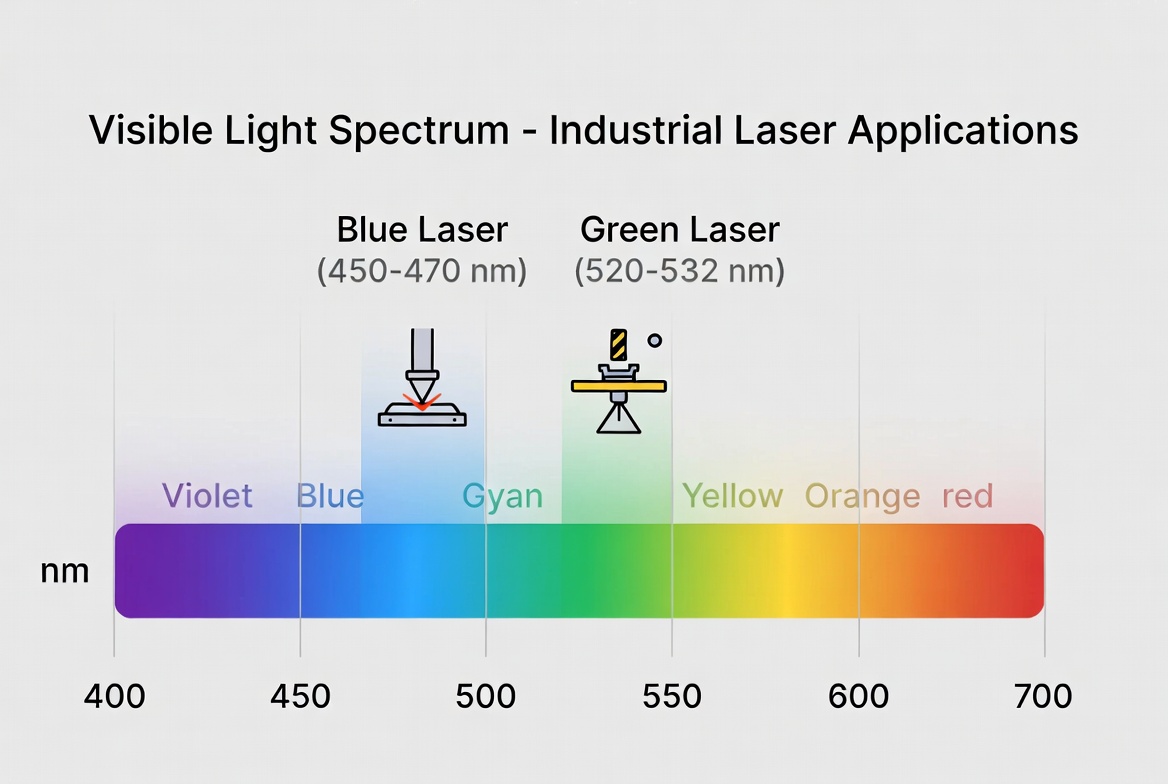

Blue and green lasers are both visible light sources, but they operate at different wavelengths, which strongly affects visibility, focusability, and interaction with materials. Blue industrial diodes typically emit around 450–470 nm, while green diodes or DPSS sources operate near 520–532 nm. [ams-osram]
From a physics standpoint, shorter‑wavelength blue light can be focused into a smaller spot size, which improves resolution and energy density on the workpiece. Green light, however, is much closer to the peak sensitivity of the human eye, so it appears significantly brighter than blue at the same optical power. [kguttag]
- Blue laser (≈450–470 nm): Higher precision potential, stronger absorption in many metals and certain polymers. [compoundsemiconductor]
- Green laser (≈520–532 nm): Superior human‑eye visibility, excellent for pointing, alignment, projection, and some marking tasks. [heatsign]
When engineers talk about power efficiency, we usually mean wall‑plug efficiency, i.e., how much optical power you get out per watt of electrical power in. Modern visible InGaN diodes (blue and green) can achieve wall‑plug efficiencies around 30–40% at several watts of output, depending on design and operating conditions. [compoundsemiconductor]
For example, one commercial blue diode at around 465 nm has been reported to deliver about 5.2 W optical output at 37% wall‑plug efficiency when driven at 3 A. Green InGaN diodes optimized for projection and display applications also reach high efficiencies and maintain performance up to about 85 °C without active cooling. [ams-osram]
From a module designer's viewpoint:
- Blue diodes: Often slightly ahead in high‑power cutting/engraving efficiency due to robust designs at 3–5 W and above. [dwcnclaser]
- Green diodes: Highly efficient at low–mid power with good thermal stability, especially in direct‑diode architectures. [ams-osram]
For user‑facing products, perceived brightness per watt matters as much as electrical efficiency. At equal optical power, a 532 nm green beam can look several times brighter than a blue beam, because the human visual system peaks near green. [kguttag]
One analysis notes that a typical blue laser around 455 nm produces roughly 33 lumens per watt, while optimized wavelengths closer to green can achieve far higher luminous output per watt in display scenarios. This is why green lasers dominate pointers, alignment tools, and long‑distance targeting where visibility and contrast are key. [heatsign]
> Key takeaway: Blue lasers may win on material processing efficiency, while green lasers win on visibility efficiency for human observers. [dwcnclaser]
From our experience supporting OEM customers in industrial automation, blue laser modules are often the first choice when the core requirement is material processing or precision. [lasercomponents]
The shorter wavelength of blue light allows a tighter focus, increasing energy density and enabling fine features in engraving and micro‑machining. Many metals and some plastics absorb blue light more strongly than infrared, which makes blue modules effective for: [compoundsemiconductor]
- Fine metal engraving (logos, serial numbers, QR codes).
- High‑resolution plastics marking where contrast is required.
- Thin‑sheet cutting and micro‑drilling for electronics or precision components.
High‑power blue modules (e.g., 3–6 W and above) with good beam shaping and thermal design can offer excellent throughput and long‑term stability. For OEMs, that translates into faster marking lines, lower per‑part energy cost, and fewer maintenance interruptions. [rp-photonics]
Researchers and instrument manufacturers also leverage blue lasers when they need shorter wavelengths for fluorescence excitation or high‑resolution optical systems. Because blue can be focused to smaller spot sizes, it is often used in: [dwcnclaser]
- Microscopy and fluorescence imaging.
- Optical data storage and scanning systems.
- Experimental setups where specific blue‑absorbing dyes or materials are involved.
Green lasers are the workhorse choice wherever the human eye is the primary sensor. For many non‑processing applications, their brightness and contrast provide superior user experience. [heatsign]
A green laser line or dot remains highly visible over long distances and in brighter ambient conditions compared to blue or red at the same power. That makes green modules ideal for: [heatsign]
- Construction and alignment tools (line lasers, cross lines, plumb and level).
- Long‑range pointers and surveying aids.
- Machine vision alignment where operators still visually confirm positions.
Industrial marking experts highlight that green lasers also work well on certain reflective metals like copper and gold and on plastics, producing high‑contrast, fine marks when parameters are tuned correctly. In medical device manufacturing, green modules are often chosen for precise, yet clearly visible, guides and markings. [heatsign]
Green is the primary brightness driver in projection and display systems, because of its central role in the eye's sensitivity curve. Direct green diodes with wide operating temperature ranges and efficient performance simplify projector and HUD optical design and cooling. [kguttag]
- Pico projectors and HUDs often use direct green and blue InGaN diodes for compact, high‑brightness engines. [ams-osram]
- HMI and interface devices benefit from green pointers or indicators for intuitive visibility and user comfort. [kguttag]
Aspect | Blue Laser Module | Green Laser Module |
|---|---|---|
Typical wavelength | ≈450–470 nm (dwcnclaser) | ≈520–532 nm (dwcnclaser) |
Wall‑plug efficiency | High, up to ~37% at multi‑watt levels in some devices (compoundsemiconductor) | High, efficient especially in direct‑diode designs with wide temp range (ams-osram) |
Perceived brightness | Lower perceived brightness per watt for the human eye (dwcnclaser) | Much higher perceived brightness at same optical power (dwcnclaser) |
Focusability | Very tight focus, excellent for fine features and high energy density (dwcnclaser) | Slightly larger spot at equal optics, still suitable for many tasks (dwcnclaser) |
Best for materials | Metals, some plastics, applications needing strong blue absorption (dwcnclaser) | Certain plastics, copper, gold, and surfaces needing high‑contrast marks (heatsign) |
Typical use cases | Cutting, engraving, micro‑machining, scientific instruments (dwcnclaser) | Alignment, pointing, projection, visibility‑driven marking and guiding (dwcnclaser) |
Thermal behavior | Needs robust heat sinking at higher powers (compoundsemiconductor) | Direct green diodes rated up to ~85 °C without active cooling (ams-osram) |
UX perspective | Better for machine‑centric performance where users see results on material (dwcnclaser) | Better for operator‑centric systems where humans see the beam (dwcnclaser) |
This table reflects common tendencies, but the optimal choice still depends on your application, duty cycle, and mechanical constraints. [compoundsemiconductor]

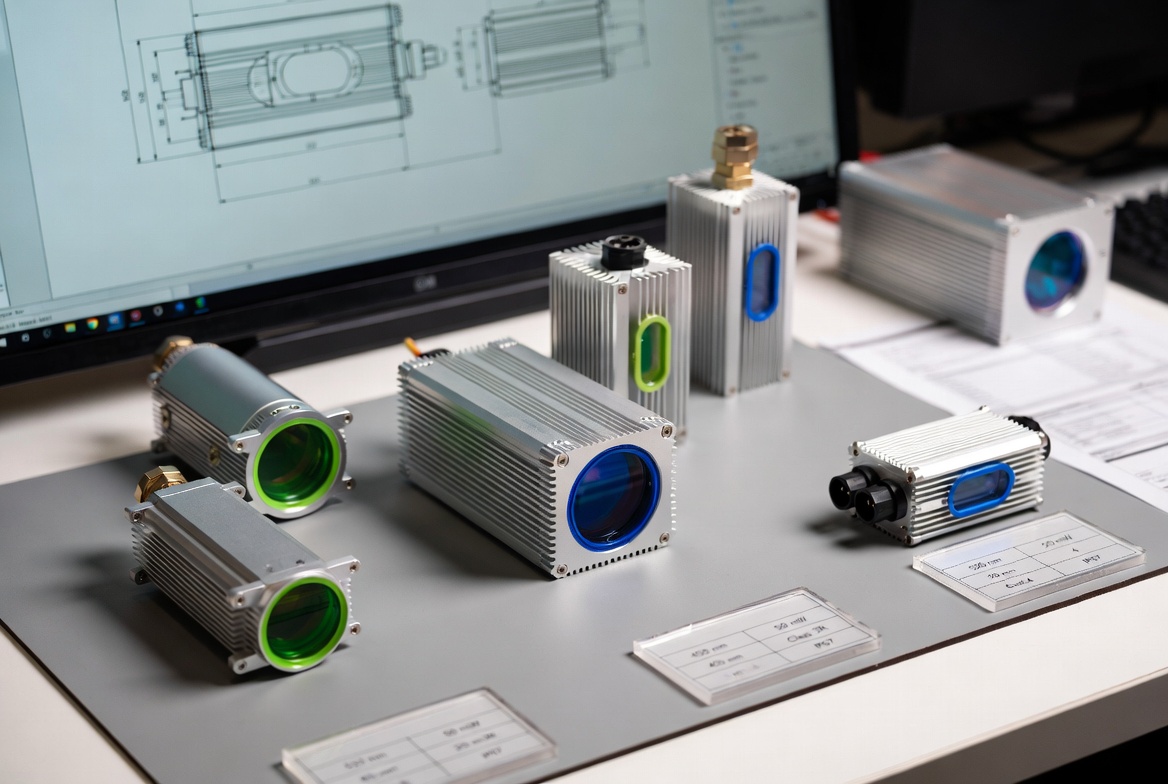

From an OEM perspective, the "best" laser is the one that integrates cleanly into your system while meeting long‑term reliability and regulatory requirements. [rp-photonics]
High‑quality laser module manufacturers emphasize robust mechanical design, stable optics, and thorough testing as core to long‑term performance. As application requirements become more complex, production has to address: [linkedin]
- Shock and vibration resistance for industrial environments. [lasercomponents]
- Long‑term power stability and low drift across temperature ranges. [lasercomponents]
- Consistent focus and beam quality across production batches. [rp-photonics]
OEM modules should come fully aligned and sealed so that integrators do not need to perform post‑production alignment or optical calibration. This lowers assembly time, reduces field failures, and ensures consistent experience for the end user. [rp-photonics]
Well‑designed OEM modules provide standardized mechanical and electrical interfaces to simplify integration. At the same time, advanced manufacturers can customize: [rp-photonics]
- Output wavelength and power within blue or green ranges.
- Beam shape (dot, line, cross, custom patterns) and divergence.
- Housing size, connector types, and environmental sealing level.
For brand owners and system builders, this combination of standard platforms plus custom options reduces development risk while allowing differentiated end products. [lasercomponents]
To illustrate how these trade‑offs play out, consider two typical OEM scenarios we frequently see in industrial projects. [linkedin]
A manufacturer wants to mark traceable QR codes on stainless‑steel components at line speeds above 200 pieces per minute. They need permanent, high‑contrast marks with small feature sizes. In this case:
- A blue laser module with several watts of output, engineered for tight focus and stable cooling, is usually preferred. [dwcnclaser]
- The shorter wavelength improves absorption and allows fine spot sizes for dense codes. [compoundsemiconductor]
- Operators mostly view the result on the metal, not the beam itself, so human‑eye brightness is secondary. [dwcnclaser]

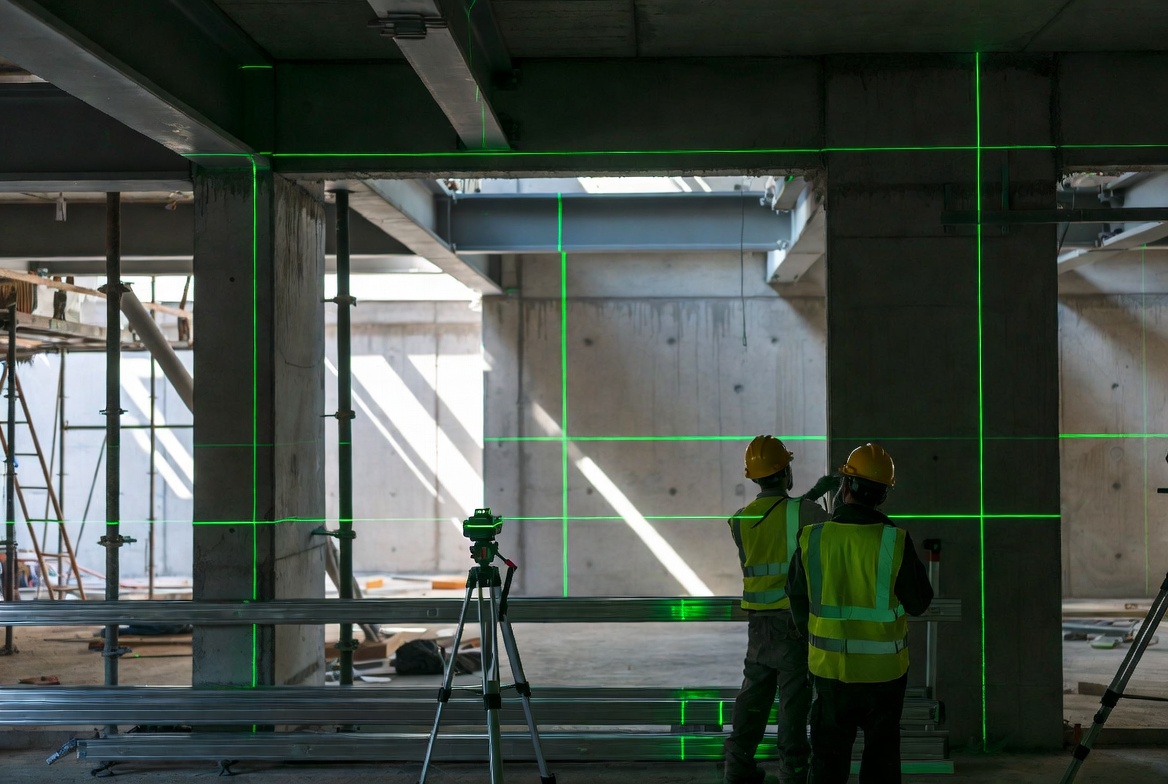

A construction OEM is designing a battery‑powered cross‑line laser tool that must stay visible in daylight on concrete and steel surfaces. Here:
- A green laser module around 520–532 nm provides much better visibility and perceived brightness at modest power levels. [heatsign]
- Good luminous efficiency enables longer battery life without sacrificing line visibility. [kguttag]
- Safety and regulatory labeling are straightforward with well‑designed Class 2 or 3 modules. [alibaba]
These examples show why wavelength choice is always application‑specific, even when both blue and green modules are available at similar price points. [dwcnclaser]
To help non‑specialists make a confident decision, it is useful to follow a step‑by‑step selection framework.
1. Define the primary objective
Is your top priority material processing performance or human visual visibility?
2. List target materials and surfaces
Identify metals, plastics, coatings, and required mark type (engraving, color change, surface ablation).
3. Specify optical and mechanical constraints
Required spot size, working distance, available space for the module, and cooling options.
4. Set duty cycle and lifetime targets
Continuous operation, intermittent use, rated lifetime (e.g., >10,000 hours at operating temperature). [ams-osram]
5. Align with regulations and safety class
Determine acceptable laser class based on application context and user exposure. [alibaba]
6. Choose wavelength range
- Blue if precision and absorption on metals/plastics dominate.
- Green if human visibility, alignment, or projection dominates. [heatsign]
7. Optimize with your OEM partner
Work with the module manufacturer to refine power, optics, housing, and interfaces based on tests and prototypes. [lasercomponents]
Regardless of color, professional laser modules must meet safety and regulatory standards in their target markets. This includes accurate classification (Class I, II, IIIa, IIIb, IV), proper labeling with wavelength and maximum power, and adherence to FDA/CDRH or equivalent regulations. [alibaba]
Best practices recommended by industry sources include:
- Clear labeling of class, wavelength, and power on every module.
- Basic laser safety training for employees and key customers who operate the device. [alibaba]
- Designing housings and optics to minimize stray reflections and support safe maintenance. [alibaba]
Over the long term, investing in higher‑quality blue or green modules often reduces total cost of ownership through longer lifetimes, less drift, and fewer replacements. For OEMs and brand owners, this translates into fewer warranty claims and stronger reputations for reliability. [linkedin]
As a manufacturer focused on industrial laser modules and OEM solutions, Aiming Laser Technology collaborates closely with foreign brand owners, wholesalers, and producers to match each project with the right wavelength and module architecture. [linkedin]
Based on best practices shared in the industry, strong OEM partners typically offer:
- Application‑driven consulting on blue vs. green selection, power levels, and optics based on real production environments. [rp-photonics]
- Customized mechanical designs, connectors, and mounting features for fast integration into existing systems. [rp-photonics]
- Strict quality control workflows for every batch, including optical power, beam profile, and thermal testing. [linkedin]
If your product roadmap includes both processing‑oriented and visibility‑oriented devices, partnering with a single manufacturer for both blue and green modules can simplify your supply chain and design validation. [lasercomponents]
From an industrial and OEM perspective, the most reliable rule of thumb is:
- Choose blue lasers when the priority is high‑precision processing, strong absorption in metals or certain plastics, and high energy density on the workpiece. [compoundsemiconductor]
- Choose green lasers when the priority is human visibility, long‑range alignment, projection, or clearly visible positioning aids. [dwcnclaser]
For many product portfolios, the optimal strategy is not choosing one color forever, but deploying both where each performs best. Working with an experienced laser module manufacturer helps you evaluate prototypes, compare real‑world performance, and refine your design before mass production. [lasercomponents]
If you are planning a new device or upgrading an existing product and are unsure whether a blue or green laser module will give you the best balance of efficiency, visibility, and cost, collaborate early with your OEM partner to test both options on your actual materials and in your real operating environment. [rp-photonics]
Q1. Which is more energy‑efficient, blue or green laser modules?
Both blue and green InGaN diodes can offer wall‑plug efficiencies around 30–40% at certain power levels, so the more efficient choice depends on specific diode designs and operating conditions. Blue diodes often excel at high‑power industrial processing, while green diodes are highly efficient at providing visible brightness for alignment and projection. [kguttag]
Q2. Why do green lasers look brighter than blue at the same power?
The human eye is most sensitive near green wavelengths, so a 532 nm green beam appears several times brighter than a blue beam with the same optical power. This is why green is preferred for laser pointers, construction alignment tools, and other applications where operators must clearly see the beam. [kguttag]
Q3. Are blue lasers better for metal engraving than green lasers?
For many metals, blue lasers offer stronger absorption and allow smaller focused spots due to their shorter wavelength, which can improve engraving resolution and processing speed. However, for certain reflective metals like copper and gold, well‑tuned green lasers can also produce high‑contrast marks, so application testing is essential. [compoundsemiconductor]
Q4. How important is thermal design in blue and green laser modules?
Thermal design is crucial for both colors because junction temperature directly affects output power, wavelength stability, and lifetime. Direct green diodes are often specified to operate up to about 85 °C without active cooling, while high‑power blue diodes require carefully engineered heat sinking in industrial modules. [ams-osram]
Q5. What should OEMs focus on when selecting a laser module supplier?
OEMs should look for robust quality management, thorough optical and environmental testing, clear datasheets, and flexible customization for wavelength, optics, housing, and interfaces. A supplier that provides fully aligned, ready‑to‑integrate OEM modules with documented safety and regulatory compliance will significantly reduce development time and lifecycle costs. [linkedin]
